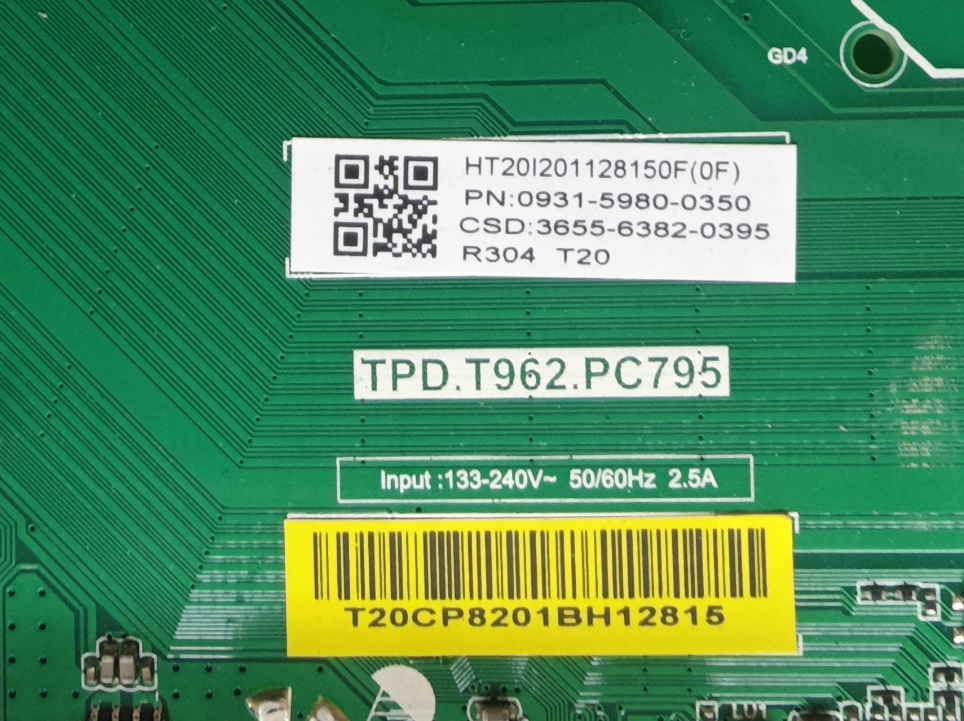

HT２０１２０１１２８１５０F（０Ｆ）
ＰＮ：０９３１－５９８０－０３５０
ＣＳＤ：３６５５－６３８２－０３９５
Ｒ３０４ Ｔ２０
TPD.T962.PC795
T20CP8201BH12815
先看开机日志
原eMMC
TXL:BL1:1ef924:56431c;FEAT:ADFD718C;POC:0;RCY:0;EMMC:0;READ:0;0.0;CHK:0;
TE: 84317
BL2 Built : 12:59:51, Jan 3 2018.
txl g3eab014 - xiaobo.gu@droid12
Board ID = 0
set vcck to 1100 mv
set vddee to 1000 mv
DRAM reset...
init panel power
board_id = 0
CPU clk: 1200MHz
DQS-corr enabled
DDR scramble enabled
DDR4 chl: Rank0+1 @ 792MHz - FAIL
DDR4 chl: Rank0 @ 792MHz
bist_test rank: 0 22 00 44 39 19 59 1e 00 3d 40 21 5f 1f 00 3f 3a 1e 57 1d 00 3b 40 21 5f 664 - PASS
Rank0: 2048MB(auto)-2T-18
AddrBus test pass!
-s
Load fip header from eMMC, src: 0x0000c200, des: 0x01400000, size: 0x00004000
Load bl30 from eMMC, src: 0x00010200, des: 0x01100000, size: 0x0000d600
Load bl31 from eMMC, src: 0x00020200, des: 0x10100000, size: 0x0001b400
Load bl33 from eMMC, src: 0x0003c200, des: 0x01000000, size: 0x000dbc00
NOTICE: BL3-1: v1.0(debug):e46962f
NOTICE: BL3-1: Built : 17:20:18, Apr 20 2017
aml log : bl31 normal boot !
[Image: txl_v1.1.3166-87ff079 2018-01-02 17:24:45 jianxin.pan@droid06]
OPS=0x02
35 a9 29 c1 1 70 5b cc 4f 73 6f 62 [0.664231 Inits done]
secure task start!
high task start!
low task start!
INFO: BL3-1: Initializing runtime services
WARNING: No OPTEE provided by BL2 boot loader
ERROR: Error initializing runtime service opteed_fast
INFO: BL3-1: Preparing for EL3 exit to normal world
INFO: BL3-1: Next image address = 0x1000000
INFO: BL3-1: Next image spsr = 0x3c9
U-Boot 2015.01-ga486eb7 (Aug 20 2018 - 16:56:02), Build: jenkins-Matrix_release-1275
DRAM: 2 GiB
Relocation Offset is: 76e98000
register usb cfg[0][1] = 0000000077f63610
gpio: pin GPIOH_3 (gpio 31) value is 1
gpio: pin GPIOH_2 (gpio 30) value is 1
gpio: pin GPIODV_5 (gpio 21) value is 1
gpio: pin GPIOZ_1 (gpio 39) value is 1
gpio: pin GPIOAO_2 (gpio 83) value is 1
gpio: pin GPIOAO_11 (gpio 92) value is 1
MMC: aml_priv->desc_buf = 0x0000000073e98d50
aml_priv->desc_buf = 0x0000000073e9aee0
SDIO Port B: 0, SDIO Port C: 1
emmc/sd response timeout, cmd8, status=0x1ff2800
emmc/sd response timeout, cmd55, status=0x1ff2800
[mmc_init] mmc init success
mmc read lba=0x14000, blocks=0x400
Amlogic multi-dtb tool
Multi dtb detected
txl_mt_cvte
Multi dtb tool version: v2 .
Support 5 dtbs.
aml_dt soc: txl platform: mt variant: cvte
dtb 0 soc: txl plat: mt vari: 950-1g
dtb 1 soc: txl plat: mt vari: cvte
dtb 2 soc: txl plat: mt vari: magnolia
dtb 3 soc: txl plat: mt vari: mi
dtb 4 soc: txl plat: mt-india vari: hw-43
Find match dtb: 1
start dts,buffer=0000000073e9d5f0,dt_addr=0000000073eaa5f0
parts: 14
00: logo 0000000000400000 1
01: recovery 0000000001000000 1
02: param 0000000002000000 2
03: crypt 0000000001000000 1
04: cri_data 0000000000800000 2
05: tvinfo 0000000000a00000 4
06: panic 0000000000400000 4
07: persist 0000000000800000 4
08: misc 0000000001000000 1
09: boot 0000000001400000 1
10: system 0000000040000000 1
11: cache 0000000010000000 2
12: backup 0000000024000000 4
13: data ffffffffffffffff 4
get_dtb_struct: Get emmc dtb OK!
overide_emmc_partition_table: overide cache
[mmc_get_partition_table] skip partition cache.
Partition table get from SPL is :
name offset size flag
===================================================================================
0: bootloader 0 400000 0
1: reserved 2400000 4000000 0
2: cache 6c00000 10000000 2
3: env 17400000 800000 0
4: logo 18400000 400000 1
5: recovery 19000000 1000000 1
6: param 1a800000 2000000 2
7: crypt 1d000000 1000000 1
8: cri_data 1e800000 800000 2
9: tvinfo 1f800000 a00000 4
10: panic 20a00000 400000 4
11: persist 21600000 800000 4
12: misc 22600000 1000000 1
13: boot 23e00000 1400000 1
14: system 25a00000 40000000 1
15: backup 66200000 24000000 4
16: data 8aa00000 147600000 4
mmc read lba=0x12000, blocks=0x2
mmc read lba=0x12002, blocks=0x2
mmc_read_partition_tbl: mmc read partition OK!
eMMC/TSD partition table have been checked OK!
mmc env offset: 0x17400000
In: serial
Out: serial
Err: serial
reboot_mode=cold_boot
[store]To run cmd[emmc dtb_read 0x1000000 0x40000]
read emmc dtb
Amlogic multi-dtb tool
Multi dtb detected
txl_mt_cvte
Multi dtb tool version: v2 .
Support 5 dtbs.
aml_dt soc: txl platform: mt variant: cvte
dtb 0 soc: txl plat: mt vari: 950-1g
dtb 1 soc: txl plat: mt vari: cvte
dtb 2 soc: txl plat: mt vari: magnolia
dtb 3 soc: txl plat: mt vari: mi
dtb 4 soc: txl plat: mt-india vari: hw-43
Find match dtb: 1
amlkey_init() enter!
[EFUSE_MSG]keynum is 4
[BL31]: tee size: 0
panel_detect: panel_id = 0, panel_type = vbyone_1
Saving Environment to aml-storage...
mmc env offset: 0x17400000
Writing to MMC(1)... done
vpu: clk_level in dts: 7
vpu: set clk: 666667000Hz, readback: 666660000Hz(0x300)
vpp: vpp_init
lcd: no lcd_debug_print flag
lcd: no lcd_debug_test flag
lcd: detect mode: tv, key_valid: 0
lcd: load config from dts
lcd: use panel_type=vbyone_1
lcd: set phy vswing=3, preemphasis=1
lcd: set ctrl_flag=0x0
lcd: bl: name: backlight_0, method: 1
lcd: bl: aml_bl_power_ctrl: 0
lcd: vx1_filter_en: 0
lcd: vx1_filter_time: 20
lcd: vx1_filter_cnt: 6
lcd: vx1_filter_retry_cnt: 2
lcd: vx1_filter_retry_delay: 100
Net: dwmac.c9410000
efuse_pw_en: 0x3
WARNING! efuse bits is disabled
Enable A53 JTAG to EE
ffu update start
8GME4
old fw_ver = 7
[audio] use codec tas5711!
wipe_data=successful
wipe_cache=successful
upgrade_step=2
amlkey_init() enter!
amlkey_init() 71: already init!
[EFUSE_MSG]keynum is 4
[BL31]: tee size: 0
[KM]Error:f[key_manage_query_size]L507:key[deviceid] not programed yet
[KM]Error:f[key_manage_query_size]L507:key[cp_type] not programed yet
mwm 0xc8837004:[0x aa203] with [0x ea203] ok
mwm 0xc883700c:[0x 3e3b744] with [0x 3e3b764] ok
mwm 0xc8837010:[0x c0101] with [0x c8101] ok
mwm 0xc8837010:[0x c8101] with [0x 128101] ok
IR init done!
InUsbBurn
noSof
do_monitor_bt_cmdline
gpio: pin GPIOAO_4 (gpio 85) value is 1
gpio: pin GPIODV_6 (gpio 22) value is 1
gpio: pin GPIOH_9 (gpio 37) value is 1
gpio: pin GPIOH_2 (gpio 30) value is 1
gpio: pin GPIOH_2 (gpio 30) value is 0
bt_vendor_name = Qualcomm,bt_vendor_id= 0x1d00
start
cmd=ext4size mmc 1:9 rampatch_tlv_tf_1.1.tlv 73e87110
vfs_getsize size = 0xca30
cmd=ext4load mmc 1:9 73e88010 rampatch_tlv_tf_1.1.tlv ca30
51760 bytes read in 4 ms (12.3 MiB/s)
OK
cmd=ext4size mmc 1:9 nvm_tlv_tf_1.1.bin 73e87110
vfs_getsize size = 0x7f2
cmd=ext4load mmc 1:9 73e950e0 nvm_tlv_tf_1.1.bin 7f2
2034 bytes read in 3 ms (662.1 KiB/s)
OK
set scan parameters
set scan enable
no recovery mod!
BT_MAC:3C:BD:3E:D9:78:9B
Write Qualcomm BT_MAC:3C:BD:3E:D9:78:9B
cmd=ext4size mmc 1:9 wake_on_ble.conf 73e87450
vfs_getsize size = 0x77
cmd=ext4load mmc 1:9 73e95f70 wake_on_ble.conf 77
119 bytes read in 1 ms (116.2 KiB/s)
OK
27 4c fc 24 00 20 00 ff cf 8d 94 90 01 00 db 46 13 08 4f 00 75 3d c1 99 69 a4 38 9e cd 29 eb 08 07 02 01 05 03 ff 00 01
configure rc address:
0x01, 0x4c, 0xfc, 0x24, 0x00, 0x20, 0x00, 0xff, 0xcf, 0x8d, 0x94, 0x90, 0x01, 0x00, 0xdb, 0x46, 0x13, 0x08, 0x4f, 0x00, 0x75, 0x3d, 0xc1, 0x99, 0x69, 0xa4, 0x38, 0x9e, 0xcd, 0x29, 0xeb, 0x08, 0x07, 0x02, 0x01, 0x05, 0x03, 0xff, 0x00, 0x01,
gpio: pin GPIOH_9 (gpio 37) value is 0
gpio: pin GPIODV_6 (gpio 22) value is 0
gpio: pin GPIOH_3 (gpio 31) value is 1
enter wake on ble!
Factory power mode: secondary
INFO: PSCI Affinity Map:
INFO: AffInst: Level 0, MPID 0x0, State ON
INFO: AffInst: Level 0, MPID 0x1, State OFF
INFO: AffInst: Level 0, MPID 0x2, State OFF
INFO: AffInst: Level 0, MPID 0x3, State OFF
bl31 reboot reason: 0x108
bl31 reboot reason: 0x108
system cmd 0.
bl30 get wakeup sources!
process command 00000006
bl30 enter suspend!
cpu clk suspend rate 1200000000
suspend_counter: 1
Enter ddr suspend
first time suspend
ddr suspend time: 1904us
store restore gp0 pll
process command 00000001
CEC cfg:0x0000
08915c0000000000read stick mem bad value!
read stick mem bad value!
read stick mem bad value!
read stick mem bad value!
read stick mem bad value!
read stick mem bad value!
read stick mem bad value!
read stick mem bad value!
read stick mem bad value!
read stick mem bad value!
read stick mem bad value!
read stick mem bad value!
read stick mem bad value!
read stick mem bad value!
read stick mem bad value!
read stick mem bad value!
read stick mem bad value!
read stick mem bad value!
read stick mem bad value!
read stick mem bad value!
read stick mem bad value!
read stick mem bad value!
read stick mem bad value!
read stick mem bad value!
read stick mem bad value!
read stick mem bad value!
read stick mem bad value!
read stick mem bad value!
read stick mem bad value!
read stick mem bad value!
read stick mem bad value!
read stick mem bad value!
