啰嗦一下

今天收到快网友发过来的主板说是弄着什么东西的时候突然断电了开不了机了。联系过来，但网上搜也没什么资料

连uboot之类刷机的信息好像也没找到，但有固件也不多，就QWRT和OWRT。。这是OWRT的地址GITHUB上直接找最新的刷即可https://github.com/VIKINGYFY/OpenWRT-CI/releases/tag/IPQ60XX-WIFI-YES-VIKINGYFY-main-25.06.28-15.34.37

QWRT的去找大调的闭源VIP群下。。

以后有什么在补齐

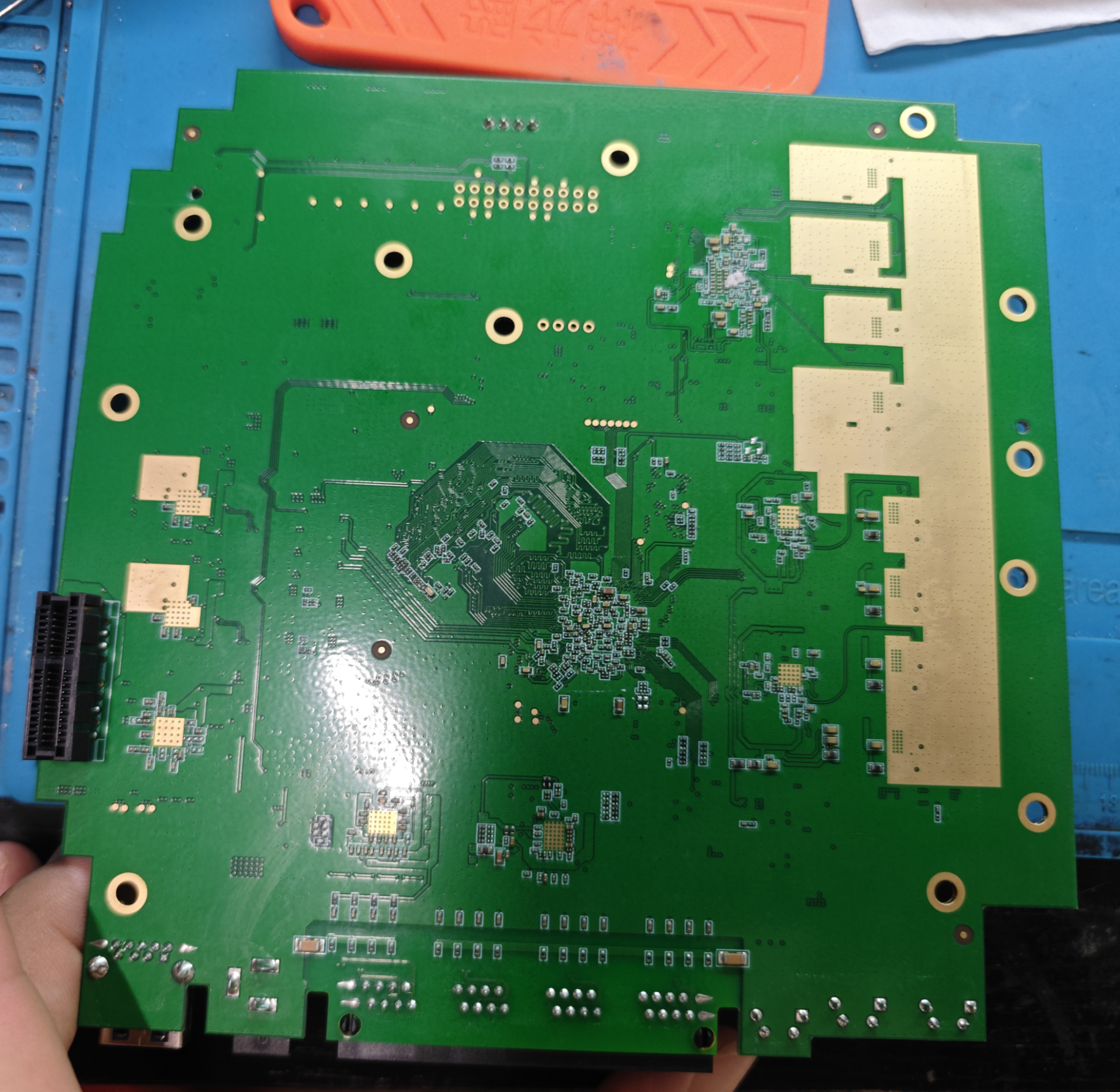

手机拍的然后在截切出来！一般般看看就行，，，

大概主板结构和雅典娜差不多多2个SATA 和 TF空槽理论上补上卡槽可用， tf的电路都是有的卡槽好像是内焊卡槽那种

5.2G是 QCN6024 有点缩水。雅典娜是 QCN9024 还有个更好的QCN9074...

需要更高清的图片放网盘。。。。

下面没必要看，只是一些

固件下载

https://p.godsun.pro/Disk/%E5%A4%A9%E7%BF%BC%E7%9B%98/%E8%B7%AF%E7%94%B1%E5%99%A8/IPQ%E9%AB%98%E9%80%9A/Anysafe%20E1

启动日志

[ 24.797251] cnss[2]: INFO: Calibration took 2640 ms

[ 24.797286] cnss[2]: INFO: Coldboot Calibration completed successfully for device 0xfffd

[ 24.800949] cnss[2]: INFO: cnss_cal_db_mem_update: File Operation 0 size 4100000 file name wlfw_cal_01.bin

[ 24.809264] cnss: INFO: cnss_plat_ipc_qmi_file_upload: File name: wlfw_cal_01.bin Size: 4100000

[ 24.990022] cnss[2]: INFO: Coldboot Calibration wait ended for device 0xfffd

[ 24.990051] cnss[2]: INFO: Sending mode message, mode: OFF(4), state: 0x10007

[ 24.998118] cnss[2]: INFO: QMI WLFW service disconnected, state: 0x10026

[ 25.023870] remoteproc remoteproc0: stopped remote processor cd00000.remoteproc

[ 25.023909] cnss[2]: INFO: __cnss_subsystem_get: driver_state: 0x0

[ 25.030024] remoteproc remoteproc0: powering up cd00000.remoteproc

[ 25.036389] remoteproc remoteproc0: Booting fw image IPQ6018/q6_fw.mdt, size 7340

[ 25.042465] wlan: [225:I:ANY] ol_ath_wifi_ssr: SSR event 2 bus_type 1

[ 25.345967] Subsystem error monitoring/handling services are up

[ 25.346017] qcom-q6v5-wcss-pil cd00000.remoteproc: QDSP6SS Version : 0x100a0000

[ 25.350721] qcom-q6v5-wcss-pil cd00000.remoteproc: WCSS Version : 0x10000000

[ 25.363333] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 25.366822] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 25.400254] cnss[2]: INFO: QMI WLFW service connected, state: 0x1

[ 25.406396] diag: In diag_send_peripheral_buffering_mode, buffering flag not set for 2

[ 25.408383] cnss[2]: INFO: device_id : 0xfffd mem mode : [0]

[ 25.413237] cnss[2]: INFO: platform name: AnySafe E1

[ 25.417521] cnss[2]: ERR: WARNING: More memory is reserved. Reserved size 0x5500000, Requested size 0x532c000.

[ 25.430315] cnss[2]: INFO: Target capability: chip_id: 0x0, chip_family: 0x4, board_id: 0xff, soc_id: 0xffffffff, fw_version: 0x280d85d4, fw_build_timestamp: 2023-01-27 20:09, otp_version: 0x0 eeprom_caldata_read_timeout 0s bdf_dnld_method 1 regdb_mandatory 0 rxgainlut_support 0

[ 25.436223] cnss[2]: INFO: Downloading BDF: IPQ6018/regdb.bin, size: 24348

[ 25.468566] cnss[2]: INFO: Downloading BDF: IPQ6018/bdwlan.b13, size: 65536

[ 25.470045] wlan: [225:I:ANY] ol_ath_wifi_ssr: SSR event 3 bus_type 1

[ 25.474359] wlan: [225:I:ANY] ol_ath_wifi_ssr: Waiting for probe lock

[ 25.480943] wlan: [225:I:ANY] ol_ath_wifi_ssr: Starting Driver Probe

[ 25.487385] cnss[2]: INFO: Waiting for FW ready. Device: 0xfffd, FW ready timeout: 15 seconds

[ 25.510318] cnss[2]: INFO: Downloading BDF: IPQ6018/caldata.bin, size: 65536

[ 25.610020] cnss[2]: INFO: FW ready received for device 0xfffd

[ 25.610170] wlan: [225:I:ANY] pld_ahb_wlan_enable: cnss_mode: Mission mode

[ 25.615961] cnss[2]: INFO: Sending mode message, mode: MISSION(0), state: 0x7

[ 25.631473] wlan: [225:I:ANY] qca_napi_create: napi instance 0 created on pipe 4

[ 25.631748] wlan: [225:D:dfs] WLAN_DEBUG_DFS1 : dfs_psoc_obj_create_notification: DFS obj attach to psoc successfully

[ 25.638727] wlan: [225:I:ANY] qdf_ini_parse: INI values read: 0

[ 25.648469] wlan: [225:I:ANY] qdf_ini_parse: INI file parse fail: invalid file format

[ 25.654181] wlan: [225:E:CONFIG] cfg_ini_parse_to_store: Failed to parse *.ini file @ QCA6018.ini; status:4

[ 25.662270] wlan: [225:I:ANY] qdf_ini_parse: INI values read: 0

[ 25.671738] wlan: [225:I:ANY] qdf_ini_parse: INI file parse fail: invalid file format

[ 25.677624] wlan: [225:E:CONFIG] cfg_ini_parse_to_store: Failed to parse *.ini file @ internal/QCA6018_i.ini; status:4

[ 25.685719] wlan: [225:I:ANY] osif_nss_wifi_soc_setup: nss-wifili:#1 register wifili function for soc 25

[ 25.696201] wlan: [225:I:ANY] osif_nss_wifi_soc_setup: nss register id -1 nss config 7 Target Type 19

[ 25.710037] wlan: [225:E:ANY] dp_get_num_msi_available: Unable to get DP MSI assignment 2

[ 25.714943] wlan: [225:E:ANY] ol_target_init_complete: soc attach failed

[ 25.723251] wlan: [225:E:ANY] ol_ath_soc_attach: error status -1

[ 25.729941] wlan: [225:I:ANY] ol_ath_soc_attach: nss-wifi: detach -zero delay

[ 25.735948] wlan: [225:E:NSS] [nss-wifili]: stop ERROR - Null nss context

[ 25.743000] wlan: [225:E:NSS] [nss-wifili]: nss context is null

[ 25.749832] wlan: [225:E:NSS] [nss-wifili]: nss wifili astentries database is not found

[ 25.757441] wlan: [225:I:ANY] __ol_ath_attach:

[ 25.757441] __ol_ath_attach() soc 00000000cdb39076 Detaching Codeswap

[ 25.757441]

[ 25.763629] cnss[2]: INFO: Sending mode message, mode: OFF(4), state: 0x7

[ 25.777754] wlan: [225:I:ANY] ol_ath_ahb_probe: failure ret -5

[ 25.782986] cnss[2]: INFO: QMI WLFW service disconnected, state: 0x6

[ 25.783029] wlan: [225:E:ANY] ol_ath_ahb_probe: Assertion failed! 0:ol_ath_ahb_probe /home/hcy/qsdk12.2/build_dir/target-aarch64_cortex-a53_musl/linux-ipq60xx_generic/qca-wifi-12.2-unified-profile/qca-wifi-12.2/os/linux/../../qca_ol/../offload/os/linux/ath_ahb.c:1487

[ 25.796261] CPU: 1 PID: 225 Comm: kworker/1:4 Not tainted 5.4.220 #0

[ 25.818481] Hardware name: AnySafe E1 (DT)

[ 25.825093] Workqueue: events cnss_subsystem_put [ipq_cnss2]

[ 25.828986] Call trace:

[ 25.834798] dump_backtrace+0x0/0x198

[ 25.836967] show_stack+0x14/0x20

[ 25.840787] dump_stack+0xb4/0xf8

[ 25.844517] ol_ath_ahb_probe+0x300/0x468 [qca_ol]

[ 25.847774] ol_ath_wifi_ssr+0x9fc/0xdb0 [qca_ol]

[ 25.852462] ol_ath_pld_probe+0x24/0x48 [qca_ol]

[ 25.857223] pld_pcie_device_self_recovery+0x24c/0x298 [qca_ol]

[ 25.861545] cnss_self_recovery+0x1ac/0x238 [ipq_cnss2]

[ 25.867181] notifier_call_chain+0x50/0x90

[ 25.872383] blocking_notifier_call_chain+0x48/0x70

[ 25.876554] rproc_subsys_notify+0x88/0xa0

[ 25.881326] rproc_start+0x1f8/0x270

[ 25.885491] rproc_boot+0x404/0x4e8

[ 25.889230] __cnss_subsystem_get+0x108/0x290 [ipq_cnss2]

[ 25.892440] cnss_subsystem_put+0x180/0x248 [ipq_cnss2]

[ 25.897995] process_one_work+0x1e8/0x348

[ 25.903025] worker_thread+0x40/0x460

[ 25.907192] kthread+0x154/0x158

[ 25.910837] ret_from_fork+0x10/0x1c

[ 25.914210] WLAN Panic @ ol_ath_ahb_probe:1487: Take care of the TARGET ASSERT first

[ 25.914210]

[ 25.917743] ------------[ cut here ]------------

[ 25.926812] kernel BUG at /home/hcy/qsdk12.2/build_dir/target-aarch64_cortex-a53_musl/linux-ipq60xx_generic/qca-wifi-12.2-unified-profile/qca-wifi-12.2/os/linux/../../qca_ol/../cmn_dev/qdf/linux/src/i_qdf_trace.h:402!

[ 25.931527] Internal error: Oops - BUG: 0 [#1] PREEMPT SMP

[ 25.950684] Modules linked in: wifi_3_0(+) smart_antenna qca_ol qca_spectral umac qdf mem_manager qcserial option usb_wwan snd_usb_audio ipt_REJECT cdc_mbim xt_time xt_tcpudp xt_tcpmss xt_string xt_statistic xt_state xt_socket xt_recent xt_quota xt_policy xt_pkttype xt_physdev xt_owner xt_nat xt_multiport xt_mark xt_mac xt_limit xt_length xt_iprange xt_hl xt_helper xt_esp xt_ecn xt_dscp xt_conntrack xt_connmark xt_connlimit xt_connbytes xt_comment xt_bpf xt_addrtype xt_TPROXY xt_TCPMSS xt_REDIRECT xt_NFQUEUE xt_MASQUERADE xt_LOG xt_HL xt_DSCP xt_CT xt_CLASSIFY wireguard usbserial usblp usbhid ums_usbat ums_sddr55 ums_sddr09 ums_karma ums_jumpshot ums_isd200 ums_freecom ums_datafab ums_cypress ums_alauda ts_fsm ts_bm snd_usbmidi_lib sierra_net sch_cake rndis_host r8152 qmi_wwan ppp_mppe ppp_async nft_reject_ipv6 nft_reject_ipv4 nft_reject_inet nft_reject nft_redir nft_quota nft_queue nft_numgen nft_log nft_limit nft_ct nft_counter nfnetlink_queue nf_tproxy_ipv6 nf_tproxy_ipv4 nf_tables

[ 25.950776] nf_socket_ipv6 nf_socket_ipv4 nf_reject_ipv4 nf_nat_tftp nf_nat_snmp_basic nf_nat_sip nf_nat_rtsp nf_nat_pptp nf_nat_irc nf_nat_h323 nf_nat_ftp nf_nat_amanda nf_log_ipv4 nf_flow_table_hw nf_flow_table nf_conntrack_tftp nf_conntrack_snmp nf_conntrack_sip nf_conntrack_rtsp nf_conntrack_rtcache nf_conntrack_pptp nf_conntrack_netlink nf_conntrack_irc nf_conntrack_h323 nf_conntrack_ftp nf_conntrack_broadcast ts_kmp nf_conntrack_amanda nf_conncount macvlan libchacha20poly1305 l2tp_ppp iptable_raw iptable_nat iptable_mangle iptable_filter ipt_ah ipt_ECN ip_tables huawei_cdc_ncm hid_generic exfat cdc_ncm cdc_ether cdc_acm asn1_decoder arptable_filter arpt_mangle arp_tables aqc111 pcie_mhi qmi_wwan_f qmi_wwan_q usbnet cdc_wdm fuse tcp_bbr act_connmark sch_tbf sch_ingress sch_htb sch_hfsc em_u32 cls_u32 cls_tcindex cls_route cls_matchall cls_fw cls_flow cls_basic act_skbedit act_mirred hid qca_nss_tunipip6 qca_nss_tun6rd qca_nss_ipsecmgr evdev pwm_fan gpio_fan hwmon

[ 26.020972] qca_nss_cfi_cryptoapi qca_nss_qdisc qca_nss_macsec qca_nss_crypto qca_mcs diagchar crc_ccitt qca_nss_vxlanmgr qca_nss_pptp qca_nss_pppoe pppoe qca_nss_map_t qca_nss_lag_mgr qca_nss_l2tpv2 qca_nss_gre qca_nss_bridge_mgr qca_nss_vlan xt_sctp emesh_sp cryptodev xt_set ip_set_list_set ip_set_hash_netportnet ip_set_hash_netport ip_set_hash_netnet ip_set_hash_netiface ip_set_hash_net ip_set_hash_mac ip_set_hash_ipportnet ip_set_hash_ipportip ip_set_hash_ipport ip_set_hash_ipmark ip_set_hash_ip ip_set_bitmap_port ip_set_bitmap_ipmac ip_set_bitmap_ip ip_set nfnetlink ip6table_nat nf_nat nf_conntrack pptp pppox ppp_generic slhc nf_defrag_ipv4 ip6t_NPT nf_log_ipv6 nf_log_common ip6table_mangle ip6table_filter ip6_tables ip6t_REJECT x_tables nf_reject_ipv6 msdos bonding ip6_gre ip_gre gre ifb dummy rmnet_ctl nat46 nf_defrag_ipv6 sit qca_nss_drv l2tp_netlink l2tp_core ipcomp6 xfrm6_tunnel esp6 ah6 xfrm4_tunnel ipcomp esp4 ah4 ip6_tunnel qca_nss_dp netlink_diag tunnel6 tunnel4 udp_diag

[ 26.106740] tcp_diag raw_diag inet_diag veth tun snd_rawmidi snd_seq_device snd_pcm_oss snd_pcm snd_timer snd_mixer_oss snd_hwdep snd_compress snd soundcore qca_ssdk mpls_iptunnel mpls_router ip_tunnel mpls_gso xfrm_user xfrm_ipcomp af_key xfrm_algo vfat fat ntfs3 autofs4 dm_mirror dm_region_hash dm_log dm_crypt cfg80211 nls_utf8 nls_iso8859_1 nls_cp437 vxlan udp_tunnel ip6_udp_tunnel nsh md5 authenc ipq_cnss2 leds_gpio uhci_hcd ohci_platform ohci_hcd ahci libahci libata fsl_mph_dr_of ehci_platform ehci_fsl ehci_hcd gpio_button_hotplug f2fs btrfs xor zstd_decompress zstd_compress xxhash xor_neon raid6_pq libcrc32c button_hotplug input_core mii crc32_generic

[ 26.252238] CPU: 1 PID: 225 Comm: kworker/1:4 Not tainted 5.4.220 #0

[ 26.274470] Hardware name: AnySafe E1 (DT)

[ 26.280997] Workqueue: events cnss_subsystem_put [ipq_cnss2]

[ 26.284886] pstate: 60400005 (nZCv daif +PAN -UAO)

[ 26.291109] pc : ol_ath_ahb_probe+0x314/0x468 [qca_ol]

[ 26.295689] lr : ol_ath_ahb_probe+0x314/0x468 [qca_ol]

[ 26.300421] sp : ffffff807cc33a30

[ 26.305541] x29: ffffff807cc33a30 x28: ffffffc00a071000

[ 26.308929] x27: ffffff807d2f7a38 x26: 00000000fffffffb

[ 26.314312] x25: 0000000000000001 x24: ffffffc00a07273c

[ 26.319607] x23: ffffffc00a0e4518 x22: ffffff807d289c10

[ 26.324902] x21: ffffff8074380c00 x20: ffffffc00a0e4350

[ 26.330197] x19: ffffffc00a0e4518 x18: ffffffc00a2ac118

[ 26.335492] x17: ffffffc00a2ac1d0 x16: ffffffc00a2abf98

[ 26.340787] x15: ffffffc00a2abfa8 x14: 4553534120544547

[ 26.346082] x13: 5241542065687420 x12: 666f206572616320

[ 26.351377] x11: 656b6154203a3738 x10: 34313a65626f7270

[ 26.356672] x9 : 5f6268615f687461 x8 : 5f6c6f2040206369

[ 26.361967] x7 : ffffffc010b98768 x6 : 0000000000000310

[ 26.367263] x5 : 0000000000000000 x4 : 0000000000000000

[ 26.372557] x3 : 00000000ffffffff x2 : ffffffc010baeeb8

[ 26.377853] x1 : ffffff807cc8a4c0 x0 : 0000000000000049

[ 26.383147] Call trace:

[ 26.388842] ol_ath_ahb_probe+0x314/0x468 [qca_ol]

[ 26.390990] ol_ath_wifi_ssr+0x9fc/0xdb0 [qca_ol]

[ 26.395837] ol_ath_pld_probe+0x24/0x48 [qca_ol]

[ 26.400607] pld_pcie_device_self_recovery+0x24c/0x298 [qca_ol]

[ 26.404946] cnss_self_recovery+0x1ac/0x238 [ipq_cnss2]

[ 26.410583] notifier_call_chain+0x50/0x90

[ 26.415787] blocking_notifier_call_chain+0x48/0x70

[ 26.419958] rproc_subsys_notify+0x88/0xa0

[ 26.424727] rproc_start+0x1f8/0x270

[ 26.428892] rproc_boot+0x404/0x4e8

[ 26.432631] __cnss_subsystem_get+0x108/0x290 [ipq_cnss2]

[ 26.435843] cnss_subsystem_put+0x180/0x248 [ipq_cnss2]

[ 26.441396] process_one_work+0x1e8/0x348

[ 26.446428] worker_thread+0x40/0x460

[ 26.450594] kthread+0x154/0x158

[ 26.454241] ret_from_fork+0x10/0x1c

[ 26.457543] Code: 5280b9e2 aa1303e1 f943f000 959fdc84 (d4210000)

[ 26.461103] ---[ end trace fb6c1582f9c999f1 ]---

[ 26.467090] Kernel panic - not syncing: Fatal exception

[ 26.471778] SMP: stopping secondary CPUs

[ 26.476735] cnss[27]: ERR: Crash shutdown device QCN9000_PCI0 with driver_state 0x1010f

[ 26.691045] mhi mhi0: CRASHED - [DID:DOMAIN:BUS:SLOT] - 1104:0000:01:00

[ 26.691144] mhi mhi0: Fatal error received from wcss software!

[ 26.691144]

[ 26.691144] QC Image Version: QC_IMAGE_VERSION_STRING=WLAN.HK.2.8-01492-QCAHKSWPL_SILICONZ-1

[ 26.691144] Image Variant : IMAGE_VARIANT_STRING=9000.wlanfw.eval_v1Q

[ 26.691144] Oem Image Version: OEM_IMAGE_VERSION_STRING=ip-10-195-204-55

[ 26.691144] Oem Image UUID: OEM_IMAGE_UUID_STRING=Q_SENTINEL_{D0F5F167-C383-484B-9B1A-A35B48AA0387}_20230127_1914

[ 26.691144]

[ 26.691144] mhi_sm_patched.c:209 (): param0 :zero, param1 :zero, param2 :zero.

[ 26.691144] Thread ID : 0x00000024 Thread name : MHI CORE Process ID : 0

[ 26.691144] Register:

[ 26.691144] SP : 0x0143a450

[ 26.691144] FP : 0x0143a458

[ 26.691144] PC : 0x0082ecd8

[ 26.691144] SSR : 0x00000008

[ 26.691144] BADVA : 0x00000000

[ 26.691144] LR : 0x0082ee40

[ 26.691144]

[ 26.691144] Stack Dump

[ 26.691144] from : 0x0143a450

[ 26.691144] to : 0x0143a540

[ 26.691144]

[ 26.760330] cnss[27]: INFO: Dump Collection Completed, total entries is 23

[ 26.782578] smem desc phys addr(0x4aa3b198)

[ 26.789503] smem_panic_handler tx tail:13456 tx head:13456 rx tail:8208 rx head:8208

[ 31.793791] The reading for sensor 4 is 0x002041ee

[ 31.793808] The reading for sensor 5 is 0x002051f8

[ 31.797458] The reading for sensor 7 is 0x002071e4

[ 31.802233] The reading for sensor 8 is 0x002081da

[ 31.807052] Couldn't get reading for sensor 13

[ 31.811781] The reading for sensor 14 is 0x0020e1e1

[ 31.816251] Couldn't get reading for sensor 15

[ 31.820980] Kernel Offset: disabled

[ 31.825492] CPU features: 0x00002,20002000

[ 31.828878] Memory Limit: none

[ 32.434039] Rebooting in 5 seconds..

Format: Log Type - Time(microsec) - Message - Optional Info

Log Type: B - Since Boot(Power On Reset), D - Delta, S - Statistic

S - QC_IMAGE_VERSION_STRING=BOOT.XF.0.3-00102-IPQ60xxLZB-1

S - IMAGE_VARIANT_STRING=IPQ6018LA

S - OEM_IMAGE_VERSION_STRING=crm-ubuntu64

S - Boot Interface: SPI

S - Secure Boot: Off

S - Boot Config @ 0x000a602c = 0x000002e1

S - JTAG ID @ 0x000a607c = 0x0013a0e1

S - OEM ID @ 0x000a6080 = 0x00000000

S - Serial Number @ 0x000a4128 = 0x08fa6d2b

S - OEM Config Row 0 @ 0x000a4188 = 0x0000000000000000

S - OEM Config Row 1 @ 0x000a4190 = 0x0000000000000000

S - Feature Config Row 0 @ 0x000a4130 = 0x0000000008000001

S - Feature Config Row 1 @ 0x000a4138 = 0x02c3e83383000009

S - PBL Patch Ver: 1

S - I-cache: On

S - D-cache: On

B - 3413 - PBL, Start

B - 592 - bootable_media_detect_entry, Start

B - 4339 - bootable_media_detect_success, Start

B - 4435 - elf_loader_entry, Start

B - 4607 - auth_hash_seg_entry, Start

B - 10853 - auth_hash_seg_exit, Start

B - 11348 - elf_segs_hash_verify_entry, Start

B - 358088 - elf_segs_hash_verify_exit, Start

B - 362278 - auth_xbl_sec_hash_seg_entry, Start

B - 362422 - auth_xbl_sec_hash_seg_exit, Start

B - 368971 - xbl_sec_segs_hash_verify_entry, Start

B - 368971 - xbl_sec_segs_hash_verify_exit, Start

B - 369901 - PBL, End

B - 296063 - SBL1, Start

B - 439352 - GCC [RstStat:0x10, RstDbg:0x700100] WDog Stat : 0x4

B - 441792 - clock_init, Start

D - 3751 - clock_init, Delta

B - 451613 - boot_flash_init, Start

D - 8357 - boot_flash_init, Delta

B - 462166 - sbl1_ddr_set_default_params, Start

D - 335 - sbl1_ddr_set_default_params, Delta

B - 468785 - boot_config_data_table_init, Start

D - 1921 - boot_config_data_table_init, Delta - (575 Bytes)

B - 477904 - CDT Version:2,Platform ID:8,Major ID:3,Minor ID:0,Subtype:2

B - 483455 - Image Load, Start

D - 6588 - OEM_MISC Image Loaded, Delta - (0 Bytes)

B - 492788 - Image Load, Start

D - 5033 - PMIC Image Loaded, Delta - (0 Bytes)

B - 500657 - sbl1_ddr_set_params, Start

B - 505720 - CPR configuration: 0x555

B - 508831 - Pre_DDR_clock_init, Start

D - 213 - Pre_DDR_clock_init, Delta

D - 0 - sbl1_ddr_set_params, Delta

B - 547688 - Image Load, Start

D - 427 - APDP Image Loaded, Delta - (0 Bytes)

B - 565409 - Image Load, Start

D - 458 - QTI_MISC Image Loaded, Delta - (0 Bytes)

B - 567818 - Image Load, Start

D - 793 - Auth Metadata

D - 671 - Segments hash check

D - 29372 - QSEE Dev Config Image Loaded, Delta - (37162 Bytes)

B - 599172 - Image Load, Start

D - 6558 - Auth Metadata

D - 10187 - Segments hash check

D - 788090 - QSEE Image Loaded, Delta - (1426556 Bytes)

B - 1387689 - Image Load, Start

D - 763 - Auth Metadata

D - 945 - Segments hash check

D - 63013 - RPM Image Loaded, Delta - (102948 Bytes)

B - 1452410 - Image Load, Start

D - 671 - Auth Metadata

D - 3233 - Segments hash check

D - 304725 - APPSBL Image Loaded, Delta - (570116 Bytes)

B - 1773178 - SBL1, End

D - 1477420 - SBL1, Delta

S - Flash Throughput, 1000 KB/s (2138029 Bytes, 1089391 us)

S - Core 0 Frequency, 800 MHz

S - DDR Frequency, 466 MHz

U-Boot 2016.01 (Jun 02 2024 - 16:18:30 +0000)

DRAM: smem ram ptable found: ver: 2 len: 4

2 GiB

NAND: ONFI device found

ID = 1590aa2c

Vendor = 2c

Device = aa

qpic_nand: changing oobsize to 80 from 128 bytes

SPI_ADDR_LEN=3

SF: Detected W25Q128FW with page size 256 Bytes, erase size 4 KiB, total 16 MiB

ipq_spi: page_size: 0x100, sector_size: 0x1000, size: 0x1000000

272 MiB

MMC: sdhci: Node Not found, skipping initialization

*** Warning - bad CRC, using default environment

PCI Link Intialized

In: serial@78B1000

Out: serial@78B1000

Err: serial@78B1000

machid: 8030002

eth5 MAC Address from ART is not valid

Net: MAC0 addr:e0:38:2d:e0:2:23

PHY ID1: 0x4d

PHY ID2: 0xd0b1

PHY ID1: 0x4d

PHY ID2: 0xd101

EDMA ver 1 hw init

Num rings - TxDesc:1 (0-0) TxCmpl:1 (0-0)

RxDesc:1 (15-15) RxFill:1 (7-7)

ipq6018_edma_alloc_rings: successfull

ipq6018_edma_setup_ring_resources: successfull

ipq6018_edma_configure_rings: successfull

ipq6018_edma_hw_init: successfull

eth0

Hit any key to stop autoboot: 0

ubi0: attaching mtd2

ubi0: scanning is finished

ubi0: attached mtd2 (name "mtd=0", size 249 MiB)

ubi0: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes

ubi0: min./max. I/O unit sizes: 2048/2048, sub-page size 2048

ubi0: VID header offset: 2048 (aligned 2048), data offset: 4096

ubi0: good PEBs: 1992, bad PEBs: 0, corrupted PEBs: 0

ubi0: user volume: 3, internal volumes: 1, max. volumes count: 128

ubi0: max/mean erase counter: 26/5, WL threshold: 4096, image sequence number: 1731653759

ubi0: available PEBs: 0, total reserved PEBs: 1992, PEBs reserved for bad PEB handling: 40

Read 0 bytes from volume kernel to 44000000

No size specified -> Using max size (5586944)

## Loading kernel from FIT Image at 44000000 ...

Using 'config@cp01-c3' configuration

Trying 'kernel@1' kernel subimage

Description: ARM64 OpenWrt Linux-5.4.220

Type: Kernel Image

Compression: gzip compressed

Data Start: 0x440000e8

Data Size: 5469100 Bytes = 5.2 MiB

Architecture: AArch64

OS: Linux

Load Address: 0x41080000

Entry Point: 0x41080000

Hash algo: crc32

Hash value: ce7d6ce8

Hash algo: sha1

Hash value: 0c02be442fa4aba439fe6ef9b0924f4cd7c026e9

Verifying Hash Integrity ... crc32+ sha1+ OK

## Loading fdt from FIT Image at 44000000 ...

Using 'config@cp01-c3' configuration

Trying 'fdt@1' fdt subimage

Description: ARM64 OpenWrt anysafe_e1 device tree blob

Type: Flat Device Tree

Compression: uncompressed

Data Start: 0x445375d0

Data Size: 59298 Bytes = 57.9 KiB

Architecture: AArch64

Hash algo: crc32

Hash value: 31d1ffc8

Hash algo: sha1

Hash value: 52871bbfe5edb3e66d0e1a9727d24d08f3e9183d

Verifying Hash Integrity ... crc32+ sha1+ OK

Booting using the fdt blob at 0x445375d0

Uncompressing Kernel Image ... OK

Loading Device Tree to 484ee000, end 484ff7a1 ... OK

Using machid 0x8030002 from environment

Starting kernel ...

Jumping to AARCH64 kernel via monitor

[ 0.000000] Booting Linux on physical CPU 0x0000000000 [0x51af8014]

[ 0.000000] Linux version 5.4.220 (hcy@hcy) (gcc version 7.5.0 (OpenWrt GCC 7.5.0 r47617-6ffe730407)) #0 SMP PREEMPT Tue Aug 6 10:47:02 2024

[ 0.000000] Machine model: AnySafe E1

[ 0.000000] Reserved memory: created DMA memory pool at 0x0000000053700000, size 9 MiB

[ 0.000000] OF: reserved mem: initialized node dma_pool0@53700000, compatible id shared-dma-pool

[ 0.000000] psci: probing for conduit method from DT.

[ 0.000000] psci: PSCIv1.0 detected in firmware.

[ 0.000000] psci: Using standard PSCI v0.2 function IDs

[ 0.000000] psci: MIGRATE_INFO_TYPE not supported.

[ 0.000000] psci: SMC Calling Convention v1.0

[ 0.000000] percpu: Embedded 24 pages/cpu s59416 r8192 d30696 u98304

[ 0.000000] Detected VIPT I-cache on CPU0

[ 0.000000] CPU features: kernel page table isolation disabled by kernel configuration

[ 0.000000] ARM_SMCCC_ARCH_WORKAROUND_1 missing from firmware

[ 0.000000] Built 1 zonelists, mobility grouping on. Total pages: 471744

[ 0.000000] Kernel command line: console=ttyMSM0,115200n8 ubi.mtd=rootfs root=mtd:ubi_rootfs rootfstype=squashfs rootwait root=/dev/ubiblock0_1 swiotlb=1 coherent_pool=2M

[ 0.000000] Dentry cache hash table entries: 262144 (order: 9, 2097152 bytes, linear)

[ 0.000000] Inode-cache hash table entries: 131072 (order: 8, 1048576 bytes, linear)

[ 0.000000] mem auto-init: stack:off, heap alloc:off, heap free:off

[ 0.000000] Memory: 1868004K/1916928K available (8190K kernel code, 548K rwdata, 2492K rodata, 576K init, 416K bss, 48924K reserved, 0K cma-reserved)

[ 0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=4, Nodes=1

[ 0.000000] rcu: Preemptible hierarchical RCU implementation.

[ 0.000000] Tasks RCU enabled.

[ 0.000000] rcu: RCU calculated value of scheduler-enlistment delay is 10 jiffies.

[ 0.000000] NR_IRQS: 64, nr_irqs: 64, preallocated irqs: 0

[ 0.000000] GICv2m: range[mem 0x0b00a000-0x0b00affc], SPI[448:479]

[ 0.000000] arch_timer: cp15 and mmio timer(s) running at 24.00MHz (virt/virt).

[ 0.000000] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x588fe9dc0, max_idle_ns: 440795202592 ns

[ 0.000005] sched_clock: 56 bits at 24MHz, resolution 41ns, wraps every 4398046511097ns

[ 0.000290] Calibrating delay loop (skipped), value calculated using timer frequency.. 48.00 BogoMIPS (lpj=240000)

[ 0.000303] pid_max: default: 32768 minimum: 301

[ 0.000439] Mount-cache hash table entries: 4096 (order: 3, 32768 bytes, linear)

[ 0.000455] Mountpoint-cache hash table entries: 4096 (order: 3, 32768 bytes, linear)

[ 0.001750] ASID allocator initialised with 65536 entries

[ 0.001834] rcu: Hierarchical SRCU implementation.

[ 0.002540] MSM Memory Dump base table set up

[ 0.002558] MSM Memory Dump apps data table set up

[ 0.002746] smp: Bringing up secondary CPUs ...

[ 0.003327] Detected VIPT I-cache on CPU1

[ 0.003377] CPU1: Booted secondary processor 0x0000000001 [0x51af8014]

[ 0.003975] Detected VIPT I-cache on CPU2

[ 0.004008] CPU2: Booted secondary processor 0x0000000002 [0x51af8014]

[ 0.004552] Detected VIPT I-cache on CPU3

[ 0.004581] CPU3: Booted secondary processor 0x0000000003 [0x51af8014]

[ 0.004649] smp: Brought up 1 node, 4 CPUs

[ 0.004671] SMP: Total of 4 processors activated.

[ 0.004678] CPU features: detected: 32-bit EL0 Support

[ 0.004685] CPU features: detected: CRC32 instructions

[ 0.004726] CPU features: emulated: Privileged Access Never (PAN) using TTBR0_EL1 switching

[ 0.004733] CPU: All CPU(s) started at EL1

[ 0.004983] alternatives: patching kernel code

[ 0.016224] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns

[ 0.016244] futex hash table entries: 1024 (order: 4, 65536 bytes, linear)

[ 0.016376] pinctrl core: initialized pinctrl subsystem

[ 0.017340] NET: Registered protocol family 16

[ 0.017972] DMA: preallocated 2048 KiB pool for atomic allocations

[ 0.018369] cpuidle: using governor ladder

[ 0.018393] cpuidle: using governor menu

[ 0.018532] NET: Registered protocol family 42

[ 0.018723] hw-breakpoint: found 6 breakpoint and 4 watchpoint registers.

[ 0.074775] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 0.076668] msm_sps_probe: sps:sps is ready

[ 0.090000] cryptd: max_cpu_qlen set to 1000

[ 0.177878] SCSI subsystem initialized

[ 0.178043] usbcore: registered new interface driver usbfs

[ 0.178085] usbcore: registered new interface driver hub

[ 0.178120] usbcore: registered new device driver usb

[ 0.178156] pps_core: LinuxPPS API ver. 1 registered

[ 0.178179] PTP clock support registered

[ 0.178954] qcom_glink_rpm rpm-glink: RPM TOC has invalid magic

[ 0.178978] qcom_glink_rpm: probe of rpm-glink failed with error -22

[ 0.179206] workqueue: max_active 576 requested for napi_workq is out of range, clamping between 1 and 512

[ 0.180005] clocksource: Switched to clocksource arch_sys_counter

[ 0.180699] thermal_sys: Registered thermal governor 'step_wise'

[ 0.180702] thermal_sys: Registered thermal governor 'user_space'

[ 0.181935] NET: Registered protocol family 2

[ 0.182099] IP idents hash table entries: 32768 (order: 6, 262144 bytes, linear)

[ 0.183352] tcp_listen_portaddr_hash hash table entries: 1024 (order: 2, 16384 bytes, linear)

[ 0.183401] TCP established hash table entries: 16384 (order: 5, 131072 bytes, linear)

[ 0.183558] TCP bind hash table entries: 16384 (order: 6, 262144 bytes, linear)

[ 0.183840] TCP: Hash tables configured (established 16384 bind 16384)

[ 0.183929] UDP hash table entries: 1024 (order: 3, 32768 bytes, linear)

[ 0.183990] UDP-Lite hash table entries: 1024 (order: 3, 32768 bytes, linear)

[ 0.184190] NET: Registered protocol family 1

[ 0.184220] PCI: CLS 0 bytes, default 64

[ 0.210833] workingset: timestamp_bits=46 max_order=19 bucket_order=0

[ 0.215630] squashfs: version 4.0 (2009/01/31) Phillip Lougher

[ 0.238531] qcom-qmp-phy 84000.phy: Registered Qcom-QMP phy

[ 0.238765] qcom-qmp-phy 78000.ssphy: 78000.ssphy supply vdda-phy not found, using dummy regulator

[ 0.238826] qcom-qmp-phy 78000.ssphy: 78000.ssphy supply vdda-pll not found, using dummy regulator

[ 0.239586] qcom-qmp-phy 78000.ssphy: Registered Qcom-QMP phy

[ 0.240228] qcom-qusb2-phy 59000.qusb: 59000.qusb supply vdda-pll not found, using dummy regulator

[ 0.240282] qcom-qusb2-phy 59000.qusb: 59000.qusb supply vdda-phy-dpdm not found, using dummy regulator

[ 0.240424] qcom-qusb2-phy 59000.qusb: Registered Qcom-QUSB2 phy

[ 0.240522] qcom-qusb2-phy 79000.qusb: 79000.qusb supply vdda-pll not found, using dummy regulator

[ 0.240569] qcom-qusb2-phy 79000.qusb: 79000.qusb supply vdda-phy-dpdm not found, using dummy regulator

[ 0.240694] qcom-qusb2-phy 79000.qusb: Registered Qcom-QUSB2 phy

[ 0.241863] qcom-pcie 20000000.pci: IRQ mdm2ap_e911 not found

[ 0.244498] qcom-pcie 20000000.pci: host bridge /soc/pci@20000000 ranges:

[ 0.244538] qcom-pcie 20000000.pci: IO 0x20200000..0x2020ffff -> 0x20200000

[ 0.244562] qcom-pcie 20000000.pci: MEM 0x20220000..0x2fffffff -> 0x20220000

[ 0.471542] qcom-pcie 20000000.pci: Link up

[ 0.471666] qcom-pcie 20000000.pci: PCI host bridge to bus 0000:00

[ 0.471678] pci_bus 0000:00: root bus resource [bus 00-ff]

[ 0.471690] pci_bus 0000:00: root bus resource [io 0x0000-0xffff] (bus address [0x20200000-0x2020ffff])

[ 0.471700] pci_bus 0000:00: root bus resource [mem 0x20220000-0x2fffffff]

[ 0.471731] pci 0000:00:00.0: [17cb:1003] type 01 class 0x060400

[ 0.471759] pci 0000:00:00.0: reg 0x10: [mem 0x00000000-0x00000fff]

[ 0.471826] pci 0000:00:00.0: PME# supported from D0 D3hot D3cold

[ 0.476616] pci 0000:01:00.0: [17cb:1104] type 00 class 0x028000

[ 0.476779] pci 0000:01:00.0: reg 0x10: [mem 0x00000000-0x001fffff 64bit]

[ 0.477324] pci 0000:01:00.0: PME# supported from D0 D3hot D3cold

[ 0.477416] pci 0000:01:00.0: 7.876 Gb/s available PCIe bandwidth, limited by 8 GT/s x1 link at 0000:00:00.0 (capable of 15.752 Gb/s with 8 GT/s x2 link)

[ 0.481974] pci 0000:00:00.0: BAR 8: assigned [mem 0x20400000-0x205fffff]

[ 0.481989] pci 0000:00:00.0: BAR 9: assigned [mem 0x20600000-0x207fffff 64bit pref]

[ 0.482000] pci 0000:00:00.0: BAR 0: assigned [mem 0x20220000-0x20220fff]

[ 0.482012] pci 0000:00:00.0: BAR 7: assigned [io 0x1000-0x1fff]

[ 0.482028] pci 0000:01:00.0: BAR 0: assigned [mem 0x20400000-0x205fffff 64bit]

[ 0.482086] pci 0000:00:00.0: PCI bridge to [bus 01-ff]

[ 0.482096] pci 0000:00:00.0: bridge window [io 0x1000-0x1fff]

[ 0.482107] pci 0000:00:00.0: bridge window [mem 0x20400000-0x205fffff]

[ 0.482118] pci 0000:00:00.0: bridge window [mem 0x20600000-0x207fffff 64bit pref]

[ 0.482168] PCIe: RC enabled during bootup

[ 0.482424] qcom-pcie 20000000.pci: Received Link up event for RC 0

[ 0.485512] bam-dma-engine 704000.dma: num-channels unspecified in dt

[ 0.485523] bam-dma-engine 704000.dma: num-ees unspecified in dt

[ 0.486488] bam-dma-engine 7884000.dma: qcom,controlled-remotely unspecified

[ 0.487862] bam-dma-engine 7984000.dma: qcom,controlled-remotely unspecified

[ 0.488543] msm-dcc b3000.dcc: DCC XPU is not specified

[ 0.488757] msm-dcc b3000.dcc: jiffies_64: 0xffff8aff, cntvct_64: 0x15cb0418

[ 0.488769] msm-dcc b3000.dcc: gcnt_hi: 0x00000000(0x(____ptrval____))

[ 0.488779] msm-dcc b3000.dcc: gcnt_lo: 0x15cb064b(0x(____ptrval____))

[ 0.489265] global timer is null

[ 0.489437] CPU: IPQ6010, SoC Version: 1.0

[ 0.489443] OEM_ID: 0, PROD_ID: 0

[ 0.489786] msm_rpm_log_probe: OK

[ 0.490578] TZ SMMU State: SMMU Stage2 Enabled

[ 0.490640] TZ Log : Will warn on Access Violation, as paniconaccessviolation is not set

[ 0.491475] msm_serial 78b0000.serial: msm_serial: detected port #1

[ 0.491506] msm_serial 78b0000.serial: uartclk = 24000000

[ 0.491558] 78b0000.serial: ttyMSM1 at MMIO 0x78b0000 (irq = 12, base_baud = 1500000) is a MSM

[ 0.491808] msm_serial 78b1000.serial: msm_serial: detected port #0

[ 0.491835] msm_serial 78b1000.serial: uartclk = 1843199

[ 0.491867] 78b1000.serial: ttyMSM0 at MMIO 0x78b1000 (irq = 13, base_baud = 115199) is a MSM

[ 0.491885] msm_serial: console setup on port #0

[ 1.424631] printk: console [ttyMSM0] enabled

[ 1.429552] msm_serial: driver initialized

[ 1.433852] random: crng init done

[ 1.443419] brd: module loaded

[ 1.446368] loop: module loaded

[ 1.448068] nand: device found, Manufacturer ID: 0x2c, Chip ID: 0xaa

[ 1.448403] nand: Micron MT29F2G08ABBGAH4

[ 1.455027] nand: 256 MiB, SLC, erase size: 128 KiB, page size: 2048, OOB size: 128

[ 1.458946] 1 fixed-partitions partitions found on MTD device qcom_nand.0

[ 1.466386] Creating 1 MTD partitions on "qcom_nand.0":

[ 1.473327] 0x000000000000-0x00000f900000 : "rootfs"

[ 1.681433] mtd: device 0 (rootfs) set to be root filesystem

[ 1.681714] mtdsplit: no squashfs found in "rootfs"

[ 1.686856] spi_qup 78b5000.spi: IN:block:16, fifo:64, OUT:block:16, fifo:64

[ 1.691328] spi-nor spi0.0: found w25q128fw, expected n25q128a11

[ 1.699010] spi-nor spi0.0: w25q128fw (16384 Kbytes)

[ 1.704127] 17 fixed-partitions partitions found on MTD device spi0.0

[ 1.708979] Creating 17 MTD partitions on "spi0.0":

[ 1.715331] 0x000000000000-0x0000000c0000 : "0:SBL1"

[ 1.720640] 0x0000000c0000-0x0000000d0000 : "0:MIBIB"

[ 1.725722] 0x0000000d0000-0x0000000f0000 : "0:BOOTCONFIG"

[ 1.730684] 0x0000000f0000-0x000000110000 : "0:BOOTCONFIG1"

[ 1.736046] 0x000000110000-0x0000002b0000 : "0:QSEE"

[ 1.741539] 0x0000002b0000-0x000000450000 : "0:QSEE_1"

[ 1.746728] 0x000000450000-0x000000460000 : "0:DEVCFG"

[ 1.751685] 0x000000460000-0x000000470000 : "0:DEVCFG_1"

[ 1.756806] 0x000000470000-0x0000004b0000 : "0:RPM"

[ 1.762277] 0x0000004b0000-0x0000004f0000 : "0:RPM_1"

[ 1.766925] 0x0000004f0000-0x000000500000 : "0:CDT"

[ 1.772098] 0x000000500000-0x000000510000 : "0:CDT_1"

[ 1.776779] 0x000000510000-0x000000520000 : "0:APPSBLENV"

[ 1.781987] 0x000000520000-0x0000005c0000 : "0:APPSBL"

[ 1.787355] 0x0000005c0000-0x000000660000 : "0:APPSBL_1"

[ 1.792407] 0x000000660000-0x0000006e0000 : "0:ART"

[ 1.797855] 0x0000006e0000-0x000000720000 : "0:ASF"

[ 1.803834] qca-mdio 90000.mdio: Reset PHY by GPIO 507

[ 2.026882] qca-mdio 90000.mdio: Reset PHY by GPIO 509

[ 2.248799] qca-mdio 90000.mdio: qca-mdio driver was registered

[ 2.254972] xhci-hcd xhci-hcd.0.auto: xHCI Host Controller

[ 2.255015] xhci-hcd xhci-hcd.0.auto: new USB bus registered, assigned bus number 1

[ 2.259507] xhci-hcd xhci-hcd.0.auto: hcc params 0x0220fe65 hci version 0x110 quirks 0x0000000000010010

[ 2.266975] xhci-hcd xhci-hcd.0.auto: irq 93, io mem 0x07000000

[ 2.276848] hub 1-0:1.0: USB hub found

[ 2.282214] hub 1-0:1.0: 1 port detected

[ 2.286260] xhci-hcd xhci-hcd.0.auto: xHCI Host Controller

[ 2.290120] xhci-hcd xhci-hcd.0.auto: new USB bus registered, assigned bus number 2

[ 2.295381] xhci-hcd xhci-hcd.0.auto: Host supports USB 3.0 SuperSpeed

[ 2.302985] usb usb2: We don't know the algorithms for LPM for this host, disabling LPM.

[ 2.309914] hub 2-0:1.0: USB hub found

[ 2.317873] hub 2-0:1.0: config failed, hub doesn't have any ports! (err -19)

[ 2.321607] xhci-hcd xhci-hcd.1.auto: xHCI Host Controller

[ 2.328539] xhci-hcd xhci-hcd.1.auto: new USB bus registered, assigned bus number 3

[ 2.334838] xhci-hcd xhci-hcd.1.auto: hcc params 0x0220fe65 hci version 0x110 quirks 0x0000000000010010

[ 2.341595] xhci-hcd xhci-hcd.1.auto: irq 94, io mem 0x08a00000

[ 2.351393] hub 3-0:1.0: USB hub found

[ 2.356759] hub 3-0:1.0: 1 port detected

[ 2.360878] xhci-hcd xhci-hcd.1.auto: xHCI Host Controller

[ 2.364646] xhci-hcd xhci-hcd.1.auto: new USB bus registered, assigned bus number 4

[ 2.369947] xhci-hcd xhci-hcd.1.auto: Host supports USB 3.0 SuperSpeed

[ 2.377644] usb usb4: We don't know the algorithms for LPM for this host, disabling LPM.

[ 2.384490] hub 4-0:1.0: USB hub found

[ 2.392413] hub 4-0:1.0: 1 port detected

[ 2.396309] usbcore: registered new interface driver uas

[ 2.400159] usbcore: registered new interface driver usb-storage

[ 2.405264] i2c /dev entries driver

[ 2.415374] device-mapper: ioctl: 4.41.0-ioctl (2019-09-16) initialised: dm-devel@redhat.com

[ 2.416352] qti_scm_restart_reason qti,scm_restart_reason: reset_reason : [0xA1013D00]

[ 2.423532] qcom_ice_get_device_tree_data: No vdd-hba-supply regulator, assuming not needed

[ 2.431080] ICE IRQ = 16

[ 2.439597] sdhci: Secure Digital Host Controller Interface driver

[ 2.441913] sdhci: Copyright(c) Pierre Ossman

[ 2.447900] sdhci-pltfm: SDHCI platform and OF driver helper

[ 2.452762]

[ 2.452762] Version Rollback Feature Disabled

[ 2.460769] remoteproc remoteproc0: cd00000.remoteproc is available

[ 2.464187] coresight-tmc 6047000.tmc: failed to get flush cti, defer probe

[ 2.470159] coresight-dynamic-funnel 6041000.funnel: Uses obsolete Coresight DT bindings

[ 2.478362] coresight coresight-etm0: CPU0: ETM v4.0 initialized

[ 2.485149] coresight-etm4x 619c000.etm: CPU0: (null) initialized

[ 2.491572] coresight coresight-etm1: CPU1: ETM v4.0 initialized

[ 2.497109] coresight-etm4x 619d000.etm: CPU1: (null) initialized

[ 2.503875] coresight coresight-etm2: CPU2: ETM v4.0 initialized

[ 2.509175] coresight-etm4x 619e000.etm: CPU2: (null) initialized

[ 2.515638] coresight coresight-etm3: CPU3: ETM v4.0 initialized

[ 2.521338] coresight-etm4x 619f000.etm: CPU3: (null) initialized

[ 2.527500] coresight-stm 6002000.stm: coresight-stm : stm_register_device failed, probing deferred

[ 2.533432] OF: graph: no port node found in /soc/cti@6010000

[ 2.542335] OF: graph: no port node found in /soc/cti@6011000

[ 2.548221] OF: graph: no port node found in /soc/cti@6012000

[ 2.554054] OF: graph: no port node found in /soc/cti@6013000

[ 2.559679] OF: graph: no port node found in /soc/cti@6014000

[ 2.565432] OF: graph: no port node found in /soc/cti@6015000

[ 2.571153] OF: graph: no port node found in /soc/cti@6016000

[ 2.576863] OF: graph: no port node found in /soc/cti@6017000

[ 2.582726] OF: graph: no port node found in /soc/cti@6018000

[ 2.588326] OF: graph: no port node found in /soc/cti@6019000

[ 2.594071] OF: graph: no port node found in /soc/cti@601a000

[ 2.599788] OF: graph: no port node found in /soc/cti@601b000

[ 2.605531] OF: graph: no port node found in /soc/cti@601c000

[ 2.611375] OF: graph: no port node found in /soc/cti@601d000

[ 2.616982] OF: graph: no port node found in /soc/cti@601e000

[ 2.622734] OF: graph: no port node found in /soc/cti@601f000

[ 2.628436] OF: graph: no port node found in /soc/cti@6198000

[ 2.634176] OF: graph: no port node found in /soc/cti@6199000

[ 2.639894] OF: graph: no port node found in /soc/cti@619a000

[ 2.645712] OF: graph: no port node found in /soc/cti@619b000

[ 2.651214] usb 3-1: new high-speed USB device number 2 using xhci-hcd

[ 2.657149] OF: graph: no port node found in /soc/cti@610c000

[ 2.664370] OF: graph: no port node found in /soc/hwevent@6101000

[ 2.669159] coresight-hwevent 6101000.hwevent: No csr data

[ 2.675602] OF: graph: no port node found in /soc/csr@6001000

[ 2.680712] coresight-csr 6001000.csr: CSR initialized: coresight-csr

[ 2.687466] NET: Registered protocol family 10

[ 2.693677] Segment Routing with IPv6

[ 2.697244] NET: Registered protocol family 17

[ 2.701106] Bridge firewalling registered

[ 2.705262] 8021q: 802.1Q VLAN Support v1.8

[ 2.709356] Mass Storage accelerater start.

4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 2.771956] ubi0: attaching mtd0

[ 2.889798] hub 3-1:1.0: USB hub found

[ 2.890111] hub 3-1:1.0: 4 ports detected

[ 2.954879] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 2.990141] usb 4-1: new SuperSpeed Gen 1 USB device number 2 using xhci-hcd

[ 3.049806] hub 4-1:1.0: USB hub found

[ 3.050136] hub 4-1:1.0: 4 ports detected

[ 3.053833] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 3.370050] usb 4-1.2: new SuperSpeed Gen 1 USB device number 3 using xhci-hcd

[ 3.401407] usb-storage 4-1.2:1.0: USB Mass Storage device detected

[ 3.401601] scsi host0: usb-storage 4-1.2:1.0

[ 3.406809] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 3.510052] usb 4-1.3: new SuperSpeed Gen 1 USB device number 4 using xhci-hcd

[ 3.541473] usb-storage 4-1.3:1.0: USB Mass Storage device detected

[ 3.541641] scsi host1: usb-storage 4-1.3:1.0

[ 3.546835] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 3.797667] ubi0: scanning is finished

[ 3.803700] ubi0: attached mtd0 (name "rootfs", size 249 MiB)

[ 3.803720] ubi0: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes

[ 3.808413] ubi0: min./max. I/O unit sizes: 2048/2048, sub-page size 2048

[ 3.815197] ubi0: VID header offset: 2048 (aligned 2048), data offset: 4096

[ 3.822047] ubi0: good PEBs: 1992, bad PEBs: 0, corrupted PEBs: 0

[ 3.828812] ubi0: user volume: 3, internal volumes: 1, max. volumes count: 128

[ 3.835069] ubi0: max/mean erase counter: 26/5, WL threshold: 4096, image sequence number: 1731653759

[ 3.842191] ubi0: available PEBs: 0, total reserved PEBs: 1992, PEBs reserved for bad PEB handling: 40

[ 3.851489] ubi0: background thread "ubi_bgt0d" started, PID 219

[ 3.861020] block ubiblock0_1: created from ubi0:1(rootfs)

[ 3.866836] hctosys: unable to open rtc device (rtc0)

[ 3.874688] VFS: Mounted root (squashfs filesystem) readonly on device 253:0.

[ 3.877408] Freeing unused kernel memory: 576K

[ 3.910057] Run /sbin/init as init process

^C c^X[ 4.093788] init: Console is alive

[ 4.093996] init: - watchdog -

^XSW[ 5.471605] kmodloader: loading kernel modules from /etc/modules-boot.d/*

[ 5.490790] Button Hotplug driver version 0.4.1

[ 5.491560] raid6: using algorithm neonx8 gen() 0 MB/s

[ 5.494116] raid6: .... xor() 0 MB/s, rmw enabled

[ 5.499322] raid6: using neon recovery algorithm

[ 5.505906] xor: measuring software checksum speed

[ 5.600020] 8regs : 3452.400 MB/sec

@[ 5.699994] 32regs : 4244.000 MB/sec

[ 5.799995] arm64_neon: 3663.200 MB/sec

[ 5.800009] xor: using function: 32regs (4244.000 MB/sec)

[ 5.849891] Btrfs loaded, crc32c=crc32c-generic

[ 5.854912] ipq6018-pinctrl 1000000.pinctrl: pin GPIO_70 already requested by 78b0000.serial; cannot claim for soc:gpio_keys

[ 5.854950] ipq6018-pinctrl 1000000.pinctrl: pin-70 (soc:gpio_keys) status -22

[ 5.865219] ipq6018-pinctrl 1000000.pinctrl: could not request pin 70 (GPIO_70) from group gpio70 on device 1000000.pinctrl

[ 5.872320] gpio-keys soc:gpio_keys: Error applying setting, reverse things back

[ 5.883612] gpio-keys: probe of soc:gpio_keys failed with error -22

[ 5.891890] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver

[ 5.897329] ehci-fsl: Freescale EHCI Host controller driver

[ 5.904035] ehci-platform: EHCI generic platform driver

[ 5.914136] ohci_hcd: USB 1.1 'Open' Host Controller (OHCI) Driver

[ 5.914562] ohci-platform: OHCI generic platform driver

[ 5.921320] uhci_hcd: USB Universal Host Controller Interface driver

[ 5.926692] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 5.928913] kmodloader: done loading kernel modules from /etc/modules-boot.d/*

2[ 5.949451] init: - preinit -

22touch: /etc/config/skb_recycler: Read-only file system

2uci: Entry not found

uci: Entry not found

Press the [f] key and hit [enter] to enter failsafe mode

Press the [1], [2], [3] or [4] key and hit [enter] to select the debug level

222@@2111[ 8.410607] mount_root: loading kmods from internal overlay

[ 8.426663] kmodloader: loading kernel modules from //etc/modules-boot.d/*

[ 8.427993] kmodloader: done loading kernel modules from //etc/modules-boot.d/*

1111[ 9.604730] block: attempting to load /tmp/overlay/upper/etc/config/fstab

[ 9.604799] block: unable to load configuration (fstab: Entry not found)

[ 9.610523] block: attempting to load /tmp/overlay/etc/config/fstab

[ 9.617288] block: unable to load configuration (fstab: Entry not found)

[ 9.623280] block: attempting to load /etc/config/fstab

[ 9.630238] block: unable to load configuration (fstab: Entry not found)

[ 9.635157] block: no usable configuration

[ 9.643752] UBIFS (ubi0:2): Mounting in unauthenticated mode

[ 9.646075] UBIFS (ubi0:2): background thread "ubifs_bgt0_2" started, PID 311

1[ 9.678661] UBIFS (ubi0:2): recovery needed

[ 9.750081] UBIFS (ubi0:2): recovery completed

[ 9.750139] UBIFS (ubi0:2): UBIFS: mounted UBI device 0, volume 2, name "rootfs_data"

[ 9.753411] UBIFS (ubi0:2): LEB size: 126976 bytes (124 KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes

[ 9.761324] UBIFS (ubi0:2): FS size: 177385472 bytes (169 MiB, 1397 LEBs), journal size 8888320 bytes (8 MiB, 70 LEBs)

[ 9.771215] UBIFS (ubi0:2): reserved for root: 4952683 bytes (4836 KiB)

[ 9.781799] UBIFS (ubi0:2): media format: w5/r0 (latest is w5/r0), UUID D67151EE-04CF-4F20-8BF1-A0E1E7C2FEBA, small LPT model

[ 9.789293] block: attempting to load /tmp/ubifs_cfg/upper/etc/config/fstab

[ 9.805243] block: extroot: not configured

[ 9.806628] UBIFS (ubi0:2): un-mount UBI device 0

[ 9.810713] UBIFS (ubi0:2): background thread "ubifs_bgt0_2" stops

[ 9.817541] UBIFS (ubi0:2): Mounting in unauthenticated mode

[ 9.821650] UBIFS (ubi0:2): background thread "ubifs_bgt0_2" started, PID 312

1[ 9.878919] UBIFS (ubi0:2): UBIFS: mounted UBI device 0, volume 2, name "rootfs_data"

[ 9.878946] UBIFS (ubi0:2): LEB size: 126976 bytes (124 KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes

[ 9.885733] UBIFS (ubi0:2): FS size: 177385472 bytes (169 MiB, 1397 LEBs), journal size 8888320 bytes (8 MiB, 70 LEBs)

[ 9.895635] UBIFS (ubi0:2): reserved for root: 4952683 bytes (4836 KiB)

[ 9.906212] UBIFS (ubi0:2): media format: w5/r0 (latest is w5/r0), UUID D67151EE-04CF-4F20-8BF1-A0E1E7C2FEBA, small LPT model

[ 9.916970] mount_root: loading kmods from internal overlay

[ 9.938568] kmodloader: loading kernel modules from /tmp/overlay/upper/etc/modules-boot.d/*

[ 9.939904] kmodloader: done loading kernel modules from /tmp/overlay/upper/etc/modules-boot.d/*

11[ 11.072014] block: attempting to load /tmp/overlay/upper/etc/config/fstab

[ 11.075398] block: extroot: not configured

[ 11.078927] block: attempting to load /tmp/ubifs_cfg/upper/etc/config/fstab

[ 11.081887] block: extroot: not configured

[ 11.090758] mount_root: switching to ubifs overlay

[ 11.124519] procd: - early -

[ 11.124563] procd: - watchdog -

Failed to connect to ubus

[ 11.666820] procd: - watchdog -

[ 11.667056] procd: - ubus -

[ 11.728678] procd: - init -

Please press Enter to activate this console.

Loading cnss2:

[ 11.821288] cnss: INFO: IPC Logging is disabled!

[ 11.822787] cnss[2]: INFO: Platform driver probed successfully. plat 0x00000000f966ccd5 tgt 0xfffd

[ 11.825060] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 11.834258] remoteproc remoteproc1: QCN9000_PCI0 is available

[ 11.841179] cnss[27]: INFO: Platform driver probed successfully. plat 0x00000000e339d7c3 tgt 0x1104

[ 11.846918] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 11.856394] cnss[27]: INFO: PCI device 00000000a1b609a5 probed successfully

[ 11.863207] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 11.870144] cnss: INFO: cnss_plat_ipc_qmi_svc_init: CNSS Platform IPC QMI Service is started

[ 12.170205] cnss: INFO: cnss_plat_ipc_qmi_reg_client_req_handler: QMI Client Connected. QMI Socket Node: 1 Port: 16392 ID: 1

[ 12.170242] cnss: INFO: CNSS Daemon connected

[ 12.188883] cnss: INFO: cnss_plat_ipc_qmi_init_setup_req_handler: MAC: 0 HW_TRC: 0 CAL: 2

WIFI FW mount is successful

[ 12.264600] urngd: v1.0.2 started.

[ 12.398124] kmodloader: loading kernel modules from /etc/modules.d/*

[ 12.423663] ntfs3: Max link count 4000

[ 12.423682] ntfs3: Enabled Linux POSIX ACLs support

[ 12.426293] ntfs3: Warning: Activated 64 bits per cluster. Windows does not support this

[ 12.431111] ntfs3: Read-only LZX/Xpress compression included

[ 12.443119] NET: Registered protocol family 15

[ 12.446156] Initializing XFRM netlink socket

[ 12.449741] mpls_gso: MPLS GSO support

[ 12.611123] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 12.611769] malibu_phy_api_ops_init[2867]:INFO:qca probe malibu phy driver succeeded!

[ 12.620105] qca808x_phy_api_ops_init[2755]:INFO:qca probe qca808x phy driver succeeded!

[ 12.625998] qca808x_ptp_register[1331]:INFO:qca808x phydev 90000.mdio:18 ptp clock registered

[ 12.633707] qca808x_ptp_hook_init[1440]:INFO:qca808x ptp driver hooked on 1 instance

[ 13.020992] __adpt_hppe_uniphy_psgmii_mode_set[1162]:INFO:uniphy 0 psgmii channel selection

[ 13.940122] regi_init[4015]:INFO:Initializing HPPE Done!!

[ 13.940227] regi_init[4075]:INFO:qca-ssdk module init succeeded!

[ 13.957566] tun: Universal TUN/TAP device driver, 1.6

[ 13.964059] EDMA ver 1 hw init

[ 13.964297] EDMA HW Reset completed succesfully

[ 13.966024] Num rings - TxDesc:1 (23-23) TxCmpl:1 (23-23)

[ 13.970443] RxDesc:1 (15-15) RxFill:1 (7-7)

[ 13.976351] dp1: ppe offload disabled: 0 for macid 1

[ 13.979973] dp1: Switch attached to macid 1 status: 0

[ 13.985246] (unnamed net_device) (uninitialized): netif_napi_add() called with weight 100

[ 13.990583] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 13.999157] dp2: ppe offload disabled: 0 for macid 2

[ 14.005489] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 14.010826] dp2: Switch attached to macid 2 status: 0

[ 14.017854] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 14.023558] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 14.030124] dp3: ppe offload disabled: 0 for macid 3

[ 14.037269] dp3: Switch attached to macid 3 status: 0

[ 14.042737] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 14.048148] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 14.054654] dp4: ppe offload disabled: 0 for macid 4

[ 14.062033] dp4: Switch attached to macid 4 status: 0

[ 14.067265] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 14.070588] dp5: ppe offload disabled: 0 for macid 5

[ 14.072258] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 14.079103] dp5: Switch attached to macid 5 status: 0

[ 14.181596] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 14.181910] **********************************************************

[ 14.187711] * NSS Data Plane driver

[ 14.194308] **********************************************************

[ 14.204799] l2tp_core: L2TP core driver, V2.0

[ 14.205456] l2tp_netlink: L2TP netlink interface

[ 14.314986] nss_driver - fw of size 861416 bytes copied to load addr: 40000000, nss_id : 0

[ 14.316428] Supported Frequencies -

[ 14.316430] 187.2 MHz

[ 14.322148] 748.8 MHz

[ 14.325949] 1.4976 GHz

[ 14.328119]

[ 14.332858] ffffffc008fccf40: set sdma ffffff8079861b00

[ 14.334612] node size 2 # items 4

[ 14.339494] memory: 40000000 2147483648 (avl 1948278784) items 4 active_cores 1

[ 14.342989] addr/size storage words 2 2 # words 4 in DTS, ddr size 1000000

[ 14.350094] ffffffc008fccf40: NSS core 0 DDR from 40000000 to 41000000

[ 14.357109] ffffffc008fccf40: meminfo init succeed

[ 14.367072] ffffffc008fccf40: All resources initialized and nss core0 has been brought out of reset

[ 14.367174] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 14.378918] sit: IPv6, IPv4 and MPLS over IPv4 tunneling driver

[ 14.387266] nat46: module (version 1182f30785e4274913f01a8c3d7e1b5437ae3819) loaded.

[ 14.389669] node size 2 # items 4

[ 14.398435] memory: 40000000 2147483648 (avl 1948278784) items 4 active_cores 1

[ 14.401657] addr/size storage words 2 2 # words 4 in DTS, ddr size 1000000

[ 14.408778] ffffffc008fccf40: nss core 0 booted successfully

[ 14.523181] gre: GRE over IPv4 demultiplexor driver

[ 14.524115] ip_gre: GRE over IPv4 tunneling driver

[ 14.528626] ip6_gre: GRE over IPv6 tunneling driver

[ 14.533930] Ethernet Channel Bonding Driver: v3.7.1 (April 27, 2011)

[ 14.546985] PPP generic driver version 2.4.2

[ 14.547650] NET: Registered protocol family 24

[ 14.551337] PPTP driver version 0.8.5

[ 14.573206] cryptodev: driver 1.10 loaded.

[ 14.724283] TRACK: P[0] PMask[4]

[ 14.724301] TRACK: P[1] PMask[4]

[ 14.726562] TRACK: P[2] PMask[4]

[ 14.729940] TRACK: P[3] PMask[4]

[ 14.733001] TRACK: P[4] PMask[4]

[ 14.736196] TRACK: P[5] PMask[4]

[ 14.739409] TRACK: P[6] PMask[4]

[ 14.745078] QCA multicast snooping installed successfully

[ 14.747411] <NSS-CRYPTO>:module loaded Build_ID - 08/06/24, 15:19:44 SoC=ipq60xx

[ 14.752880] nss-macsec0 DT exist!

[ 14.796180] cannot find nss-macsec1 node

[ 14.796269] cannot find nss-macsec2 node

[ 14.799208] cannot find nss-macsec3 node

[ 14.803110] nss_macsec init success

[ 14.824059] hidraw: raw HID events driver (C) Jiri Kosina

[ 14.824951] Mirror/redirect action on

[ 14.832131] u32 classifier

[ 14.832151] input device check on

[ 14.834671] Actions configured

[ 14.844420] fuse: init (API version 7.31)

[ 14.845688] usbcore: registered new interface driver cdc_wdm

[ 14.850736] usbcore: registered new interface driver qmi_wwan_q

[ 14.854103] usbcore: registered new interface driver qmi_wwan_f

[ 14.861161] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 14.864969] mhi_init Quectel_Linux_PCIE_MHI_Driver_V1.3.5

[ 14.875618] usbcore: registered new interface driver aqc111

[ 14.878124] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 14.886345] usbcore: registered new interface driver cdc_acm

[ 14.890222] cdc_acm: USB Abstract Control Model driver for USB modems and ISDN adapters

[ 14.897386] usbcore: registered new interface driver cdc_ether

[ 14.905700] usbcore: registered new interface driver cdc_ncm

[ 14.912549] usbcore: registered new interface driver huawei_cdc_ncm

[ 14.923070] l2tp_ppp: PPPoL2TP kernel driver, V2.0

[ 14.958990] nf_conntrack_rtsp v0.7 loading

[ 14.971636] nf_nat_rtsp v0.7 loading

[ 14.997563] PPP MPPE Compression module registered

[ 14.998962] usbcore: registered new interface driver qmi_wwan

[ 15.003826] usbcore: registered new interface driver r8152

[ 15.009553] usbcore: registered new interface driver rndis_host

[ 15.014548] usbcore: registered new interface driver sierra_net

[ 15.022978] usbcore: registered new interface driver ums-alauda

[ 15.024872] usbcore: registered new interface driver ums-cypress

[ 15.030898] usbcore: registered new interface driver ums-datafab

[ 15.037100] usbcore: registered new interface driver ums-freecom

[ 15.043048] usbcore: registered new interface driver ums-isd200

[ 15.049009] usbcore: registered new interface driver ums-jumpshot

[ 15.054704] usbcore: registered new interface driver ums-karma

[ 15.061176] usbcore: registered new interface driver ums-sddr09

[ 15.066534] usbcore: registered new interface driver ums-sddr55

[ 15.072369] usbcore: registered new interface driver ums-usbat

[ 15.079640] usbcore: registered new interface driver usbhid

[ 15.083624] usbhid: USB HID core driver

[ 15.089849] usbcore: registered new interface driver usblp

[ 15.097562] usbcore: registered new interface driver usbserial_generic

[ 15.098424] usbserial: USB Serial support registered for generic

[ 15.107612] wireguard: WireGuard 1.0.0 loaded. See www.wireguard.com for information.

[ 15.153960] xt_time: kernel timezone is -0000

[ 15.155368] usbcore: registered new interface driver cdc_mbim

[ 15.165185] usbcore: registered new interface driver snd-usb-audio

[ 15.170150] usbcore: registered new interface driver option

[ 15.170294] usbserial: USB Serial support registered for GSM modem (1-port)

[ 15.176772] usbcore: registered new interface driver qcserial

[ 15.182789] usbserial: USB Serial support registered for Qualcomm USB modem

[ 15.188990] kmodloader: done loading kernel modules from /etc/modules.d/*

acfg_tool: Issuing blocking call to wait for events

[ 17.918290] loading qca-wifi

qcawifi configuration is disable

MLD Single Netdev is ENABLED

[ 18.587331] configuring additional NSS pbufs

[ 18.614412] additional pbufs of size 10002432 got added to NSS

[ 19.512707] wlan: [1311:I:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: Could not find active PSOCs

[ 19.512739] wlan: [1311:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 0

[ 19.520572] wlan: [1311:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 1

[ 19.528975] wlan: [1311:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 2

[ 19.537400] wlan: [1311:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 3

[ 19.545831] wlan: [1311:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 4

[ 19.554238] wlan: [1311:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 0

[ 19.562663] wlan: [1311:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 1

[ 19.571087] wlan: [1311:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 2

[ 19.579501] wlan: [1311:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 3

[ 19.587932] wlan: [1311:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 4

[ 19.596347] wlan: [1311:I:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: Could not find active PSOCs

[ 19.604760] wlan: [1311:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 0

[ 19.613529] wlan: [1311:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 1

[ 19.621949] wlan: [1311:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 2

[ 19.630370] wlan: [1311:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 3

[ 19.638789] wlan: [1311:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 4

[ 19.647213] wlan: [1311:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 0

[ 19.655636] wlan: [1311:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 1

[ 19.664049] wlan: [1311:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 2

[ 19.672480] wlan: [1311:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 3

[ 19.680889] wlan: [1311:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 4

[ 19.695001] wlan: [1311:I:ANY] qdf_ini_parse: INI values read: 98

[ 19.697719] wlan: [1311:I:ANY] qdf_ini_parse: INI file parse successful

[ 19.706750] wlan: [1311:I:ANY] qdf_ini_parse: INI values read: 60

[ 19.710146] wlan: [1311:I:ANY] qdf_ini_parse: INI file parse successful

*****cnssdaemon pid=589*********

[ 19.802135] cnss: INFO: cnss_plat_ipc_qmi_send_config_param_req_handler: Param: 3 Instance ID: 0x27 Value: 1

[ 19.802169] cnss: INFO: cnss_config_param_update_cb: Instance ID: 0x27 Param 3 Value: 1

[ 19.811063] cnss[27]: INFO: Setting cold_boot_support=1 for instance_id 0x27

[ 19.896914] cnss: INFO: cnss_plat_ipc_qmi_send_config_param_req_handler: Param: 3 Instance ID: 0x2 Value: 1

[ 19.896947] cnss: INFO: cnss_config_param_update_cb: Instance ID: 0x2 Param 3 Value: 1

[ 19.905701] cnss[2]: INFO: Setting cold_boot_support=1 for instance_id 0x2

[ 20.091314] cnss: INFO: cnss_plat_ipc_qmi_send_config_param_req_handler: Param: 6 Instance ID: 0x27 Value: 1

[ 20.091348] cnss: INFO: cnss_config_param_update_cb: Instance ID: 0x27 Param 6 Value: 1

[ 20.100341] cnss[27]: INFO: Setting qdss_support=1 for instance_id 0x27

[ 20.469895] ./IPQ6018/regdb.bin ./qcn9000/regdb.bin ./qcn9000/amss.bin

[ 20.640827] wlan: [1783:I:ANY] =======ol_if_register_wifi3_0==========

[ 20.640827]

[ 20.640861] wlan: [1783:I:ANY] osif_nss_register_module: NSS wifi ops registered for target_type:1 with soc_ops:00000000176d6b69

[ 20.647729] cnss[2]: ERR: cnss_register_subsys: Failed to get rproc handle 0 for device QCA6018

[ 20.659458] remoteproc remoteproc0: powering up cd00000.remoteproc

[ 20.683807] remoteproc remoteproc0: Booting fw image IPQ6018/q6_fw.mdt, size 7340

[ 21.503957] Subsystem error monitoring/handling services are up

[ 21.504001] qcom-q6v5-wcss-pil cd00000.remoteproc: QDSP6SS Version : 0x100a0000

[ 21.508682] qcom-q6v5-wcss-pil cd00000.remoteproc: WCSS Version : 0x10000000

[ 21.521467] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 21.523667] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 21.556001] cnss[2]: INFO: QMI WLFW service connected, state: 0x10001

[ 21.562073] diag: In diag_send_feature_mask_update, control channel is not open, p: 2, 00000000ee52e16a

[ 21.562101] diag: In diag_send_peripheral_buffering_mode, buffering flag not set for 2

[ 21.564255] cnss[2]: INFO: device_id : 0xfffd mem mode : [0]

[ 21.570657] diag: In diag_send_peripheral_buffering_mode, buffering flag not set for 2

[ 21.578760] cnss[2]: INFO: platform name: AnySafe E1

[ 21.580867] cnss[2]: ERR: WARNING: More memory is reserved. Reserved size 0x5500000, Requested size 0x532c000.

[ 21.598631] cnss[2]: INFO: cnss_cal_db_mem_update: File Operation 1 size 4112384 file name wlfw_cal_01.bin

[ 21.630038] remoteproc remoteproc0: remote processor cd00000.remoteproc is now up

[ 21.630083] cnss[2]: INFO: Waiting for FW ready. Device: 0xfffd, FW ready timeout: 15 seconds

[ 22.032420] cnss[2]: INFO: Target capability: chip_id: 0x0, chip_family: 0x4, board_id: 0xff, soc_id: 0xffffffff, fw_version: 0x280d85d4, fw_build_timestamp: 2023-01-27 20:09, otp_version: 0x0 eeprom_caldata_read_timeout 0s bdf_dnld_method 1 regdb_mandatory 0 rxgainlut_support 0

[ 22.041596] cnss[2]: INFO: Downloading BDF: IPQ6018/regdb.bin, size: 24348

[ 22.071238] cnss[2]: INFO: Downloading BDF: IPQ6018/bdwlan.b13, size: 65536

[ 22.102306] cnss[2]: INFO: Downloading BDF: IPQ6018/caldata.bin, size: 65536

[ 22.230011] cnss[2]: INFO: FW ready received for device 0xfffd

[ 22.231190] cnss[2]: INFO: Sending mode message, mode: COLDBOOT CALIBRATION(7), state: 0x1000f

[ 22.294949] remoteproc remoteproc1: powering up QCN9000_PCI0

[ 22.295783] cnss[2]: INFO: Coldboot Calbration wait started for Device: 0xfffd, timeout: 60 seconds

[ 22.764636] remoteproc remoteproc1: Booting fw image qcn9000/amss.bin, size 4096880

[ 22.764734] cnss_pci 0000:01:00.0: BAR 0: assigned [mem 0x20400000-0x205fffff 64bit]

[ 22.771179] cnss_pci 0000:01:00.0: enabling device (0000 -> 0002)

[ 22.780035] cnss_pci 0000:01:00.0: DMA Memory initialized at 0x0000000053700000 size 0x900000

[ 22.785201] cnss[27]: INFO: SOC VERSION INFO: Family num: 0x4, Device num: 0xd, Major Ver: 0x1, Minor Ver: 0x0

[ 22.794289] cnss[27]: INFO: Setting 0x20 to QRTR_NODE_ID_REG

[ 22.803477] cnss[27]: INFO: Value from QRTR_NODE_ID_REG: 0x20

[ 22.809290] mhi mhi0: Requested to power ON

[ 22.815102] mhi mhi0: Power on setup success

[ 22.920045] mhi mhi0: Wait for device to enter SBL or Mission mode

[ 22.920312] mhi mhi0: boot-args not defined in DTS. ret:-22

[ 23.210265] cnss[27]: INFO: MHI status cb is called with reason MISSION MODE(5)

[ 23.210478] mhi_uci mhi0_LOOPBACK: channel:LOOPBACK successfully probed

[ 23.216566] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 23.223428] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 23.230767] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 23.239042] cnss[27]: INFO: QMI WLFW service connected, state: 0x10011

[ 23.246296] cnss[27]: INFO: FW INI CFG file qcn9000/fw_ini_cfg.bin is present

[ 23.251477] cnss[27]: INFO: device_id : 0x1104 mem mode : [0]

[ 23.258729] cnss[27]: INFO: platform name: AnySafe E1

[ 23.259972] cnss[27]: INFO: FW File 0 download

[ 23.274365] cnss[27]: INFO: cnss_cal_db_mem_update: File Operation 1 size 3784704 file name wlfw_cal_01_QCN9000_PCI0.bin

[ 23.330053] remoteproc remoteproc1: remote processor QCN9000_PCI0 is now up

[ 23.330972] cnss[27]: INFO: Waiting for FW ready. Device: 0x1104, FW ready timeout: 15 seconds

[ 23.458192] cnss[27]: INFO: Target capability: chip_id: 0x0, chip_family: 0x0, board_id: 0xff, soc_id: 0xffffffff, fw_version: 0x280d85d4, fw_build_timestamp: 2023-01-27 19:11, otp_version: 0x0 eeprom_caldata_read_timeout 0s bdf_dnld_method 1 regdb_mandatory 0 rxgainlut_support 0

[ 23.460057] cnss[27]: INFO: Downloading BDF: qcn9000/regdb.bin, size: 24278

[ 23.494366] cnss[27]: INFO: Downloading BDF: qcn9000/bdwlan.ba3, size: 131072

[ 23.529176] cnss[27]: INFO: Downloading BDF: qcn9000/caldata_1.bin, size: 131072

[ 23.690025] cnss[27]: INFO: FW ready received for device 0x1104

[ 23.691329] cnss[27]: INFO: Sending mode message, mode: COLDBOOT CALIBRATION(7), state: 0x1010f

[ 23.799295] cnss[27]: INFO: Coldboot Calbration wait started for Device: 0x1104, timeout: 60 seconds

[ 24.877470] cnss[2]: INFO: Calibration took 2640 ms

[ 24.877501] cnss[2]: INFO: Coldboot Calibration completed successfully for device 0xfffd

[ 24.881163] cnss[2]: INFO: cnss_cal_db_mem_update: File Operation 0 size 4100000 file name wlfw_cal_01.bin

[ 24.889484] cnss: INFO: cnss_plat_ipc_qmi_file_upload: File name: wlfw_cal_01.bin Size: 4100000

[ 25.070032] cnss[2]: INFO: Coldboot Calibration wait ended for device 0xfffd

[ 25.070061] cnss[2]: INFO: Sending mode message, mode: OFF(4), state: 0x10007

[ 25.078082] cnss[2]: INFO: QMI WLFW service disconnected, state: 0x10026

[ 25.108803] remoteproc remoteproc0: stopped remote processor cd00000.remoteproc

[ 25.108836] cnss[2]: INFO: __cnss_subsystem_get: driver_state: 0x0

[ 25.114925] remoteproc remoteproc0: powering up cd00000.remoteproc

[ 25.121274] remoteproc remoteproc0: Booting fw image IPQ6018/q6_fw.mdt, size 7340

[ 25.127352] wlan: [195:I:ANY] ol_ath_wifi_ssr: SSR event 2 bus_type 1

[ 25.429876] Subsystem error monitoring/handling services are up

[ 25.429933] qcom-q6v5-wcss-pil cd00000.remoteproc: QDSP6SS Version : 0x100a0000

[ 25.434622] qcom-q6v5-wcss-pil cd00000.remoteproc: WCSS Version : 0x10000000

[ 25.447371] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 25.449619] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 25.481895] cnss[2]: INFO: QMI WLFW service connected, state: 0x1

[ 25.488019] diag: In diag_send_peripheral_buffering_mode, buffering flag not set for 2

[ 25.488066] diag: In diag_send_peripheral_buffering_mode, buffering flag not set for 2

[ 25.490079] cnss[2]: INFO: device_id : 0xfffd mem mode : [0]

[ 25.502732] cnss[2]: INFO: platform name: AnySafe E1

[ 25.504977] cnss[2]: ERR: WARNING: More memory is reserved. Reserved size 0x5500000, Requested size 0x532c000.

[ 25.519803] cnss[2]: INFO: Target capability: chip_id: 0x0, chip_family: 0x4, board_id: 0xff, soc_id: 0xffffffff, fw_version: 0x280d85d4, fw_build_timestamp: 2023-01-27 20:09, otp_version: 0x0 eeprom_caldata_read_timeout 0s bdf_dnld_method 1 regdb_mandatory 0 rxgainlut_support 0

[ 25.525825] cnss[2]: INFO: Downloading BDF: IPQ6018/regdb.bin, size: 24348

[ 25.558221] cnss[2]: INFO: Downloading BDF: IPQ6018/bdwlan.b13, size: 65536

[ 25.560034] wlan: [195:I:ANY] ol_ath_wifi_ssr: SSR event 3 bus_type 1

[ 25.564007] wlan: [195:I:ANY] ol_ath_wifi_ssr: Waiting for probe lock

[ 25.570622] wlan: [195:I:ANY] ol_ath_wifi_ssr: Starting Driver Probe

[ 25.577018] cnss[2]: INFO: Waiting for FW ready. Device: 0xfffd, FW ready timeout: 15 seconds

[ 25.589188] cnss[2]: INFO: Downloading BDF: IPQ6018/caldata.bin, size: 65536

[ 25.700012] cnss[2]: INFO: FW ready received for device 0xfffd

[ 25.700201] wlan: [195:I:ANY] pld_ahb_wlan_enable: cnss_mode: Mission mode

[ 25.705993] cnss[2]: INFO: Sending mode message, mode: MISSION(0), state: 0x7

[ 25.721493] wlan: [195:I:ANY] qca_napi_create: napi instance 0 created on pipe 4

[ 25.721783] wlan: [195:D:dfs] WLAN_DEBUG_DFS1 : dfs_psoc_obj_create_notification: DFS obj attach to psoc successfully

[ 25.728164] wlan: [195:I:ANY] qdf_ini_parse: INI values read: 0

[ 25.738507] wlan: [195:I:ANY] qdf_ini_parse: INI file parse fail: invalid file format

[ 25.744228] wlan: [195:E:CONFIG] cfg_ini_parse_to_store: Failed to parse *.ini file @ QCA6018.ini; status:4

[ 25.752238] wlan: [195:I:ANY] qdf_ini_parse: INI values read: 0

[ 25.761753] wlan: [195:I:ANY] qdf_ini_parse: INI file parse fail: invalid file format

[ 25.767625] wlan: [195:E:CONFIG] cfg_ini_parse_to_store: Failed to parse *.ini file @ internal/QCA6018_i.ini; status:4

[ 25.775744] wlan: [195:I:ANY] osif_nss_wifi_soc_setup: nss-wifili:#1 register wifili function for soc 25

[ 25.786236] wlan: [195:I:ANY] osif_nss_wifi_soc_setup: nss register id -1 nss config 7 Target Type 19

[ 25.800692] wlan: [195:E:ANY] dp_get_num_msi_available: Unable to get DP MSI assignment 2

[ 25.805226] wlan: [195:E:ANY] ol_target_init_complete: soc attach failed

[ 25.813356] wlan: [195:E:ANY] ol_ath_soc_attach: error status -1

[ 25.819986] wlan: [195:I:ANY] ol_ath_soc_attach: nss-wifi: detach -zero delay

[ 25.825983] wlan: [195:E:NSS] [nss-wifili]: stop ERROR - Null nss context

[ 25.833016] wlan: [195:E:NSS] [nss-wifili]: nss context is null

[ 25.839857] wlan: [195:E:NSS] [nss-wifili]: nss wifili astentries database is not found

[ 25.847529] wlan: [195:I:ANY] __ol_ath_attach:

[ 25.847529] __ol_ath_attach() soc 0000000057bd6078 Detaching Codeswap

[ 25.847529]

[ 25.853653] cnss[2]: INFO: Sending mode message, mode: OFF(4), state: 0x7

[ 25.867807] wlan: [195:I:ANY] ol_ath_ahb_probe: failure ret -5

[ 25.869826] cnss[2]: INFO: QMI WLFW service disconnected, state: 0x6

[ 25.872955] wlan: [195:E:ANY] ol_ath_ahb_probe: Assertion failed! 0:ol_ath_ahb_probe /home/hcy/qsdk12.2/build_dir/target-aarch64_cortex-a53_musl/linux-ipq60xx_generic/qca-wifi-12.2-unified-profile/qca-wifi-12.2/os/linux/../../qca_ol/../offload/os/linux/ath_ahb.c:1487

[ 25.886306] CPU: 2 PID: 195 Comm: kworker/2:1 Not tainted 5.4.220 #0

[ 25.908501] Hardware name: AnySafe E1 (DT)

[ 25.915110] Workqueue: events cnss_subsystem_put [ipq_cnss2]

[ 25.919002] Call trace:

[ 25.924817] dump_backtrace+0x0/0x198

[ 25.926986] show_stack+0x14/0x20

[ 25.930808] dump_stack+0xb4/0xf8

[ 25.934521] ol_ath_ahb_probe+0x300/0x468 [qca_ol]

[ 25.937796] ol_ath_wifi_ssr+0x9fc/0xdb0 [qca_ol]

[ 25.942475] ol_ath_pld_probe+0x24/0x48 [qca_ol]

[ 25.947243] pld_pcie_device_self_recovery+0x24c/0x298 [qca_ol]

[ 25.951562] cnss_self_recovery+0x1ac/0x238 [ipq_cnss2]

[ 25.957200] notifier_call_chain+0x50/0x90

[ 25.962401] blocking_notifier_call_chain+0x48/0x70

[ 25.966575] rproc_subsys_notify+0x88/0xa0

[ 25.971344] rproc_start+0x1f8/0x270

[ 25.975509] rproc_boot+0x404/0x4e8

[ 25.979248] __cnss_subsystem_get+0x108/0x290 [ipq_cnss2]

[ 25.982461] cnss_subsystem_put+0x180/0x248 [ipq_cnss2]

[ 25.988014] process_one_work+0x1e8/0x348

[ 25.993043] worker_thread+0x40/0x460

[ 25.997209] kthread+0x154/0x158

[ 26.000858] ret_from_fork+0x10/0x1c

[ 26.004213] WLAN Panic @ ol_ath_ahb_probe:1487: Take care of the TARGET ASSERT first

[ 26.004213]

[ 26.007761] ------------[ cut here ]------------

[ 26.016831] kernel BUG at /home/hcy/qsdk12.2/build_dir/target-aarch64_cortex-a53_musl/linux-ipq60xx_generic/qca-wifi-12.2-unified-profile/qca-wifi-12.2/os/linux/../../qca_ol/../cmn_dev/qdf/linux/src/i_qdf_trace.h:402!

[ 26.021548] Internal error: Oops - BUG: 0 [#1] PREEMPT SMP

[ 26.040704] Modules linked in: wifi_3_0(+) smart_antenna qca_ol qca_spectral umac qdf mem_manager qcserial option usb_wwan snd_usb_audio ipt_REJECT cdc_mbim xt_time xt_tcpudp xt_tcpmss xt_string xt_statistic xt_state xt_socket xt_recent xt_quota xt_policy xt_pkttype xt_physdev xt_owner xt_nat xt_multiport xt_mark xt_mac xt_limit xt_length xt_iprange xt_hl xt_helper xt_esp xt_ecn xt_dscp xt_conntrack xt_connmark xt_connlimit xt_connbytes xt_comment xt_bpf xt_addrtype xt_TPROXY xt_TCPMSS xt_REDIRECT xt_NFQUEUE xt_MASQUERADE xt_LOG xt_HL xt_DSCP xt_CT xt_CLASSIFY wireguard usbserial usblp usbhid ums_usbat ums_sddr55 ums_sddr09 ums_karma ums_jumpshot ums_isd200 ums_freecom ums_datafab ums_cypress ums_alauda ts_fsm ts_bm snd_usbmidi_lib sierra_net sch_cake rndis_host r8152 qmi_wwan ppp_mppe ppp_async nft_reject_ipv6 nft_reject_ipv4 nft_reject_inet nft_reject nft_redir nft_quota nft_queue nft_numgen nft_log nft_limit nft_ct nft_counter nfnetlink_queue nf_tproxy_ipv6 nf_tproxy_ipv4 nf_tables

[ 26.040798] nf_socket_ipv6 nf_socket_ipv4 nf_reject_ipv4 nf_nat_tftp nf_nat_snmp_basic nf_nat_sip nf_nat_rtsp nf_nat_pptp nf_nat_irc nf_nat_h323 nf_nat_ftp nf_nat_amanda nf_log_ipv4 nf_flow_table_hw nf_flow_table nf_conntrack_tftp nf_conntrack_snmp nf_conntrack_sip nf_conntrack_rtsp nf_conntrack_rtcache nf_conntrack_pptp nf_conntrack_netlink nf_conntrack_irc nf_conntrack_h323 nf_conntrack_ftp nf_conntrack_broadcast ts_kmp nf_conntrack_amanda nf_conncount macvlan libchacha20poly1305 l2tp_ppp iptable_raw iptable_nat iptable_mangle iptable_filter ipt_ah ipt_ECN ip_tables huawei_cdc_ncm hid_generic exfat cdc_ncm cdc_ether cdc_acm asn1_decoder arptable_filter arpt_mangle arp_tables aqc111 pcie_mhi qmi_wwan_f qmi_wwan_q usbnet cdc_wdm fuse tcp_bbr act_connmark sch_tbf sch_ingress sch_htb sch_hfsc em_u32 cls_u32 cls_tcindex cls_route cls_matchall cls_fw cls_flow cls_basic act_skbedit act_mirred hid qca_nss_tunipip6 qca_nss_tun6rd qca_nss_ipsecmgr evdev pwm_fan gpio_fan hwmon

[ 26.110991] qca_nss_cfi_cryptoapi qca_nss_qdisc qca_nss_macsec qca_nss_crypto qca_mcs diagchar crc_ccitt qca_nss_vxlanmgr qca_nss_pptp qca_nss_pppoe pppoe qca_nss_map_t qca_nss_lag_mgr qca_nss_l2tpv2 qca_nss_gre qca_nss_bridge_mgr qca_nss_vlan xt_sctp emesh_sp cryptodev xt_set ip_set_list_set ip_set_hash_netportnet ip_set_hash_netport ip_set_hash_netnet ip_set_hash_netiface ip_set_hash_net ip_set_hash_mac ip_set_hash_ipportnet ip_set_hash_ipportip ip_set_hash_ipport ip_set_hash_ipmark ip_set_hash_ip ip_set_bitmap_port ip_set_bitmap_ipmac ip_set_bitmap_ip ip_set nfnetlink ip6table_nat nf_nat nf_conntrack pptp pppox ppp_generic slhc nf_defrag_ipv4 ip6t_NPT nf_log_ipv6 nf_log_common ip6table_mangle ip6table_filter ip6_tables ip6t_REJECT x_tables nf_reject_ipv6 msdos bonding ip6_gre ip_gre gre ifb dummy rmnet_ctl nat46 nf_defrag_ipv6 sit qca_nss_drv l2tp_netlink l2tp_core ipcomp6 xfrm6_tunnel esp6 ah6 xfrm4_tunnel ipcomp esp4 ah4 ip6_tunnel qca_nss_dp netlink_diag tunnel6 tunnel4 udp_diag

[ 26.196761] tcp_diag raw_diag inet_diag veth tun snd_rawmidi snd_seq_device snd_pcm_oss snd_pcm snd_timer snd_mixer_oss snd_hwdep snd_compress snd soundcore qca_ssdk mpls_iptunnel mpls_router ip_tunnel mpls_gso xfrm_user xfrm_ipcomp af_key xfrm_algo vfat fat ntfs3 autofs4 dm_mirror dm_region_hash dm_log dm_crypt cfg80211 nls_utf8 nls_iso8859_1 nls_cp437 vxlan udp_tunnel ip6_udp_tunnel nsh md5 authenc ipq_cnss2 leds_gpio uhci_hcd ohci_platform ohci_hcd ahci libahci libata fsl_mph_dr_of ehci_platform ehci_fsl ehci_hcd gpio_button_hotplug f2fs btrfs xor zstd_decompress zstd_compress xxhash xor_neon raid6_pq libcrc32c button_hotplug input_core mii crc32_generic

[ 26.342258] CPU: 2 PID: 195 Comm: kworker/2:1 Not tainted 5.4.220 #0

[ 26.364489] Hardware name: AnySafe E1 (DT)

[ 26.371013] Workqueue: events cnss_subsystem_put [ipq_cnss2]

[ 26.374904] pstate: 60400005 (nZCv daif +PAN -UAO)

[ 26.381134] pc : ol_ath_ahb_probe+0x314/0x468 [qca_ol]

[ 26.385708] lr : ol_ath_ahb_probe+0x314/0x468 [qca_ol]

[ 26.390445] sp : ffffff807c8afa30

[ 26.395559] x29: ffffff807c8afa30 x28: ffffffc00a045000

[ 26.398948] x27: ffffff807d2f75b8 x26: 00000000fffffffb

[ 26.404329] x25: 0000000000000001 x24: ffffffc00a04673c

[ 26.409624] x23: ffffffc00a0b8518 x22: ffffff807d289c10

[ 26.414920] x21: ffffff807aeb6800 x20: ffffffc00a0b8350

[ 26.420215] x19: ffffffc00a0b8518 x18: 0000000000000000

[ 26.425511] x17: 0000000000000000 x16: 0000000000000000

[ 26.430805] x15: 0000000000000000 x14: 696c2f736f2f322e

[ 26.436101] x13: ffffffc010c21c12 x12: ffffffc010bae000

[ 26.441399] x11: ffffff807c8af750 x10: ffffff807c8af750

[ 26.446693] x9 : 0000000000000000 x8 : 2054454752415420

[ 26.451988] x7 : ffffffc010b98768 x6 : 0000000000000313

[ 26.457281] x5 : 0000000000000000 x4 : 0000000000000000

[ 26.462577] x3 : 00000000ffffffff x2 : ffffffc010baeeb8

[ 26.467874] x1 : ffffff807c8b0000 x0 : 0000000000000049

[ 26.473168] Call trace:

[ 26.478863] ol_ath_ahb_probe+0x314/0x468 [qca_ol]

[ 26.481015] ol_ath_wifi_ssr+0x9fc/0xdb0 [qca_ol]

[ 26.485867] ol_ath_pld_probe+0x24/0x48 [qca_ol]

[ 26.490628] pld_pcie_device_self_recovery+0x24c/0x298 [qca_ol]

[ 26.494966] cnss_self_recovery+0x1ac/0x238 [ipq_cnss2]

[ 26.500603] notifier_call_chain+0x50/0x90

[ 26.505805] blocking_notifier_call_chain+0x48/0x70

[ 26.509976] rproc_subsys_notify+0x88/0xa0

[ 26.514745] rproc_start+0x1f8/0x270

[ 26.518912] rproc_boot+0x404/0x4e8

[ 26.522650] __cnss_subsystem_get+0x108/0x290 [ipq_cnss2]

[ 26.525862] cnss_subsystem_put+0x180/0x248 [ipq_cnss2]

[ 26.531415] process_one_work+0x1e8/0x348

[ 26.536447] worker_thread+0x40/0x460

[ 26.540612] kthread+0x154/0x158

[ 26.544258] ret_from_fork+0x10/0x1c

[ 26.547563] Code: 5280b9e2 aa1303e1 f943f000 95a08c84 (d4210000)

[ 26.551121] ---[ end trace 57cf03773990d0cd ]---

[ 26.557110] Kernel panic - not syncing: Fatal exception

[ 26.561798] SMP: stopping secondary CPUs

[ 26.566746] cnss[27]: ERR: Crash shutdown device QCN9000_PCI0 with driver_state 0x1010f

[ 26.781065] mhi mhi0: CRASHED - [DID:DOMAIN:BUS:SLOT] - 1104:0000:01:00

[ 26.781157] mhi mhi0: Fatal error received from wcss software!

[ 26.781157]

[ 26.781157] QC Image Version: QC_IMAGE_VERSION_STRING=WLAN.HK.2.8-01492-QCAHKSWPL_SILICONZ-1

[ 26.781157] Image Variant : IMAGE_VARIANT_STRING=9000.wlanfw.eval_v1Q

[ 26.781157] Oem Image Version: OEM_IMAGE_VERSION_STRING=ip-10-195-204-55

[ 26.781157] Oem Image UUID: OEM_IMAGE_UUID_STRING=Q_SENTINEL_{D0F5F167-C383-484B-9B1A-A35B48AA0387}_20230127_1914

[ 26.781157]

[ 26.781157] mhi_sm_patched.c:209 (): param0 :zero, param1 :zero, param2 :zero.

[ 26.781157] Thread ID : 0x00000024 Thread name : MHI CORE Process ID : 0

[ 26.781157] Register:

[ 26.781157] SP : 0x0143a450

[ 26.781157] FP : 0x0143a458

[ 26.781157] PC : 0x0082ecd8

[ 26.781157] SSR : 0x00000008

[ 26.781157] BADVA : 0x00000000

[ 26.781157] LR : 0x0082ee40

[ 26.781157]

[ 26.781157] Stack Dump

[ 26.781157] from : 0x0143a450

[ 26.781157] to : 0x0143a540

[ 26.781157]

[ 26.850349] cnss[27]: INFO: Dump Collection Completed, total entries is 23

[ 26.872593] smem desc phys addr(0x4aa3b198)

[ 26.879521] smem_panic_handler tx tail:13560 tx head:13560 rx tail:8224 rx head:8224

[ 31.883810] The reading for sensor 4 is 0x002041fb

[ 31.883827] The reading for sensor 5 is 0x00205205

[ 31.887478] The reading for sensor 7 is 0x002071f1

[ 31.892252] The reading for sensor 8 is 0x002081eb

[ 31.897071] Couldn't get reading for sensor 13

[ 31.901800] The reading for sensor 14 is 0x0020e1f1

[ 31.906228] The reading for sensor 15 is 0x0020f1fb

[ 31.910999] Kernel Offset: disabled

[ 31.915860] CPU features: 0x00002,20002000

[ 31.919331] Memory Limit: none

[ 32.524629] Rebooting in 5 seconds..

Format: Log Type - Time(microsec) - Message - Optional Info

Log Type: B - Since Boot(Power On Reset), D - Delta, S - Statistic

S - QC_IMAGE_VERSION_STRING=BOOT.XF.0.3-00102-IPQ60xxLZB-1

S - IMAGE_VARIANT_STRING=IPQ6018LA

S - OEM_IMAGE_VERSION_STRING=crm-ubuntu64

S - Boot Interface: SPI

S - Secure Boot: Off

S - Boot Config @ 0x000a602c = 0x000002e1

S - JTAG ID @ 0x000a607c = 0x0013a0e1

S - OEM ID @ 0x000a6080 = 0x00000000

S - Serial Number @ 0x000a4128 = 0x08fa6d2b

S - OEM Config Row 0 @ 0x000a4188 = 0x0000000000000000

S - OEM Config Row 1 @ 0x000a4190 = 0x0000000000000000

S - Feature Config Row 0 @ 0x000a4130 = 0x0000000008000001

S - Feature Config Row 1 @ 0x000a4138 = 0x02c3e83383000009

S - PBL Patch Ver: 1

S - I-cache: On

S - D-cache: On

B - 3413 - PBL, Start

B - 592 - bootable_media_detect_entry, Start

B - 4339 - bootable_media_detect_success, Start

B - 4435 - elf_loader_entry, Start

B - 4607 - auth_hash_seg_entry, Start

B - 10854 - auth_hash_seg_exit, Start

B - 11350 - elf_segs_hash_verify_entry, Start

B - 358091 - elf_segs_hash_verify_exit, Start

B - 362282 - auth_xbl_sec_hash_seg_entry, Start

B - 362426 - auth_xbl_sec_hash_seg_exit, Start

B - 368980 - xbl_sec_segs_hash_verify_entry, Start

B - 368981 - xbl_sec_segs_hash_verify_exit, Start

B - 369910 - PBL, End

B - 296064 - SBL1, Start

B - 439383 - GCC [RstStat:0x10, RstDbg:0x700100] WDog Stat : 0x4

B - 441823 - clock_init, Start

D - 3751 - clock_init, Delta

B - 451644 - boot_flash_init, Start

D - 8357 - boot_flash_init, Delta

B - 462197 - sbl1_ddr_set_default_params, Start

D - 335 - sbl1_ddr_set_default_params, Delta

B - 468815 - boot_config_data_table_init, Start

D - 1921 - boot_config_data_table_init, Delta - (575 Bytes)

B - 477965 - CDT Version:2,Platform ID:8,Major ID:3,Minor ID:0,Subtype:2

B - 483516 - Image Load, Start

D - 6618 - OEM_MISC Image Loaded, Delta - (0 Bytes)

B - 492849 - Image Load, Start

D - 5033 - PMIC Image Loaded, Delta - (0 Bytes)

B - 500718 - sbl1_ddr_set_params, Start

B - 505781 - CPR configuration: 0x555

B - 508892 - Pre_DDR_clock_init, Start

D - 213 - Pre_DDR_clock_init, Delta

D - 0 - sbl1_ddr_set_params, Delta

B - 547749 - Image Load, Start

D - 458 - APDP Image Loaded, Delta - (0 Bytes)

B - 565470 - Image Load, Start

D - 427 - QTI_MISC Image Loaded, Delta - (0 Bytes)

B - 567910 - Image Load, Start

D - 854 - Auth Metadata

D - 641 - Segments hash check

D - 29463 - QSEE Dev Config Image Loaded, Delta - (37162 Bytes)

B - 599355 - Image Load, Start

D - 6619 - Auth Metadata

D - 10340 - Segments hash check

D - 793275 - QSEE Image Loaded, Delta - (1426556 Bytes)

B - 1393118 - Image Load, Start

D - 641 - Auth Metadata

D - 976 - Segments hash check

D - 63440 - RPM Image Loaded, Delta - (102948 Bytes)

B - 1458235 - Image Load, Start

D - 732 - Auth Metadata

D - 3202 - Segments hash check

D - 308355 - APPSBL Image Loaded, Delta - (570116 Bytes)

B - 1782633 - SBL1, End

D - 1486874 - SBL1, Delta

S - Flash Throughput, 1000 KB/s (2138029 Bytes, 1098537 us)

S - Core 0 Frequency, 800 MHz

S - DDR Frequency, 466 MHz

U-Boot 2016.01 (Jun 02 2024 - 16:18:30 +0000)

DRAM: smem ram ptable found: ver: 2 len: 4

2 GiB

NAND: ONFI device found

ID = 1590aa2c

Vendor = 2c

Device = aa

qpic_nand: changing oobsize to 80 from 128 bytes

SPI_ADDR_LEN=3

SF: Detected W25Q128FW with page size 256 Bytes, erase size 4 KiB, total 16 MiB

ipq_spi: page_size: 0x100, sector_size: 0x1000, size: 0x1000000

272 MiB

MMC: sdhci: Node Not found, skipping initialization

*** Warning - bad CRC, using default environment

PCI Link Intialized

In: serial@78B1000

Out: serial@78B1000

Err: serial@78B1000

machid: 8030002

eth5 MAC Address from ART is not valid

Net: MAC0 addr:e0:38:2d:e0:2:23

PHY ID1: 0x4d

PHY ID2: 0xd0b1

PHY ID1: 0x4d

PHY ID2: 0xd101

EDMA ver 1 hw init

Num rings - TxDesc:1 (0-0) TxCmpl:1 (0-0)

RxDesc:1 (15-15) RxFill:1 (7-7)

ipq6018_edma_alloc_rings: successfull

ipq6018_edma_setup_ring_resources: successfull

ipq6018_edma_configure_rings: successfull

ipq6018_edma_hw_init: successfull

eth0

Hit any key to stop autoboot: 0

ubi0: attaching mtd2

ubi0: scanning is finished

ubi0: attached mtd2 (name "mtd=0", size 249 MiB)

ubi0: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes

ubi0: min./max. I/O unit sizes: 2048/2048, sub-page size 2048

ubi0: VID header offset: 2048 (aligned 2048), data offset: 4096

ubi0: good PEBs: 1992, bad PEBs: 0, corrupted PEBs: 0

ubi0: user volume: 3, internal volumes: 1, max. volumes count: 128

ubi0: max/mean erase counter: 27/5, WL threshold: 4096, image sequence number: 1731653759
