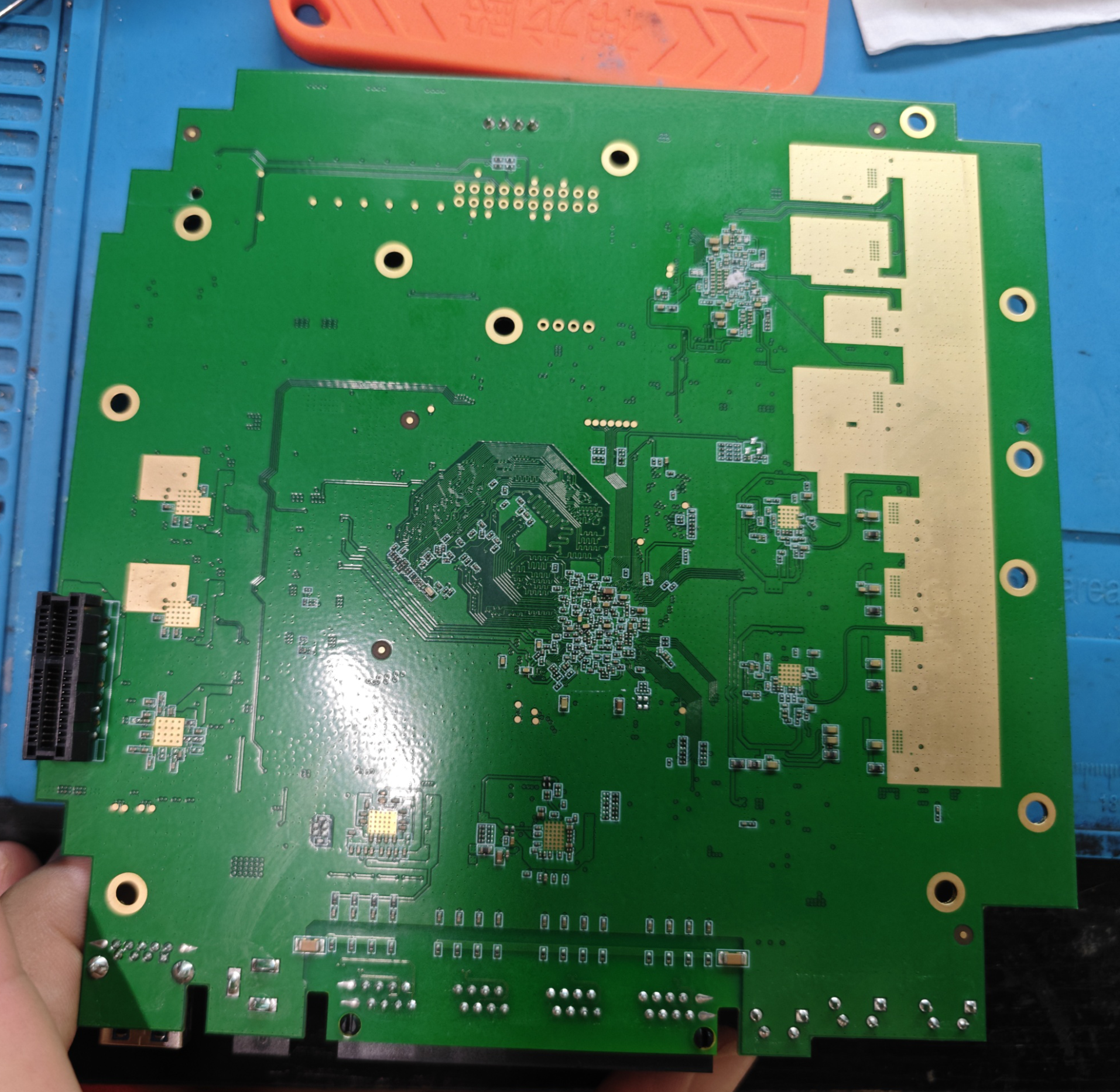

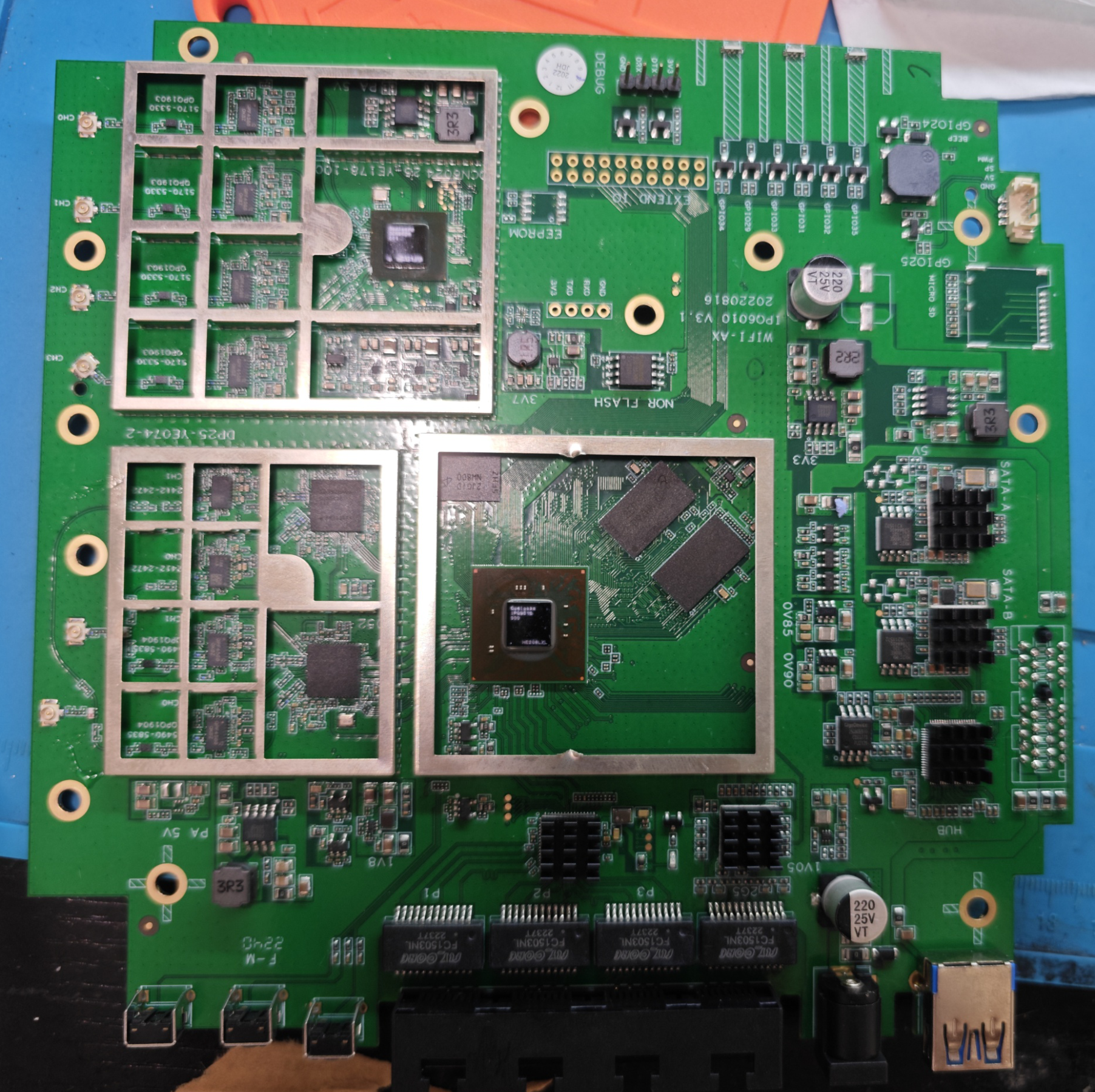

安信服E1 anysafe E1 主板 欣赏 ttl的跑马 分区 uboot qwrt

[ 24.797286] cnss[2]: INFO: Coldboot Calibration completed successfully for device 0xfffd

[ 24.797251] cnss[2]: INFO: Calibration took 2640 ms

[ 24.797286] cnss[2]: INFO: Coldboot Calibration completed successfully for device 0xfffd

[ 24.990022] cnss[2]: INFO: Coldboot Calibration wait ended for device 0xfffd

[ 24.990051] cnss[2]: INFO: Sending mode message, mode: OFF(4), state: 0x10007

[ 24.998118] cnss[2]: INFO: QMI WLFW service disconnected, state: 0x10026

[ 25.023870] remoteproc remoteproc0: stopped remote processor cd00000.remoteproc

[ 25.023909] cnss[2]: INFO: __cnss_subsystem_get: driver_state: 0x0

[ 25.030024] remoteproc remoteproc0: powering up cd00000.remoteproc

[ 25.036389] remoteproc remoteproc0: Booting fw image IPQ6018/q6_fw.mdt, size 7340

[ 25.042465] wlan: [225:I:ANY] ol_ath_wifi_ssr: SSR event 2 bus_type 1

[ 25.345967] Subsystem error monitoring/handling services are up

[ 25.346017] qcom-q6v5-wcss-pil cd00000.remoteproc: QDSP6SS Version : 0x100a0000

[ 25.350721] qcom-q6v5-wcss-pil cd00000.remoteproc: WCSS Version : 0x10000000

[ 25.363333] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 25.366822] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 25.400254] cnss[2]: INFO: QMI WLFW service connected, state: 0x1

[ 25.406396] diag: In diag_send_peripheral_buffering_mode, buffering flag not set for 2

[ 25.408383] cnss[2]: INFO: device_id : 0xfffd mem mode : [0]

[ 25.413237] cnss[2]: INFO: platform name: AnySafe E1

[ 25.417521] cnss[2]: ERR: WARNING: More memory is reserved. Reserved size 0x5500000, Requested size 0x532c000.

[ 25.430315] cnss[2]: INFO: Target capability: chip_id: 0x0, chip_family: 0x4, board_id: 0xff, soc_id: 0xffffffff, fw_version: 0x280d85d4, fw_build_timestamp: 2023-01-27 20:09, otp_version: 0x0 eeprom_caldata_read_timeout 0s bdf_dnld_method 1 regdb_mandatory 0 rxgainlut_support 0

[ 25.436223] cnss[2]: INFO: Downloading BDF: IPQ6018/regdb.bin, size: 24348

[ 25.468566] cnss[2]: INFO: Downloading BDF: IPQ6018/bdwlan.b13, size: 65536

[ 25.470045] wlan: [225:I:ANY] ol_ath_wifi_ssr: SSR event 3 bus_type 1

[ 25.474359] wlan: [225:I:ANY] ol_ath_wifi_ssr: Waiting for probe lock

[ 25.480943] wlan: [225:I:ANY] ol_ath_wifi_ssr: Starting Driver Probe

[ 25.487385] cnss[2]: INFO: Waiting for FW ready. Device: 0xfffd, FW ready timeout: 15 seconds

[ 25.510318] cnss[2]: INFO: Downloading BDF: IPQ6018/caldata.bin, size: 65536

[ 25.610020] cnss[2]: INFO: FW ready received for device 0xfffd

[ 25.610170] wlan: [225:I:ANY] pld_ahb_wlan_enable: cnss_mode: Mission mode

[ 25.615961] cnss[2]: INFO: Sending mode message, mode: MISSION(0), state: 0x7

[ 25.631473] wlan: [225:I:ANY] qca_napi_create: napi instance 0 created on pipe 4

[ 25.631748] wlan: [225:D:dfs] WLAN_DEBUG_DFS1 : dfs_psoc_obj_create_notification: DFS obj attach to psoc successfully

[ 25.638727] wlan: [225:I:ANY] qdf_ini_parse: INI values read: 0

[ 25.648469] wlan: [225:I:ANY] qdf_ini_parse: INI file parse fail: invalid file format

[ 25.654181] wlan: [225:E:CONFIG] cfg_ini_parse_to_store: Failed to parse *.ini file @ QCA6018.ini; status:4

[ 25.662270] wlan: [225:I:ANY] qdf_ini_parse: INI values read: 0

[ 25.671738] wlan: [225:I:ANY] qdf_ini_parse: INI file parse fail: invalid file format

[ 25.677624] wlan: [225:E:CONFIG] cfg_ini_parse_to_store: Failed to parse *.ini file @ internal/QCA6018_i.ini; status:4

[ 25.685719] wlan: [225:I:ANY] osif_nss_wifi_soc_setup: nss-wifili:#1 register wifili function for soc 25

[ 25.696201] wlan: [225:I:ANY] osif_nss_wifi_soc_setup: nss register id -1 nss config 7 Target Type 19

[ 25.710037] wlan: [225:E:ANY] dp_get_num_msi_available: Unable to get DP MSI assignment 2

[ 25.714943] wlan: [225:E:ANY] ol_target_init_complete: soc attach failed

[ 25.723251] wlan: [225:E:ANY] ol_ath_soc_attach: error status -1

[ 25.729941] wlan: [225:I:ANY] ol_ath_soc_attach: nss-wifi: detach -zero delay

[ 25.735948] wlan: [225:E:NSS] [nss-wifili]: stop ERROR – Null nss context

[ 25.743000] wlan: [225:E:NSS] [nss-wifili]: nss context is null

[ 25.749832] wlan: [225:E:NSS] [nss-wifili]: nss wifili astentries database is not found

[ 25.757441] wlan: [225:I:ANY] __ol_ath_attach:

[ 25.757441] __ol_ath_attach() soc 00000000cdb39076 Detaching Codeswap

[ 25.757441]

[ 25.763629] cnss[2]: INFO: Sending mode message, mode: OFF(4), state: 0x7

[ 25.777754] wlan: [225:I:ANY] ol_ath_ahb_probe: failure ret -5

[ 25.782986] cnss[2]: INFO: QMI WLFW service disconnected, state: 0x6

[ 25.783029] wlan: [225:E:ANY] ol_ath_ahb_probe: Assertion failed! 0:ol_ath_ahb_probe /home/hcy/qsdk12.2/build_dir/target-aarch64_cortex-a53_musl/linux-ipq60xx_generic/qca-wifi-12.2-unified-profile/qca-wifi-12.2/os/linux/../../qca_ol/../offload/os/linux/ath_ahb.c:1487

[ 25.796261] CPU: 1 PID: 225 Comm: kworker/1:4 Not tainted 5.4.220 #0

[ 25.818481] Hardware name: AnySafe E1 (DT)

[ 25.825093] Workqueue: events cnss_subsystem_put [ipq_cnss2]

[ 25.828986] Call trace:

[ 25.834798] dump_backtrace+0x0/0x198

[ 25.836967] show_stack+0x14/0x20

[ 25.840787] dump_stack+0xb4/0xf8

[ 25.844517] ol_ath_ahb_probe+0x300/0x468 [qca_ol]

[ 25.847774] ol_ath_wifi_ssr+0x9fc/0xdb0 [qca_ol]

[ 25.852462] ol_ath_pld_probe+0x24/0x48 [qca_ol]

[ 25.857223] pld_pcie_device_self_recovery+0x24c/0x298 [qca_ol]

[ 25.861545] cnss_self_recovery+0x1ac/0x238 [ipq_cnss2]

[ 25.867181] notifier_call_chain+0x50/0x90

[ 25.872383] blocking_notifier_call_chain+0x48/0x70

[ 25.876554] rproc_subsys_notify+0x88/0xa0

[ 25.881326] rproc_start+0x1f8/0x270

[ 25.885491] rproc_boot+0x404/0x4e8

[ 25.889230] __cnss_subsystem_get+0x108/0x290 [ipq_cnss2]

[ 25.892440] cnss_subsystem_put+0x180/0x248 [ipq_cnss2]

[ 25.897995] process_one_work+0x1e8/0x348

[ 25.903025] worker_thread+0x40/0x460

[ 25.907192] kthread+0x154/0x158

[ 25.910837] ret_from_fork+0x10/0x1c

[ 25.914210] WLAN Panic @ ol_ath_ahb_probe:1487: Take care of the TARGET ASSERT first

[ 25.914210]

[ 25.917743] ————[ cut here ]————

[ 25.926812] kernel BUG at /home/hcy/qsdk12.2/build_dir/target-aarch64_cortex-a53_musl/linux-ipq60xx_generic/qca-wifi-12.2-unified-profile/qca-wifi-12.2/os/linux/../../qca_ol/../cmn_dev/qdf/linux/src/i_qdf_trace.h:402!

[ 25.931527] Internal error: Oops – BUG: 0 [#1] PREEMPT SMP

[ 25.950684] Modules linked in: wifi_3_0(+) smart_antenna qca_ol qca_spectral umac qdf mem_manager qcserial option usb_wwan snd_usb_audio ipt_REJECT cdc_mbim xt_time xt_tcpudp xt_tcpmss xt_string xt_statistic xt_state xt_socket xt_recent xt_quota xt_policy xt_pkttype xt_physdev xt_owner xt_nat xt_multiport xt_mark xt_mac xt_limit xt_length xt_iprange xt_hl xt_helper xt_esp xt_ecn xt_dscp xt_conntrack xt_connmark xt_connlimit xt_connbytes xt_comment xt_bpf xt_addrtype xt_TPROXY xt_TCPMSS xt_REDIRECT xt_NFQUEUE xt_MASQUERADE xt_LOG xt_HL xt_DSCP xt_CT xt_CLASSIFY wireguard usbserial usblp usbhid ums_usbat ums_sddr55 ums_sddr09 ums_karma ums_jumpshot ums_isd200 ums_freecom ums_datafab ums_cypress ums_alauda ts_fsm ts_bm snd_usbmidi_lib sierra_net sch_cake rndis_host r8152 qmi_wwan ppp_mppe ppp_async nft_reject_ipv6 nft_reject_ipv4 nft_reject_inet nft_reject nft_redir nft_quota nft_queue nft_numgen nft_log nft_limit nft_ct nft_counter nfnetlink_queue nf_tproxy_ipv6 nf_tproxy_ipv4 nf_tables

[ 25.950776] nf_socket_ipv6 nf_socket_ipv4 nf_reject_ipv4 nf_nat_tftp nf_nat_snmp_basic nf_nat_sip nf_nat_rtsp nf_nat_pptp nf_nat_irc nf_nat_h323 nf_nat_ftp nf_nat_amanda nf_log_ipv4 nf_flow_table_hw nf_flow_table nf_conntrack_tftp nf_conntrack_snmp nf_conntrack_sip nf_conntrack_rtsp nf_conntrack_rtcache nf_conntrack_pptp nf_conntrack_netlink nf_conntrack_irc nf_conntrack_h323 nf_conntrack_ftp nf_conntrack_broadcast ts_kmp nf_conntrack_amanda nf_conncount macvlan libchacha20poly1305 l2tp_ppp iptable_raw iptable_nat iptable_mangle iptable_filter ipt_ah ipt_ECN ip_tables huawei_cdc_ncm hid_generic exfat cdc_ncm cdc_ether cdc_acm asn1_decoder arptable_filter arpt_mangle arp_tables aqc111 pcie_mhi qmi_wwan_f qmi_wwan_q usbnet cdc_wdm fuse tcp_bbr act_connmark sch_tbf sch_ingress sch_htb sch_hfsc em_u32 cls_u32 cls_tcindex cls_route cls_matchall cls_fw cls_flow cls_basic act_skbedit act_mirred hid qca_nss_tunipip6 qca_nss_tun6rd qca_nss_ipsecmgr evdev pwm_fan gpio_fan hwmon

[ 26.020972] qca_nss_cfi_cryptoapi qca_nss_qdisc qca_nss_macsec qca_nss_crypto qca_mcs diagchar crc_ccitt qca_nss_vxlanmgr qca_nss_pptp qca_nss_pppoe pppoe qca_nss_map_t qca_nss_lag_mgr qca_nss_l2tpv2 qca_nss_gre qca_nss_bridge_mgr qca_nss_vlan xt_sctp emesh_sp cryptodev xt_set ip_set_list_set ip_set_hash_netportnet ip_set_hash_netport ip_set_hash_netnet ip_set_hash_netiface ip_set_hash_net ip_set_hash_mac ip_set_hash_ipportnet ip_set_hash_ipportip ip_set_hash_ipport ip_set_hash_ipmark ip_set_hash_ip ip_set_bitmap_port ip_set_bitmap_ipmac ip_set_bitmap_ip ip_set nfnetlink ip6table_nat nf_nat nf_conntrack pptp pppox ppp_generic slhc nf_defrag_ipv4 ip6t_NPT nf_log_ipv6 nf_log_common ip6table_mangle ip6table_filter ip6_tables ip6t_REJECT x_tables nf_reject_ipv6 msdos bonding ip6_gre ip_gre gre ifb dummy rmnet_ctl nat46 nf_defrag_ipv6 sit qca_nss_drv l2tp_netlink l2tp_core ipcomp6 xfrm6_tunnel esp6 ah6 xfrm4_tunnel ipcomp esp4 ah4 ip6_tunnel qca_nss_dp netlink_diag tunnel6 tunnel4 udp_diag

[ 26.106740] tcp_diag raw_diag inet_diag veth tun snd_rawmidi snd_seq_device snd_pcm_oss snd_pcm snd_timer snd_mixer_oss snd_hwdep snd_compress snd soundcore qca_ssdk mpls_iptunnel mpls_router ip_tunnel mpls_gso xfrm_user xfrm_ipcomp af_key xfrm_algo vfat fat ntfs3 autofs4 dm_mirror dm_region_hash dm_log dm_crypt cfg80211 nls_utf8 nls_iso8859_1 nls_cp437 vxlan udp_tunnel ip6_udp_tunnel nsh md5 authenc ipq_cnss2 leds_gpio uhci_hcd ohci_platform ohci_hcd ahci libahci libata fsl_mph_dr_of ehci_platform ehci_fsl ehci_hcd gpio_button_hotplug f2fs btrfs xor zstd_decompress zstd_compress xxhash xor_neon raid6_pq libcrc32c button_hotplug input_core mii crc32_generic

[ 26.252238] CPU: 1 PID: 225 Comm: kworker/1:4 Not tainted 5.4.220 #0

[ 26.274470] Hardware name: AnySafe E1 (DT)

[ 26.280997] Workqueue: events cnss_subsystem_put [ipq_cnss2]

[ 26.284886] pstate: 60400005 (nZCv daif +PAN -UAO)

[ 26.291109] pc : ol_ath_ahb_probe+0x314/0x468 [qca_ol]

[ 26.295689] lr : ol_ath_ahb_probe+0x314/0x468 [qca_ol]

[ 26.300421] sp : ffffff807cc33a30

[ 26.305541] x29: ffffff807cc33a30 x28: ffffffc00a071000

[ 26.308929] x27: ffffff807d2f7a38 x26: 00000000fffffffb

[ 26.314312] x25: 0000000000000001 x24: ffffffc00a07273c

[ 26.319607] x23: ffffffc00a0e4518 x22: ffffff807d289c10

[ 26.324902] x21: ffffff8074380c00 x20: ffffffc00a0e4350

[ 26.330197] x19: ffffffc00a0e4518 x18: ffffffc00a2ac118

[ 26.335492] x17: ffffffc00a2ac1d0 x16: ffffffc00a2abf98

[ 26.340787] x15: ffffffc00a2abfa8 x14: 4553534120544547

[ 26.346082] x13: 5241542065687420 x12: 666f206572616320

[ 26.351377] x11: 656b6154203a3738 x10: 34313a65626f7270

[ 26.356672] x9 : 5f6268615f687461 x8 : 5f6c6f2040206369

[ 26.361967] x7 : ffffffc010b98768 x6 : 0000000000000310

[ 26.367263] x5 : 0000000000000000 x4 : 0000000000000000

[ 26.372557] x3 : 00000000ffffffff x2 : ffffffc010baeeb8

[ 26.377853] x1 : ffffff807cc8a4c0 x0 : 0000000000000049

[ 26.383147] Call trace:

[ 26.388842] ol_ath_ahb_probe+0x314/0x468 [qca_ol]

[ 26.390990] ol_ath_wifi_ssr+0x9fc/0xdb0 [qca_ol]

[ 26.395837] ol_ath_pld_probe+0x24/0x48 [qca_ol]

[ 26.400607] pld_pcie_device_self_recovery+0x24c/0x298 [qca_ol]

[ 26.404946] cnss_self_recovery+0x1ac/0x238 [ipq_cnss2]

[ 26.410583] notifier_call_chain+0x50/0x90

[ 26.415787] blocking_notifier_call_chain+0x48/0x70

[ 26.419958] rproc_subsys_notify+0x88/0xa0

[ 26.424727] rproc_start+0x1f8/0x270

[ 26.428892] rproc_boot+0x404/0x4e8

[ 26.432631] __cnss_subsystem_get+0x108/0x290 [ipq_cnss2]

[ 26.435843] cnss_subsystem_put+0x180/0x248 [ipq_cnss2]

[ 26.441396] process_one_work+0x1e8/0x348

[ 26.446428] worker_thread+0x40/0x460

[ 26.450594] kthread+0x154/0x158

[ 26.454241] ret_from_fork+0x10/0x1c

[ 26.457543] Code: 5280b9e2 aa1303e1 f943f000 959fdc84 (d4210000)

[ 26.461103] —[ end trace fb6c1582f9c999f1 ]—

[ 26.467090] Kernel panic – not syncing: Fatal exception

[ 26.471778] SMP: stopping secondary CPUs

[ 26.476735] cnss[27]: ERR: Crash shutdown device QCN9000_PCI0 with driver_state 0x1010f

[ 26.691045] mhi mhi0: CRASHED – [DID:DOMAIN:BUS:SLOT] – 1104:0000:01:00

[ 26.691144] mhi mhi0: Fatal error received from wcss software!

[ 26.691144]

[ 26.691144] QC Image Version: QC_IMAGE_VERSION_STRING=WLAN.HK.2.8-01492-QCAHKSWPL_SILICONZ-1

[ 26.691144] Image Variant : IMAGE_VARIANT_STRING=9000.wlanfw.eval_v1Q

[ 26.691144] Oem Image Version: OEM_IMAGE_VERSION_STRING=ip-10-195-204-55

[ 26.691144] Oem Image UUID: OEM_IMAGE_UUID_STRING=Q_SENTINEL_{D0F5F167-C383-484B-9B1A-A35B48AA0387}_20230127_1914

[ 26.691144]

[ 26.691144] mhi_sm_patched.c:209 (): param0 :zero, param1 :zero, param2 :zero.

[ 26.691144] Thread ID : 0x00000024 Thread name : MHI CORE Process ID : 0

[ 26.691144] Register:

[ 26.691144] SP : 0x0143a450

[ 26.691144] FP : 0x0143a458

[ 26.691144] PC : 0x0082ecd8

[ 26.691144] SSR : 0x00000008

[ 26.691144] BADVA : 0x00000000

[ 26.691144] LR : 0x0082ee40

[ 26.691144]

[ 26.691144] Stack Dump

[ 26.691144] from : 0x0143a450

[ 26.691144] to : 0x0143a540

[ 26.691144]

[ 26.760330] cnss[27]: INFO: Dump Collection Completed, total entries is 23

[ 26.782578] smem desc phys addr(0x4aa3b198)

[ 26.789503] smem_panic_handler tx tail:13456 tx head:13456 rx tail:8208 rx head:8208

[ 31.793791] The reading for sensor 4 is 0x002041ee

[ 31.793808] The reading for sensor 5 is 0x002051f8

[ 31.797458] The reading for sensor 7 is 0x002071e4

[ 31.802233] The reading for sensor 8 is 0x002081da

[ 31.807052] Couldn’t get reading for sensor 13

[ 31.811781] The reading for sensor 14 is 0x0020e1e1

[ 31.816251] Couldn’t get reading for sensor 15

[ 31.820980] Kernel Offset: disabled

[ 31.825492] CPU features: 0x00002,20002000

[ 31.828878] Memory Limit: none

[ 32.434039] Rebooting in 5 seconds..

Format: Log Type – Time(microsec) – Message – Optional Info

Log Type: B – Since Boot(Power On Reset), D – Delta, S – Statistic

S – QC_IMAGE_VERSION_STRING=BOOT.XF.0.3-00102-IPQ60xxLZB-1

S – IMAGE_VARIANT_STRING=IPQ6018LA

S – OEM_IMAGE_VERSION_STRING=crm-ubuntu64

S – Boot Interface: SPI

S – Secure Boot: Off

S – Boot Config @ 0x000a602c = 0x000002e1

S – JTAG ID @ 0x000a607c = 0x0013a0e1

S – OEM ID @ 0x000a6080 = 0x00000000

S – Serial Number @ 0x000a4128 = 0x08fa6d2b

S – OEM Config Row 0 @ 0x000a4188 = 0x0000000000000000

S – OEM Config Row 1 @ 0x000a4190 = 0x0000000000000000

S – Feature Config Row 0 @ 0x000a4130 = 0x0000000008000001

S – Feature Config Row 1 @ 0x000a4138 = 0x02c3e83383000009

S – PBL Patch Ver: 1

S – I-cache: On

S – D-cache: On

B – 3413 – PBL, Start

B – 592 – bootable_media_detect_entry, Start

B – 4339 – bootable_media_detect_success, Start

B – 4435 – elf_loader_entry, Start

B – 4607 – auth_hash_seg_entry, Start

B – 10853 – auth_hash_seg_exit, Start

B – 11348 – elf_segs_hash_verify_entry, Start

B – 358088 – elf_segs_hash_verify_exit, Start

B – 362278 – auth_xbl_sec_hash_seg_entry, Start

B – 362422 – auth_xbl_sec_hash_seg_exit, Start

B – 368971 – xbl_sec_segs_hash_verify_entry, Start

B – 368971 – xbl_sec_segs_hash_verify_exit, Start

B – 369901 – PBL, End

B – 296063 – SBL1, Start

B – 439352 – GCC [RstStat:0x10, RstDbg:0x700100] WDog Stat : 0x4

B – 441792 – clock_init, Start

D – 3751 – clock_init, Delta

B – 451613 – boot_flash_init, Start

D – 8357 – boot_flash_init, Delta

B – 462166 – sbl1_ddr_set_default_params, Start

D – 335 – sbl1_ddr_set_default_params, Delta

B – 468785 – boot_config_data_table_init, Start

D – 1921 – boot_config_data_table_init, Delta – (575 Bytes)

B – 477904 – CDT Version:2,Platform ID:8,Major ID:3,Minor ID:0,Subtype:2

B – 483455 – Image Load, Start

D – 6588 – OEM_MISC Image Loaded, Delta – (0 Bytes)

B – 492788 – Image Load, Start

D – 5033 – PMIC Image Loaded, Delta – (0 Bytes)

B – 500657 – sbl1_ddr_set_params, Start

B – 505720 – CPR configuration: 0x555

B – 508831 – Pre_DDR_clock_init, Start

D – 213 – Pre_DDR_clock_init, Delta

D – 0 – sbl1_ddr_set_params, Delta

B – 547688 – Image Load, Start

D – 427 – APDP Image Loaded, Delta – (0 Bytes)

B – 565409 – Image Load, Start

D – 458 – QTI_MISC Image Loaded, Delta – (0 Bytes)

B – 567818 – Image Load, Start

D – 793 – Auth Metadata

D – 671 – Segments hash check

D – 29372 – QSEE Dev Config Image Loaded, Delta – (37162 Bytes)

B – 599172 – Image Load, Start

D – 6558 – Auth Metadata

D – 10187 – Segments hash check

D – 788090 – QSEE Image Loaded, Delta – (1426556 Bytes)

B – 1387689 – Image Load, Start

D – 763 – Auth Metadata

D – 945 – Segments hash check

D – 63013 – RPM Image Loaded, Delta – (102948 Bytes)

B – 1452410 – Image Load, Start

D – 671 – Auth Metadata

D – 3233 – Segments hash check

D – 304725 – APPSBL Image Loaded, Delta – (570116 Bytes)

B – 1773178 – SBL1, End

D – 1477420 – SBL1, Delta

S – Flash Throughput, 1000 KB/s (2138029 Bytes, 1089391 us)

S – Core 0 Frequency, 800 MHz

S – DDR Frequency, 466 MHz

U-Boot 2016.01 (Jun 02 2024 – 16:18:30 +0000)

DRAM: smem ram ptable found: ver: 2 len: 4

2 GiB

NAND: ONFI device found

ID = 1590aa2c

Vendor = 2c

Device = aa

qpic_nand: changing oobsize to 80 from 128 bytes

SPI_ADDR_LEN=3

SF: Detected W25Q128FW with page size 256 Bytes, erase size 4 KiB, total 16 MiB

ipq_spi: page_size: 0x100, sector_size: 0x1000, size: 0x1000000

272 MiB

MMC: sdhci: Node Not found, skipping initialization

*** Warning – bad CRC, using default environment

PCI Link Intialized

In: serial@78B1000

Out: serial@78B1000

Err: serial@78B1000

machid: 8030002

eth5 MAC Address from ART is not valid

Net: MAC0 addr:e0:38:2d:e0:2:23

PHY ID1: 0x4d

PHY ID2: 0xd0b1

PHY ID1: 0x4d

PHY ID2: 0xd101

EDMA ver 1 hw init

Num rings – TxDesc:1 (0-0) TxCmpl:1 (0-0)

RxDesc:1 (15-15) RxFill:1 (7-7)

ipq6018_edma_alloc_rings: successfull

ipq6018_edma_setup_ring_resources: successfull

ipq6018_edma_configure_rings: successfull

ipq6018_edma_hw_init: successfull

eth0

Hit any key to stop autoboot: 0

ubi0: attaching mtd2

ubi0: scanning is finished

ubi0: attached mtd2 (name “mtd=0”, size 249 MiB)

ubi0: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes

ubi0: min./max. I/O unit sizes: 2048/2048, sub-page size 2048

ubi0: VID header offset: 2048 (aligned 2048), data offset: 4096

ubi0: good PEBs: 1992, bad PEBs: 0, corrupted PEBs: 0

ubi0: user volume: 3, internal volumes: 1, max. volumes count: 128

ubi0: max/mean erase counter: 26/5, WL threshold: 4096, image sequence number: 1731653759

ubi0: available PEBs: 0, total reserved PEBs: 1992, PEBs reserved for bad PEB handling: 40

Read 0 bytes from volume kernel to 44000000

No size specified -> Using max size (5586944)

## Loading kernel from FIT Image at 44000000 …

Using ‘config@cp01-c3’ configuration

Trying ‘kernel@1’ kernel subimage

Description: ARM64 OpenWrt Linux-5.4.220

Type: Kernel Image

Compression: gzip compressed

Data Start: 0x440000e8

Data Size: 5469100 Bytes = 5.2 MiB

Architecture: AArch64

OS: Linux

Load Address: 0x41080000

Entry Point: 0x41080000

Hash algo: crc32

Hash value: ce7d6ce8

Hash algo: sha1

Hash value: 0c02be442fa4aba439fe6ef9b0924f4cd7c026e9

Verifying Hash Integrity … crc32+ sha1+ OK

## Loading fdt from FIT Image at 44000000 …

Using ‘config@cp01-c3’ configuration

Trying ‘fdt@1’ fdt subimage

Description: ARM64 OpenWrt anysafe_e1 device tree blob

Type: Flat Device Tree

Compression: uncompressed

Data Start: 0x445375d0

Data Size: 59298 Bytes = 57.9 KiB

Architecture: AArch64

Hash algo: crc32

Hash value: 31d1ffc8

Hash algo: sha1

Hash value: 52871bbfe5edb3e66d0e1a9727d24d08f3e9183d

Verifying Hash Integrity … crc32+ sha1+ OK

Booting using the fdt blob at 0x445375d0

Uncompressing Kernel Image … OK

Loading Device Tree to 484ee000, end 484ff7a1 … OK

Using machid 0x8030002 from environment

Starting kernel …

Jumping to AARCH64 kernel via monitor

[ 0.000000] Booting Linux on physical CPU 0x0000000000 [0x51af8014]

[ 0.000000] Linux version 5.4.220 (hcy@hcy) (gcc version 7.5.0 (OpenWrt GCC 7.5.0 r47617-6ffe730407)) #0 SMP PREEMPT Tue Aug 6 10:47:02 2024

[ 0.000000] Machine model: AnySafe E1

[ 0.000000] Reserved memory: created DMA memory pool at 0x0000000053700000, size 9 MiB

[ 0.000000] OF: reserved mem: initialized node dma_pool0@53700000, compatible id shared-dma-pool

[ 0.000000] psci: probing for conduit method from DT.

[ 0.000000] psci: PSCIv1.0 detected in firmware.

[ 0.000000] psci: Using standard PSCI v0.2 function IDs

[ 0.000000] psci: MIGRATE_INFO_TYPE not supported.

[ 0.000000] psci: SMC Calling Convention v1.0

[ 0.000000] percpu: Embedded 24 pages/cpu s59416 r8192 d30696 u98304

[ 0.000000] Detected VIPT I-cache on CPU0

[ 0.000000] CPU features: kernel page table isolation disabled by kernel configuration

[ 0.000000] ARM_SMCCC_ARCH_WORKAROUND_1 missing from firmware

[ 0.000000] Built 1 zonelists, mobility grouping on. Total pages: 471744

[ 0.000000] Kernel command line: console=ttyMSM0,115200n8 ubi.mtd=rootfs root=mtd:ubi_rootfs rootfstype=squashfs rootwait root=/dev/ubiblock0_1 swiotlb=1 coherent_pool=2M

[ 0.000000] Dentry cache hash table entries: 262144 (order: 9, 2097152 bytes, linear)

[ 0.000000] Inode-cache hash table entries: 131072 (order: 8, 1048576 bytes, linear)

[ 0.000000] mem auto-init: stack:off, heap alloc:off, heap free:off

[ 0.000000] Memory: 1868004K/1916928K available (8190K kernel code, 548K rwdata, 2492K rodata, 576K init, 416K bss, 48924K reserved, 0K cma-reserved)

[ 0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=4, Nodes=1

[ 0.000000] rcu: Preemptible hierarchical RCU implementation.

[ 0.000000] Tasks RCU enabled.

[ 0.000000] rcu: RCU calculated value of scheduler-enlistment delay is 10 jiffies.

[ 0.000000] NR_IRQS: 64, nr_irqs: 64, preallocated irqs: 0

[ 0.000000] GICv2m: range[mem 0x0b00a000-0x0b00affc], SPI[448:479]

[ 0.000000] arch_timer: cp15 and mmio timer(s) running at 24.00MHz (virt/virt).

[ 0.000000] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x588fe9dc0, max_idle_ns: 440795202592 ns

[ 0.000005] sched_clock: 56 bits at 24MHz, resolution 41ns, wraps every 4398046511097ns

[ 0.000290] Calibrating delay loop (skipped), value calculated using timer frequency.. 48.00 BogoMIPS (lpj=240000)

[ 0.000303] pid_max: default: 32768 minimum: 301

[ 0.000439] Mount-cache hash table entries: 4096 (order: 3, 32768 bytes, linear)

[ 0.000455] Mountpoint-cache hash table entries: 4096 (order: 3, 32768 bytes, linear)

[ 0.001750] ASID allocator initialised with 65536 entries

[ 0.001834] rcu: Hierarchical SRCU implementation.

[ 0.002540] MSM Memory Dump base table set up

[ 0.002558] MSM Memory Dump apps data table set up

[ 0.002746] smp: Bringing up secondary CPUs …

[ 0.003327] Detected VIPT I-cache on CPU1

[ 0.003377] CPU1: Booted secondary processor 0x0000000001 [0x51af8014]

[ 0.003975] Detected VIPT I-cache on CPU2

[ 0.004008] CPU2: Booted secondary processor 0x0000000002 [0x51af8014]

[ 0.004552] Detected VIPT I-cache on CPU3

[ 0.004581] CPU3: Booted secondary processor 0x0000000003 [0x51af8014]

[ 0.004649] smp: Brought up 1 node, 4 CPUs

[ 0.004671] SMP: Total of 4 processors activated.

[ 0.004678] CPU features: detected: 32-bit EL0 Support

[ 0.004685] CPU features: detected: CRC32 instructions

[ 0.004726] CPU features: emulated: Privileged Access Never (PAN) using TTBR0_EL1 switching

[ 0.004733] CPU: All CPU(s) started at EL1

[ 0.004983] alternatives: patching kernel code

[ 0.016224] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns

[ 0.016244] futex hash table entries: 1024 (order: 4, 65536 bytes, linear)

[ 0.016376] pinctrl core: initialized pinctrl subsystem

[ 0.017340] NET: Registered protocol family 16

[ 0.017972] DMA: preallocated 2048 KiB pool for atomic allocations

[ 0.018369] cpuidle: using governor ladder

[ 0.018393] cpuidle: using governor menu

[ 0.018532] NET: Registered protocol family 42

[ 0.018723] hw-breakpoint: found 6 breakpoint and 4 watchpoint registers.

[ 0.074775] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 0.076668] msm_sps_probe: sps:sps is ready

[ 0.090000] cryptd: max_cpu_qlen set to 1000

[ 0.177878] SCSI subsystem initialized

[ 0.178043] usbcore: registered new interface driver usbfs

[ 0.178085] usbcore: registered new interface driver hub

[ 0.178120] usbcore: registered new device driver usb

[ 0.178156] pps_core: LinuxPPS API ver. 1 registered

[ 0.178162] pps_core: Software ver. 5.3.6 – Copyright 2005-2007 Rodolfo Giometti <[email protected]>

[ 0.178179] PTP clock support registered

[ 0.178954] qcom_glink_rpm rpm-glink: RPM TOC has invalid magic

[ 0.178978] qcom_glink_rpm: probe of rpm-glink failed with error -22

[ 0.179206] workqueue: max_active 576 requested for napi_workq is out of range, clamping between 1 and 512

[ 0.180005] clocksource: Switched to clocksource arch_sys_counter

[ 0.180699] thermal_sys: Registered thermal governor ‘step_wise’

[ 0.180702] thermal_sys: Registered thermal governor ‘user_space’

[ 0.181935] NET: Registered protocol family 2

[ 0.182099] IP idents hash table entries: 32768 (order: 6, 262144 bytes, linear)

[ 0.183352] tcp_listen_portaddr_hash hash table entries: 1024 (order: 2, 16384 bytes, linear)

[ 0.183401] TCP established hash table entries: 16384 (order: 5, 131072 bytes, linear)

[ 0.183558] TCP bind hash table entries: 16384 (order: 6, 262144 bytes, linear)

[ 0.183840] TCP: Hash tables configured (established 16384 bind 16384)

[ 0.183929] UDP hash table entries: 1024 (order: 3, 32768 bytes, linear)

[ 0.183990] UDP-Lite hash table entries: 1024 (order: 3, 32768 bytes, linear)

[ 0.184190] NET: Registered protocol family 1

[ 0.184220] PCI: CLS 0 bytes, default 64

[ 0.210833] workingset: timestamp_bits=46 max_order=19 bucket_order=0

[ 0.215630] squashfs: version 4.0 (2009/01/31) Phillip Lougher

[ 0.215640] jffs2: version 2.2 (NAND) (SUMMARY) (LZMA) (RTIME) (CMODE_PRIORITY) (c) 2001-2006 Red Hat, Inc.

[ 0.238531] qcom-qmp-phy 84000.phy: Registered Qcom-QMP phy

[ 0.238765] qcom-qmp-phy 78000.ssphy: 78000.ssphy supply vdda-phy not found, using dummy regulator

[ 0.238826] qcom-qmp-phy 78000.ssphy: 78000.ssphy supply vdda-pll not found, using dummy regulator

[ 0.239586] qcom-qmp-phy 78000.ssphy: Registered Qcom-QMP phy

[ 0.240228] qcom-qusb2-phy 59000.qusb: 59000.qusb supply vdda-pll not found, using dummy regulator

[ 0.240282] qcom-qusb2-phy 59000.qusb: 59000.qusb supply vdda-phy-dpdm not found, using dummy regulator

[ 0.240424] qcom-qusb2-phy 59000.qusb: Registered Qcom-QUSB2 phy

[ 0.240522] qcom-qusb2-phy 79000.qusb: 79000.qusb supply vdda-pll not found, using dummy regulator

[ 0.240569] qcom-qusb2-phy 79000.qusb: 79000.qusb supply vdda-phy-dpdm not found, using dummy regulator

[ 0.240694] qcom-qusb2-phy 79000.qusb: Registered Qcom-QUSB2 phy

[ 0.241863] qcom-pcie 20000000.pci: IRQ mdm2ap_e911 not found

[ 0.244498] qcom-pcie 20000000.pci: host bridge /soc/pci@20000000 ranges:

[ 0.244538] qcom-pcie 20000000.pci: IO 0x20200000..0x2020ffff -> 0x20200000

[ 0.244562] qcom-pcie 20000000.pci: MEM 0x20220000..0x2fffffff -> 0x20220000

[ 0.471542] qcom-pcie 20000000.pci: Link up

[ 0.471666] qcom-pcie 20000000.pci: PCI host bridge to bus 0000:00

[ 0.471678] pci_bus 0000:00: root bus resource [bus 00-ff]

[ 0.471690] pci_bus 0000:00: root bus resource [io 0x0000-0xffff] (bus address [0x20200000-0x2020ffff])

[ 0.471700] pci_bus 0000:00: root bus resource [mem 0x20220000-0x2fffffff]

[ 0.471731] pci 0000:00:00.0: [17cb:1003] type 01 class 0x060400

[ 0.471759] pci 0000:00:00.0: reg 0x10: [mem 0x00000000-0x00000fff]

[ 0.471826] pci 0000:00:00.0: PME# supported from D0 D3hot D3cold

[ 0.476616] pci 0000:01:00.0: [17cb:1104] type 00 class 0x028000

[ 0.476779] pci 0000:01:00.0: reg 0x10: [mem 0x00000000-0x001fffff 64bit]

[ 0.477324] pci 0000:01:00.0: PME# supported from D0 D3hot D3cold

[ 0.477416] pci 0000:01:00.0: 7.876 Gb/s available PCIe bandwidth, limited by 8 GT/s x1 link at 0000:00:00.0 (capable of 15.752 Gb/s with 8 GT/s x2 link)

[ 0.481974] pci 0000:00:00.0: BAR 8: assigned [mem 0x20400000-0x205fffff]

[ 0.481989] pci 0000:00:00.0: BAR 9: assigned [mem 0x20600000-0x207fffff 64bit pref]

[ 0.482000] pci 0000:00:00.0: BAR 0: assigned [mem 0x20220000-0x20220fff]

[ 0.482012] pci 0000:00:00.0: BAR 7: assigned [io 0x1000-0x1fff]

[ 0.482028] pci 0000:01:00.0: BAR 0: assigned [mem 0x20400000-0x205fffff 64bit]

[ 0.482086] pci 0000:00:00.0: PCI bridge to [bus 01-ff]

[ 0.482096] pci 0000:00:00.0: bridge window [io 0x1000-0x1fff]

[ 0.482107] pci 0000:00:00.0: bridge window [mem 0x20400000-0x205fffff]

[ 0.482118] pci 0000:00:00.0: bridge window [mem 0x20600000-0x207fffff 64bit pref]

[ 0.482168] PCIe: RC enabled during bootup

[ 0.482424] qcom-pcie 20000000.pci: Received Link up event for RC 0

[ 0.485512] bam-dma-engine 704000.dma: num-channels unspecified in dt

[ 0.485523] bam-dma-engine 704000.dma: num-ees unspecified in dt

[ 0.486488] bam-dma-engine 7884000.dma: qcom,controlled-remotely unspecified

[ 0.487862] bam-dma-engine 7984000.dma: qcom,controlled-remotely unspecified

[ 0.488543] msm-dcc b3000.dcc: DCC XPU is not specified

[ 0.488757] msm-dcc b3000.dcc: jiffies_64: 0xffff8aff, cntvct_64: 0x15cb0418

[ 0.488769] msm-dcc b3000.dcc: gcnt_hi: 0x00000000(0x(____ptrval____))

[ 0.488779] msm-dcc b3000.dcc: gcnt_lo: 0x15cb064b(0x(____ptrval____))

[ 0.489265] global timer is null

[ 0.489437] CPU: IPQ6010, SoC Version: 1.0

[ 0.489443] OEM_ID: 0, PROD_ID: 0

[ 0.489786] msm_rpm_log_probe: OK

[ 0.490578] TZ SMMU State: SMMU Stage2 Enabled

[ 0.490640] TZ Log : Will warn on Access Violation, as paniconaccessviolation is not set

[ 0.491475] msm_serial 78b0000.serial: msm_serial: detected port #1

[ 0.491506] msm_serial 78b0000.serial: uartclk = 24000000

[ 0.491558] 78b0000.serial: ttyMSM1 at MMIO 0x78b0000 (irq = 12, base_baud = 1500000) is a MSM

[ 0.491808] msm_serial 78b1000.serial: msm_serial: detected port #0

[ 0.491835] msm_serial 78b1000.serial: uartclk = 1843199

[ 0.491867] 78b1000.serial: ttyMSM0 at MMIO 0x78b1000 (irq = 13, base_baud = 115199) is a MSM

[ 0.491885] msm_serial: console setup on port #0

[ 1.424631] printk: console [ttyMSM0] enabled

[ 1.429552] msm_serial: driver initialized

[ 1.433852] random: crng init done

[ 1.443419] brd: module loaded

[ 1.446368] loop: module loaded

[ 1.448068] nand: device found, Manufacturer ID: 0x2c, Chip ID: 0xaa

[ 1.448403] nand: Micron MT29F2G08ABBGAH4

[ 1.455027] nand: 256 MiB, SLC, erase size: 128 KiB, page size: 2048, OOB size: 128

[ 1.458946] 1 fixed-partitions partitions found on MTD device qcom_nand.0

[ 1.466386] Creating 1 MTD partitions on “qcom_nand.0”:

[ 1.473327] 0x000000000000-0x00000f900000 : “rootfs”

[ 1.681433] mtd: device 0 (rootfs) set to be root filesystem

[ 1.681714] mtdsplit: no squashfs found in “rootfs”

[ 1.686856] spi_qup 78b5000.spi: IN:block:16, fifo:64, OUT:block:16, fifo:64

[ 1.691328] spi-nor spi0.0: found w25q128fw, expected n25q128a11

[ 1.699010] spi-nor spi0.0: w25q128fw (16384 Kbytes)

[ 1.704127] 17 fixed-partitions partitions found on MTD device spi0.0

[ 1.708979] Creating 17 MTD partitions on “spi0.0”:

[ 1.715331] 0x000000000000-0x0000000c0000 : “0:SBL1”

[ 1.720640] 0x0000000c0000-0x0000000d0000 : “0:MIBIB”

[ 1.725722] 0x0000000d0000-0x0000000f0000 : “0:BOOTCONFIG”

[ 1.730684] 0x0000000f0000-0x000000110000 : “0:BOOTCONFIG1”

[ 1.736046] 0x000000110000-0x0000002b0000 : “0:QSEE”

[ 1.741539] 0x0000002b0000-0x000000450000 : “0:QSEE_1”

[ 1.746728] 0x000000450000-0x000000460000 : “0:DEVCFG”

[ 1.751685] 0x000000460000-0x000000470000 : “0:DEVCFG_1”

[ 1.756806] 0x000000470000-0x0000004b0000 : “0:RPM”

[ 1.762277] 0x0000004b0000-0x0000004f0000 : “0:RPM_1”

[ 1.766925] 0x0000004f0000-0x000000500000 : “0:CDT”

[ 1.772098] 0x000000500000-0x000000510000 : “0:CDT_1”

[ 1.776779] 0x000000510000-0x000000520000 : “0:APPSBLENV”

[ 1.781987] 0x000000520000-0x0000005c0000 : “0:APPSBL”

[ 1.787355] 0x0000005c0000-0x000000660000 : “0:APPSBL_1”

[ 1.792407] 0x000000660000-0x0000006e0000 : “0:ART”

[ 1.797855] 0x0000006e0000-0x000000720000 : “0:ASF”

[ 1.803834] qca-mdio 90000.mdio: Reset PHY by GPIO 507

[ 2.026882] qca-mdio 90000.mdio: Reset PHY by GPIO 509

[ 2.248799] qca-mdio 90000.mdio: qca-mdio driver was registered

[ 2.254972] xhci-hcd xhci-hcd.0.auto: xHCI Host Controller

[ 2.255015] xhci-hcd xhci-hcd.0.auto: new USB bus registered, assigned bus number 1

[ 2.259507] xhci-hcd xhci-hcd.0.auto: hcc params 0x0220fe65 hci version 0x110 quirks 0x0000000000010010

[ 2.266975] xhci-hcd xhci-hcd.0.auto: irq 93, io mem 0x07000000

[ 2.276848] hub 1-0:1.0: USB hub found

[ 2.282214] hub 1-0:1.0: 1 port detected

[ 2.286260] xhci-hcd xhci-hcd.0.auto: xHCI Host Controller

[ 2.290120] xhci-hcd xhci-hcd.0.auto: new USB bus registered, assigned bus number 2

[ 2.295381] xhci-hcd xhci-hcd.0.auto: Host supports USB 3.0 SuperSpeed

[ 2.302985] usb usb2: We don’t know the algorithms for LPM for this host, disabling LPM.

[ 2.309914] hub 2-0:1.0: USB hub found

[ 2.317873] hub 2-0:1.0: config failed, hub doesn’t have any ports! (err -19)

[ 2.321607] xhci-hcd xhci-hcd.1.auto: xHCI Host Controller

[ 2.328539] xhci-hcd xhci-hcd.1.auto: new USB bus registered, assigned bus number 3

[ 2.334838] xhci-hcd xhci-hcd.1.auto: hcc params 0x0220fe65 hci version 0x110 quirks 0x0000000000010010

[ 2.341595] xhci-hcd xhci-hcd.1.auto: irq 94, io mem 0x08a00000

[ 2.351393] hub 3-0:1.0: USB hub found

[ 2.356759] hub 3-0:1.0: 1 port detected

[ 2.360878] xhci-hcd xhci-hcd.1.auto: xHCI Host Controller

[ 2.364646] xhci-hcd xhci-hcd.1.auto: new USB bus registered, assigned bus number 4

[ 2.369947] xhci-hcd xhci-hcd.1.auto: Host supports USB 3.0 SuperSpeed

[ 2.377644] usb usb4: We don’t know the algorithms for LPM for this host, disabling LPM.

[ 2.384490] hub 4-0:1.0: USB hub found

[ 2.392413] hub 4-0:1.0: 1 port detected

[ 2.396309] usbcore: registered new interface driver uas

[ 2.400159] usbcore: registered new interface driver usb-storage

[ 2.405264] i2c /dev entries driver

[ 2.415374] device-mapper: ioctl: 4.41.0-ioctl (2019-09-16) initialised: [email protected]

[ 2.416352] qti_scm_restart_reason qti,scm_restart_reason: reset_reason : [0xA1013D00]

[ 2.423532] qcom_ice_get_device_tree_data: No vdd-hba-supply regulator, assuming not needed

[ 2.431080] ICE IRQ = 16

[ 2.439597] sdhci: Secure Digital Host Controller Interface driver

[ 2.441913] sdhci: Copyright(c) Pierre Ossman

[ 2.447900] sdhci-pltfm: SDHCI platform and OF driver helper

[ 2.452762]

[ 2.452762] Version Rollback Feature Disabled

[ 2.460769] remoteproc remoteproc0: cd00000.remoteproc is available

[ 2.464187] coresight-tmc 6047000.tmc: failed to get flush cti, defer probe

[ 2.470159] coresight-dynamic-funnel 6041000.funnel: Uses obsolete Coresight DT bindings

[ 2.478362] coresight coresight-etm0: CPU0: ETM v4.0 initialized

[ 2.485149] coresight-etm4x 619c000.etm: CPU0: (null) initialized

[ 2.491572] coresight coresight-etm1: CPU1: ETM v4.0 initialized

[ 2.497109] coresight-etm4x 619d000.etm: CPU1: (null) initialized

[ 2.503875] coresight coresight-etm2: CPU2: ETM v4.0 initialized

[ 2.509175] coresight-etm4x 619e000.etm: CPU2: (null) initialized

[ 2.515638] coresight coresight-etm3: CPU3: ETM v4.0 initialized

[ 2.521338] coresight-etm4x 619f000.etm: CPU3: (null) initialized

[ 2.527500] coresight-stm 6002000.stm: coresight-stm : stm_register_device failed, probing deferred

[ 2.533432] OF: graph: no port node found in /soc/cti@6010000

[ 2.542335] OF: graph: no port node found in /soc/cti@6011000

[ 2.548221] OF: graph: no port node found in /soc/cti@6012000

[ 2.554054] OF: graph: no port node found in /soc/cti@6013000

[ 2.559679] OF: graph: no port node found in /soc/cti@6014000

[ 2.565432] OF: graph: no port node found in /soc/cti@6015000

[ 2.571153] OF: graph: no port node found in /soc/cti@6016000

[ 2.576863] OF: graph: no port node found in /soc/cti@6017000

[ 2.582726] OF: graph: no port node found in /soc/cti@6018000

[ 2.588326] OF: graph: no port node found in /soc/cti@6019000

[ 2.594071] OF: graph: no port node found in /soc/cti@601a000

[ 2.599788] OF: graph: no port node found in /soc/cti@601b000

[ 2.605531] OF: graph: no port node found in /soc/cti@601c000

[ 2.611375] OF: graph: no port node found in /soc/cti@601d000

[ 2.616982] OF: graph: no port node found in /soc/cti@601e000

[ 2.622734] OF: graph: no port node found in /soc/cti@601f000

[ 2.628436] OF: graph: no port node found in /soc/cti@6198000

[ 2.634176] OF: graph: no port node found in /soc/cti@6199000

[ 2.639894] OF: graph: no port node found in /soc/cti@619a000

[ 2.645712] OF: graph: no port node found in /soc/cti@619b000

[ 2.651214] usb 3-1: new high-speed USB device number 2 using xhci-hcd

[ 2.657149] OF: graph: no port node found in /soc/cti@610c000

[ 2.664370] OF: graph: no port node found in /soc/hwevent@6101000

[ 2.669159] coresight-hwevent 6101000.hwevent: No csr data

[ 2.675602] OF: graph: no port node found in /soc/csr@6001000

[ 2.680712] coresight-csr 6001000.csr: CSR initialized: coresight-csr

[ 2.687466] NET: Registered protocol family 10

[ 2.693677] Segment Routing with IPv6

[ 2.697244] NET: Registered protocol family 17

[ 2.701106] Bridge firewalling registered

[ 2.705262] 8021q: 802.1Q VLAN Support v1.8

[ 2.709356] Mass Storage accelerater start.

4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 2.771956] ubi0: attaching mtd0

[ 2.889798] hub 3-1:1.0: USB hub found

[ 2.890111] hub 3-1:1.0: 4 ports detected

[ 2.954879] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 2.990141] usb 4-1: new SuperSpeed Gen 1 USB device number 2 using xhci-hcd

[ 3.049806] hub 4-1:1.0: USB hub found

[ 3.050136] hub 4-1:1.0: 4 ports detected

[ 3.053833] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 3.370050] usb 4-1.2: new SuperSpeed Gen 1 USB device number 3 using xhci-hcd

[ 3.401407] usb-storage 4-1.2:1.0: USB Mass Storage device detected

[ 3.401601] scsi host0: usb-storage 4-1.2:1.0

[ 3.406809] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 3.510052] usb 4-1.3: new SuperSpeed Gen 1 USB device number 4 using xhci-hcd

[ 3.541473] usb-storage 4-1.3:1.0: USB Mass Storage device detected

[ 3.541641] scsi host1: usb-storage 4-1.3:1.0

[ 3.546835] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 3.797667] ubi0: scanning is finished

[ 3.803700] ubi0: attached mtd0 (name “rootfs”, size 249 MiB)

[ 3.803720] ubi0: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes

[ 3.808413] ubi0: min./max. I/O unit sizes: 2048/2048, sub-page size 2048

[ 3.815197] ubi0: VID header offset: 2048 (aligned 2048), data offset: 4096

[ 3.822047] ubi0: good PEBs: 1992, bad PEBs: 0, corrupted PEBs: 0

[ 3.828812] ubi0: user volume: 3, internal volumes: 1, max. volumes count: 128

[ 3.835069] ubi0: max/mean erase counter: 26/5, WL threshold: 4096, image sequence number: 1731653759

[ 3.842191] ubi0: available PEBs: 0, total reserved PEBs: 1992, PEBs reserved for bad PEB handling: 40

[ 3.851489] ubi0: background thread “ubi_bgt0d” started, PID 219

[ 3.861020] block ubiblock0_1: created from ubi0:1(rootfs)

[ 3.866836] hctosys: unable to open rtc device (rtc0)

[ 3.874688] VFS: Mounted root (squashfs filesystem) readonly on device 253:0.

[ 3.877408] Freeing unused kernel memory: 576K

[ 3.910057] Run /sbin/init as init process

^C c^X[ 4.093788] init: Console is alive

[ 4.093996] init: – watchdog –

^XSW[ 5.471605] kmodloader: loading kernel modules from /etc/modules-boot.d/*

[ 5.490790] Button Hotplug driver version 0.4.1

[ 5.491560] raid6: using algorithm neonx8 gen() 0 MB/s

[ 5.494116] raid6: …. xor() 0 MB/s, rmw enabled

[ 5.499322] raid6: using neon recovery algorithm

[ 5.505906] xor: measuring software checksum speed

[ 5.600020] 8regs : 3452.400 MB/sec

@[ 5.699994] 32regs : 4244.000 MB/sec

[ 5.799995] arm64_neon: 3663.200 MB/sec

[ 5.800009] xor: using function: 32regs (4244.000 MB/sec)

[ 5.849891] Btrfs loaded, crc32c=crc32c-generic

[ 5.854912] ipq6018-pinctrl 1000000.pinctrl: pin GPIO_70 already requested by 78b0000.serial; cannot claim for soc:gpio_keys

[ 5.854950] ipq6018-pinctrl 1000000.pinctrl: pin-70 (soc:gpio_keys) status -22

[ 5.865219] ipq6018-pinctrl 1000000.pinctrl: could not request pin 70 (GPIO_70) from group gpio70 on device 1000000.pinctrl

[ 5.872320] gpio-keys soc:gpio_keys: Error applying setting, reverse things back

[ 5.883612] gpio-keys: probe of soc:gpio_keys failed with error -22

[ 5.891890] ehci_hcd: USB 2.0 ‘Enhanced’ Host Controller (EHCI) Driver

[ 5.897329] ehci-fsl: Freescale EHCI Host controller driver

[ 5.904035] ehci-platform: EHCI generic platform driver

[ 5.914136] ohci_hcd: USB 1.1 ‘Open’ Host Controller (OHCI) Driver

[ 5.914562] ohci-platform: OHCI generic platform driver

[ 5.921320] uhci_hcd: USB Universal Host Controller Interface driver

[ 5.926692] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 5.928913] kmodloader: done loading kernel modules from /etc/modules-boot.d/*

2[ 5.949451] init: – preinit –

22touch: /etc/config/skb_recycler: Read-only file system

2uci: Entry not found

uci: Entry not found

uci: Entry not found

uci: Entry not found

Press the [f] key and hit [enter] to enter failsafe mode

Press the [1], [2], [3] or [4] key and hit [enter] to select the debug level

222@@2111[ 8.410607] mount_root: loading kmods from internal overlay

[ 8.426663] kmodloader: loading kernel modules from //etc/modules-boot.d/*

[ 8.427993] kmodloader: done loading kernel modules from //etc/modules-boot.d/*

1111[ 9.604730] block: attempting to load /tmp/overlay/upper/etc/config/fstab

[ 9.604799] block: unable to load configuration (fstab: Entry not found)

[ 9.610523] block: attempting to load /tmp/overlay/etc/config/fstab

[ 9.617288] block: unable to load configuration (fstab: Entry not found)

[ 9.623280] block: attempting to load /etc/config/fstab

[ 9.630238] block: unable to load configuration (fstab: Entry not found)

[ 9.635157] block: no usable configuration

[ 9.643752] UBIFS (ubi0:2): Mounting in unauthenticated mode

[ 9.646075] UBIFS (ubi0:2): background thread “ubifs_bgt0_2” started, PID 311

1[ 9.678661] UBIFS (ubi0:2): recovery needed

[ 9.750081] UBIFS (ubi0:2): recovery completed

[ 9.750139] UBIFS (ubi0:2): UBIFS: mounted UBI device 0, volume 2, name “rootfs_data”

[ 9.753411] UBIFS (ubi0:2): LEB size: 126976 bytes (124 KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes

[ 9.761324] UBIFS (ubi0:2): FS size: 177385472 bytes (169 MiB, 1397 LEBs), journal size 8888320 bytes (8 MiB, 70 LEBs)

[ 9.771215] UBIFS (ubi0:2): reserved for root: 4952683 bytes (4836 KiB)

[ 9.781799] UBIFS (ubi0:2): media format: w5/r0 (latest is w5/r0), UUID D67151EE-04CF-4F20-8BF1-A0E1E7C2FEBA, small LPT model

[ 9.789293] block: attempting to load /tmp/ubifs_cfg/upper/etc/config/fstab

[ 9.805243] block: extroot: not configured

[ 9.806628] UBIFS (ubi0:2): un-mount UBI device 0

[ 9.810713] UBIFS (ubi0:2): background thread “ubifs_bgt0_2” stops

[ 9.817541] UBIFS (ubi0:2): Mounting in unauthenticated mode

[ 9.821650] UBIFS (ubi0:2): background thread “ubifs_bgt0_2” started, PID 312

1[ 9.878919] UBIFS (ubi0:2): UBIFS: mounted UBI device 0, volume 2, name “rootfs_data”

[ 9.878946] UBIFS (ubi0:2): LEB size: 126976 bytes (124 KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes

[ 9.885733] UBIFS (ubi0:2): FS size: 177385472 bytes (169 MiB, 1397 LEBs), journal size 8888320 bytes (8 MiB, 70 LEBs)

[ 9.895635] UBIFS (ubi0:2): reserved for root: 4952683 bytes (4836 KiB)

[ 9.906212] UBIFS (ubi0:2): media format: w5/r0 (latest is w5/r0), UUID D67151EE-04CF-4F20-8BF1-A0E1E7C2FEBA, small LPT model

[ 9.916970] mount_root: loading kmods from internal overlay

[ 9.938568] kmodloader: loading kernel modules from /tmp/overlay/upper/etc/modules-boot.d/*

[ 9.939904] kmodloader: done loading kernel modules from /tmp/overlay/upper/etc/modules-boot.d/*

11[ 11.072014] block: attempting to load /tmp/overlay/upper/etc/config/fstab

[ 11.075398] block: extroot: not configured

[ 11.078927] block: attempting to load /tmp/ubifs_cfg/upper/etc/config/fstab

[ 11.081887] block: extroot: not configured

[ 11.090758] mount_root: switching to ubifs overlay

[ 11.124519] procd: – early –

[ 11.124563] procd: – watchdog –

Failed to connect to ubus

[ 11.666820] procd: – watchdog –

[ 11.667056] procd: – ubus –

[ 11.728678] procd: – init –

Please press Enter to activate this console.

Loading cnss2:

[ 11.821288] cnss: INFO: IPC Logging is disabled!

[ 11.822787] cnss[2]: INFO: Platform driver probed successfully. plat 0x00000000f966ccd5 tgt 0xfffd

[ 11.825060] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 11.834258] remoteproc remoteproc1: QCN9000_PCI0 is available

[ 11.841179] cnss[27]: INFO: Platform driver probed successfully. plat 0x00000000e339d7c3 tgt 0x1104

[ 11.846918] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 11.856394] cnss[27]: INFO: PCI device 00000000a1b609a5 probed successfully

[ 11.863207] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 11.870144] cnss: INFO: cnss_plat_ipc_qmi_svc_init: CNSS Platform IPC QMI Service is started

[ 12.170205] cnss: INFO: cnss_plat_ipc_qmi_reg_client_req_handler: QMI Client Connected. QMI Socket Node: 1 Port: 16392 ID: 1

[ 12.170242] cnss: INFO: CNSS Daemon connected

[ 12.188883] cnss: INFO: cnss_plat_ipc_qmi_init_setup_req_handler: MAC: 0 HW_TRC: 0 CAL: 2

WIFI FW mount is successful

[ 12.264600] urngd: v1.0.2 started.

[ 12.398124] kmodloader: loading kernel modules from /etc/modules.d/*

[ 12.423663] ntfs3: Max link count 4000

[ 12.423682] ntfs3: Enabled Linux POSIX ACLs support

[ 12.426293] ntfs3: Warning: Activated 64 bits per cluster. Windows does not support this

[ 12.431111] ntfs3: Read-only LZX/Xpress compression included

[ 12.443119] NET: Registered protocol family 15

[ 12.446156] Initializing XFRM netlink socket

[ 12.449741] mpls_gso: MPLS GSO support

[ 12.611123] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 12.611769] malibu_phy_api_ops_init[2867]:INFO:qca probe malibu phy driver succeeded!

[ 12.620105] qca808x_phy_api_ops_init[2755]:INFO:qca probe qca808x phy driver succeeded!

[ 12.625998] qca808x_ptp_register[1331]:INFO:qca808x phydev 90000.mdio:18 ptp clock registered

[ 12.633707] qca808x_ptp_hook_init[1440]:INFO:qca808x ptp driver hooked on 1 instance

[ 13.020992] __adpt_hppe_uniphy_psgmii_mode_set[1162]:INFO:uniphy 0 psgmii channel selection

[ 13.940122] regi_init[4015]:INFO:Initializing HPPE Done!!

[ 13.940227] regi_init[4075]:INFO:qca-ssdk module init succeeded!

[ 13.957566] tun: Universal TUN/TAP device driver, 1.6

[ 13.964059] EDMA ver 1 hw init

[ 13.964297] EDMA HW Reset completed succesfully

[ 13.966024] Num rings – TxDesc:1 (23-23) TxCmpl:1 (23-23)

[ 13.970443] RxDesc:1 (15-15) RxFill:1 (7-7)

[ 13.976351] dp1: ppe offload disabled: 0 for macid 1

[ 13.979973] dp1: Switch attached to macid 1 status: 0

[ 13.985246] (unnamed net_device) (uninitialized): netif_napi_add() called with weight 100

[ 13.990583] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 13.999157] dp2: ppe offload disabled: 0 for macid 2

[ 14.005489] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 14.010826] dp2: Switch attached to macid 2 status: 0

[ 14.017854] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 14.023558] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 14.030124] dp3: ppe offload disabled: 0 for macid 3

[ 14.037269] dp3: Switch attached to macid 3 status: 0

[ 14.042737] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 14.048148] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 14.054654] dp4: ppe offload disabled: 0 for macid 4

[ 14.062033] dp4: Switch attached to macid 4 status: 0

[ 14.067265] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 14.070588] dp5: ppe offload disabled: 0 for macid 5

[ 14.072258] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 14.079103] dp5: Switch attached to macid 5 status: 0

[ 14.181596] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 14.181910] **********************************************************

[ 14.187711] * NSS Data Plane driver

[ 14.194308] **********************************************************

[ 14.204799] l2tp_core: L2TP core driver, V2.0

[ 14.205456] l2tp_netlink: L2TP netlink interface

[ 14.314986] nss_driver – fw of size 861416 bytes copied to load addr: 40000000, nss_id : 0

[ 14.316428] Supported Frequencies –

[ 14.316430] 187.2 MHz

[ 14.322148] 748.8 MHz

[ 14.325949] 1.4976 GHz

[ 14.328119]

[ 14.332858] ffffffc008fccf40: set sdma ffffff8079861b00

[ 14.334612] node size 2 # items 4

[ 14.339494] memory: 40000000 2147483648 (avl 1948278784) items 4 active_cores 1

[ 14.342989] addr/size storage words 2 2 # words 4 in DTS, ddr size 1000000

[ 14.350094] ffffffc008fccf40: NSS core 0 DDR from 40000000 to 41000000

[ 14.357109] ffffffc008fccf40: meminfo init succeed

[ 14.367072] ffffffc008fccf40: All resources initialized and nss core0 has been brought out of reset

[ 14.367174] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 14.378918] sit: IPv6, IPv4 and MPLS over IPv4 tunneling driver

[ 14.387266] nat46: module (version 1182f30785e4274913f01a8c3d7e1b5437ae3819) loaded.

[ 14.389669] node size 2 # items 4

[ 14.398435] memory: 40000000 2147483648 (avl 1948278784) items 4 active_cores 1

[ 14.401657] addr/size storage words 2 2 # words 4 in DTS, ddr size 1000000

[ 14.408778] ffffffc008fccf40: nss core 0 booted successfully

[ 14.523181] gre: GRE over IPv4 demultiplexor driver

[ 14.524115] ip_gre: GRE over IPv4 tunneling driver

[ 14.528626] ip6_gre: GRE over IPv6 tunneling driver

[ 14.533930] Ethernet Channel Bonding Driver: v3.7.1 (April 27, 2011)

[ 14.546985] PPP generic driver version 2.4.2

[ 14.547650] NET: Registered protocol family 24

[ 14.551337] PPTP driver version 0.8.5

[ 14.573206] cryptodev: driver 1.10 loaded.

[ 14.724283] TRACK: P[0] PMask[4]

[ 14.724301] TRACK: P[1] PMask[4]

[ 14.726562] TRACK: P[2] PMask[4]

[ 14.729940] TRACK: P[3] PMask[4]

[ 14.733001] TRACK: P[4] PMask[4]

[ 14.736196] TRACK: P[5] PMask[4]

[ 14.739409] TRACK: P[6] PMask[4]

[ 14.745078] QCA multicast snooping installed successfully

[ 14.747411] <NSS-CRYPTO>:module loaded Build_ID – 08/06/24, 15:19:44 SoC=ipq60xx

[ 14.752880] nss-macsec0 DT exist!

[ 14.796180] cannot find nss-macsec1 node

[ 14.796269] cannot find nss-macsec2 node

[ 14.799208] cannot find nss-macsec3 node

[ 14.803110] nss_macsec init success

[ 14.824059] hidraw: raw HID events driver (C) Jiri Kosina

[ 14.824951] Mirror/redirect action on

[ 14.832131] u32 classifier

[ 14.832151] input device check on

[ 14.834671] Actions configured

[ 14.844420] fuse: init (API version 7.31)

[ 14.845688] usbcore: registered new interface driver cdc_wdm

[ 14.850736] usbcore: registered new interface driver qmi_wwan_q

[ 14.854103] usbcore: registered new interface driver qmi_wwan_f

[ 14.861161] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 14.864969] mhi_init Quectel_Linux_PCIE_MHI_Driver_V1.3.5

[ 14.875618] usbcore: registered new interface driver aqc111

[ 14.878124] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 14.886345] usbcore: registered new interface driver cdc_acm

[ 14.890222] cdc_acm: USB Abstract Control Model driver for USB modems and ISDN adapters

[ 14.897386] usbcore: registered new interface driver cdc_ether

[ 14.905700] usbcore: registered new interface driver cdc_ncm

[ 14.912549] usbcore: registered new interface driver huawei_cdc_ncm

[ 14.923070] l2tp_ppp: PPPoL2TP kernel driver, V2.0

[ 14.958990] nf_conntrack_rtsp v0.7 loading

[ 14.971636] nf_nat_rtsp v0.7 loading

[ 14.997563] PPP MPPE Compression module registered

[ 14.998962] usbcore: registered new interface driver qmi_wwan

[ 15.003826] usbcore: registered new interface driver r8152

[ 15.009553] usbcore: registered new interface driver rndis_host

[ 15.014548] usbcore: registered new interface driver sierra_net

[ 15.022978] usbcore: registered new interface driver ums-alauda

[ 15.024872] usbcore: registered new interface driver ums-cypress

[ 15.030898] usbcore: registered new interface driver ums-datafab

[ 15.037100] usbcore: registered new interface driver ums-freecom

[ 15.043048] usbcore: registered new interface driver ums-isd200

[ 15.049009] usbcore: registered new interface driver ums-jumpshot

[ 15.054704] usbcore: registered new interface driver ums-karma

[ 15.061176] usbcore: registered new interface driver ums-sddr09

[ 15.066534] usbcore: registered new interface driver ums-sddr55

[ 15.072369] usbcore: registered new interface driver ums-usbat

[ 15.079640] usbcore: registered new interface driver usbhid

[ 15.083624] usbhid: USB HID core driver

[ 15.089849] usbcore: registered new interface driver usblp

[ 15.097562] usbcore: registered new interface driver usbserial_generic

[ 15.098424] usbserial: USB Serial support registered for generic

[ 15.107612] wireguard: WireGuard 1.0.0 loaded. See www.wireguard.com for information.

[ 15.111130] wireguard: Copyright (C) 2015-2019 Jason A. Donenfeld <[email protected]>. All Rights Reserved.

[ 15.153960] xt_time: kernel timezone is -0000

[ 15.155368] usbcore: registered new interface driver cdc_mbim

[ 15.165185] usbcore: registered new interface driver snd-usb-audio

[ 15.170150] usbcore: registered new interface driver option

[ 15.170294] usbserial: USB Serial support registered for GSM modem (1-port)

[ 15.176772] usbcore: registered new interface driver qcserial

[ 15.182789] usbserial: USB Serial support registered for Qualcomm USB modem

[ 15.188990] kmodloader: done loading kernel modules from /etc/modules.d/*

acfg_tool: Issuing blocking call to wait for events

[ 17.918290] loading qca-wifi

qcawifi configuration is disable

MLD Single Netdev is ENABLED

[ 18.587331] configuring additional NSS pbufs

[ 18.614412] additional pbufs of size 10002432 got added to NSS

[ 19.512707] wlan: [1311:I:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: Could not find active PSOCs

[ 19.512739] wlan: [1311:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 0

[ 19.520572] wlan: [1311:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 1

[ 19.528975] wlan: [1311:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 2

[ 19.537400] wlan: [1311:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 3

[ 19.545831] wlan: [1311:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 4

[ 19.554238] wlan: [1311:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 0

[ 19.562663] wlan: [1311:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 1

[ 19.571087] wlan: [1311:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 2

[ 19.579501] wlan: [1311:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 3

[ 19.587932] wlan: [1311:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 4

[ 19.596347] wlan: [1311:I:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: Could not find active PSOCs

[ 19.604760] wlan: [1311:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 0

[ 19.613529] wlan: [1311:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 1

[ 19.621949] wlan: [1311:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 2

[ 19.630370] wlan: [1311:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 3

[ 19.638789] wlan: [1311:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 4

[ 19.647213] wlan: [1311:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 0

[ 19.655636] wlan: [1311:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 1

[ 19.664049] wlan: [1311:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 2

[ 19.672480] wlan: [1311:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 3

[ 19.680889] wlan: [1311:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 4

[ 19.695001] wlan: [1311:I:ANY] qdf_ini_parse: INI values read: 98

[ 19.697719] wlan: [1311:I:ANY] qdf_ini_parse: INI file parse successful

[ 19.706750] wlan: [1311:I:ANY] qdf_ini_parse: INI values read: 60

[ 19.710146] wlan: [1311:I:ANY] qdf_ini_parse: INI file parse successful

***cnssdaemon pid=589*******

[ 19.802135] cnss: INFO: cnss_plat_ipc_qmi_send_config_param_req_handler: Param: 3 Instance ID: 0x27 Value: 1

[ 19.802169] cnss: INFO: cnss_config_param_update_cb: Instance ID: 0x27 Param 3 Value: 1

[ 19.811063] cnss[27]: INFO: Setting cold_boot_support=1 for instance_id 0x27

[ 19.896914] cnss: INFO: cnss_plat_ipc_qmi_send_config_param_req_handler: Param: 3 Instance ID: 0x2 Value: 1

[ 19.896947] cnss: INFO: cnss_config_param_update_cb: Instance ID: 0x2 Param 3 Value: 1

[ 19.905701] cnss[2]: INFO: Setting cold_boot_support=1 for instance_id 0x2

[ 20.091314] cnss: INFO: cnss_plat_ipc_qmi_send_config_param_req_handler: Param: 6 Instance ID: 0x27 Value: 1

[ 20.091348] cnss: INFO: cnss_config_param_update_cb: Instance ID: 0x27 Param 6 Value: 1

[ 20.100341] cnss[27]: INFO: Setting qdss_support=1 for instance_id 0x27

[ 20.469895] ./IPQ6018/regdb.bin ./qcn9000/regdb.bin ./qcn9000/amss.bin

[ 20.640827] wlan: [1783:I:ANY] =======ol_if_register_wifi3_0==========

[ 20.640827]

[ 20.640861] wlan: [1783:I:ANY] osif_nss_register_module: NSS wifi ops registered for target_type:1 with soc_ops:00000000176d6b69

[ 20.647729] cnss[2]: ERR: cnss_register_subsys: Failed to get rproc handle 0 for device QCA6018

[ 20.659458] remoteproc remoteproc0: powering up cd00000.remoteproc

[ 20.683807] remoteproc remoteproc0: Booting fw image IPQ6018/q6_fw.mdt, size 7340

[ 21.503957] Subsystem error monitoring/handling services are up

[ 21.504001] qcom-q6v5-wcss-pil cd00000.remoteproc: QDSP6SS Version : 0x100a0000

[ 21.508682] qcom-q6v5-wcss-pil cd00000.remoteproc: WCSS Version : 0x10000000

[ 21.521467] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 21.523667] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 21.556001] cnss[2]: INFO: QMI WLFW service connected, state: 0x10001

[ 21.562073] diag: In diag_send_feature_mask_update, control channel is not open, p: 2, 00000000ee52e16a

[ 21.562101] diag: In diag_send_peripheral_buffering_mode, buffering flag not set for 2

[ 21.564255] cnss[2]: INFO: device_id : 0xfffd mem mode : [0]

[ 21.570657] diag: In diag_send_peripheral_buffering_mode, buffering flag not set for 2

[ 21.578760] cnss[2]: INFO: platform name: AnySafe E1

[ 21.580867] cnss[2]: ERR: WARNING: More memory is reserved. Reserved size 0x5500000, Requested size 0x532c000.

[ 21.598631] cnss[2]: INFO: cnss_cal_db_mem_update: File Operation 1 size 4112384 file name wlfw_cal_01.bin

[ 21.630038] remoteproc remoteproc0: remote processor cd00000.remoteproc is now up

[ 21.630083] cnss[2]: INFO: Waiting for FW ready. Device: 0xfffd, FW ready timeout: 15 seconds

[ 22.032420] cnss[2]: INFO: Target capability: chip_id: 0x0, chip_family: 0x4, board_id: 0xff, soc_id: 0xffffffff, fw_version: 0x280d85d4, fw_build_timestamp: 2023-01-27 20:09, otp_version: 0x0 eeprom_caldata_read_timeout 0s bdf_dnld_method 1 regdb_mandatory 0 rxgainlut_support 0

[ 22.041596] cnss[2]: INFO: Downloading BDF: IPQ6018/regdb.bin, size: 24348

[ 22.071238] cnss[2]: INFO: Downloading BDF: IPQ6018/bdwlan.b13, size: 65536

[ 22.102306] cnss[2]: INFO: Downloading BDF: IPQ6018/caldata.bin, size: 65536

[ 22.230011] cnss[2]: INFO: FW ready received for device 0xfffd

[ 22.231190] cnss[2]: INFO: Sending mode message, mode: COLDBOOT CALIBRATION(7), state: 0x1000f

[ 22.294949] remoteproc remoteproc1: powering up QCN9000_PCI0

[ 22.295783] cnss[2]: INFO: Coldboot Calbration wait started for Device: 0xfffd, timeout: 60 seconds

[ 22.764636] remoteproc remoteproc1: Booting fw image qcn9000/amss.bin, size 4096880

[ 22.764734] cnss_pci 0000:01:00.0: BAR 0: assigned [mem 0x20400000-0x205fffff 64bit]

[ 22.771179] cnss_pci 0000:01:00.0: enabling device (0000 -> 0002)

[ 22.780035] cnss_pci 0000:01:00.0: DMA Memory initialized at 0x0000000053700000 size 0x900000

[ 22.785201] cnss[27]: INFO: SOC VERSION INFO: Family num: 0x4, Device num: 0xd, Major Ver: 0x1, Minor Ver: 0x0

[ 22.794289] cnss[27]: INFO: Setting 0x20 to QRTR_NODE_ID_REG

[ 22.803477] cnss[27]: INFO: Value from QRTR_NODE_ID_REG: 0x20

[ 22.809290] mhi mhi0: Requested to power ON

[ 22.815102] mhi mhi0: Power on setup success

[ 22.920045] mhi mhi0: Wait for device to enter SBL or Mission mode

[ 22.920312] mhi mhi0: boot-args not defined in DTS. ret:-22

[ 23.210265] cnss[27]: INFO: MHI status cb is called with reason MISSION MODE(5)

[ 23.210478] mhi_uci mhi0_LOOPBACK: channel:LOOPBACK successfully probed

[ 23.216566] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 23.223428] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 23.230767] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 23.239042] cnss[27]: INFO: QMI WLFW service connected, state: 0x10011

[ 23.246296] cnss[27]: INFO: FW INI CFG file qcn9000/fw_ini_cfg.bin is present

[ 23.251477] cnss[27]: INFO: device_id : 0x1104 mem mode : [0]

[ 23.258729] cnss[27]: INFO: platform name: AnySafe E1

[ 23.259972] cnss[27]: INFO: FW File 0 download

[ 23.274365] cnss[27]: INFO: cnss_cal_db_mem_update: File Operation 1 size 3784704 file name wlfw_cal_01_QCN9000_PCI0.bin

[ 23.330053] remoteproc remoteproc1: remote processor QCN9000_PCI0 is now up

[ 23.330972] cnss[27]: INFO: Waiting for FW ready. Device: 0x1104, FW ready timeout: 15 seconds

[ 23.458192] cnss[27]: INFO: Target capability: chip_id: 0x0, chip_family: 0x0, board_id: 0xff, soc_id: 0xffffffff, fw_version: 0x280d85d4, fw_build_timestamp: 2023-01-27 19:11, otp_version: 0x0 eeprom_caldata_read_timeout 0s bdf_dnld_method 1 regdb_mandatory 0 rxgainlut_support 0

[ 23.460057] cnss[27]: INFO: Downloading BDF: qcn9000/regdb.bin, size: 24278

[ 23.494366] cnss[27]: INFO: Downloading BDF: qcn9000/bdwlan.ba3, size: 131072

[ 23.529176] cnss[27]: INFO: Downloading BDF: qcn9000/caldata_1.bin, size: 131072

[ 23.690025] cnss[27]: INFO: FW ready received for device 0x1104

[ 23.691329] cnss[27]: INFO: Sending mode message, mode: COLDBOOT CALIBRATION(7), state: 0x1010f

[ 23.799295] cnss[27]: INFO: Coldboot Calbration wait started for Device: 0x1104, timeout: 60 seconds

[ 24.877470] cnss[2]: INFO: Calibration took 2640 ms

[ 24.877501] cnss[2]: INFO: Coldboot Calibration completed successfully for device 0xfffd

[ 24.881163] cnss[2]: INFO: cnss_cal_db_mem_update: File Operation 0 size 4100000 file name wlfw_cal_01.bin

[ 24.889484] cnss: INFO: cnss_plat_ipc_qmi_file_upload: File name: wlfw_cal_01.bin Size: 4100000

[ 25.070032] cnss[2]: INFO: Coldboot Calibration wait ended for device 0xfffd

[ 25.070061] cnss[2]: INFO: Sending mode message, mode: OFF(4), state: 0x10007

[ 25.078082] cnss[2]: INFO: QMI WLFW service disconnected, state: 0x10026

[ 25.108803] remoteproc remoteproc0: stopped remote processor cd00000.remoteproc

[ 25.108836] cnss[2]: INFO: __cnss_subsystem_get: driver_state: 0x0

[ 25.114925] remoteproc remoteproc0: powering up cd00000.remoteproc

[ 25.121274] remoteproc remoteproc0: Booting fw image IPQ6018/q6_fw.mdt, size 7340

[ 25.127352] wlan: [195:I:ANY] ol_ath_wifi_ssr: SSR event 2 bus_type 1

[ 25.429876] Subsystem error monitoring/handling services are up

[ 25.429933] qcom-q6v5-wcss-pil cd00000.remoteproc: QDSP6SS Version : 0x100a0000

[ 25.434622] qcom-q6v5-wcss-pil cd00000.remoteproc: WCSS Version : 0x10000000

[ 25.447371] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 25.449619] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 25.481895] cnss[2]: INFO: QMI WLFW service connected, state: 0x1

[ 25.488019] diag: In diag_send_peripheral_buffering_mode, buffering flag not set for 2

[ 25.488066] diag: In diag_send_peripheral_buffering_mode, buffering flag not set for 2

[ 25.490079] cnss[2]: INFO: device_id : 0xfffd mem mode : [0]

[ 25.502732] cnss[2]: INFO: platform name: AnySafe E1

[ 25.504977] cnss[2]: ERR: WARNING: More memory is reserved. Reserved size 0x5500000, Requested size 0x532c000.

[ 25.519803] cnss[2]: INFO: Target capability: chip_id: 0x0, chip_family: 0x4, board_id: 0xff, soc_id: 0xffffffff, fw_version: 0x280d85d4, fw_build_timestamp: 2023-01-27 20:09, otp_version: 0x0 eeprom_caldata_read_timeout 0s bdf_dnld_method 1 regdb_mandatory 0 rxgainlut_support 0

[ 25.525825] cnss[2]: INFO: Downloading BDF: IPQ6018/regdb.bin, size: 24348

[ 25.558221] cnss[2]: INFO: Downloading BDF: IPQ6018/bdwlan.b13, size: 65536

[ 25.560034] wlan: [195:I:ANY] ol_ath_wifi_ssr: SSR event 3 bus_type 1

[ 25.564007] wlan: [195:I:ANY] ol_ath_wifi_ssr: Waiting for probe lock

[ 25.570622] wlan: [195:I:ANY] ol_ath_wifi_ssr: Starting Driver Probe

[ 25.577018] cnss[2]: INFO: Waiting for FW ready. Device: 0xfffd, FW ready timeout: 15 seconds

[ 25.589188] cnss[2]: INFO: Downloading BDF: IPQ6018/caldata.bin, size: 65536

[ 25.700012] cnss[2]: INFO: FW ready received for device 0xfffd

[ 25.700201] wlan: [195:I:ANY] pld_ahb_wlan_enable: cnss_mode: Mission mode

[ 25.705993] cnss[2]: INFO: Sending mode message, mode: MISSION(0), state: 0x7

[ 25.721493] wlan: [195:I:ANY] qca_napi_create: napi instance 0 created on pipe 4

[ 25.721783] wlan: [195:D:dfs] WLAN_DEBUG_DFS1 : dfs_psoc_obj_create_notification: DFS obj attach to psoc successfully

[ 25.728164] wlan: [195:I:ANY] qdf_ini_parse: INI values read: 0

[ 25.738507] wlan: [195:I:ANY] qdf_ini_parse: INI file parse fail: invalid file format

[ 25.744228] wlan: [195:E:CONFIG] cfg_ini_parse_to_store: Failed to parse *.ini file @ QCA6018.ini; status:4

[ 25.752238] wlan: [195:I:ANY] qdf_ini_parse: INI values read: 0

[ 25.761753] wlan: [195:I:ANY] qdf_ini_parse: INI file parse fail: invalid file format

[ 25.767625] wlan: [195:E:CONFIG] cfg_ini_parse_to_store: Failed to parse *.ini file @ internal/QCA6018_i.ini; status:4

[ 25.775744] wlan: [195:I:ANY] osif_nss_wifi_soc_setup: nss-wifili:#1 register wifili function for soc 25

[ 25.786236] wlan: [195:I:ANY] osif_nss_wifi_soc_setup: nss register id -1 nss config 7 Target Type 19

[ 25.800692] wlan: [195:E:ANY] dp_get_num_msi_available: Unable to get DP MSI assignment 2

[ 25.805226] wlan: [195:E:ANY] ol_target_init_complete: soc attach failed

[ 25.813356] wlan: [195:E:ANY] ol_ath_soc_attach: error status -1

[ 25.819986] wlan: [195:I:ANY] ol_ath_soc_attach: nss-wifi: detach -zero delay

[ 25.825983] wlan: [195:E:NSS] [nss-wifili]: stop ERROR – Null nss context

[ 25.833016] wlan: [195:E:NSS] [nss-wifili]: nss context is null

[ 25.839857] wlan: [195:E:NSS] [nss-wifili]: nss wifili astentries database is not found

[ 25.847529] wlan: [195:I:ANY] __ol_ath_attach:

[ 25.847529] __ol_ath_attach() soc 0000000057bd6078 Detaching Codeswap

[ 25.847529]

[ 25.853653] cnss[2]: INFO: Sending mode message, mode: OFF(4), state: 0x7

[ 25.867807] wlan: [195:I:ANY] ol_ath_ahb_probe: failure ret -5

[ 25.869826] cnss[2]: INFO: QMI WLFW service disconnected, state: 0x6

[ 25.872955] wlan: [195:E:ANY] ol_ath_ahb_probe: Assertion failed! 0:ol_ath_ahb_probe /home/hcy/qsdk12.2/build_dir/target-aarch64_cortex-a53_musl/linux-ipq60xx_generic/qca-wifi-12.2-unified-profile/qca-wifi-12.2/os/linux/../../qca_ol/../offload/os/linux/ath_ahb.c:1487

[ 25.886306] CPU: 2 PID: 195 Comm: kworker/2:1 Not tainted 5.4.220 #0

[ 25.908501] Hardware name: AnySafe E1 (DT)

[ 25.915110] Workqueue: events cnss_subsystem_put [ipq_cnss2]

[ 25.919002] Call trace:

[ 25.924817] dump_backtrace+0x0/0x198

[ 25.926986] show_stack+0x14/0x20

[ 25.930808] dump_stack+0xb4/0xf8

[ 25.934521] ol_ath_ahb_probe+0x300/0x468 [qca_ol]

[ 25.937796] ol_ath_wifi_ssr+0x9fc/0xdb0 [qca_ol]

[ 25.942475] ol_ath_pld_probe+0x24/0x48 [qca_ol]

[ 25.947243] pld_pcie_device_self_recovery+0x24c/0x298 [qca_ol]

[ 25.951562] cnss_self_recovery+0x1ac/0x238 [ipq_cnss2]

[ 25.957200] notifier_call_chain+0x50/0x90

[ 25.962401] blocking_notifier_call_chain+0x48/0x70

[ 25.966575] rproc_subsys_notify+0x88/0xa0

[ 25.971344] rproc_start+0x1f8/0x270

[ 25.975509] rproc_boot+0x404/0x4e8

[ 25.979248] __cnss_subsystem_get+0x108/0x290 [ipq_cnss2]

[ 25.982461] cnss_subsystem_put+0x180/0x248 [ipq_cnss2]

[ 25.988014] process_one_work+0x1e8/0x348

[ 25.993043] worker_thread+0x40/0x460

[ 25.997209] kthread+0x154/0x158

[ 26.000858] ret_from_fork+0x10/0x1c

[ 26.004213] WLAN Panic @ ol_ath_ahb_probe:1487: Take care of the TARGET ASSERT first

[ 26.004213]

[ 26.007761] ————[ cut here ]————

[ 26.016831] kernel BUG at /home/hcy/qsdk12.2/build_dir/target-aarch64_cortex-a53_musl/linux-ipq60xx_generic/qca-wifi-12.2-unified-profile/qca-wifi-12.2/os/linux/../../qca_ol/../cmn_dev/qdf/linux/src/i_qdf_trace.h:402!

[ 26.021548] Internal error: Oops – BUG: 0 [#1] PREEMPT SMP

[ 26.040704] Modules linked in: wifi_3_0(+) smart_antenna qca_ol qca_spectral umac qdf mem_manager qcserial option usb_wwan snd_usb_audio ipt_REJECT cdc_mbim xt_time xt_tcpudp xt_tcpmss xt_string xt_statistic xt_state xt_socket xt_recent xt_quota xt_policy xt_pkttype xt_physdev xt_owner xt_nat xt_multiport xt_mark xt_mac xt_limit xt_length xt_iprange xt_hl xt_helper xt_esp xt_ecn xt_dscp xt_conntrack xt_connmark xt_connlimit xt_connbytes xt_comment xt_bpf xt_addrtype xt_TPROXY xt_TCPMSS xt_REDIRECT xt_NFQUEUE xt_MASQUERADE xt_LOG xt_HL xt_DSCP xt_CT xt_CLASSIFY wireguard usbserial usblp usbhid ums_usbat ums_sddr55 ums_sddr09 ums_karma ums_jumpshot ums_isd200 ums_freecom ums_datafab ums_cypress ums_alauda ts_fsm ts_bm snd_usbmidi_lib sierra_net sch_cake rndis_host r8152 qmi_wwan ppp_mppe ppp_async nft_reject_ipv6 nft_reject_ipv4 nft_reject_inet nft_reject nft_redir nft_quota nft_queue nft_numgen nft_log nft_limit nft_ct nft_counter nfnetlink_queue nf_tproxy_ipv6 nf_tproxy_ipv4 nf_tables

[ 26.040798] nf_socket_ipv6 nf_socket_ipv4 nf_reject_ipv4 nf_nat_tftp nf_nat_snmp_basic nf_nat_sip nf_nat_rtsp nf_nat_pptp nf_nat_irc nf_nat_h323 nf_nat_ftp nf_nat_amanda nf_log_ipv4 nf_flow_table_hw nf_flow_table nf_conntrack_tftp nf_conntrack_snmp nf_conntrack_sip nf_conntrack_rtsp nf_conntrack_rtcache nf_conntrack_pptp nf_conntrack_netlink nf_conntrack_irc nf_conntrack_h323 nf_conntrack_ftp nf_conntrack_broadcast ts_kmp nf_conntrack_amanda nf_conncount macvlan libchacha20poly1305 l2tp_ppp iptable_raw iptable_nat iptable_mangle iptable_filter ipt_ah ipt_ECN ip_tables huawei_cdc_ncm hid_generic exfat cdc_ncm cdc_ether cdc_acm asn1_decoder arptable_filter arpt_mangle arp_tables aqc111 pcie_mhi qmi_wwan_f qmi_wwan_q usbnet cdc_wdm fuse tcp_bbr act_connmark sch_tbf sch_ingress sch_htb sch_hfsc em_u32 cls_u32 cls_tcindex cls_route cls_matchall cls_fw cls_flow cls_basic act_skbedit act_mirred hid qca_nss_tunipip6 qca_nss_tun6rd qca_nss_ipsecmgr evdev pwm_fan gpio_fan hwmon

[ 26.110991] qca_nss_cfi_cryptoapi qca_nss_qdisc qca_nss_macsec qca_nss_crypto qca_mcs diagchar crc_ccitt qca_nss_vxlanmgr qca_nss_pptp qca_nss_pppoe pppoe qca_nss_map_t qca_nss_lag_mgr qca_nss_l2tpv2 qca_nss_gre qca_nss_bridge_mgr qca_nss_vlan xt_sctp emesh_sp cryptodev xt_set ip_set_list_set ip_set_hash_netportnet ip_set_hash_netport ip_set_hash_netnet ip_set_hash_netiface ip_set_hash_net ip_set_hash_mac ip_set_hash_ipportnet ip_set_hash_ipportip ip_set_hash_ipport ip_set_hash_ipmark ip_set_hash_ip ip_set_bitmap_port ip_set_bitmap_ipmac ip_set_bitmap_ip ip_set nfnetlink ip6table_nat nf_nat nf_conntrack pptp pppox ppp_generic slhc nf_defrag_ipv4 ip6t_NPT nf_log_ipv6 nf_log_common ip6table_mangle ip6table_filter ip6_tables ip6t_REJECT x_tables nf_reject_ipv6 msdos bonding ip6_gre ip_gre gre ifb dummy rmnet_ctl nat46 nf_defrag_ipv6 sit qca_nss_drv l2tp_netlink l2tp_core ipcomp6 xfrm6_tunnel esp6 ah6 xfrm4_tunnel ipcomp esp4 ah4 ip6_tunnel qca_nss_dp netlink_diag tunnel6 tunnel4 udp_diag

[ 26.196761] tcp_diag raw_diag inet_diag veth tun snd_rawmidi snd_seq_device snd_pcm_oss snd_pcm snd_timer snd_mixer_oss snd_hwdep snd_compress snd soundcore qca_ssdk mpls_iptunnel mpls_router ip_tunnel mpls_gso xfrm_user xfrm_ipcomp af_key xfrm_algo vfat fat ntfs3 autofs4 dm_mirror dm_region_hash dm_log dm_crypt cfg80211 nls_utf8 nls_iso8859_1 nls_cp437 vxlan udp_tunnel ip6_udp_tunnel nsh md5 authenc ipq_cnss2 leds_gpio uhci_hcd ohci_platform ohci_hcd ahci libahci libata fsl_mph_dr_of ehci_platform ehci_fsl ehci_hcd gpio_button_hotplug f2fs btrfs xor zstd_decompress zstd_compress xxhash xor_neon raid6_pq libcrc32c button_hotplug input_core mii crc32_generic

[ 26.342258] CPU: 2 PID: 195 Comm: kworker/2:1 Not tainted 5.4.220 #0

[ 26.364489] Hardware name: AnySafe E1 (DT)

[ 26.371013] Workqueue: events cnss_subsystem_put [ipq_cnss2]

[ 26.374904] pstate: 60400005 (nZCv daif +PAN -UAO)

[ 26.381134] pc : ol_ath_ahb_probe+0x314/0x468 [qca_ol]

[ 26.385708] lr : ol_ath_ahb_probe+0x314/0x468 [qca_ol]

[ 26.390445] sp : ffffff807c8afa30

[ 26.395559] x29: ffffff807c8afa30 x28: ffffffc00a045000

[ 26.398948] x27: ffffff807d2f75b8 x26: 00000000fffffffb

[ 26.404329] x25: 0000000000000001 x24: ffffffc00a04673c

[ 26.409624] x23: ffffffc00a0b8518 x22: ffffff807d289c10

[ 26.414920] x21: ffffff807aeb6800 x20: ffffffc00a0b8350

[ 26.420215] x19: ffffffc00a0b8518 x18: 0000000000000000

[ 26.425511] x17: 0000000000000000 x16: 0000000000000000

[ 26.430805] x15: 0000000000000000 x14: 696c2f736f2f322e

[ 26.436101] x13: ffffffc010c21c12 x12: ffffffc010bae000

[ 26.441399] x11: ffffff807c8af750 x10: ffffff807c8af750

[ 26.446693] x9 : 0000000000000000 x8 : 2054454752415420

[ 26.451988] x7 : ffffffc010b98768 x6 : 0000000000000313

[ 26.457281] x5 : 0000000000000000 x4 : 0000000000000000

[ 26.462577] x3 : 00000000ffffffff x2 : ffffffc010baeeb8

[ 26.467874] x1 : ffffff807c8b0000 x0 : 0000000000000049

[ 26.473168] Call trace:

[ 26.478863] ol_ath_ahb_probe+0x314/0x468 [qca_ol]

[ 26.481015] ol_ath_wifi_ssr+0x9fc/0xdb0 [qca_ol]

[ 26.485867] ol_ath_pld_probe+0x24/0x48 [qca_ol]

[ 26.490628] pld_pcie_device_self_recovery+0x24c/0x298 [qca_ol]

[ 26.494966] cnss_self_recovery+0x1ac/0x238 [ipq_cnss2]

[ 26.500603] notifier_call_chain+0x50/0x90

[ 26.505805] blocking_notifier_call_chain+0x48/0x70

[ 26.509976] rproc_subsys_notify+0x88/0xa0

[ 26.514745] rproc_start+0x1f8/0x270

[ 26.518912] rproc_boot+0x404/0x4e8

[ 26.522650] __cnss_subsystem_get+0x108/0x290 [ipq_cnss2]

[ 26.525862] cnss_subsystem_put+0x180/0x248 [ipq_cnss2]

[ 26.531415] process_one_work+0x1e8/0x348

[ 26.536447] worker_thread+0x40/0x460

[ 26.540612] kthread+0x154/0x158

[ 26.544258] ret_from_fork+0x10/0x1c

[ 26.547563] Code: 5280b9e2 aa1303e1 f943f000 95a08c84 (d4210000)

[ 26.551121] —[ end trace 57cf03773990d0cd ]—

[ 26.557110] Kernel panic – not syncing: Fatal exception

[ 26.561798] SMP: stopping secondary CPUs

[ 26.566746] cnss[27]: ERR: Crash shutdown device QCN9000_PCI0 with driver_state 0x1010f

[ 26.781065] mhi mhi0: CRASHED – [DID:DOMAIN:BUS:SLOT] – 1104:0000:01:00

[ 26.781157] mhi mhi0: Fatal error received from wcss software!

[ 26.781157]

[ 26.781157] QC Image Version: QC_IMAGE_VERSION_STRING=WLAN.HK.2.8-01492-QCAHKSWPL_SILICONZ-1

[ 26.781157] Image Variant : IMAGE_VARIANT_STRING=9000.wlanfw.eval_v1Q

[ 26.781157] Oem Image Version: OEM_IMAGE_VERSION_STRING=ip-10-195-204-55

[ 26.781157] Oem Image UUID: OEM_IMAGE_UUID_STRING=Q_SENTINEL_{D0F5F167-C383-484B-9B1A-A35B48AA0387}_20230127_1914

[ 26.781157]

[ 26.781157] mhi_sm_patched.c:209 (): param0 :zero, param1 :zero, param2 :zero.

[ 26.781157] Thread ID : 0x00000024 Thread name : MHI CORE Process ID : 0

[ 26.781157] Register:

[ 26.781157] SP : 0x0143a450

[ 26.781157] FP : 0x0143a458

[ 26.781157] PC : 0x0082ecd8

[ 26.781157] SSR : 0x00000008

[ 26.781157] BADVA : 0x00000000

[ 26.781157] LR : 0x0082ee40

[ 26.781157]

[ 26.781157] Stack Dump

[ 26.781157] from : 0x0143a450

[ 26.781157] to : 0x0143a540

[ 26.781157]

[ 26.850349] cnss[27]: INFO: Dump Collection Completed, total entries is 23

[ 26.872593] smem desc phys addr(0x4aa3b198)

[ 26.879521] smem_panic_handler tx tail:13560 tx head:13560 rx tail:8224 rx head:8224

[ 31.883810] The reading for sensor 4 is 0x002041fb

[ 31.883827] The reading for sensor 5 is 0x00205205

[ 31.887478] The reading for sensor 7 is 0x002071f1

[ 31.892252] The reading for sensor 8 is 0x002081eb

[ 31.897071] Couldn’t get reading for sensor 13

[ 31.901800] The reading for sensor 14 is 0x0020e1f1

[ 31.906228] The reading for sensor 15 is 0x0020f1fb

[ 31.910999] Kernel Offset: disabled

[ 31.915860] CPU features: 0x00002,20002000

[ 31.919331] Memory Limit: none

[ 32.524629] Rebooting in 5 seconds..

Format: Log Type – Time(microsec) – Message – Optional Info

Log Type: B – Since Boot(Power On Reset), D – Delta, S – Statistic

S – QC_IMAGE_VERSION_STRING=BOOT.XF.0.3-00102-IPQ60xxLZB-1

S – IMAGE_VARIANT_STRING=IPQ6018LA

S – OEM_IMAGE_VERSION_STRING=crm-ubuntu64

S – Boot Interface: SPI

S – Secure Boot: Off

S – Boot Config @ 0x000a602c = 0x000002e1

S – JTAG ID @ 0x000a607c = 0x0013a0e1

S – OEM ID @ 0x000a6080 = 0x00000000

S – Serial Number @ 0x000a4128 = 0x08fa6d2b

S – OEM Config Row 0 @ 0x000a4188 = 0x0000000000000000

S – OEM Config Row 1 @ 0x000a4190 = 0x0000000000000000

S – Feature Config Row 0 @ 0x000a4130 = 0x0000000008000001

S – Feature Config Row 1 @ 0x000a4138 = 0x02c3e83383000009

S – PBL Patch Ver: 1

S – I-cache: On

S – D-cache: On

B – 3413 – PBL, Start

B – 592 – bootable_media_detect_entry, Start

B – 4339 – bootable_media_detect_success, Start

B – 4435 – elf_loader_entry, Start

B – 4607 – auth_hash_seg_entry, Start

B – 10854 – auth_hash_seg_exit, Start

B – 11350 – elf_segs_hash_verify_entry, Start

B – 358091 – elf_segs_hash_verify_exit, Start

B – 362282 – auth_xbl_sec_hash_seg_entry, Start

B – 362426 – auth_xbl_sec_hash_seg_exit, Start

B – 368980 – xbl_sec_segs_hash_verify_entry, Start

B – 368981 – xbl_sec_segs_hash_verify_exit, Start

B – 369910 – PBL, End

B – 296064 – SBL1, Start

B – 439383 – GCC [RstStat:0x10, RstDbg:0x700100] WDog Stat : 0x4

B – 441823 – clock_init, Start

D – 3751 – clock_init, Delta

B – 451644 – boot_flash_init, Start

D – 8357 – boot_flash_init, Delta

B – 462197 – sbl1_ddr_set_default_params, Start

D – 335 – sbl1_ddr_set_default_params, Delta

B – 468815 – boot_config_data_table_init, Start

D – 1921 – boot_config_data_table_init, Delta – (575 Bytes)

B – 477965 – CDT Version:2,Platform ID:8,Major ID:3,Minor ID:0,Subtype:2

B – 483516 – Image Load, Start

D – 6618 – OEM_MISC Image Loaded, Delta – (0 Bytes)

B – 492849 – Image Load, Start

D – 5033 – PMIC Image Loaded, Delta – (0 Bytes)

B – 500718 – sbl1_ddr_set_params, Start

B – 505781 – CPR configuration: 0x555

B – 508892 – Pre_DDR_clock_init, Start

D – 213 – Pre_DDR_clock_init, Delta

D – 0 – sbl1_ddr_set_params, Delta

B – 547749 – Image Load, Start

D – 458 – APDP Image Loaded, Delta – (0 Bytes)

B – 565470 – Image Load, Start

D – 427 – QTI_MISC Image Loaded, Delta – (0 Bytes)

B – 567910 – Image Load, Start

D – 854 – Auth Metadata

D – 641 – Segments hash check

D – 29463 – QSEE Dev Config Image Loaded, Delta – (37162 Bytes)

B – 599355 – Image Load, Start

D – 6619 – Auth Metadata

D – 10340 – Segments hash check

D – 793275 – QSEE Image Loaded, Delta – (1426556 Bytes)

B – 1393118 – Image Load, Start

D – 641 – Auth Metadata

D – 976 – Segments hash check

D – 63440 – RPM Image Loaded, Delta – (102948 Bytes)

B – 1458235 – Image Load, Start

D – 732 – Auth Metadata

D – 3202 – Segments hash check

D – 308355 – APPSBL Image Loaded, Delta – (570116 Bytes)

B – 1782633 – SBL1, End

D – 1486874 – SBL1, Delta

S – Flash Throughput, 1000 KB/s (2138029 Bytes, 1098537 us)

S – Core 0 Frequency, 800 MHz

S – DDR Frequency, 466 MHz

U-Boot 2016.01 (Jun 02 2024 – 16:18:30 +0000)

DRAM: smem ram ptable found: ver: 2 len: 4

2 GiB

NAND: ONFI device found

ID = 1590aa2c

Vendor = 2c

Device = aa

qpic_nand: changing oobsize to 80 from 128 bytes

SPI_ADDR_LEN=3

SF: Detected W25Q128FW with page size 256 Bytes, erase size 4 KiB, total 16 MiB

ipq_spi: page_size: 0x100, sector_size: 0x1000, size: 0x1000000

272 MiB

MMC: sdhci: Node Not found, skipping initialization

*** Warning – bad CRC, using default environment

PCI Link Intialized

In: serial@78B1000

Out: serial@78B1000

Err: serial@78B1000

machid: 8030002

eth5 MAC Address from ART is not valid

Net: MAC0 addr:e0:38:2d:e0:2:23

PHY ID1: 0x4d

PHY ID2: 0xd0b1

PHY ID1: 0x4d

PHY ID2: 0xd101

EDMA ver 1 hw init

Num rings – TxDesc:1 (0-0) TxCmpl:1 (0-0)

RxDesc:1 (15-15) RxFill:1 (7-7)

ipq6018_edma_alloc_rings: successfull

ipq6018_edma_setup_ring_resources: successfull

ipq6018_edma_configure_rings: successfull

ipq6018_edma_hw_init: successfull

eth0

Hit any key to stop autoboot: 0

ubi0: attaching mtd2

ubi0: scanning is finished

ubi0: attached mtd2 (name “mtd=0”, size 249 MiB)

ubi0: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes

ubi0: min./max. I/O unit sizes: 2048/2048, sub-page size 2048

ubi0: VID header offset: 2048 (aligned 2048), data offset: 4096

ubi0: good PEBs: 1992, bad PEBs: 0, corrupted PEBs: 0

ubi0: user volume: 3, internal volumes: 1, max. volumes count: 128

ubi0: max/mean erase counter: 27/5, WL threshold: 4096, image sequence number: 1731653759

ubi0: available PEBs: 0, total reserved PEBs: 1992, PEBs reserved for bad PEB handling: 40

Read 0 bytes from volume kernel to 44000000

No size specified -> Using max size (5586944)

## Loading kernel from FIT Image at 44000000 …

Using ‘config@cp01-c3’ configuration

Trying ‘kernel@1’ kernel subimage

Description: ARM64 OpenWrt Linux-5.4.220

Type: Kernel Image

Compression: gzip compressed

Data Start: 0x440000e8

Data Size: 5469100 Bytes = 5.2 MiB

Architecture: AArch64

OS: Linux

Load Address: 0x41080000

Entry Point: 0x41080000

Hash algo: crc32

Hash value: ce7d6ce8

Hash algo: sha1

Hash value: 0c02be442fa4aba439fe6ef9b0924f4cd7c026e9

Verifying Hash Integrity … crc32+ sha1+ OK

## Loading fdt from FIT Image at 44000000 …

Using ‘config@cp01-c3’ configuration

Trying ‘fdt@1’ fdt subimage

Description: ARM64 OpenWrt anysafe_e1 device tree blob

Type: Flat Device Tree

Compression: uncompressed

Data Start: 0x445375d0

Data Size: 59298 Bytes = 57.9 KiB

Architecture: AArch64

Hash algo: crc32

Hash value: 31d1ffc8

Hash algo: sha1

Hash value: 52871bbfe5edb3e66d0e1a9727d24d08f3e9183d

Verifying Hash Integrity … crc32+ sha1+ OK

Booting using the fdt blob at 0x445375d0

Uncompressing Kernel Image … OK

Loading Device Tree to 484ee000, end 484ff7a1 … OK

Using machid 0x8030002 from environment

Starting kernel …

Jumping to AARCH64 kernel via monitor

[ 0.000000] Booting Linux on physical CPU 0x0000000000 [0x51af8014]

[ 0.000000] Linux version 5.4.220 (hcy@hcy) (gcc version 7.5.0 (OpenWrt GCC 7.5.0 r47617-6ffe730407)) #0 SMP PREEMPT Tue Aug 6 10:47:02 2024

[ 0.000000] Machine model: AnySafe E1

[ 0.000000] Reserved memory: created DMA memory pool at 0x0000000053700000, size 9 MiB

[ 0.000000] OF: reserved mem: initialized node dma_pool0@53700000, compatible id shared-dma-pool

[ 0.000000] psci: probing for conduit method from DT.

[ 0.000000] psci: PSCIv1.0 detected in firmware.

[ 0.000000] psci: Using standard PSCI v0.2 function IDs

[ 0.000000] psci: MIGRATE_INFO_TYPE not supported.

[ 0.000000] psci: SMC Calling Convention v1.0

[ 0.000000] percpu: Embedded 24 pages/cpu s59416 r8192 d30696 u98304

[ 0.000000] Detected VIPT I-cache on CPU0

[ 0.000000] CPU features: kernel page table isolation disabled by kernel configuration

[ 0.000000] ARM_SMCCC_ARCH_WORKAROUND_1 missing from firmware

[ 0.000000] Built 1 zonelists, mobility grouping on. Total pages: 471744

[ 0.000000] Kernel command line: console=ttyMSM0,115200n8 ubi.mtd=rootfs root=mtd:ubi_rootfs rootfstype=squashfs rootwait root=/dev/ubiblock0_1 swiotlb=1 coherent_pool=2M

[ 0.000000] Dentry cache hash table entries: 262144 (order: 9, 2097152 bytes, linear)

[ 0.000000] Inode-cache hash table entries: 131072 (order: 8, 1048576 bytes, linear)

[ 0.000000] mem auto-init: stack:off, heap alloc:off, heap free:off

[ 0.000000] Memory: 1868004K/1916928K available (8190K kernel code, 548K rwdata, 2492K rodata, 576K init, 416K bss, 48924K reserved, 0K cma-reserved)

[ 0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=4, Nodes=1

[ 0.000000] rcu: Preemptible hierarchical RCU implementation.

[ 0.000000] Tasks RCU enabled.

[ 0.000000] rcu: RCU calculated value of scheduler-enlistment delay is 10 jiffies.

[ 0.000000] NR_IRQS: 64, nr_irqs: 64, preallocated irqs: 0

[ 0.000000] GICv2m: range[mem 0x0b00a000-0x0b00affc], SPI[448:479]

[ 0.000000] arch_timer: cp15 and mmio timer(s) running at 24.00MHz (virt/virt).

[ 0.000000] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x588fe9dc0, max_idle_ns: 440795202592 ns

[ 0.000005] sched_clock: 56 bits at 24MHz, resolution 41ns, wraps every 4398046511097ns

[ 0.000290] Calibrating delay loop (skipped), value calculated using timer frequency.. 48.00 BogoMIPS (lpj=240000)

[ 0.000302] pid_max: default: 32768 minimum: 301

[ 0.000438] Mount-cache hash table entries: 4096 (order: 3, 32768 bytes, linear)

[ 0.000453] Mountpoint-cache hash table entries: 4096 (order: 3, 32768 bytes, linear)

[ 0.001752] ASID allocator initialised with 65536 entries

[ 0.001836] rcu: Hierarchical SRCU implementation.

[ 0.002544] MSM Memory Dump base table set up

[ 0.002561] MSM Memory Dump apps data table set up

[ 0.002748] smp: Bringing up secondary CPUs …

[ 0.003327] Detected VIPT I-cache on CPU1

[ 0.003378] CPU1: Booted secondary processor 0x0000000001 [0x51af8014]

[ 0.003978] Detected VIPT I-cache on CPU2

[ 0.004009] CPU2: Booted secondary processor 0x0000000002 [0x51af8014]

[ 0.004553] Detected VIPT I-cache on CPU3

[ 0.004582] CPU3: Booted secondary processor 0x0000000003 [0x51af8014]

[ 0.004651] smp: Brought up 1 node, 4 CPUs

[ 0.004672] SMP: Total of 4 processors activated.

[ 0.004680] CPU features: detected: 32-bit EL0 Support

[ 0.004687] CPU features: detected: CRC32 instructions

[ 0.004728] CPU features: emulated: Privileged Access Never (PAN) using TTBR0_EL1 switching

[ 0.004735] CPU: All CPU(s) started at EL1

[ 0.004986] alternatives: patching kernel code

[ 0.016249] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns

[ 0.016270] futex hash table entries: 1024 (order: 4, 65536 bytes, linear)

[ 0.016401] pinctrl core: initialized pinctrl subsystem

[ 0.017370] NET: Registered protocol family 16

[ 0.017997] DMA: preallocated 2048 KiB pool for atomic allocations

[ 0.018396] cpuidle: using governor ladder

[ 0.018419] cpuidle: using governor menu

[ 0.018559] NET: Registered protocol family 42

[ 0.018750] hw-breakpoint: found 6 breakpoint and 4 watchpoint registers.

[ 0.074772] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 0.076664] msm_sps_probe: sps:sps is ready

[ 0.089963] cryptd: max_cpu_qlen set to 1000

[ 0.177835] SCSI subsystem initialized

[ 0.178004] usbcore: registered new interface driver usbfs

[ 0.178046] usbcore: registered new interface driver hub

[ 0.178080] usbcore: registered new device driver usb

[ 0.178117] pps_core: LinuxPPS API ver. 1 registered

[ 0.178123] pps_core: Software ver. 5.3.6 – Copyright 2005-2007 Rodolfo Giometti <[email protected]>

[ 0.178140] PTP clock support registered

[ 0.178913] qcom_glink_rpm rpm-glink: RPM TOC has invalid magic

[ 0.178938] qcom_glink_rpm: probe of rpm-glink failed with error -22

[ 0.179164] workqueue: max_active 576 requested for napi_workq is out of range, clamping between 1 and 512

[ 0.179962] clocksource: Switched to clocksource arch_sys_counter

[ 0.180656] thermal_sys: Registered thermal governor ‘step_wise’

[ 0.180659] thermal_sys: Registered thermal governor ‘user_space’

[ 0.181888] NET: Registered protocol family 2

[ 0.182050] IP idents hash table entries: 32768 (order: 6, 262144 bytes, linear)

[ 0.183300] tcp_listen_portaddr_hash hash table entries: 1024 (order: 2, 16384 bytes, linear)

[ 0.183348] TCP established hash table entries: 16384 (order: 5, 131072 bytes, linear)

[ 0.183506] TCP bind hash table entries: 16384 (order: 6, 262144 bytes, linear)

[ 0.183788] TCP: Hash tables configured (established 16384 bind 16384)

[ 0.183877] UDP hash table entries: 1024 (order: 3, 32768 bytes, linear)

[ 0.183938] UDP-Lite hash table entries: 1024 (order: 3, 32768 bytes, linear)

[ 0.184139] NET: Registered protocol family 1

[ 0.184169] PCI: CLS 0 bytes, default 64

[ 0.210800] workingset: timestamp_bits=46 max_order=19 bucket_order=0

[ 0.215596] squashfs: version 4.0 (2009/01/31) Phillip Lougher

[ 0.215606] jffs2: version 2.2 (NAND) (SUMMARY) (LZMA) (RTIME) (CMODE_PRIORITY) (c) 2001-2006 Red Hat, Inc.

[ 0.238255] qcom-qmp-phy 84000.phy: Registered Qcom-QMP phy

[ 0.238488] qcom-qmp-phy 78000.ssphy: 78000.ssphy supply vdda-phy not found, using dummy regulator

[ 0.238550] qcom-qmp-phy 78000.ssphy: 78000.ssphy supply vdda-pll not found, using dummy regulator

[ 0.239307] qcom-qmp-phy 78000.ssphy: Registered Qcom-QMP phy

[ 0.239824] qcom-qusb2-phy 59000.qusb: 59000.qusb supply vdda-pll not found, using dummy regulator

[ 0.239875] qcom-qusb2-phy 59000.qusb: 59000.qusb supply vdda-phy-dpdm not found, using dummy regulator

[ 0.240142] qcom-qusb2-phy 59000.qusb: Registered Qcom-QUSB2 phy

[ 0.240240] qcom-qusb2-phy 79000.qusb: 79000.qusb supply vdda-pll not found, using dummy regulator

[ 0.240288] qcom-qusb2-phy 79000.qusb: 79000.qusb supply vdda-phy-dpdm not found, using dummy regulator

[ 0.240413] qcom-qusb2-phy 79000.qusb: Registered Qcom-QUSB2 phy

[ 0.241582] qcom-pcie 20000000.pci: IRQ mdm2ap_e911 not found

[ 0.244216] qcom-pcie 20000000.pci: host bridge /soc/pci@20000000 ranges:

[ 0.244256] qcom-pcie 20000000.pci: IO 0x20200000..0x2020ffff -> 0x20200000

[ 0.244280] qcom-pcie 20000000.pci: MEM 0x20220000..0x2fffffff -> 0x20220000

[ 0.471510] qcom-pcie 20000000.pci: Link up

[ 0.471633] qcom-pcie 20000000.pci: PCI host bridge to bus 0000:00

[ 0.471645] pci_bus 0000:00: root bus resource [bus 00-ff]

[ 0.471657] pci_bus 0000:00: root bus resource [io 0x0000-0xffff] (bus address [0x20200000-0x2020ffff])

[ 0.471666] pci_bus 0000:00: root bus resource [mem 0x20220000-0x2fffffff]

[ 0.471697] pci 0000:00:00.0: [17cb:1003] type 01 class 0x060400

[ 0.471726] pci 0000:00:00.0: reg 0x10: [mem 0x00000000-0x00000fff]

[ 0.471795] pci 0000:00:00.0: PME# supported from D0 D3hot D3cold

[ 0.476570] pci 0000:01:00.0: [17cb:1104] type 00 class 0x028000

[ 0.476734] pci 0000:01:00.0: reg 0x10: [mem 0x00000000-0x001fffff 64bit]

[ 0.477279] pci 0000:01:00.0: PME# supported from D0 D3hot D3cold

[ 0.477371] pci 0000:01:00.0: 7.876 Gb/s available PCIe bandwidth, limited by 8 GT/s x1 link at 0000:00:00.0 (capable of 15.752 Gb/s with 8 GT/s x2 link)

[ 0.481930] pci 0000:00:00.0: BAR 8: assigned [mem 0x20400000-0x205fffff]

[ 0.481945] pci 0000:00:00.0: BAR 9: assigned [mem 0x20600000-0x207fffff 64bit pref]

[ 0.481956] pci 0000:00:00.0: BAR 0: assigned [mem 0x20220000-0x20220fff]

[ 0.481969] pci 0000:00:00.0: BAR 7: assigned [io 0x1000-0x1fff]

[ 0.481985] pci 0000:01:00.0: BAR 0: assigned [mem 0x20400000-0x205fffff 64bit]

[ 0.482042] pci 0000:00:00.0: PCI bridge to [bus 01-ff]

[ 0.482052] pci 0000:00:00.0: bridge window [io 0x1000-0x1fff]

[ 0.482063] pci 0000:00:00.0: bridge window [mem 0x20400000-0x205fffff]

[ 0.482074] pci 0000:00:00.0: bridge window [mem 0x20600000-0x207fffff 64bit pref]

[ 0.482123] PCIe: RC enabled during bootup

[ 0.482373] qcom-pcie 20000000.pci: Received Link up event for RC 0

[ 0.485458] bam-dma-engine 704000.dma: num-channels unspecified in dt

[ 0.485469] bam-dma-engine 704000.dma: num-ees unspecified in dt

[ 0.486438] bam-dma-engine 7884000.dma: qcom,controlled-remotely unspecified

[ 0.487805] bam-dma-engine 7984000.dma: qcom,controlled-remotely unspecified

[ 0.488481] msm-dcc b3000.dcc: DCC XPU is not specified

[ 0.488695] msm-dcc b3000.dcc: jiffies_64: 0xffff8aff, cntvct_64: 0x15ce381d

[ 0.488707] msm-dcc b3000.dcc: gcnt_hi: 0x00000000(0x(____ptrval____))

[ 0.488717] msm-dcc b3000.dcc: gcnt_lo: 0x15ce3a51(0x(____ptrval____))

[ 0.489202] global timer is null

[ 0.489375] CPU: IPQ6010, SoC Version: 1.0

[ 0.489381] OEM_ID: 0, PROD_ID: 0

[ 0.489726] msm_rpm_log_probe: OK

[ 0.490489] TZ SMMU State: SMMU Stage2 Enabled

[ 0.490550] TZ Log : Will warn on Access Violation, as paniconaccessviolation is not set

[ 0.491389] msm_serial 78b0000.serial: msm_serial: detected port #1

[ 0.491420] msm_serial 78b0000.serial: uartclk = 24000000

[ 0.491474] 78b0000.serial: ttyMSM1 at MMIO 0x78b0000 (irq = 12, base_baud = 1500000) is a MSM

[ 0.491722] msm_serial 78b1000.serial: msm_serial: detected port #0

[ 0.491749] msm_serial 78b1000.serial: uartclk = 1843199

[ 0.491782] 78b1000.serial: ttyMSM0 at MMIO 0x78b1000 (irq = 13, base_baud = 115199) is a MSM

[ 0.491799] msm_serial: console setup on port #0

[ 1.424545] printk: console [ttyMSM0] enabled

[ 1.429466] msm_serial: driver initialized

[ 1.433767] random: crng init done

[ 1.443327] brd: module loaded

[ 1.446277] loop: module loaded

[ 1.447973] nand: device found, Manufacturer ID: 0x2c, Chip ID: 0xaa

[ 1.448310] nand: Micron MT29F2G08ABBGAH4

[ 1.454925] nand: 256 MiB, SLC, erase size: 128 KiB, page size: 2048, OOB size: 128

[ 1.458853] 1 fixed-partitions partitions found on MTD device qcom_nand.0

[ 1.466291] Creating 1 MTD partitions on “qcom_nand.0”:

[ 1.473234] 0x000000000000-0x00000f900000 : “rootfs”

[ 1.681589] mtd: device 0 (rootfs) set to be root filesystem

[ 1.681870] mtdsplit: no squashfs found in “rootfs”

[ 1.687012] spi_qup 78b5000.spi: IN:block:16, fifo:64, OUT:block:16, fifo:64

[ 1.691487] spi-nor spi0.0: found w25q128fw, expected n25q128a11

[ 1.699171] spi-nor spi0.0: w25q128fw (16384 Kbytes)

[ 1.704294] 17 fixed-partitions partitions found on MTD device spi0.0

[ 1.709136] Creating 17 MTD partitions on “spi0.0”:

[ 1.715487] 0x000000000000-0x0000000c0000 : “0:SBL1”

[ 1.720798] 0x0000000c0000-0x0000000d0000 : “0:MIBIB”

[ 1.725882] 0x0000000d0000-0x0000000f0000 : “0:BOOTCONFIG”

[ 1.730837] 0x0000000f0000-0x000000110000 : “0:BOOTCONFIG1”

[ 1.736206] 0x000000110000-0x0000002b0000 : “0:QSEE”

[ 1.741699] 0x0000002b0000-0x000000450000 : “0:QSEE_1”

[ 1.746886] 0x000000450000-0x000000460000 : “0:DEVCFG”

[ 1.751843] 0x000000460000-0x000000470000 : “0:DEVCFG_1”

[ 1.756962] 0x000000470000-0x0000004b0000 : “0:RPM”

[ 1.762434] 0x0000004b0000-0x0000004f0000 : “0:RPM_1”

[ 1.767081] 0x0000004f0000-0x000000500000 : “0:CDT”

[ 1.772255] 0x000000500000-0x000000510000 : “0:CDT_1”

[ 1.776934] 0x000000510000-0x000000520000 : “0:APPSBLENV”

[ 1.782143] 0x000000520000-0x0000005c0000 : “0:APPSBL”

[ 1.787511] 0x0000005c0000-0x000000660000 : “0:APPSBL_1”

[ 1.792563] 0x000000660000-0x0000006e0000 : “0:ART”

[ 1.798010] 0x0000006e0000-0x000000720000 : “0:ASF”

[ 1.803996] qca-mdio 90000.mdio: Reset PHY by GPIO 507

[ 2.027039] qca-mdio 90000.mdio: Reset PHY by GPIO 509

[ 2.248950] qca-mdio 90000.mdio: qca-mdio driver was registered

[ 2.254944] xhci-hcd xhci-hcd.0.auto: xHCI Host Controller

[ 2.254987] xhci-hcd xhci-hcd.0.auto: new USB bus registered, assigned bus number 1

[ 2.259479] xhci-hcd xhci-hcd.0.auto: hcc params 0x0220fe65 hci version 0x110 quirks 0x0000000000010010

[ 2.266954] xhci-hcd xhci-hcd.0.auto: irq 93, io mem 0x07000000

[ 2.276822] hub 1-0:1.0: USB hub found

[ 2.282188] hub 1-0:1.0: 1 port detected

[ 2.286233] xhci-hcd xhci-hcd.0.auto: xHCI Host Controller

[ 2.290092] xhci-hcd xhci-hcd.0.auto: new USB bus registered, assigned bus number 2

[ 2.295352] xhci-hcd xhci-hcd.0.auto: Host supports USB 3.0 SuperSpeed

[ 2.302960] usb usb2: We don’t know the algorithms for LPM for this host, disabling LPM.

[ 2.309887] hub 2-0:1.0: USB hub found

[ 2.317847] hub 2-0:1.0: config failed, hub doesn’t have any ports! (err -19)

[ 2.321582] xhci-hcd xhci-hcd.1.auto: xHCI Host Controller

[ 2.328511] xhci-hcd xhci-hcd.1.auto: new USB bus registered, assigned bus number 3

[ 2.334808] xhci-hcd xhci-hcd.1.auto: hcc params 0x0220fe65 hci version 0x110 quirks 0x0000000000010010

[ 2.341567] xhci-hcd xhci-hcd.1.auto: irq 94, io mem 0x08a00000

[ 2.351363] hub 3-0:1.0: USB hub found

[ 2.356730] hub 3-0:1.0: 1 port detected

[ 2.360851] xhci-hcd xhci-hcd.1.auto: xHCI Host Controller

[ 2.364618] xhci-hcd xhci-hcd.1.auto: new USB bus registered, assigned bus number 4

[ 2.369918] xhci-hcd xhci-hcd.1.auto: Host supports USB 3.0 SuperSpeed

[ 2.377615] usb usb4: We don’t know the algorithms for LPM for this host, disabling LPM.

[ 2.384461] hub 4-0:1.0: USB hub found

[ 2.392385] hub 4-0:1.0: 1 port detected

[ 2.396280] usbcore: registered new interface driver uas

[ 2.400132] usbcore: registered new interface driver usb-storage

[ 2.405236] i2c /dev entries driver

[ 2.415421] device-mapper: ioctl: 4.41.0-ioctl (2019-09-16) initialised: [email protected]

[ 2.416384] qti_scm_restart_reason qti,scm_restart_reason: reset_reason : [0xA1013D00]

[ 2.423499] qcom_ice_get_device_tree_data: No vdd-hba-supply regulator, assuming not needed

[ 2.431053] ICE IRQ = 16

[ 2.439570] sdhci: Secure Digital Host Controller Interface driver

[ 2.441883] sdhci: Copyright(c) Pierre Ossman

[ 2.447871] sdhci-pltfm: SDHCI platform and OF driver helper

[ 2.452730]

[ 2.452730] Version Rollback Feature Disabled

[ 2.460737] remoteproc remoteproc0: cd00000.remoteproc is available

[ 2.464163] coresight-tmc 6047000.tmc: failed to get flush cti, defer probe

[ 2.470134] coresight-dynamic-funnel 6041000.funnel: Uses obsolete Coresight DT bindings

[ 2.478338] coresight coresight-etm0: CPU0: ETM v4.0 initialized

[ 2.485119] coresight-etm4x 619c000.etm: CPU0: (null) initialized

[ 2.491540] coresight coresight-etm1: CPU1: ETM v4.0 initialized

[ 2.497080] coresight-etm4x 619d000.etm: CPU1: (null) initialized

[ 2.503844] coresight coresight-etm2: CPU2: ETM v4.0 initialized

[ 2.509146] coresight-etm4x 619e000.etm: CPU2: (null) initialized

[ 2.515611] coresight coresight-etm3: CPU3: ETM v4.0 initialized

[ 2.521310] coresight-etm4x 619f000.etm: CPU3: (null) initialized

[ 2.527473] coresight-stm 6002000.stm: coresight-stm : stm_register_device failed, probing deferred

[ 2.533405] OF: graph: no port node found in /soc/cti@6010000

[ 2.542308] OF: graph: no port node found in /soc/cti@6011000

[ 2.548191] OF: graph: no port node found in /soc/cti@6012000

[ 2.554027] OF: graph: no port node found in /soc/cti@6013000

[ 2.559651] OF: graph: no port node found in /soc/cti@6014000

[ 2.565399] OF: graph: no port node found in /soc/cti@6015000

[ 2.571122] OF: graph: no port node found in /soc/cti@6016000

[ 2.576834] OF: graph: no port node found in /soc/cti@6017000

[ 2.582696] OF: graph: no port node found in /soc/cti@6018000

[ 2.588296] OF: graph: no port node found in /soc/cti@6019000

[ 2.594043] OF: graph: no port node found in /soc/cti@601a000

[ 2.599759] OF: graph: no port node found in /soc/cti@601b000

[ 2.605503] OF: graph: no port node found in /soc/cti@601c000

[ 2.611346] OF: graph: no port node found in /soc/cti@601d000

[ 2.616954] OF: graph: no port node found in /soc/cti@601e000

[ 2.622707] OF: graph: no port node found in /soc/cti@601f000

[ 2.628408] OF: graph: no port node found in /soc/cti@6198000

[ 2.634149] OF: graph: no port node found in /soc/cti@6199000

[ 2.639868] OF: graph: no port node found in /soc/cti@619a000

[ 2.645680] OF: graph: no port node found in /soc/cti@619b000

[ 2.651187] usb 3-1: new high-speed USB device number 2 using xhci-hcd

[ 2.657122] OF: graph: no port node found in /soc/cti@610c000

[ 2.664347] OF: graph: no port node found in /soc/hwevent@6101000

[ 2.669130] coresight-hwevent 6101000.hwevent: No csr data

[ 2.675572] OF: graph: no port node found in /soc/csr@6001000

[ 2.680683] coresight-csr 6001000.csr: CSR initialized: coresight-csr

[ 2.687442] NET: Registered protocol family 10

[ 2.693649] Segment Routing with IPv6

[ 2.697216] NET: Registered protocol family 17

[ 2.701078] Bridge firewalling registered

[ 2.705233] 8021q: 802.1Q VLAN Support v1.8

[ 2.709328] Mass Storage accelerater start.

[ 2.730469] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 2.731708] cpufreq: cpufreq_online: CPU0: Running at unlisted freq: 24000 KHz

[ 2.736633] cpufreq: cpufreq_online: CPU0: Unlisted initial frequency changed to: 864000 KHz

[ 2.744195] sps_register_bam_device: sps:BAM 0x0000000006064000 is registered

[ 2.752977] coresight coresight-stm: STM32 initialized

[ 2.759541] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 2.764789] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 2.771949] ubi0: attaching mtd0

[ 2.889780] hub 3-1:1.0: USB hub found

[ 2.890114] hub 3-1:1.0: 4 ports detected

[ 2.954825] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 2.990091] usb 4-1: new SuperSpeed Gen 1 USB device number 2 using xhci-hcd

[ 3.049747] hub 4-1:1.0: USB hub found

[ 3.050055] hub 4-1:1.0: 4 ports detected

[ 3.053729] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 3.369997] usb 4-1.2: new SuperSpeed Gen 1 USB device number 3 using xhci-hcd

[ 3.401372] usb-storage 4-1.2:1.0: USB Mass Storage device detected

[ 3.401580] scsi host0: usb-storage 4-1.2:1.0

[ 3.406774] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 3.509995] usb 4-1.3: new SuperSpeed Gen 1 USB device number 4 using xhci-hcd

[ 3.541343] usb-storage 4-1.3:1.0: USB Mass Storage device detected

[ 3.541520] scsi host1: usb-storage 4-1.3:1.0

[ 3.546708] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 3.797661] ubi0: scanning is finished

[ 3.803691] ubi0: attached mtd0 (name “rootfs”, size 249 MiB)

[ 3.803711] ubi0: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes

[ 3.808406] ubi0: min./max. I/O unit sizes: 2048/2048, sub-page size 2048

[ 3.815193] ubi0: VID header offset: 2048 (aligned 2048), data offset: 4096

[ 3.822039] ubi0: good PEBs: 1992, bad PEBs: 0, corrupted PEBs: 0

[ 3.828802] ubi0: user volume: 3, internal volumes: 1, max. volumes count: 128

[ 3.835061] ubi0: max/mean erase counter: 27/5, WL threshold: 4096, image sequence number: 1731653759

[ 3.842182] ubi0: available PEBs: 0, total reserved PEBs: 1992, PEBs reserved for bad PEB handling: 40

[ 3.851478] ubi0: background thread “ubi_bgt0d” started, PID 219

[ 3.861015] block ubiblock0_1: created from ubi0:1(rootfs)

[ 3.866826] hctosys: unable to open rtc device (rtc0)

[ 3.874700] VFS: Mounted root (squashfs filesystem) readonly on device 253:0.

[ 3.877401] Freeing unused kernel memory: 576K

[ 3.910014] Run /sbin/init as init process

[ 4.093767] init: Console is alive

[ 4.093959] init: – watchdog –

[ 5.472111] kmodloader: loading kernel modules from /etc/modules-boot.d/*

[ 5.491241] Button Hotplug driver version 0.4.1

[ 5.492003] raid6: using algorithm neonx8 gen() 0 MB/s

[ 5.494568] raid6: …. xor() 0 MB/s, rmw enabled

[ 5.499774] raid6: using neon recovery algorithm

[ 5.506381] xor: measuring software checksum speed

[ 5.599952] 8regs : 3452.400 MB/sec

[ 5.699953] 32regs : 4244.000 MB/sec

[ 5.799966] arm64_neon: 3663.200 MB/sec

[ 5.799981] xor: using function: 32regs (4244.000 MB/sec)

[ 5.849892] Btrfs loaded, crc32c=crc32c-generic

[ 5.854907] ipq6018-pinctrl 1000000.pinctrl: pin GPIO_70 already requested by 78b0000.serial; cannot claim for soc:gpio_keys

[ 5.854944] ipq6018-pinctrl 1000000.pinctrl: pin-70 (soc:gpio_keys) status -22

[ 5.865200] ipq6018-pinctrl 1000000.pinctrl: could not request pin 70 (GPIO_70) from group gpio70 on device 1000000.pinctrl

[ 5.872226] gpio-keys soc:gpio_keys: Error applying setting, reverse things back

[ 5.883601] gpio-keys: probe of soc:gpio_keys failed with error -22

[ 5.891875] ehci_hcd: USB 2.0 ‘Enhanced’ Host Controller (EHCI) Driver

[ 5.897329] ehci-fsl: Freescale EHCI Host controller driver

[ 5.904017] ehci-platform: EHCI generic platform driver

[ 5.914154] ohci_hcd: USB 1.1 ‘Open’ Host Controller (OHCI) Driver

[ 5.914567] ohci-platform: OHCI generic platform driver

[ 5.921214] uhci_hcd: USB Universal Host Controller Interface driver

[ 5.926684] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 5.930290] kmodloader: done loading kernel modules from /etc/modules-boot.d/*

[ 5.944172] init: – preinit –

touch: /etc/config/skb_recycler: Read-only file system

uci: Entry not found

uci: Entry not found

uci: Entry not found

uci: Entry not found

Press the [f] key and hit [enter] to enter failsafe mode

Press the [1], [2], [3] or [4] key and hit [enter] to select the debug level

[ 8.408104] mount_root: loading kmods from internal overlay

[ 8.423972] kmodloader: loading kernel modules from //etc/modules-boot.d/*

[ 8.425312] kmodloader: done loading kernel modules from //etc/modules-boot.d/*

[ 9.609679] block: attempting to load /tmp/overlay/upper/etc/config/fstab

[ 9.609748] block: unable to load configuration (fstab: Entry not found)

[ 9.615480] block: attempting to load /tmp/overlay/etc/config/fstab

[ 9.622243] block: unable to load configuration (fstab: Entry not found)

[ 9.628217] block: attempting to load /etc/config/fstab

[ 9.635189] block: unable to load configuration (fstab: Entry not found)

[ 9.640113] block: no usable configuration

[ 9.648769] UBIFS (ubi0:2): Mounting in unauthenticated mode

[ 9.651047] UBIFS (ubi0:2): background thread “ubifs_bgt0_2” started, PID 344

[ 9.680322] UBIFS (ubi0:2): recovery needed

[ 9.775590] UBIFS (ubi0:2): recovery completed

[ 9.775675] UBIFS (ubi0:2): UBIFS: mounted UBI device 0, volume 2, name “rootfs_data”

[ 9.778947] UBIFS (ubi0:2): LEB size: 126976 bytes (124 KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes

[ 9.786852] UBIFS (ubi0:2): FS size: 177385472 bytes (169 MiB, 1397 LEBs), journal size 8888320 bytes (8 MiB, 70 LEBs)

[ 9.796725] UBIFS (ubi0:2): reserved for root: 4952683 bytes (4836 KiB)

[ 9.807308] UBIFS (ubi0:2): media format: w5/r0 (latest is w5/r0), UUID D67151EE-04CF-4F20-8BF1-A0E1E7C2FEBA, small LPT model

[ 9.814820] block: attempting to load /tmp/ubifs_cfg/upper/etc/config/fstab

[ 9.830803] block: extroot: not configured

[ 9.832136] UBIFS (ubi0:2): un-mount UBI device 0

[ 9.836211] UBIFS (ubi0:2): background thread “ubifs_bgt0_2” stops

[ 9.843112] UBIFS (ubi0:2): Mounting in unauthenticated mode

[ 9.847134] UBIFS (ubi0:2): background thread “ubifs_bgt0_2” started, PID 345

[ 9.916718] UBIFS (ubi0:2): UBIFS: mounted UBI device 0, volume 2, name “rootfs_data”

[ 9.916744] UBIFS (ubi0:2): LEB size: 126976 bytes (124 KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes

[ 9.923532] UBIFS (ubi0:2): FS size: 177385472 bytes (169 MiB, 1397 LEBs), journal size 8888320 bytes (8 MiB, 70 LEBs)

[ 9.933426] UBIFS (ubi0:2): reserved for root: 4952683 bytes (4836 KiB)

[ 9.944009] UBIFS (ubi0:2): media format: w5/r0 (latest is w5/r0), UUID D67151EE-04CF-4F20-8BF1-A0E1E7C2FEBA, small LPT model

[ 9.954750] mount_root: loading kmods from internal overlay

[ 9.976343] kmodloader: loading kernel modules from /tmp/overlay/upper/etc/modules-boot.d/*

[ 9.977674] kmodloader: done loading kernel modules from /tmp/overlay/upper/etc/modules-boot.d/*

[ 11.116929] block: attempting to load /tmp/overlay/upper/etc/config/fstab

[ 11.120348] block: extroot: not configured

[ 11.123848] block: attempting to load /tmp/ubifs_cfg/upper/etc/config/fstab

[ 11.126787] block: extroot: not configured

[ 11.135690] mount_root: switching to ubifs overlay

[ 11.169495] procd: – early –

[ 11.169538] procd: – watchdog –

Failed to connect to ubus

[ 11.711881] procd: – watchdog –

[ 11.712121] procd: – ubus –

[ 11.773707] procd: – init –

Please press Enter to activate this console.

Loading cnss2:

[ 11.866867] cnss: INFO: IPC Logging is disabled!

[ 11.867447] cnss[2]: INFO: Platform driver probed successfully. plat 0x00000000df9e738d tgt 0xfffd

[ 11.870655] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 11.879689] remoteproc remoteproc1: QCN9000_PCI0 is available

[ 11.886768] cnss[27]: INFO: Platform driver probed successfully. plat 0x00000000f19b812a tgt 0x1104

[ 11.892504] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 11.901733] cnss[27]: INFO: PCI device 0000000039db96f7 probed successfully

[ 11.908773] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 11.915833] cnss: INFO: cnss_plat_ipc_qmi_svc_init: CNSS Platform IPC QMI Service is started

[ 12.160160] cnss: INFO: cnss_plat_ipc_qmi_reg_client_req_handler: QMI Client Connected. QMI Socket Node: 1 Port: 16392 ID: 1

[ 12.160198] cnss: INFO: CNSS Daemon connected

[ 12.185512] cnss: INFO: cnss_plat_ipc_qmi_init_setup_req_handler: MAC: 0 HW_TRC: 0 CAL: 2

[ 12.335466] urngd: v1.0.2 started.

WIFI FW mount is successful

[ 12.467761] kmodloader: loading kernel modules from /etc/modules.d/*

[ 12.509660] ntfs3: Max link count 4000

[ 12.509680] ntfs3: Enabled Linux POSIX ACLs support

[ 12.512936] ntfs3: Warning: Activated 64 bits per cluster. Windows does not support this

[ 12.517080] ntfs3: Read-only LZX/Xpress compression included

[ 12.529671] NET: Registered protocol family 15

[ 12.532377] Initializing XFRM netlink socket

[ 12.535851] mpls_gso: MPLS GSO support

[ 12.701064] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 12.701968] malibu_phy_api_ops_init[2867]:INFO:qca probe malibu phy driver succeeded!

[ 12.710034] qca808x_phy_api_ops_init[2755]:INFO:qca probe qca808x phy driver succeeded!

[ 12.716794] qca808x_ptp_register[1331]:INFO:qca808x phydev 90000.mdio:18 ptp clock registered

[ 12.723625] qca808x_ptp_hook_init[1440]:INFO:qca808x ptp driver hooked on 1 instance

[ 13.090950] __adpt_hppe_uniphy_psgmii_mode_set[1162]:INFO:uniphy 0 psgmii channel selection

[ 14.010066] regi_init[4015]:INFO:Initializing HPPE Done!!

[ 14.010174] regi_init[4075]:INFO:qca-ssdk module init succeeded!

[ 14.028663] tun: Universal TUN/TAP device driver, 1.6

[ 14.034489] EDMA ver 1 hw init

[ 14.034728] EDMA HW Reset completed succesfully

[ 14.036452] Num rings – TxDesc:1 (23-23) TxCmpl:1 (23-23)

[ 14.040868] RxDesc:1 (15-15) RxFill:1 (7-7)

[ 14.046802] dp1: ppe offload disabled: 0 for macid 1

[ 14.050873] dp1: Switch attached to macid 1 status: 0

[ 14.055656] (unnamed net_device) (uninitialized): netif_napi_add() called with weight 100

[ 14.060930] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 14.070052] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 14.076098] dp2: ppe offload disabled: 0 for macid 2

[ 14.083153] dp2: Switch attached to macid 2 status: 0

[ 14.088591] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 14.090681] dp3: ppe offload disabled: 0 for macid 3

[ 14.093844] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 14.100461] dp3: Switch attached to macid 3 status: 0

[ 14.112902] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 14.118453] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 14.125261] dp4: ppe offload disabled: 0 for macid 4

[ 14.132281] dp4: Switch attached to macid 4 status: 0

[ 14.137677] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 14.140874] dp5: ppe offload disabled: 0 for macid 5

[ 14.142662] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 14.149533] dp5: Switch attached to macid 5 status: 0

[ 14.241904] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 14.242287] **********************************************************

[ 14.248013] * NSS Data Plane driver

[ 14.254617] **********************************************************

[ 14.265826] l2tp_core: L2TP core driver, V2.0

[ 14.266577] l2tp_netlink: L2TP netlink interface

[ 14.375987] nss_driver – fw of size 861416 bytes copied to load addr: 40000000, nss_id : 0

[ 14.377459] Supported Frequencies –

[ 14.377461] 187.2 MHz

[ 14.383221] 748.8 MHz

[ 14.386945] 1.4976 GHz

[ 14.389115]

[ 14.393849] ffffffc008fc7f40: set sdma ffffff8079025200

[ 14.395611] node size 2 # items 4

[ 14.400499] memory: 40000000 2147483648 (avl 1948278784) items 4 active_cores 1

[ 14.403977] addr/size storage words 2 2 # words 4 in DTS, ddr size 1000000

[ 14.411092] ffffffc008fc7f40: NSS core 0 DDR from 40000000 to 41000000

[ 14.418120] ffffffc008fc7f40: meminfo init succeed

[ 14.428050] ffffffc008fc7f40: All resources initialized and nss core0 has been brought out of reset

[ 14.428154] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 14.438514] sit: IPv6, IPv4 and MPLS over IPv4 tunneling driver

[ 14.448037] nat46: module (version 1182f30785e4274913f01a8c3d7e1b5437ae3819) loaded.

[ 14.450679] node size 2 # items 4

[ 14.459437] memory: 40000000 2147483648 (avl 1948217344) items 4 active_cores 1

[ 14.462671] addr/size storage words 2 2 # words 4 in DTS, ddr size 1000000

[ 14.469778] ffffffc008fc7f40: nss core 0 booted successfully

[ 14.613146] gre: GRE over IPv4 demultiplexor driver

[ 14.614077] ip_gre: GRE over IPv4 tunneling driver

[ 14.618577] ip6_gre: GRE over IPv6 tunneling driver

[ 14.623858] Ethernet Channel Bonding Driver: v3.7.1 (April 27, 2011)

[ 14.636919] PPP generic driver version 2.4.2

[ 14.637588] NET: Registered protocol family 24

[ 14.640966] PPTP driver version 0.8.5

[ 14.663085] cryptodev: driver 1.10 loaded.

[ 14.804171] TRACK: P[0] PMask[4]

[ 14.804191] TRACK: P[1] PMask[4]

[ 14.806453] TRACK: P[2] PMask[4]

[ 14.809852] TRACK: P[3] PMask[4]

[ 14.812895] TRACK: P[4] PMask[4]

[ 14.816086] TRACK: P[5] PMask[4]

[ 14.819299] TRACK: P[6] PMask[4]

[ 14.824990] QCA multicast snooping installed successfully

[ 14.827326] <NSS-CRYPTO>:module loaded Build_ID – 08/06/24, 15:19:44 SoC=ipq60xx

[ 14.832760] nss-macsec0 DT exist!

[ 14.876059] cannot find nss-macsec1 node

[ 14.876144] cannot find nss-macsec2 node

[ 14.879085] cannot find nss-macsec3 node

[ 14.882950] nss_macsec init success

[ 14.903959] hidraw: raw HID events driver (C) Jiri Kosina

[ 14.904870] Mirror/redirect action on

[ 14.911979] u32 classifier

[ 14.911996] input device check on

[ 14.914572] Actions configured

[ 14.924379] fuse: init (API version 7.31)

[ 14.925673] usbcore: registered new interface driver cdc_wdm

[ 14.930850] usbcore: registered new interface driver qmi_wwan_q

[ 14.934070] usbcore: registered new interface driver qmi_wwan_f

[ 14.941108] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 14.951089] mhi_init Quectel_Linux_PCIE_MHI_Driver_V1.3.5

[ 14.955036] usbcore: registered new interface driver aqc111

[ 14.957277] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 14.965716] usbcore: registered new interface driver cdc_acm

[ 14.970169] cdc_acm: USB Abstract Control Model driver for USB modems and ISDN adapters

[ 14.977224] usbcore: registered new interface driver cdc_ether

[ 14.985420] usbcore: registered new interface driver cdc_ncm

[ 14.991970] usbcore: registered new interface driver huawei_cdc_ncm

[ 15.001852] l2tp_ppp: PPPoL2TP kernel driver, V2.0

[ 15.037029] nf_conntrack_rtsp v0.7 loading

[ 15.046444] nf_nat_rtsp v0.7 loading

[ 15.064854] PPP MPPE Compression module registered

[ 15.065808] usbcore: registered new interface driver qmi_wwan

[ 15.070472] usbcore: registered new interface driver r8152

[ 15.076051] usbcore: registered new interface driver rndis_host

[ 15.081620] usbcore: registered new interface driver sierra_net

[ 15.088847] usbcore: registered new interface driver ums-alauda

[ 15.091979] usbcore: registered new interface driver ums-cypress

[ 15.097918] usbcore: registered new interface driver ums-datafab

[ 15.104200] usbcore: registered new interface driver ums-freecom

[ 15.110183] usbcore: registered new interface driver ums-isd200

[ 15.116150] usbcore: registered new interface driver ums-jumpshot

[ 15.121814] usbcore: registered new interface driver ums-karma

[ 15.128110] usbcore: registered new interface driver ums-sddr09

[ 15.133870] usbcore: registered new interface driver ums-sddr55

[ 15.139627] usbcore: registered new interface driver ums-usbat

[ 15.146697] usbcore: registered new interface driver usbhid

[ 15.150837] usbhid: USB HID core driver

[ 15.157053] usbcore: registered new interface driver usblp

[ 15.163900] usbcore: registered new interface driver usbserial_generic

[ 15.165689] usbserial: USB Serial support registered for generic

[ 15.174466] wireguard: WireGuard 1.0.0 loaded. See www.wireguard.com for information.

[ 15.178342] wireguard: Copyright (C) 2015-2019 Jason A. Donenfeld <[email protected]>. All Rights Reserved.

[ 15.213698] xt_time: kernel timezone is -0000

[ 15.214786] usbcore: registered new interface driver cdc_mbim

[ 15.223840] usbcore: registered new interface driver snd-usb-audio

[ 15.227837] usbcore: registered new interface driver option

[ 15.229045] usbserial: USB Serial support registered for GSM modem (1-port)

[ 15.235338] usbcore: registered new interface driver qcserial

[ 15.241436] usbserial: USB Serial support registered for Qualcomm USB modem

[ 15.247526] kmodloader: done loading kernel modules from /etc/modules.d/*

acfg_tool: Issuing blocking call to wait for events

[ 17.971070] loading qca-wifi

qcawifi configuration is disable

BusyBox v1.33.2 (2024-07-24 19:37:51 UTC) built-in shell (ash)

MM NM MMMMMMM M M

$MMMMM MMMMM MMMMMMMMMMM MMM MMM

MMMMMMMM MM MMMMM. MMMMM:MMMMMM: MMMM MMMMM

MMMM= MMMMMM MMM MMMM MMMMM MMMM MMMMMM MMMM MMMMM’

MMMM= MMMMM MMMM MM MMMMM MMMM MMMM MMMMNMMMMM

MMMM= MMMM MMMMM MMMMM MMMM MMMM MMMMMMMM

MMMM= MMMM MMMMMM MMMMM MMMM MMMM MMMMMMMMM

MMMM= MMMM MMMMM, NMMMMMMMM MMMM MMMM MMMMMMMMMMM

MMMM= MMMM MMMMMM MMMMMMMM MMMM MMMM MMMM MMMMMM

MMMM= MMMM MM MMMM MMMM MMMM MMMM MMMM MMMM

MMMM$ ,MMMMM MMMMM MMMM MMM MMMM MMMMM MMMM MMMM

MMMMMMM: MMMMMMM M MMMMMMMMMMMM MMMMMMM MMMMMMM

MMMMMM MMMMN M MMMMMMMMM MMMM MMMM

MMMM M MMMMMMM M M

M

—————————————————————

For those about to rock… QWRT 21.02-SNAPSHOT, r47629-c9e5412062

—————————————————————

root@QWRT:/#

root@QWRT:/# MLD Single Netdev is ENABLED

root@QWRT:/# [ 18.605670] configuring additional NSS pbufs

[ 18.632689] additional pbufs of size 10002432 got added to NSS

root@QWRT:/#

root@QWRT:/#

root@QWRT:/# [ 19.612526] wlan: [1357:I:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: Could not find active PSOCs

[ 19.612559] wlan: [1357:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 0

[ 19.620456] wlan: [1357:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 1

[ 19.628817] wlan: [1357:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 2

[ 19.637243] wlan: [1357:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 3

[ 19.645692] wlan: [1357:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 4

[ 19.654093] wlan: [1357:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 0

[ 19.662495] wlan: [1357:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 1

[ 19.671012] wlan: [1357:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 2

[ 19.679331] wlan: [1357:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 3

[ 19.687755] wlan: [1357:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 4

[ 19.696204] wlan: [1357:I:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: Could not find active PSOCs

[ 19.704595] wlan: [1357:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 0

[ 19.713365] wlan: [1357:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 1

[ 19.721820] wlan: [1357:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 2

[ 19.730207] wlan: [1357:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 3

[ 19.738620] wlan: [1357:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 4

[ 19.747071] wlan: [1357:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 0

[ 19.755507] wlan: [1357:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 1

[ 19.763885] wlan: [1357:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 2

[ 19.772328] wlan: [1357:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 3

[ 19.780723] wlan: [1357:E:MLO_MGR] mlo_wsi_link_info_setup_mlo_grps: PSOC order 255, index 4

[ 19.795548] wlan: [1357:I:ANY] qdf_ini_parse: INI values read: 98

[ 19.797553] wlan: [1357:I:ANY] qdf_ini_parse: INI file parse successful

[ 19.806957] wlan: [1357:I:ANY] qdf_ini_parse: INI values read: 60

[ 19.809971] wlan: [1357:I:ANY] qdf_ini_parse: INI file parse successful

***cnssdaemon pid=623*******

root@QWRT:/# [ 19.908001] cnss: INFO: cnss_plat_ipc_qmi_send_config_param_req_handler: Param: 3 Instance ID: 0x27 Value: 1

[ 19.908040] cnss: INFO: cnss_config_param_update_cb: Instance ID: 0x27 Param 3 Value: 1

[ 19.917034] cnss[27]: INFO: Setting cold_boot_support=1 for instance_id 0x27

[ 20.003021] cnss: INFO: cnss_plat_ipc_qmi_send_config_param_req_handler: Param: 3 Instance ID: 0x2 Value: 1

[ 20.003058] cnss: INFO: cnss_config_param_update_cb: Instance ID: 0x2 Param 3 Value: 1

[ 20.011729] cnss[2]: INFO: Setting cold_boot_support=1 for instance_id 0x2

root@QWRT:/# [ 20.188642] cnss: INFO: cnss_plat_ipc_qmi_send_config_param_req_handler: Param: 6 Instance ID: 0x27 Value: 1

[ 20.188687] cnss: INFO: cnss_config_param_update_cb: Instance ID: 0x27 Param 6 Value: 1

[ 20.197660] cnss[27]: INFO: Setting qdss_support=1 for instance_id 0x27

[ 20.565922] ./IPQ6018/regdb.bin ./qcn9000/regdb.bin ./qcn9000/amss.bin

[ 20.738883] wlan: [1823:I:ANY] =======ol_if_register_wifi3_0==========

[ 20.738883]

[ 20.738924] wlan: [1823:I:ANY] osif_nss_register_module: NSS wifi ops registered for target_type:1 with soc_ops:000000006046310d

[ 20.745812] cnss[2]: ERR: cnss_register_subsys: Failed to get rproc handle 0 for device QCA6018

[ 20.757512] remoteproc remoteproc0: powering up cd00000.remoteproc

[ 20.781284] remoteproc remoteproc0: Booting fw image IPQ6018/q6_fw.mdt, size 7340

h[ 21.602590] Subsystem error monitoring/handling services are up

[ 21.602635] qcom-q6v5-wcss-pil cd00000.remoteproc: QDSP6SS Version : 0x100a0000

[ 21.607311] qcom-q6v5-wcss-pil cd00000.remoteproc: WCSS Version : 0x10000000

[ 21.620105] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 21.622290] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 21.654619] cnss[2]: INFO: QMI WLFW service connected, state: 0x10001

[ 21.660715] diag: In diag_send_feature_mask_update, control channel is not open, p: 2, 00000000087abf5a

[ 21.660747] diag: In diag_send_peripheral_buffering_mode, buffering flag not set for 2

[ 21.669324] cnss[2]: INFO: device_id : 0xfffd mem mode : [0]

[ 21.677227] cnss[2]: INFO: platform name: AnySafe E1

[ 21.677312] diag: In diag_send_peripheral_buffering_mode, buffering flag not set for 2

[ 21.683141] cnss[2]: ERR: WARNING: More memory is reserved. Reserved size 0x5500000, Requested size 0x532c000.

[ 21.698083] cnss[2]: INFO: cnss_cal_db_mem_update: File Operation 1 size 4112384 file name wlfw_cal_01.bin

[ 21.730007] remoteproc remoteproc0: remote processor cd00000.remoteproc is now up

[ 21.730056] cnss[2]: INFO: Waiting for FW ready. Device: 0xfffd, FW ready timeout: 15 seconds

t[ 22.125823] cnss[2]: INFO: Target capability: chip_id: 0x0, chip_family: 0x4, board_id: 0xff, soc_id: 0xffffffff, fw_version: 0x280d85d4, fw_build_timestamp: 2023-01-27 20:09, otp_version: 0x0 eeprom_caldata_read_timeout 0s bdf_dnld_method 1 regdb_mandatory 0 rxgainlut_support 0

[ 22.134954] cnss[2]: INFO: Downloading BDF: IPQ6018/regdb.bin, size: 24348

o[ 22.164664] cnss[2]: INFO: Downloading BDF: IPQ6018/bdwlan.b13, size: 65536

[ 22.195743] cnss[2]: INFO: Downloading BDF: IPQ6018/caldata.bin, size: 65536

p[ 22.329970] cnss[2]: INFO: FW ready received for device 0xfffd

[ 22.331143] cnss[2]: INFO: Sending mode message, mode: COLDBOOT CALIBRATION(7), state: 0x1000f

[ 22.394683] cnss[2]: INFO: Coldboot Calbration wait started for Device: 0xfffd, timeout: 60 seconds

[ 22.394721] remoteproc remoteproc1: powering up QCN9000_PCI0

/bin/ash: htop: not found

root@QWRT:/# [ 22.872451] remoteproc remoteproc1: Booting fw image qcn9000/amss.bin, size 4096880

[ 22.872545] cnss_pci 0000:01:00.0: BAR 0: assigned [mem 0x20400000-0x205fffff 64bit]

[ 22.878999] cnss_pci 0000:01:00.0: enabling device (0000 -> 0002)

[ 22.887886] cnss_pci 0000:01:00.0: DMA Memory initialized at 0x0000000053700000 size 0x900000

[ 22.893038] cnss[27]: INFO: SOC VERSION INFO: Family num: 0x4, Device num: 0xd, Major Ver: 0x1, Minor Ver: 0x0

[ 22.902100] cnss[27]: INFO: Setting 0x20 to QRTR_NODE_ID_REG

[ 22.911288] cnss[27]: INFO: Value from QRTR_NODE_ID_REG: 0x20

[ 22.917101] mhi mhi0: Requested to power ON

[ 22.922924] mhi mhi0: Power on setup success

[ 23.020004] mhi mhi0: Wait for device to enter SBL or Mission mode

[ 23.020262] mhi mhi0: boot-args not defined in DTS. ret:-22

[ 23.310409] cnss[27]: INFO: MHI status cb is called with reason MISSION MODE(5)

[ 23.310623] mhi_uci mhi0_LOOPBACK: channel:LOOPBACK successfully probed

[ 23.316698] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 23.323530] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 23.330935] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 23.333552] cnss[27]: INFO: QMI WLFW service connected, state: 0x10011

[ 23.346625] cnss[27]: INFO: FW INI CFG file qcn9000/fw_ini_cfg.bin is present

[ 23.351613] cnss[27]: INFO: device_id : 0x1104 mem mode : [0]

[ 23.358790] cnss[27]: INFO: platform name: AnySafe E1

[ 23.360032] cnss[27]: INFO: FW File 0 download

[ 23.374472] cnss[27]: INFO: cnss_cal_db_mem_update: File Operation 1 size 3784704 file name wlfw_cal_01_QCN9000_PCI0.bin

[ 23.429999] remoteproc remoteproc1: remote processor QCN9000_PCI0 is now up

[ 23.430645] cnss[27]: INFO: Waiting for FW ready. Device: 0x1104, FW ready timeout: 15 seconds

root@QWRT:/# [ 23.550426] cnss[27]: INFO: Target capability: chip_id: 0x0, chip_family: 0x0, board_id: 0xff, soc_id: 0xffffffff, fw_version: 0x280d85d4, fw_build_timestamp: 2023-01-27 19:11, otp_version: 0x0 eeprom_caldata_read_timeout 0s bdf_dnld_method 1 regdb_mandatory 0 rxgainlut_support 0

[ 23.552260] cnss[27]: INFO: Downloading BDF: qcn9000/regdb.bin, size: 24278

[ 23.586659] cnss[27]: INFO: Downloading BDF: qcn9000/bdwlan.ba3, size: 131072

[ 23.633783] cnss[27]: INFO: Downloading BDF: qcn9000/caldata_1.bin, size: 131072

[ 23.799969] cnss[27]: INFO: FW ready received for device 0x1104

[ 23.801272] cnss[27]: INFO: Sending mode message, mode: COLDBOOT CALIBRATION(7), state: 0x1010f

root@QWRT:/# [ 23.909454] cnss[27]: INFO: Coldboot Calbration wait started for Device: 0x1104, timeout: 60 seconds

root@QWRT:/#

root@QWRT:/#

root@QWRT:/# [ 24.976576] cnss[2]: INFO: Calibration took 2640 ms

[ 24.976610] cnss[2]: INFO: Coldboot Calibration completed successfully for device 0xfffd

[ 24.980271] cnss[2]: INFO: cnss_cal_db_mem_update: File Operation 0 size 4100000 file name wlfw_cal_01.bin

[ 24.988591] cnss: INFO: cnss_plat_ipc_qmi_file_upload: File name: wlfw_cal_01.bin Size: 4100000

[ 25.189980] cnss[2]: INFO: Coldboot Calibration wait ended for device 0xfffd

[ 25.190008] cnss[2]: INFO: Sending mode message, mode: OFF(4), state: 0x10007

[ 25.197968] cnss[2]: INFO: QMI WLFW service disconnected, state: 0x10026

[ 25.223721] remoteproc remoteproc0: stopped remote processor cd00000.remoteproc

[ 25.223753] cnss[2]: INFO: __cnss_subsystem_get: driver_state: 0x0

[ 25.229870] remoteproc remoteproc0: powering up cd00000.remoteproc

[ 25.236262] remoteproc remoteproc0: Booting fw image IPQ6018/q6_fw.mdt, size 7340

[ 25.242321] wlan: [35:I:ANY] ol_ath_wifi_ssr: SSR event 2 bus_type 1

[ 25.546003] Subsystem error monitoring/handling services are up

[ 25.546071] qcom-q6v5-wcss-pil cd00000.remoteproc: QDSP6SS Version : 0x100a0000

[ 25.550751] qcom-q6v5-wcss-pil cd00000.remoteproc: WCSS Version : 0x10000000

[ 25.563474] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 25.565713] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 25.598016] cnss[2]: INFO: QMI WLFW service connected, state: 0x1

[ 25.604131] diag: In diag_send_peripheral_buffering_mode, buffering flag not set for 2

[ 25.608182] cnss[2]: INFO: device_id : 0xfffd mem mode : [0]

[ 25.610994] cnss[2]: INFO: platform name: AnySafe E1

[ 25.620317] cnss[2]: ERR: WARNING: More memory is reserved. Reserved size 0x5500000, Requested size 0x532c000.

[ 25.630625] cnss[2]: INFO: Target capability: chip_id: 0x0, chip_family: 0x4, board_id: 0xff, soc_id: 0xffffffff, fw_version: 0x280d85d4, fw_build_timestamp: 2023-01-27 20:09, otp_version: 0x0 eeprom_caldata_read_timeout 0s bdf_dnld_method 1 regdb_mandatory 0 rxgainlut_support 0

[ 25.636590] cnss[2]: INFO: Downloading BDF: IPQ6018/regdb.bin, size: 24348

[ 25.669036] cnss[2]: INFO: Downloading BDF: IPQ6018/bdwlan.b13, size: 65536

[ 25.669988] wlan: [35:I:ANY] ol_ath_wifi_ssr: SSR event 3 bus_type 1

[ 25.674807] wlan: [35:I:ANY] ol_ath_wifi_ssr: Waiting for probe lock

[ 25.681411] wlan: [35:I:ANY] ol_ath_wifi_ssr: Starting Driver Probe

[ 25.687731] cnss[2]: INFO: Waiting for FW ready. Device: 0xfffd, FW ready timeout: 15 seconds

[ 25.700040] cnss[2]: INFO: Downloading BDF: IPQ6018/caldata.bin, size: 65536

[ 25.809975] cnss[2]: INFO: FW ready received for device 0xfffd

[ 25.810126] wlan: [35:I:ANY] pld_ahb_wlan_enable: cnss_mode: Mission mode

[ 25.815945] cnss[2]: INFO: Sending mode message, mode: MISSION(0), state: 0x7

[ 25.831480] wlan: [35:I:ANY] qca_napi_create: napi instance 0 created on pipe 4

[ 25.831745] wlan: [35:D:dfs] WLAN_DEBUG_DFS1 : dfs_psoc_obj_create_notification: DFS obj attach to psoc successfully

[ 25.838422] wlan: [35:I:ANY] qdf_ini_parse: INI values read: 0

[ 25.848388] wlan: [35:I:ANY] qdf_ini_parse: INI file parse fail: invalid file format

[ 25.854046] wlan: [35:E:CONFIG] cfg_ini_parse_to_store: Failed to parse *.ini file @ QCA6018.ini; status:4

[ 25.861976] wlan: [35:I:ANY] qdf_ini_parse: INI values read: 0

[ 25.871412] wlan: [35:I:ANY] qdf_ini_parse: INI file parse fail: invalid file format

[ 25.877202] wlan: [35:E:CONFIG] cfg_ini_parse_to_store: Failed to parse *.ini file @ internal/QCA6018_i.ini; status:4

[ 25.885479] wlan: [35:I:ANY] osif_nss_wifi_soc_setup: nss-wifili:#1 register wifili function for soc 25

[ 25.895629] wlan: [35:I:ANY] osif_nss_wifi_soc_setup: nss register id -1 nss config 7 Target Type 19

[ 25.909294] wlan: [35:E:ANY] dp_get_num_msi_available: Unable to get DP MSI assignment 2

[ 25.914216] wlan: [35:E:ANY] ol_target_init_complete: soc attach failed

[ 25.922433] wlan: [35:E:ANY] ol_ath_soc_attach: error status -1

[ 25.928676] wlan: [35:I:ANY] ol_ath_soc_attach: nss-wifi: detach -zero delay

[ 25.934581] wlan: [35:E:NSS] [nss-wifili]: stop ERROR – Null nss context

[ 25.941848] wlan: [35:E:NSS] [nss-wifili]: nss context is null

[ 25.948615] wlan: [35:E:NSS] [nss-wifili]: nss wifili astentries database is not found

[ 25.956075] wlan: [35:I:ANY] __ol_ath_attach:

[ 25.956075] __ol_ath_attach() soc 000000004371f97e Detaching Codeswap

[ 25.956075]

[ 25.962237] cnss[2]: INFO: Sending mode message, mode: OFF(4), state: 0x7

[ 25.976267] wlan: [35:I:ANY] ol_ath_ahb_probe: failure ret -5

[ 25.978352] cnss[2]: INFO: QMI WLFW service disconnected, state: 0x6

[ 25.981354] wlan: [35:E:ANY] ol_ath_ahb_probe: Assertion failed! 0:ol_ath_ahb_probe /home/hcy/qsdk12.2/build_dir/target-aarch64_cortex-a53_musl/linux-ipq60xx_generic/qca-wifi-12.2-unified-profile/qca-wifi-12.2/os/linux/../../qca_ol/../offload/os/linux/ath_ahb.c:1487

[ 25.981359] CPU: 3 PID: 35 Comm: kworker/3:1 Not tainted 5.4.220 #0

[ 25.981360] Hardware name: AnySafe E1 (DT)

[ 25.981380] Workqueue: events cnss_subsystem_put [ipq_cnss2]

[ 25.981383] Call trace:

[ 25.981391] dump_backtrace+0x0/0x198

[ 25.981394] show_stack+0x14/0x20

[ 25.981399] dump_stack+0xb4/0xf8

[ 25.981813] ol_ath_ahb_probe+0x300/0x468 [qca_ol]

[ 25.982188] ol_ath_wifi_ssr+0x9fc/0xdb0 [qca_ol]

[ 26.050654] ol_ath_pld_probe+0x24/0x48 [qca_ol]

[ 26.055408] pld_pcie_device_self_recovery+0x24c/0x298 [qca_ol]

[ 26.059730] cnss_self_recovery+0x1ac/0x238 [ipq_cnss2]

[ 26.065368] notifier_call_chain+0x50/0x90

[ 26.070571] blocking_notifier_call_chain+0x48/0x70

[ 26.074743] rproc_subsys_notify+0x88/0xa0

[ 26.079512] rproc_start+0x1f8/0x270

[ 26.083678] rproc_boot+0x404/0x4e8

[ 26.087416] __cnss_subsystem_get+0x108/0x290 [ipq_cnss2]

[ 26.090627] cnss_subsystem_put+0x180/0x248 [ipq_cnss2]

[ 26.096182] process_one_work+0x1e8/0x348

[ 26.101210] worker_thread+0x40/0x460

[ 26.105377] kthread+0x154/0x158

[ 26.109022] ret_from_fork+0x10/0x1c

[ 26.112394] WLAN Panic @ ol_ath_ahb_probe:1487: Take care of the TARGET ASSERT first

[ 26.112394]

[ 26.115931] ————[ cut here ]————

[ 26.125002] kernel BUG at /home/hcy/qsdk12.2/build_dir/target-aarch64_cortex-a53_musl/linux-ipq60xx_generic/qca-wifi-12.2-unified-profile/qca-wifi-12.2/os/linux/../../qca_ol/../cmn_dev/qdf/linux/src/i_qdf_trace.h:402!

[ 26.129712] Internal error: Oops – BUG: 0 [#1] PREEMPT SMP

[ 26.148872] Modules linked in: wifi_3_0(+) smart_antenna qca_ol qca_spectral umac qdf mem_manager qcserial option usb_wwan snd_usb_audio ipt_REJECT cdc_mbim xt_time xt_tcpudp xt_tcpmss xt_string xt_statistic xt_state xt_socket xt_recent xt_quota xt_policy xt_pkttype xt_physdev xt_owner xt_nat xt_multiport xt_mark xt_mac xt_limit xt_length xt_iprange xt_hl xt_helper xt_esp xt_ecn xt_dscp xt_conntrack xt_connmark xt_connlimit xt_connbytes xt_comment xt_bpf xt_addrtype xt_TPROXY xt_TCPMSS xt_REDIRECT xt_NFQUEUE xt_MASQUERADE xt_LOG xt_HL xt_DSCP xt_CT xt_CLASSIFY wireguard usbserial usblp usbhid ums_usbat ums_sddr55 ums_sddr09 ums_karma ums_jumpshot ums_isd200 ums_freecom ums_datafab ums_cypress ums_alauda ts_fsm ts_bm snd_usbmidi_lib sierra_net sch_cake rndis_host r8152 qmi_wwan ppp_mppe ppp_async nft_reject_ipv6 nft_reject_ipv4 nft_reject_inet nft_reject nft_redir nft_quota nft_queue nft_numgen nft_log nft_limit nft_ct nft_counter nfnetlink_queue nf_tproxy_ipv6 nf_tproxy_ipv4 nf_tables

[ 26.148968] nf_socket_ipv6 nf_socket_ipv4 nf_reject_ipv4 nf_nat_tftp nf_nat_snmp_basic nf_nat_sip nf_nat_rtsp nf_nat_pptp nf_nat_irc nf_nat_h323 nf_nat_ftp nf_nat_amanda nf_log_ipv4 nf_flow_table_hw nf_flow_table nf_conntrack_tftp nf_conntrack_snmp nf_conntrack_sip nf_conntrack_rtsp nf_conntrack_rtcache nf_conntrack_pptp nf_conntrack_netlink nf_conntrack_irc nf_conntrack_h323 nf_conntrack_ftp nf_conntrack_broadcast ts_kmp nf_conntrack_amanda nf_conncount macvlan libchacha20poly1305 l2tp_ppp iptable_raw iptable_nat iptable_mangle iptable_filter ipt_ah ipt_ECN ip_tables huawei_cdc_ncm hid_generic exfat cdc_ncm cdc_ether cdc_acm asn1_decoder arptable_filter arpt_mangle arp_tables aqc111 pcie_mhi qmi_wwan_f qmi_wwan_q usbnet cdc_wdm fuse tcp_bbr act_connmark sch_tbf sch_ingress sch_htb sch_hfsc em_u32 cls_u32 cls_tcindex cls_route cls_matchall cls_fw cls_flow cls_basic act_skbedit act_mirred hid qca_nss_tunipip6 qca_nss_tun6rd qca_nss_ipsecmgr evdev pwm_fan gpio_fan hwmon

[ 26.219157] qca_nss_cfi_cryptoapi qca_nss_qdisc qca_nss_macsec qca_nss_crypto qca_mcs diagchar crc_ccitt qca_nss_vxlanmgr qca_nss_pptp qca_nss_pppoe pppoe qca_nss_map_t qca_nss_lag_mgr qca_nss_l2tpv2 qca_nss_gre qca_nss_bridge_mgr qca_nss_vlan xt_sctp emesh_sp cryptodev xt_set ip_set_list_set ip_set_hash_netportnet ip_set_hash_netport ip_set_hash_netnet ip_set_hash_netiface ip_set_hash_net ip_set_hash_mac ip_set_hash_ipportnet ip_set_hash_ipportip ip_set_hash_ipport ip_set_hash_ipmark ip_set_hash_ip ip_set_bitmap_port ip_set_bitmap_ipmac ip_set_bitmap_ip ip_set nfnetlink ip6table_nat nf_nat nf_conntrack pptp pppox ppp_generic slhc nf_defrag_ipv4 ip6t_NPT nf_log_ipv6 nf_log_common ip6table_mangle ip6table_filter ip6_tables ip6t_REJECT x_tables nf_reject_ipv6 msdos bonding ip6_gre ip_gre gre ifb dummy rmnet_ctl nat46 nf_defrag_ipv6 sit qca_nss_drv l2tp_netlink l2tp_core ipcomp6 xfrm6_tunnel esp6 ah6 xfrm4_tunnel ipcomp esp4 ah4 ip6_tunnel qca_nss_dp netlink_diag tunnel6 tunnel4 udp_diag

[ 26.304925] tcp_diag raw_diag inet_diag veth tun snd_rawmidi snd_seq_device snd_pcm_oss snd_pcm snd_timer snd_mixer_oss snd_hwdep snd_compress snd soundcore qca_ssdk mpls_iptunnel mpls_router ip_tunnel mpls_gso xfrm_user xfrm_ipcomp af_key xfrm_algo vfat fat ntfs3 autofs4 dm_mirror dm_region_hash dm_log dm_crypt cfg80211 nls_utf8 nls_iso8859_1 nls_cp437 vxlan udp_tunnel ip6_udp_tunnel nsh md5 authenc ipq_cnss2 leds_gpio uhci_hcd ohci_platform ohci_hcd ahci libahci libata fsl_mph_dr_of ehci_platform ehci_fsl ehci_hcd gpio_button_hotplug f2fs btrfs xor zstd_decompress zstd_compress xxhash xor_neon raid6_pq libcrc32c button_hotplug input_core mii crc32_generic

[ 26.450422] CPU: 3 PID: 35 Comm: kworker/3:1 Not tainted 5.4.220 #0

[ 26.472655] Hardware name: AnySafe E1 (DT)

[ 26.478831] Workqueue: events cnss_subsystem_put [ipq_cnss2]

[ 26.482983] pstate: 60400005 (nZCv daif +PAN -UAO)

[ 26.489220] pc : ol_ath_ahb_probe+0x314/0x468 [qca_ol]

[ 26.493792] lr : ol_ath_ahb_probe+0x314/0x468 [qca_ol]

[ 26.498521] sp : ffffff807d33ba30

[ 26.503639] x29: ffffff807d33ba30 x28: ffffffc00a0d4000

[ 26.507027] x27: ffffff800a3320b8 x26: 00000000fffffffb

[ 26.512409] x25: 0000000000000001 x24: ffffffc00a0d573c

[ 26.517706] x23: ffffffc00a147518 x22: ffffff807d289c10

[ 26.523003] x21: ffffff8077afbc00 x20: ffffffc00a147350

[ 26.528301] x19: ffffffc00a147518 x18: ffffffc00a30f118

[ 26.533590] x17: ffffffc00a30f1d0 x16: ffffffc00a30ef98

[ 26.538885] x15: ffffffc00a30efa8 x14: 7473726966205452

[ 26.544179] x13: 4553534120544547 x12: 5241542065687420

[ 26.549475] x11: 666f206572616320 x10: 656b6154203a3738

[ 26.554772] x9 : 34313a65626f7270 x8 : 5f6268615f687461

[ 26.560066] x7 : ffffffc010b98768 x6 : 0000000000000312

[ 26.565361] x5 : 0000000000000000 x4 : 0000000000000000

[ 26.570659] x3 : 00000000ffffffff x2 : ffffffc010baeeb8

[ 26.575951] x1 : ffffff800a33d5c0 x0 : 0000000000000049

[ 26.581246] Call trace:

[ 26.586947] ol_ath_ahb_probe+0x314/0x468 [qca_ol]

[ 26.589100] ol_ath_wifi_ssr+0x9fc/0xdb0 [qca_ol]

[ 26.593957] ol_ath_pld_probe+0x24/0x48 [qca_ol]

[ 26.598711] pld_pcie_device_self_recovery+0x24c/0x298 [qca_ol]

[ 26.603045] cnss_self_recovery+0x1ac/0x238 [ipq_cnss2]

[ 26.608687] notifier_call_chain+0x50/0x90

[ 26.613884] blocking_notifier_call_chain+0x48/0x70

[ 26.618057] rproc_subsys_notify+0x88/0xa0

[ 26.622824] rproc_start+0x1f8/0x270

[ 26.626990] rproc_boot+0x404/0x4e8

[ 26.630735] __cnss_subsystem_get+0x108/0x290 [ipq_cnss2]

[ 26.633942] cnss_subsystem_put+0x180/0x248 [ipq_cnss2]

[ 26.639495] process_one_work+0x1e8/0x348

[ 26.644526] worker_thread+0x40/0x460

[ 26.648696] kthread+0x154/0x158

[ 26.652339] ret_from_fork+0x10/0x1c

[ 26.655643] Code: 5280b9e2 aa1303e1 f943f000 959e5084 (d4210000)

[ 26.659205] —[ end trace c6340c60355c1edd ]—

[ 26.665195] Kernel panic – not syncing: Fatal exception

[ 26.669880] SMP: stopping secondary CPUs

[ 26.674830] cnss[27]: ERR: Crash shutdown device QCN9000_PCI0 with driver_state 0x1010f

[ 26.889145] mhi mhi0: CRASHED – [DID:DOMAIN:BUS:SLOT] – 1104:0000:01:00

[ 26.889237] mhi mhi0: Fatal error received from wcss software!

[ 26.889237]

[ 26.889237] QC Image Version: QC_IMAGE_VERSION_STRING=WLAN.HK.2.8-01492-QCAHKSWPL_SILICONZ-1

[ 26.889237] Image Variant : IMAGE_VARIANT_STRING=9000.wlanfw.eval_v1Q

[ 26.889237] Oem Image Version: OEM_IMAGE_VERSION_STRING=ip-10-195-204-55

[ 26.889237] Oem Image UUID: OEM_IMAGE_UUID_STRING=Q_SENTINEL_{D0F5F167-C383-484B-9B1A-A35B48AA0387}_20230127_1914

[ 26.889237]

[ 26.889237] mhi_sm_patched.c:209 (): param0 :zero, param1 :zero, param2 :zero.

[ 26.889237] Thread ID : 0x00000024 Thread name : MHI CORE Process ID : 0

[ 26.889237] Register:

[ 26.889237] SP : 0x0143a450

[ 26.889237] FP : 0x0143a458

[ 26.889237] PC : 0x0082ecd8

[ 26.889237] SSR : 0x00000008

[ 26.889237] BADVA : 0x00000000

[ 26.889237] LR : 0x0082ee40

[ 26.889237]

[ 26.889237] Stack Dump

[ 26.889237] from : 0x0143a450

[ 26.889237] to : 0x0143a540

[ 26.889237]

[ 26.958428] cnss[27]: INFO: Dump Collection Completed, total entries is 23

[ 26.980673] smem desc phys addr(0x4aa3b198)

[ 26.987602] smem_panic_handler tx tail:13464 tx head:13464 rx tail:8216 rx head:8216

[ 31.991893] The reading for sensor 4 is 0x00204205

[ 31.991912] The reading for sensor 5 is 0x0020520f

[ 31.995562] The reading for sensor 7 is 0x002071fe

[ 32.000337] The reading for sensor 8 is 0x002081f4

[ 32.005155] Couldn’t get reading for sensor 13

[ 32.009884] The reading for sensor 14 is 0x0020e1fb

[ 32.014357] Couldn’t get reading for sensor 15

[ 32.019083] Kernel Offset: disabled

[ 32.023596] CPU features: 0x00002,20002000

[ 32.026981] Memory Limit: none

[ 32.632158] Rebooting in 5 seconds..

Format: Log Type – Time(microsec) – Message – Optional Info

Log Type: B – Since Boot(Power On Reset), D – Delta, S – Statistic

S – QC_IMAGE_VERSION_STRING=BOOT.XF.0.3-00102-IPQ60xxLZB-1

S – IMAGE_VARIANT_STRING=IPQ6018LA

S – OEM_IMAGE_VERSION_STRING=crm-ubuntu64

S – Boot Interface: SPI

S – Secure Boot: Off

S – Boot Config @ 0x000a602c = 0x000002e1

S – JTAG ID @ 0x000a607c = 0x0013a0e1

S – OEM ID @ 0x000a6080 = 0x00000000

S – Serial Number @ 0x000a4128 = 0x08fa6d2b

S – OEM Config Row 0 @ 0x000a4188 = 0x0000000000000000

S – OEM Config Row 1 @ 0x000a4190 = 0x0000000000000000

S – Feature Config Row 0 @ 0x000a4130 = 0x0000000008000001

S – Feature Config Row 1 @ 0x000a4138 = 0x02c3e83383000009

S – PBL Patch Ver: 1

S – I-cache: On

S – D-cache: On

B – 3413 – PBL, Start

B – 592 – bootable_media_detect_entry, Start

B – 4339 – bootable_media_detect_success, Start

B – 4435 – elf_loader_entry, Start

B – 4607 – auth_hash_seg_entry, Start

B – 10853 – auth_hash_seg_exit, Start

B – 11349 – elf_segs_hash_verify_entry, Start

B – 358090 – elf_segs_hash_verify_exit, Start

B – 362283 – auth_xbl_sec_hash_seg_entry, Start

B – 362428 – auth_xbl_sec_hash_seg_exit, Start

B – 368979 – xbl_sec_segs_hash_verify_entry, Start

B – 368980 – xbl_sec_segs_hash_verify_exit, Start

B – 369909 – PBL, End

B – 296063 – SBL1, Start

B – 439383 – GCC [RstStat:0x10, RstDbg:0x700100] WDog Stat : 0x4

B – 441823 – clock_init, Start

D – 3721 – clock_init, Delta

B – 451613 – boot_flash_init, Start

D – 8357 – boot_flash_init, Delta

B – 462166 – sbl1_ddr_set_default_params, Start

D – 335 – sbl1_ddr_set_default_params, Delta

B – 468785 – boot_config_data_table_init, Start

D – 1921 – boot_config_data_table_init, Delta – (575 Bytes)

B – 477904 – CDT Version:2,Platform ID:8,Major ID:3,Minor ID:0,Subtype:2

B – 483455 – Image Load, Start

D – 6588 – OEM_MISC Image Loaded, Delta – (0 Bytes)

B – 492788 – Image Load, Start

D – 5063 – PMIC Image Loaded, Delta – (0 Bytes)

B – 500657 – sbl1_ddr_set_params, Start

B – 505720 – CPR configuration: 0x555

B – 508831 – Pre_DDR_clock_init, Start

D – 213 – Pre_DDR_clock_init, Delta

D – 0 – sbl1_ddr_set_params, Delta

B – 547719 – Image Load, Start

D – 427 – APDP Image Loaded, Delta – (0 Bytes)

B – 565439 – Image Load, Start

D – 427 – QTI_MISC Image Loaded, Delta – (0 Bytes)

B – 567849 – Image Load, Start

D – 824 – Auth Metadata

D – 701 – Segments hash check

D – 29554 – QSEE Dev Config Image Loaded, Delta – (37162 Bytes)

B – 599355 – Image Load, Start

D – 6557 – Auth Metadata

D – 10339 – Segments hash check

D – 791780 – QSEE Image Loaded, Delta – (1426556 Bytes)

B – 1391593 – Image Load, Start

D – 641 – Auth Metadata

D – 976 – Segments hash check

D – 63074 – RPM Image Loaded, Delta – (102948 Bytes)

B – 1456375 – Image Load, Start

D – 701 – Auth Metadata

D – 3203 – Segments hash check

D – 308629 – APPSBL Image Loaded, Delta – (570116 Bytes)

B – 1781078 – SBL1, End

D – 1485320 – SBL1, Delta

S – Flash Throughput, 1000 KB/s (2138029 Bytes, 1097169 us)

S – Core 0 Frequency, 800 MHz

S – DDR Frequency, 466 MHz

U-Boot 2016.01 (Jun 02 2024 – 16:18:30 +0000)

DRAM: smem ram ptable found: ver: 2 len: 4

2 GiB

NAND: ONFI device found

ID = 1590aa2c

Vendor = 2c

Device = aa

qpic_nand: changing oobsize to 80 from 128 bytes

SPI_ADDR_LEN=3

SF: Detected W25Q128FW with page size 256 Bytes, erase size 4 KiB, total 16 MiB

ipq_spi: page_size: 0x100, sector_size: 0x1000, size: 0x1000000

272 MiB

MMC: sdhci: Node Not found, skipping initialization

* Warning – bad CRC, using default environment

PCI Link Intialized

In: serial@78B1000

Out: serial@78B1000

Err: serial@78B1000

machid: 8030002

eth5 MAC Address from ART is not valid

Net: MAC0 addr:e0:38:2d:e0:2:23

PHY ID1: 0x4d

PHY ID2: 0xd0b1

PHY ID1: 0x4d

PHY ID2: 0xd101

EDMA ver 1 hw init

Num rings – TxDesc:1 (0-0) TxCmpl:1 (0-0)

RxDesc:1 (15-15) RxFill:1 (7-7)

ipq6018_edma_alloc_rings: successfull

ipq6018_edma_setup_ring_resources: successfull

ipq6018_edma_configure_rings: successfull

ipq6018_edma_hw_init: successfull

eth0

Reset button is pressed for: 1

Hit any key to stop autoboot: 0

ubi0: attaching mtd2

ubi0: scanning is finished

ubi0: attached mtd2 (name “mtd=0”, size 249 MiB)

ubi0: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes

ubi0: min./max. I/O unit sizes: 2048/2048, sub-page size 2048

ubi0: VID header offset: 2048 (aligned 2048), data offset: 4096

ubi0: good PEBs: 1992, bad PEBs: 0, corrupted PEBs: 0

ubi0: user volume: 3, internal volumes: 1, max. volumes count: 128

ubi0: max/mean erase counter: 27/5, WL threshold: 4096, image sequence number: 1731653759

ubi0: available PEBs: 0, total reserved PEBs: 1992, PEBs reserved for bad PEB handling: 40

Read 0 bytes from volume kernel to 44000000

No size specified -> Using max size (5586944)

## Loading kernel from FIT Image at 44000000 …

Using ‘config@cp01-c3’ configuration

Trying ‘kernel@1’ kernel subimage

Description: ARM64 OpenWrt Linux-5.4.220

Type: Kernel Image

Compression: gzip compressed

Data Start: 0x440000e8

Data Size: 5469100 Bytes = 5.2 MiB

Architecture: AArch64

OS: Linux

Load Address: 0x41080000

Entry Point: 0x41080000

Hash algo: crc32

Hash value: ce7d6ce8

Hash algo: sha1

Hash value: 0c02be442fa4aba439fe6ef9b0924f4cd7c026e9

Verifying Hash Integrity … crc32+ sha1+ OK

## Loading fdt from FIT Image at 44000000 …

Using ‘config@cp01-c3’ configuration

Trying ‘fdt@1’ fdt subimage

Description: ARM64 OpenWrt anysafe_e1 device tree blob

Type: Flat Device Tree

Compression: uncompressed

Data Start: 0x445375d0

Data Size: 59298 Bytes = 57.9 KiB

Architecture: AArch64

Hash algo: crc32

Hash value: 31d1ffc8

Hash algo: sha1

Hash value: 52871bbfe5edb3e66d0e1a9727d24d08f3e9183d

Verifying Hash Integrity … crc32+ sha1+ OK

Booting using the fdt blob at 0x445375d0

Uncompressing Kernel Image … OK

Loading Device Tree to 484ee000, end 484ff7a1 … OK

Using machid 0x8030002 from environment

Starting kernel …

Jumping to AARCH64 kernel via monitor

[ 0.000000] Booting Linux on physical CPU 0x0000000000 [0x51af8014]

[ 0.000000] Linux version 5.4.220 (hcy@hcy) (gcc version 7.5.0 (OpenWrt GCC 7.5.0 r47617-6ffe730407)) #0 SMP PREEMPT Tue Aug 6 10:47:02 2024

[ 0.000000] Machine model: AnySafe E1

[ 0.000000] Reserved memory: created DMA memory pool at 0x0000000053700000, size 9 MiB

[ 0.000000] OF: reserved mem: initialized node dma_pool0@53700000, compatible id shared-dma-pool

[ 0.000000] psci: probing for conduit method from DT.

[ 0.000000] psci: PSCIv1.0 detected in firmware.

[ 0.000000] psci: Using standard PSCI v0.2 function IDs

[ 0.000000] psci: MIGRATE_INFO_TYPE not supported.

[ 0.000000] psci: SMC Calling Convention v1.0

[ 0.000000] percpu: Embedded 24 pages/cpu s59416 r8192 d30696 u98304

[ 0.000000] Detected VIPT I-cache on CPU0

[ 0.000000] CPU features: kernel page table isolation disabled by kernel configuration

[ 0.000000] ARM_SMCCC_ARCH_WORKAROUND_1 missing from firmware

[ 0.000000] Built 1 zonelists, mobility grouping on. Total pages: 471744

[ 0.000000] Kernel command line: console=ttyMSM0,115200n8 ubi.mtd=rootfs root=mtd:ubi_rootfs rootfstype=squashfs rootwait root=/dev/ubiblock0_1 swiotlb=1 coherent_pool=2M

[ 0.000000] Dentry cache hash table entries: 262144 (order: 9, 2097152 bytes, linear)

[ 0.000000] Inode-cache hash table entries: 131072 (order: 8, 1048576 bytes, linear)

[ 0.000000] mem auto-init: stack:off, heap alloc:off, heap free:off

[ 0.000000] Memory: 1868004K/1916928K available (8190K kernel code, 548K rwdata, 2492K rodata, 576K init, 416K bss, 48924K reserved, 0K cma-reserved)

[ 0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=4, Nodes=1

[ 0.000000] rcu: Preemptible hierarchical RCU implementation.

[ 0.000000] Tasks RCU enabled.

[ 0.000000] rcu: RCU calculated value of scheduler-enlistment delay is 10 jiffies.

[ 0.000000] NR_IRQS: 64, nr_irqs: 64, preallocated irqs: 0

[ 0.000000] GICv2m: range[mem 0x0b00a000-0x0b00affc], SPI[448:479]

[ 0.000000] arch_timer: cp15 and mmio timer(s) running at 24.00MHz (virt/virt).

[ 0.000000] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x588fe9dc0, max_idle_ns: 440795202592 ns

[ 0.000005] sched_clock: 56 bits at 24MHz, resolution 41ns, wraps every 4398046511097ns

[ 0.000291] Calibrating delay loop (skipped), value calculated using timer frequency.. 48.00 BogoMIPS (lpj=240000)

[ 0.000303] pid_max: default: 32768 minimum: 301

[ 0.000438] Mount-cache hash table entries: 4096 (order: 3, 32768 bytes, linear)

[ 0.000453] Mountpoint-cache hash table entries: 4096 (order: 3, 32768 bytes, linear)

[ 0.001750] ASID allocator initialised with 65536 entries

[ 0.001833] rcu: Hierarchical SRCU implementation.

[ 0.002545] MSM Memory Dump base table set up

[ 0.002564] MSM Memory Dump apps data table set up

[ 0.002752] smp: Bringing up secondary CPUs …

[ 0.003334] Detected VIPT I-cache on CPU1

[ 0.003384] CPU1: Booted secondary processor 0x0000000001 [0x51af8014]

[ 0.003981] Detected VIPT I-cache on CPU2

[ 0.004013] CPU2: Booted secondary processor 0x0000000002 [0x51af8014]

[ 0.004558] Detected VIPT I-cache on CPU3

[ 0.004588] CPU3: Booted secondary processor 0x0000000003 [0x51af8014]

[ 0.004657] smp: Brought up 1 node, 4 CPUs

[ 0.004678] SMP: Total of 4 processors activated.

[ 0.004686] CPU features: detected: 32-bit EL0 Support

[ 0.004693] CPU features: detected: CRC32 instructions

[ 0.004734] CPU features: emulated: Privileged Access Never (PAN) using TTBR0_EL1 switching

[ 0.004741] CPU: All CPU(s) started at EL1

[ 0.004991] alternatives: patching kernel code

[ 0.016252] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns

[ 0.016273] futex hash table entries: 1024 (order: 4, 65536 bytes, linear)

[ 0.016404] pinctrl core: initialized pinctrl subsystem

[ 0.017374] NET: Registered protocol family 16

[ 0.018004] DMA: preallocated 2048 KiB pool for atomic allocations

[ 0.018402] cpuidle: using governor ladder

[ 0.018425] cpuidle: using governor menu

[ 0.018567] NET: Registered protocol family 42

[ 0.018760] hw-breakpoint: found 6 breakpoint and 4 watchpoint registers.

[ 0.074808] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 0.076699] msm_sps_probe: sps:sps is ready

[ 0.090024] cryptd: max_cpu_qlen set to 1000

[ 0.177891] SCSI subsystem initialized

[ 0.178057] usbcore: registered new interface driver usbfs

[ 0.178099] usbcore: registered new interface driver hub

[ 0.178133] usbcore: registered new device driver usb

[ 0.178169] pps_core: LinuxPPS API ver. 1 registered

[ 0.178175] pps_core: Software ver. 5.3.6 – Copyright 2005-2007 Rodolfo Giometti <[email protected]>

[ 0.178191] PTP clock support registered

[ 0.178963] qcom_glink_rpm rpm-glink: RPM TOC has invalid magic

[ 0.178986] qcom_glink_rpm: probe of rpm-glink failed with error -22

[ 0.179213] workqueue: max_active 576 requested for napi_workq is out of range, clamping between 1 and 512

[ 0.180057] clocksource: Switched to clocksource arch_sys_counter

[ 0.180677] thermal_sys: Registered thermal governor ‘step_wise’

[ 0.180680] thermal_sys: Registered thermal governor ‘user_space’

[ 0.181915] NET: Registered protocol family 2

[ 0.182078] IP idents hash table entries: 32768 (order: 6, 262144 bytes, linear)

[ 0.183330] tcp_listen_portaddr_hash hash table entries: 1024 (order: 2, 16384 bytes, linear)

[ 0.183377] TCP established hash table entries: 16384 (order: 5, 131072 bytes, linear)

[ 0.183535] TCP bind hash table entries: 16384 (order: 6, 262144 bytes, linear)

[ 0.183817] TCP: Hash tables configured (established 16384 bind 16384)

[ 0.183907] UDP hash table entries: 1024 (order: 3, 32768 bytes, linear)

[ 0.183968] UDP-Lite hash table entries: 1024 (order: 3, 32768 bytes, linear)

[ 0.184167] NET: Registered protocol family 1

[ 0.184197] PCI: CLS 0 bytes, default 64

[ 0.210818] workingset: timestamp_bits=46 max_order=19 bucket_order=0

[ 0.215617] squashfs: version 4.0 (2009/01/31) Phillip Lougher

[ 0.215626] jffs2: version 2.2 (NAND) (SUMMARY) (LZMA) (RTIME) (CMODE_PRIORITY) (c) 2001-2006 Red Hat, Inc.

[ 0.239398] qcom-qmp-phy 84000.phy: Registered Qcom-QMP phy

[ 0.239632] qcom-qmp-phy 78000.ssphy: 78000.ssphy supply vdda-phy not found, using dummy regulator

[ 0.239690] qcom-qmp-phy 78000.ssphy: 78000.ssphy supply vdda-pll not found, using dummy regulator

[ 0.240483] qcom-qmp-phy 78000.ssphy: Registered Qcom-QMP phy

[ 0.241006] qcom-qusb2-phy 59000.qusb: 59000.qusb supply vdda-pll not found, using dummy regulator

[ 0.241058] qcom-qusb2-phy 59000.qusb: 59000.qusb supply vdda-phy-dpdm not found, using dummy regulator

[ 0.241199] qcom-qusb2-phy 59000.qusb: Registered Qcom-QUSB2 phy

[ 0.241297] qcom-qusb2-phy 79000.qusb: 79000.qusb supply vdda-pll not found, using dummy regulator

[ 0.241343] qcom-qusb2-phy 79000.qusb: 79000.qusb supply vdda-phy-dpdm not found, using dummy regulator

[ 0.241469] qcom-qusb2-phy 79000.qusb: Registered Qcom-QUSB2 phy

[ 0.242632] qcom-pcie 20000000.pci: IRQ mdm2ap_e911 not found

[ 0.245277] qcom-pcie 20000000.pci: host bridge /soc/pci@20000000 ranges:

[ 0.245316] qcom-pcie 20000000.pci: IO 0x20200000..0x2020ffff -> 0x20200000

[ 0.245341] qcom-pcie 20000000.pci: MEM 0x20220000..0x2fffffff -> 0x20220000

[ 0.471593] qcom-pcie 20000000.pci: Link up

[ 0.471716] qcom-pcie 20000000.pci: PCI host bridge to bus 0000:00

[ 0.471728] pci_bus 0000:00: root bus resource [bus 00-ff]

[ 0.471740] pci_bus 0000:00: root bus resource [io 0x0000-0xffff] (bus address [0x20200000-0x2020ffff])

[ 0.471749] pci_bus 0000:00: root bus resource [mem 0x20220000-0x2fffffff]

[ 0.471781] pci 0000:00:00.0: [17cb:1003] type 01 class 0x060400

[ 0.471810] pci 0000:00:00.0: reg 0x10: [mem 0x00000000-0x00000fff]

[ 0.471877] pci 0000:00:00.0: PME# supported from D0 D3hot D3cold

[ 0.476643] pci 0000:01:00.0: [17cb:1104] type 00 class 0x028000

[ 0.476806] pci 0000:01:00.0: reg 0x10: [mem 0x00000000-0x001fffff 64bit]

[ 0.477352] pci 0000:01:00.0: PME# supported from D0 D3hot D3cold

[ 0.477444] pci 0000:01:00.0: 7.876 Gb/s available PCIe bandwidth, limited by 8 GT/s x1 link at 0000:00:00.0 (capable of 15.752 Gb/s with 8 GT/s x2 link)

[ 0.482008] pci 0000:00:00.0: BAR 8: assigned [mem 0x20400000-0x205fffff]

[ 0.482023] pci 0000:00:00.0: BAR 9: assigned [mem 0x20600000-0x207fffff 64bit pref]

[ 0.482034] pci 0000:00:00.0: BAR 0: assigned [mem 0x20220000-0x20220fff]

[ 0.482046] pci 0000:00:00.0: BAR 7: assigned [io 0x1000-0x1fff]

[ 0.482062] pci 0000:01:00.0: BAR 0: assigned [mem 0x20400000-0x205fffff 64bit]

[ 0.482120] pci 0000:00:00.0: PCI bridge to [bus 01-ff]

[ 0.482130] pci 0000:00:00.0: bridge window [io 0x1000-0x1fff]

[ 0.482141] pci 0000:00:00.0: bridge window [mem 0x20400000-0x205fffff]

[ 0.482152] pci 0000:00:00.0: bridge window [mem 0x20600000-0x207fffff 64bit pref]

[ 0.482201] PCIe: RC enabled during bootup

[ 0.482451] qcom-pcie 20000000.pci: Received Link up event for RC 0

[ 0.485535] bam-dma-engine 704000.dma: num-channels unspecified in dt

[ 0.485546] bam-dma-engine 704000.dma: num-ees unspecified in dt

[ 0.486516] bam-dma-engine 7884000.dma: qcom,controlled-remotely unspecified

[ 0.487887] bam-dma-engine 7984000.dma: qcom,controlled-remotely unspecified

[ 0.488562] msm-dcc b3000.dcc: DCC XPU is not specified

[ 0.488776] msm-dcc b3000.dcc: jiffies_64: 0xffff8b01, cntvct_64: 0x178bec30

[ 0.488787] msm-dcc b3000.dcc: gcnt_hi: 0x00000000(0x(____ptrval____))

[ 0.488797] msm-dcc b3000.dcc: gcnt_lo: 0x178bee59(0x(____ptrval____))

[ 0.489282] global timer is null

[ 0.489456] CPU: IPQ6010, SoC Version: 1.0

[ 0.489462] OEM_ID: 0, PROD_ID: 0

[ 0.489809] msm_rpm_log_probe: OK

[ 0.490600] TZ SMMU State: SMMU Stage2 Enabled

[ 0.490661] TZ Log : Will warn on Access Violation, as paniconaccessviolation is not set

[ 0.491505] msm_serial 78b0000.serial: msm_serial: detected port #1

[ 0.491535] msm_serial 78b0000.serial: uartclk = 24000000

[ 0.491589] 78b0000.serial: ttyMSM1 at MMIO 0x78b0000 (irq = 12, base_baud = 1500000) is a MSM

[ 0.491837] msm_serial 78b1000.serial: msm_serial: detected port #0

[ 0.491865] msm_serial 78b1000.serial: uartclk = 1843199

[ 0.491897] 78b1000.serial: ttyMSM0 at MMIO 0x78b1000 (irq = 13, base_baud = 115199) is a MSM

[ 0.491914] msm_serial: console setup on port #0

[ 1.424660] printk: console [ttyMSM0] enabled

[ 1.429580] msm_serial: driver initialized

[ 1.433881] random: crng init done

[ 1.443451] brd: module loaded

[ 1.446400] loop: module loaded

[ 1.448102] nand: device found, Manufacturer ID: 0x2c, Chip ID: 0xaa

[ 1.448432] nand: Micron MT29F2G08ABBGAH4

[ 1.455048] nand: 256 MiB, SLC, erase size: 128 KiB, page size: 2048, OOB size: 128

[ 1.458975] 1 fixed-partitions partitions found on MTD device qcom_nand.0

[ 1.466413] Creating 1 MTD partitions on “qcom_nand.0”:

[ 1.473355] 0x000000000000-0x00000f900000 : “rootfs”

[ 1.681739] mtd: device 0 (rootfs) set to be root filesystem

[ 1.682019] mtdsplit: no squashfs found in “rootfs”

[ 1.687165] spi_qup 78b5000.spi: IN:block:16, fifo:64, OUT:block:16, fifo:64

[ 1.691643] spi-nor spi0.0: found w25q128fw, expected n25q128a11

[ 1.699319] spi-nor spi0.0: w25q128fw (16384 Kbytes)

[ 1.704445] 17 fixed-partitions partitions found on MTD device spi0.0

[ 1.709286] Creating 17 MTD partitions on “spi0.0”:

[ 1.715636] 0x000000000000-0x0000000c0000 : “0:SBL1”

[ 1.720949] 0x0000000c0000-0x0000000d0000 : “0:MIBIB”

[ 1.726034] 0x0000000d0000-0x0000000f0000 : “0:BOOTCONFIG”

[ 1.730989] 0x0000000f0000-0x000000110000 : “0:BOOTCONFIG1”

[ 1.736352] 0x000000110000-0x0000002b0000 : “0:QSEE”

[ 1.741851] 0x0000002b0000-0x000000450000 : “0:QSEE_1”

[ 1.747037] 0x000000450000-0x000000460000 : “0:DEVCFG”

[ 1.751992] 0x000000460000-0x000000470000 : “0:DEVCFG_1”

[ 1.757112] 0x000000470000-0x0000004b0000 : “0:RPM”

[ 1.762584] 0x0000004b0000-0x0000004f0000 : “0:RPM_1”

[ 1.767231] 0x0000004f0000-0x000000500000 : “0:CDT”

[ 1.772405] 0x000000500000-0x000000510000 : “0:CDT_1”

[ 1.777085] 0x000000510000-0x000000520000 : “0:APPSBLENV”

[ 1.782293] 0x000000520000-0x0000005c0000 : “0:APPSBL”

[ 1.787659] 0x0000005c0000-0x000000660000 : “0:APPSBL_1”

[ 1.792713] 0x000000660000-0x0000006e0000 : “0:ART”

[ 1.798159] 0x0000006e0000-0x000000720000 : “0:ASF”

[ 1.804145] qca-mdio 90000.mdio: Reset PHY by GPIO 507

[ 2.027189] qca-mdio 90000.mdio: Reset PHY by GPIO 509

[ 2.249102] qca-mdio 90000.mdio: qca-mdio driver was registered

[ 2.255022] xhci-hcd xhci-hcd.0.auto: xHCI Host Controller

[ 2.255064] xhci-hcd xhci-hcd.0.auto: new USB bus registered, assigned bus number 1

[ 2.259559] xhci-hcd xhci-hcd.0.auto: hcc params 0x0220fe65 hci version 0x110 quirks 0x0000000000010010

[ 2.267025] xhci-hcd xhci-hcd.0.auto: irq 93, io mem 0x07000000

[ 2.276898] hub 1-0:1.0: USB hub found

[ 2.282262] hub 1-0:1.0: 1 port detected

[ 2.286311] xhci-hcd xhci-hcd.0.auto: xHCI Host Controller

[ 2.290168] xhci-hcd xhci-hcd.0.auto: new USB bus registered, assigned bus number 2

[ 2.295430] xhci-hcd xhci-hcd.0.auto: Host supports USB 3.0 SuperSpeed

[ 2.303034] usb usb2: We don’t know the algorithms for LPM for this host, disabling LPM.

[ 2.309964] hub 2-0:1.0: USB hub found

[ 2.317925] hub 2-0:1.0: config failed, hub doesn’t have any ports! (err -19)

[ 2.321653] xhci-hcd xhci-hcd.1.auto: xHCI Host Controller

[ 2.328588] xhci-hcd xhci-hcd.1.auto: new USB bus registered, assigned bus number 3

[ 2.334886] xhci-hcd xhci-hcd.1.auto: hcc params 0x0220fe65 hci version 0x110 quirks 0x0000000000010010

[ 2.341646] xhci-hcd xhci-hcd.1.auto: irq 94, io mem 0x08a00000

[ 2.351439] hub 3-0:1.0: USB hub found

[ 2.356806] hub 3-0:1.0: 1 port detected

[ 2.360926] xhci-hcd xhci-hcd.1.auto: xHCI Host Controller

[ 2.364695] xhci-hcd xhci-hcd.1.auto: new USB bus registered, assigned bus number 4

[ 2.369995] xhci-hcd xhci-hcd.1.auto: Host supports USB 3.0 SuperSpeed

[ 2.377695] usb usb4: We don’t know the algorithms for LPM for this host, disabling LPM.

[ 2.384536] hub 4-0:1.0: USB hub found

[ 2.392463] hub 4-0:1.0: 1 port detected

[ 2.396358] usbcore: registered new interface driver uas

[ 2.400211] usbcore: registered new interface driver usb-storage

[ 2.405313] i2c /dev entries driver

[ 2.415634] device-mapper: ioctl: 4.41.0-ioctl (2019-09-16) initialised: [email protected]

[ 2.416608] qti_scm_restart_reason qti,scm_restart_reason: reset_reason : [0xA1013D00]

[ 2.423576] qcom_ice_get_device_tree_data: No vdd-hba-supply regulator, assuming not needed

[ 2.431131] ICE IRQ = 16

[ 2.439646] sdhci: Secure Digital Host Controller Interface driver

[ 2.441961] sdhci: Copyright(c) Pierre Ossman

[ 2.447949] sdhci-pltfm: SDHCI platform and OF driver helper

[ 2.452810]

[ 2.452810] Version Rollback Feature Disabled

[ 2.460817] remoteproc remoteproc0: cd00000.remoteproc is available

[ 2.464239] coresight-tmc 6047000.tmc: failed to get flush cti, defer probe

[ 2.470212] coresight-dynamic-funnel 6041000.funnel: Uses obsolete Coresight DT bindings

[ 2.478409] coresight coresight-etm0: CPU0: ETM v4.0 initialized

[ 2.485196] coresight-etm4x 619c000.etm: CPU0: (null) initialized

[ 2.491618] coresight coresight-etm1: CPU1: ETM v4.0 initialized

[ 2.497157] coresight-etm4x 619d000.etm: CPU1: (null) initialized

[ 2.503925] coresight coresight-etm2: CPU2: ETM v4.0 initialized

[ 2.509225] coresight-etm4x 619e000.etm: CPU2: (null) initialized

[ 2.515689] coresight coresight-etm3: CPU3: ETM v4.0 initialized

[ 2.521386] coresight-etm4x 619f000.etm: CPU3: (null) initialized

[ 2.527548] coresight-stm 6002000.stm: coresight-stm : stm_register_device failed, probing deferred

[ 2.533481] OF: graph: no port node found in /soc/cti@6010000

[ 2.542394] OF: graph: no port node found in /soc/cti@6011000

[ 2.548268] OF: graph: no port node found in /soc/cti@6012000

[ 2.554101] OF: graph: no port node found in /soc/cti@6013000

[ 2.559729] OF: graph: no port node found in /soc/cti@6014000

[ 2.565473] OF: graph: no port node found in /soc/cti@6015000

[ 2.571200] OF: graph: no port node found in /soc/cti@6016000

[ 2.576912] OF: graph: no port node found in /soc/cti@6017000

[ 2.582773] OF: graph: no port node found in /soc/cti@6018000

[ 2.588375] OF: graph: no port node found in /soc/cti@6019000

[ 2.594122] OF: graph: no port node found in /soc/cti@601a000

[ 2.599838] OF: graph: no port node found in /soc/cti@601b000

[ 2.605580] OF: graph: no port node found in /soc/cti@601c000

[ 2.611426] OF: graph: no port node found in /soc/cti@601d000

[ 2.617031] OF: graph: no port node found in /soc/cti@601e000

[ 2.622785] OF: graph: no port node found in /soc/cti@601f000

[ 2.628484] OF: graph: no port node found in /soc/cti@6198000

[ 2.634225] OF: graph: no port node found in /soc/cti@6199000

[ 2.639944] OF: graph: no port node found in /soc/cti@619a000

[ 2.645761] OF: graph: no port node found in /soc/cti@619b000

[ 2.651263] usb 3-1: new high-speed USB device number 2 using xhci-hcd

[ 2.657197] OF: graph: no port node found in /soc/cti@610c000

[ 2.664421] OF: graph: no port node found in /soc/hwevent@6101000

[ 2.669209] coresight-hwevent 6101000.hwevent: No csr data

[ 2.675650] OF: graph: no port node found in /soc/csr@6001000

[ 2.680761] coresight-csr 6001000.csr: CSR initialized: coresight-csr

[ 2.687521] NET: Registered protocol family 10

[ 2.693731] Segment Routing with IPv6

[ 2.697294] NET: Registered protocol family 17

[ 2.701156] Bridge firewalling registered

[ 2.705309] 8021q: 802.1Q VLAN Support v1.8

[ 2.709404] Mass Storage accelerater start.

[ 2.730542] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 2.731780] cpufreq: cpufreq_online: CPU0: Running at unlisted freq: 24000 KHz

[ 2.736703] cpufreq: cpufreq_online: CPU0: Unlisted initial frequency changed to: 864000 KHz

[ 2.744268] sps_register_bam_device: sps:BAM 0x0000000006064000 is registered

[ 2.753059] coresight coresight-stm: STM32 initialized

[ 2.759614] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 2.764860] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 2.772018] ubi0: attaching mtd0

[ 2.889852] hub 3-1:1.0: USB hub found

[ 2.890176] hub 3-1:1.0: 4 ports detected

[ 2.954906] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 2.990164] usb 4-1: new SuperSpeed Gen 1 USB device number 2 using xhci-hcd

[ 3.049840] hub 4-1:1.0: USB hub found

[ 3.050157] hub 4-1:1.0: 4 ports detected

[ 3.053833] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 3.370092] usb 4-1.2: new SuperSpeed Gen 1 USB device number 3 using xhci-hcd

[ 3.401436] usb-storage 4-1.2:1.0: USB Mass Storage device detected

[ 3.401631] scsi host0: usb-storage 4-1.2:1.0

[ 3.406836] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 3.510097] usb 4-1.3: new SuperSpeed Gen 1 USB device number 4 using xhci-hcd

[ 3.541485] usb-storage 4-1.3:1.0: USB Mass Storage device detected

[ 3.541660] scsi host1: usb-storage 4-1.3:1.0

[ 3.546837] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4

[ 3.797788] ubi0: scanning is finished

[ 3.803812] ubi0: attached mtd0 (name “rootfs”, size 249 MiB)

[ 3.803833] ubi0: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes

[ 3.808526] ubi0: min./max. I/O unit sizes: 2048/2048, sub-page size 2048

[ 3.815310] ubi0: VID header offset: 2048 (aligned 2048), data offset: 4096

[ 3.822159] ubi0: good PEBs: 1992, bad PEBs: 0, corrupted PEBs: 0

[ 3.828924] ubi0: user volume: 3, internal volumes: 1, max. volumes count: 128

[ 3.835181] ubi0: max/mean erase counter: 27/5, WL threshold: 4096, image sequence number: 1731653759

[ 3.842303] ubi0: available PEBs: 0, total reserved PEBs: 1992, PEBs reserved for bad PEB handling: 40

[ 3.851600] ubi0: background thread “ubi_bgt0d” started, PID 219

[ 3.861133] block ubiblock0_1: created from ubi0:1(rootfs)

[ 3.866948] hctosys: unable to open rtc device (rtc0)

[ 3.874785] VFS: Mounted root (squashfs filesystem) readonly on device 253:0.

[ 3.877521] Freeing unused kernel memory: 576K

[ 3.910103] Run /sbin/init as init process

[ 4.093781] init: Console is alive

[ 4.093988] init: – watchdog –

Format: Log Type – Time(microsec) – Message – Optional Info

Log Type: B – Since Boot(Power On Reset), D – Delta, S – Statistic

S – QC_IMAGE_VERSION_STRING=BOOT.XF.0.3-00102-IPQ60xxLZB-1

S – IMAGE_VARIANT_STRING=IPQ6018LA

S – OEM_IMAGE_VERSION_STRING=crm-ubuntu64

S – Boot Interface: SPI

S – Secure Boot: Off

S – Boot Config @ 0x000a602c = 0x000002e1

S – JTAG ID @ 0x000a607c = 0x0013a0e1

S – OEM ID @ 0x000a6080 = 0x00000000

S – Serial Number @ 0x000a4128 = 0x08fa6d2b

S – OEM Config Row 0 @ 0x000a4188 = 0x0000000000000000

S – OEM Config Row 1 @ 0x000a4190 = 0x0000000000000000

S – Feature Config Row 0 @ 0x000a4130 = 0x0000000008000001

S – Feature Config Row 1 @ 0x000a4138 = 0x02c3e83383000009

S – PBL Patch Ver: 1

S – I-cache: On

S – D-cache: On

B – 3413 – PBL, Start

B – 592 – bootable_media_detect_entry, Start

B – 4339 – bootable_media_detect_success, Start

B – 4435 – elf_loader_entry, Start

B – 4607 – auth_hash_seg_entry, Start

B – 10853 – auth_hash_seg_exit, Start

B – 11350 – elf_segs_hash_verify_entry, Start

B – 358091 – elf_segs_hash_verify_exit, Start

B – 362282 – auth_xbl_sec_hash_seg_entry, Start

B – 362427 – auth_xbl_sec_hash_seg_exit, Start

B – 368979 – xbl_sec_segs_hash_verify_entry, Start

B – 368980 – xbl_sec_segs_hash_verify_exit, Start

B – 369909 – PBL, End

B – 296063 – SBL1, Start

B – 439383 – GCC [RstStat:0x0, RstDbg:0x600000] WDog Stat : 0x4

B – 441823 – clock_init, Start

D – 3721 – clock_init, Delta

B – 451278 – boot_flash_init, Start

D – 8387 – boot_flash_init, Delta

B – 461953 – sbl1_ddr_set_default_params, Start

D – 335 – sbl1_ddr_set_default_params, Delta

B – 468571 – boot_config_data_table_init, Start

D – 1921 – boot_config_data_table_init, Delta – (575 Bytes)

B – 477691 – CDT Version:2,Platform ID:8,Major ID:3,Minor ID:0,Subtype:2

B – 483242 – Image Load, Start

D – 6588 – OEM_MISC Image Loaded, Delta – (0 Bytes)

B – 492575 – Image Load, Start

D – 5032 – PMIC Image Loaded, Delta – (0 Bytes)

B – 500444 – sbl1_ddr_set_params, Start

B – 505507 – CPR configuration: 0x555

B – 508618 – Pre_DDR_clock_init, Start

D – 213 – Pre_DDR_clock_init, Delta

D – 0 – sbl1_ddr_set_params, Delta

B – 547475 – Image Load, Start

D – 427 – APDP Image Loaded, Delta – (0 Bytes)

B – 565165 – Image Load, Start

D – 427 – QTI_MISC Image Loaded, Delta – (0 Bytes)

B – 567605 – Image Load, Start

D – 823 – Auth Metadata

D – 640 – Segments hash check

D – 29493 – QSEE Dev Config Image Loaded, Delta – (37162 Bytes)

B – 599050 – Image Load, Start

D – 6557 – Auth Metadata

D – 10492 – Segments hash check

D – 793153 – QSEE Image Loaded, Delta – (1426556 Bytes)

B – 1392691 – Image Load, Start

D – 793 – Auth Metadata

D – 946 – Segments hash check

D – 63287 – RPM Image Loaded, Delta – (102948 Bytes)

B – 1457686 – Image Load, Start

D – 702 – Auth Metadata

D – 3233 – Segments hash check

D – 306921 – APPSBL Image Loaded, Delta – (570116 Bytes)

B – 1780620 – SBL1, End

D – 1484893 – SBL1, Delta

S – Flash Throughput, 1000 KB/s (2138029 Bytes, 1096890 us)

S – Core 0 Frequency, 800 MHz

S – DDR Frequency, 466 MHz

U-Boot 2016.01 (Jun 02 2024 – 16:18:30 +0000)

DRAM: smem ram ptable found: ver: 2 len: 4

2 GiB

NAND: ONFI device found

ID = 1590aa2c

Vendor = 2c

Device = aa

qpic_nand: changing oobsize to 80 from 128 bytes

SPI_ADDR_LEN=3

SF: Detected W25Q128FW with page size 256 Bytes, erase size 4 KiB, total 16 MiB

ipq_spi: page_size: 0x100, sector_size: 0x1000, size: 0x1000000

272 MiB

MMC: sdhci: Node Not found, skipping initialization

* Warning – bad CRC, using default environment

PCI Link Intialized

In: serial@78B1000

Out: serial@78B1000

Err: serial@78B1000

machid: 8030002

eth5 MAC Address from ART is not valid

Net: MAC0 addr:e0:38:2d:e0:2:23

PHY ID1: 0x4d

PHY ID2: 0xd0b1

PHY ID1: 0x4d

PHY ID2: 0xd101

EDMA ver 1 hw init

Num rings – TxDesc:1 (0-0) TxCmpl:1 (0-0)

RxDesc:1 (15-15) RxFill:1 (7-7)

ipq6018_edma_alloc_rings: successfull

ipq6018_edma_setup_ring_resources: successfull

ipq6018_edma_configure_rings: successfull

ipq6018_edma_hw_init: successfull

eth0

Reset button is pressed for: 5 ipq6018_eth_halt: done

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

Format: Log Type – Time(microsec) – Message – Optional Info

Log Type: B – Since Boot(Power On Reset), D – Delta, S – Statistic

S – QC_IMAGE_VERSION_STRING=BOOT.XF.0.3-00102-IPQ60xxLZB-1

S – IMAGE_VARIANT_STRING=IPQ6018LA

S – OEM_IMAGE_VERSION_STRING=crm-ubuntu64

S – Boot Interface: SPI

S – Secure Boot: Off

S – Boot Config @ 0x000a602c = 0x000002e1

S – JTAG ID @ 0x000a607c = 0x0013a0e1

S – OEM ID @ 0x000a6080 = 0x00000000

S – Serial Number @ 0x000a4128 = 0x08fa6d2b

S – OEM Config Row 0 @ 0x000a4188 = 0x0000000000000000

S – OEM Config Row 1 @ 0x000a4190 = 0x0000000000000000

S – Feature Config Row 0 @ 0x000a4130 = 0x0000000008000001

S – Feature Config Row 1 @ 0x000a4138 = 0x02c3e83383000009

S – PBL Patch Ver: 1

S – I-cache: On

S – D-cache: On

B – 3413 – PBL, Start

B – 592 – bootable_media_detect_entry, Start

B – 4339 – bootable_media_detect_success, Start

B – 4435 – elf_loader_entry, Start

B – 4607 – auth_hash_seg_entry, Start

B – 10853 – auth_hash_seg_exit, Start

B – 11348 – elf_segs_hash_verify_entry, Start

B – 358091 – elf_segs_hash_verify_exit, Start

B – 362280 – auth_xbl_sec_hash_seg_entry, Start

B – 362424 – auth_xbl_sec_hash_seg_exit, Start

B – 368979 – xbl_sec_segs_hash_verify_entry, Start

B – 368979 – xbl_sec_segs_hash_verify_exit, Start

B – 369909 – PBL, End

B – 296063 – SBL1, Start

B – 439383 – GCC [RstStat:0x0, RstDbg:0x600000] WDog Stat : 0x4

B – 441792 – clock_init, Start

D – 3721 – clock_init, Delta

B – 451278 – boot_flash_init, Start

D – 8357 – boot_flash_init, Delta

B – 461892 – sbl1_ddr_set_default_params, Start

D – 335 – sbl1_ddr_set_default_params, Delta

B – 468510 – boot_config_data_table_init, Start

D – 1921 – boot_config_data_table_init, Delta – (575 Bytes)

B – 477660 – CDT Version:2,Platform ID:8,Major ID:3,Minor ID:0,Subtype:2

B – 483211 – Image Load, Start

D – 6588 – OEM_MISC Image Loaded, Delta – (0 Bytes)

B – 492544 – Image Load, Start

D – 5033 – PMIC Image Loaded, Delta – (0 Bytes)

B – 500413 – sbl1_ddr_set_params, Start

B – 505476 – CPR configuration: 0x555

B – 508587 – Pre_DDR_clock_init, Start

D – 213 – Pre_DDR_clock_init, Delta

D – 0 – sbl1_ddr_set_params, Delta

B – 547444 – Image Load, Start

D – 427 – APDP Image Loaded, Delta – (0 Bytes)

B – 565165 – Image Load, Start

D – 458 – QTI_MISC Image Loaded, Delta – (0 Bytes)

B – 567574 – Image Load, Start

D – 793 – Auth Metadata

D – 641 – Segments hash check

D – 29494 – QSEE Dev Config Image Loaded, Delta – (37162 Bytes)

B – 599050 – Image Load, Start

D – 6649 – Auth Metadata

D – 10248 – Segments hash check

D – 791963 – QSEE Image Loaded, Delta – (1426556 Bytes)

B – 1391471 – Image Load, Start

D – 702 – Auth Metadata

D – 1037 – Segments hash check

D – 63562 – RPM Image Loaded, Delta – (102948 Bytes)

B – 1456741 – Image Load, Start

D – 732 – Auth Metadata

D – 3233 – Segments hash check

D – 307165 – APPSBL Image Loaded, Delta – (570116 Bytes)

B – 1779949 – SBL1, End

D – 1484191 – SBL1, Delta

S – Flash Throughput, 1000 KB/s (2138029 Bytes, 1096402 us)

S – Core 0 Frequency, 800 MHz

S – DDR Frequency, 466 MHz

U-Boot 2016.01 (Jun 02 2024 – 16:18:30 +0000)

DRAM: smem ram ptable found: ver: 2 len: 4

2 GiB

NAND: ONFI device found

ID = 1590aa2c

Vendor = 2c

Device = aa

qpic_nand: changing oobsize to 80 from 128 bytes

SPI_ADDR_LEN=3

SF: Detected W25Q128FW with page size 256 Bytes, erase size 4 KiB, total 16 MiB

ipq_spi: page_size: 0x100, sector_size: 0x1000, size: 0x1000000

272 MiB

MMC: sdhci: Node Not found, skipping initialization

* Warning – bad CRC, using default environment

PCI Link Intialized

In: serial@78B1000

Out: serial@78B1000

Err: serial@78B1000

machid: 8030002

eth5 MAC Address from ART is not valid

Net: MAC0 addr:e0:38:2d:e0:2:23

PHY ID1: 0x4d

PHY ID2: 0xd0b1

PHY ID1: 0x4d

PHY ID2: 0xd101

EDMA ver 1 hw init

Num rings – TxDesc:1 (0-0) TxCmpl:1 (0-0)

RxDesc:1 (15-15) RxFill:1 (7-7)

ipq6018_edma_alloc_rings: successfull

ipq6018_edma_setup_ring_resources: successfull

ipq6018_edma_configure_rings: successfull

ipq6018_edma_hw_init: successfull

eth0

Reset button is pressed for: 5 ipq6018_eth_halt: done

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 Down Speed :10 Half duplex

eth0 PHY0 Down Speed :10 Half duplex

eth0 PHY1 Down Speed :10 Half duplex

eth0 PHY2 Down Speed :10 Half duplex

eth0 PHY3 Down Speed :10 Half duplex

eth0 PHY4 up Speed :2500 Full duplex

ipq6018_eth_init: done

HTTP server is starting at IP: 192.168.1.1

done set host addr 0xa8c0 0x101

HTTP server is ready!

ARP Retry count exceeded; starting again

ARP Retry count exceeded; starting again

ARP Retry count exceeded; starting again

Request for: /

Request for: /style.css

Request for: /favicon.ico

## Error: file not found!

ARP Retry count exceeded; starting again

ARP Retry count exceeded; starting again

ARP Retry count exceeded; starting again

Request for: /

Request for: /style.css

Request for: /favicon.ico

## Error: file not found!

ARP Retry count exceeded; starting again

Data will be downloaded at 0x44000000 in RAM

Upgrade type: firmware

Upload file size: 74973184 bytes

Loading: #######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

####################################

ARP Retry count exceeded; starting again

###

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

#######################################

######

done!

Bytes transferred = 74973184 (4780000 hex)

md5 for 44000000 … 48780000 ==> eb96d2bf6f172cf1d68523f83a34bfec

************************

FIRMWARE UPGRADING

DO NOT POWER OFF DEVICE!

************************

Executing: flash rootfs

NAND erase: device 0 offset 0x0, size 0xf900000

Erasing at 0xf8e0000 — 100% complete.

OK

NAND write: device 0 offset 0x0, size 0x4780000

74973184 bytes written: OK

HTTP ugrade is done! Rebooting…

resetting …

Format: Log Type – Time(microsec) – Message – Optional Info

Log Type: B – Since Boot(Power On Reset), D – Delta, S – Statistic

S – QC_IMAGE_VERSION_STRING=BOOT.XF.0.3-00102-IPQ60xxLZB-1

S – IMAGE_VARIANT_STRING=IPQ6018LA

S – OEM_IMAGE_VERSION_STRING=crm-ubuntu64

S – Boot Interface: SPI

S – Secure Boot: Off

S – Boot Config @ 0x000a602c = 0x000002e1

S – JTAG ID @ 0x000a607c = 0x0013a0e1

S – OEM ID @ 0x000a6080 = 0x00000000

S – Serial Number @ 0x000a4128 = 0x08fa6d2b

S – OEM Config Row 0 @ 0x000a4188 = 0x0000000000000000

S – OEM Config Row 1 @ 0x000a4190 = 0x0000000000000000

S – Feature Config Row 0 @ 0x000a4130 = 0x0000000008000001

S – Feature Config Row 1 @ 0x000a4138 = 0x02c3e83383000009

S – PBL Patch Ver: 1

S – I-cache: On

S – D-cache: On

B – 3413 – PBL, Start

B – 592 – bootable_media_detect_entry, Start

B – 4339 – bootable_media_detect_success, Start

B – 4435 – elf_loader_entry, Start

B – 4607 – auth_hash_seg_entry, Start

B – 10853 – auth_hash_seg_exit, Start

B – 11349 – elf_segs_hash_verify_entry, Start

B – 358090 – elf_segs_hash_verify_exit, Start

B – 362284 – auth_xbl_sec_hash_seg_entry, Start

B – 362429 – auth_xbl_sec_hash_seg_exit, Start

B – 368979 – xbl_sec_segs_hash_verify_entry, Start

B – 368980 – xbl_sec_segs_hash_verify_exit, Start

B – 369909 – PBL, End

B – 296094 – SBL1, Start

B – 439383 – GCC [RstStat:0x10, RstDbg:0x700100] WDog Stat : 0x4

B – 441823 – clock_init, Start

D – 3721 – clock_init, Delta

B – 451613 – boot_flash_init, Start

D – 8357 – boot_flash_init, Delta

B – 462136 – sbl1_ddr_set_default_params, Start

D – 335 – sbl1_ddr_set_default_params, Delta

B – 468785 – boot_config_data_table_init, Start

D – 1921 – boot_config_data_table_init, Delta – (575 Bytes)

B – 477904 – CDT Version:2,Platform ID:8,Major ID:3,Minor ID:0,Subtype:2

B – 483455 – Image Load, Start

D – 6588 – OEM_MISC Image Loaded, Delta – (0 Bytes)

B – 492788 – Image Load, Start

D – 5033 – PMIC Image Loaded, Delta – (0 Bytes)

B – 500657 – sbl1_ddr_set_params, Start

B – 505720 – CPR configuration: 0x555

B – 508831 – Pre_DDR_clock_init, Start

D – 213 – Pre_DDR_clock_init, Delta

D – 0 – sbl1_ddr_set_params, Delta

B – 547719 – Image Load, Start

D – 427 – APDP Image Loaded, Delta – (0 Bytes)

B – 565409 – Image Load, Start

D – 457 – QTI_MISC Image Loaded, Delta – (0 Bytes)

B – 567849 – Image Load, Start

D – 915 – Auth Metadata

D – 701 – Segments hash check

D – 29585 – QSEE Dev Config Image Loaded, Delta – (37162 Bytes)

B – 599416 – Image Load, Start

D – 6588 – Auth Metadata

D – 10339 – Segments hash check

D – 794830 – QSEE Image Loaded, Delta – (1426556 Bytes)

B – 1394704 – Image Load, Start

D – 701 – Auth Metadata

D – 885 – Segments hash check

D – 63348 – RPM Image Loaded, Delta – (102948 Bytes)

B – 1459760 – Image Load, Start

D – 763 – Auth Metadata

D – 3141 – Segments hash check

D – 308965 – APPSBL Image Loaded, Delta – (570116 Bytes)

B – 1784768 – SBL1, End

D – 1488979 – SBL1, Delta

S – Flash Throughput, 1000 KB/s (2138029 Bytes, 1100641 us)
