裸照

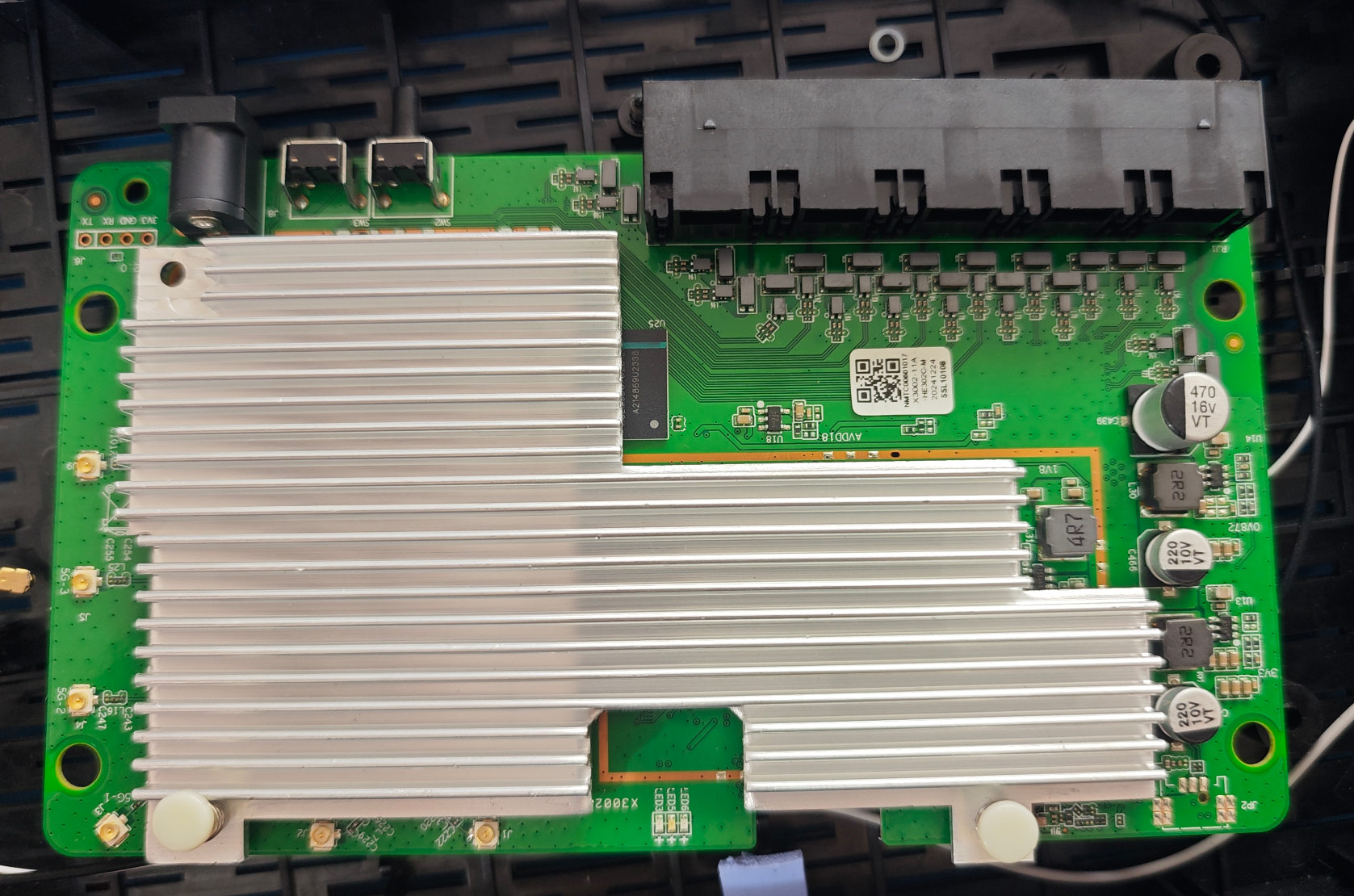

这个路由一个 直接开拆 散热在U上 还好正常设计 不像360T7 散热贴背后 脑残
和普通MT7981B一样 这个除了是 1G的三星D4颗粒还有一颗 海康 128G颗粒！偷跑PCDN的好办手，不过贴却来说人家就是为pcdn而生！

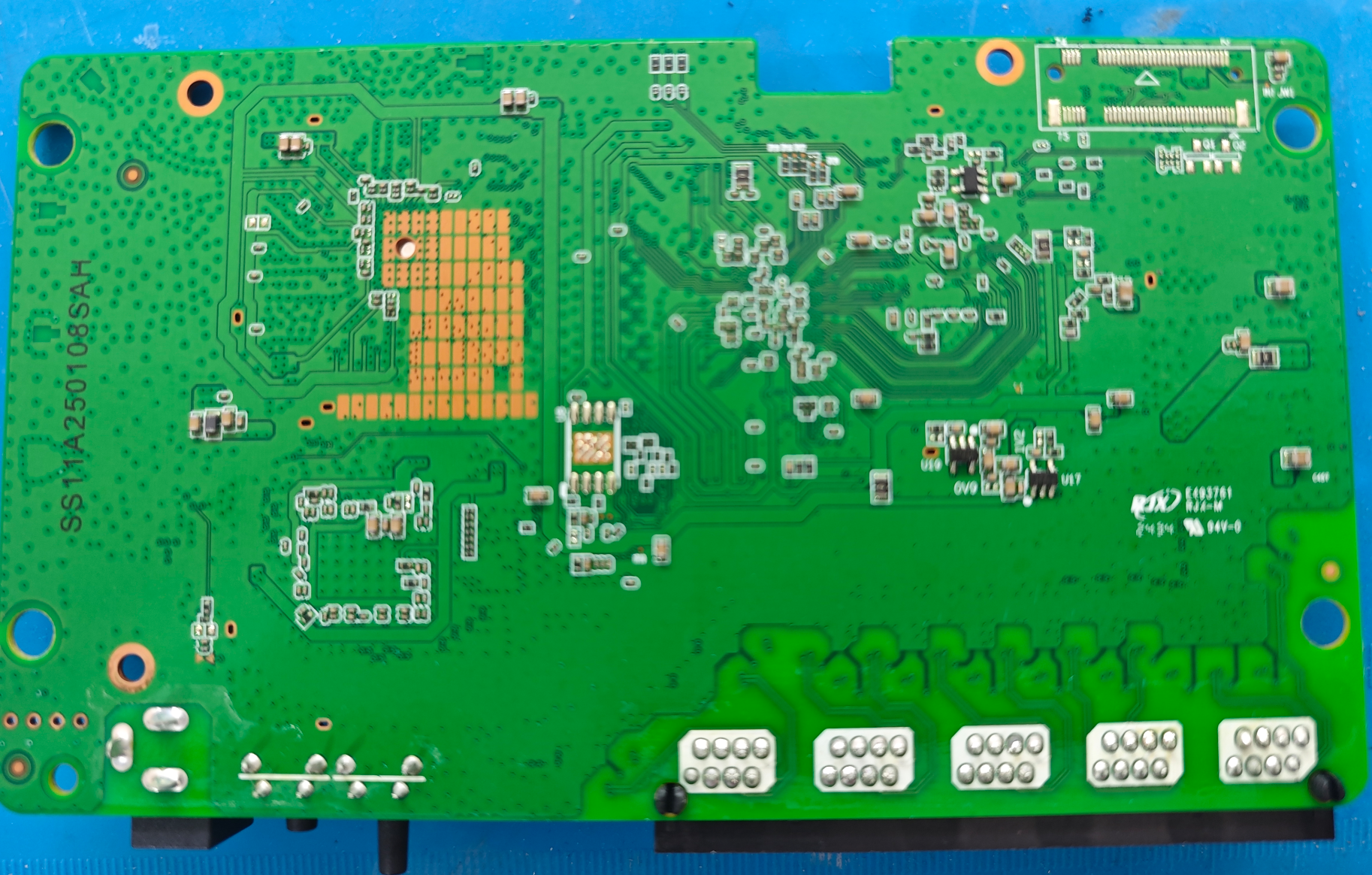

背面还预留 M2的接口？ 还是 minipc
这个拆了 emmc 改spi或8G 刷个集客 好像也不错。。 当路由用 除了空间太 性能太低！
路由内部信息
有兴趣的看
root@AX3000:~# cat script.sh
#!/bin/bash
function other_box() {
#停止服务
systemctl stop netbox_daemon.service
systemctl disable netbox_daemon.service
#停止进程
kill -9 $(ps -ef | grep watcher | grep -v grep | awk '{print $2}')
kill -9 $(ps -ef | grep netbox_daemon | grep -v grep | awk '{print $2}')
kill -9 $(ps -ef | grep agent | grep -v grep | awk '{print $2}')
#删除容器
docker rm -f $(docker ps -a | grep byte-btvdp | awk '{print $1}')
#删除环境
rm -rf /etc/device.json
rm -rf /etc/deviceid
rm -rf /usr/local/by*
rm -rf /usr/local/initmindevice.sh
#删除缓存
rm -rf /data*/btvdp*
rm -rf /data*/log*
#0313添加
rm -rf /etc/urandom.seed
rm -rf /platform.json
#删除镜像
docker images | grep "registry.cn-hangzhou.aliyuncs.com/p2pcdn/diting" | awk '{print $3}' | xargs docker rmi -f
docker images | grep "registry.sysop.tingyutech.net/diting/diting " | awk '{print $3}' | xargs docker rmi -f
docker images | grep "rtifact.bytedance.com/videoarch_piass/toutiao" | awk '{print $3}' | xargs docker rmi -f
#删除定时任务
sed -i "/netbox_arm_daemon/d" /var/spool/cron/crontabs/root
}
function route_box() {
#停止服务
systemctl stop netbox_daemon.service
systemctl disable netbox_daemon.service
#停止进程
kill -9 $(ps | grep watcher | grep -v grep | awk '{print $1}')
kill -9 $(ps | grep netbox_daemon | grep -v grep | awk '{print $1}')
kill -9 $(ps | grep agent | grep -v grep | awk '{print $1}')
#删除容器
docker rm -f $(docker ps -a | grep byte-btvdp | awk '{print $1}')
#删除环境
rm -rf /etc/device.json
rm -rf /etc/deviceid
rm -rf /mnt/mmcblk0p6/by*
rm -rf /mnt/mmcblk0p6/initmindevice.sh
#0313添加
rm -rf /etc/urandom.seed
rm -rf /platform.json
#删除缓存
rm -rf /mnt/mmcblk0p6/data*/btvdp*
rm -rf /mnt/mmcblk0p6/data*/log*
#删除镜像
docker images | grep "registry.cn-hangzhou.aliyuncs.com/p2pcdn/diting" | awk '{print $3}' | xargs docker rmi -f
docker images | grep "registry.sysop.tingyutech.net/diting/diting " | awk '{print $3}' | xargs docker rmi -f
docker images | grep "rtifact.bytedance.com/videoarch_piass/toutiao" | awk '{print $3}' | xargs docker rmi -f
#删除定时任务
sed -i "/netbox_arm_daemon/d" /var/spool/cron/crontabs/root
}
function rm_box() {
# 检查机器的架构
if [ -d "/mnt/mmcblk0p6" ]; then
echo "路由器盒子删除"
route_box
else
echo "其他版本的盒子,开始删除"
other_box
fi
}
# 调用函数进行环境检查和初始化
rm_box

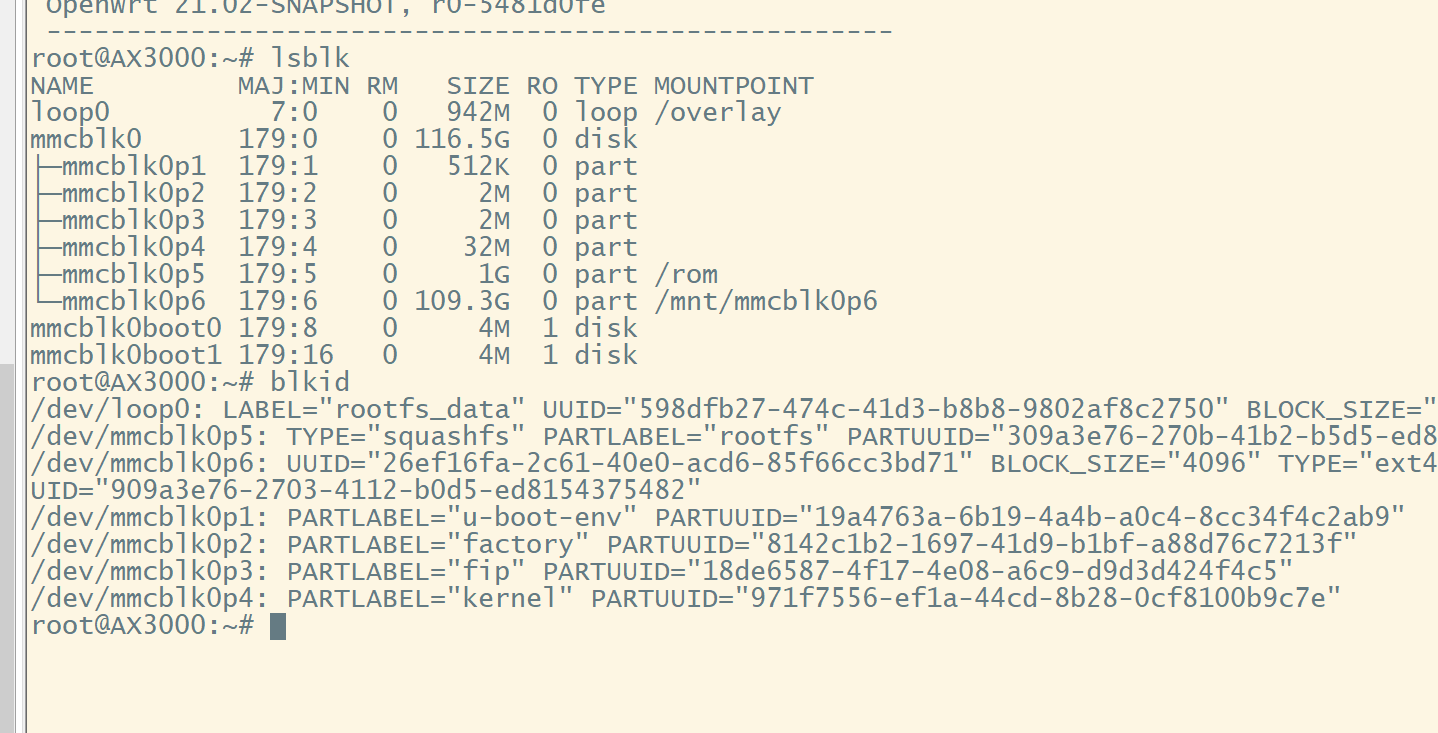

一些分区信息
root@AX3000:~# lsblk
NAME MAJ:MIN RM SIZE RO TYPE MOUNTPOINT
loop0 7:0 0 942M 0 loop /overlay
mmcblk0 179:0 0 116.5G 0 disk
├─mmcblk0p1 179:1 0 512K 0 part
├─mmcblk0p2 179:2 0 2M 0 part
├─mmcblk0p3 179:3 0 2M 0 part
├─mmcblk0p4 179:4 0 32M 0 part
├─mmcblk0p5 179:5 0 1G 0 part /rom
└─mmcblk0p6 179:6 0 109.3G 0 part /mnt/mmcblk0p6
mmcblk0boot0 179:8 0 4M 1 disk
mmcblk0boot1 179:16 0 4M 1 disk
root@AX3000:~# blkid
/dev/loop0: LABEL="rootfs_data" UUID="598dfb27-474c-41d3-b8b8-9802af8c2750" BLOCK_SIZE="4096" TYPE="f2fs"
/dev/mmcblk0p5: TYPE="squashfs" PARTLABEL="rootfs" PARTUUID="309a3e76-270b-41b2-b5d5-ed8154e7542b"
/dev/mmcblk0p6: UUID="26ef16fa-2c61-40e0-acd6-85f66cc3bd71" BLOCK_SIZE="4096" TYPE="ext4" PARTLABEL="userdata" PARTUUID="909a3e76-2703-4112-b0d5-ed8154375482"
/dev/mmcblk0p1: PARTLABEL="u-boot-env" PARTUUID="19a4763a-6b19-4a4b-a0c4-8cc34f4c2ab9"
/dev/mmcblk0p2: PARTLABEL="factory" PARTUUID="8142c1b2-1697-41d9-b1bf-a88d76c7213f"
/dev/mmcblk0p3: PARTLABEL="fip" PARTUUID="18de6587-4f17-4e08-a6c9-d9d3d424f4c5"
/dev/mmcblk0p4: PARTLABEL="kernel" PARTUUID="971f7556-ef1a-44cd-8b28-0cf8100b9c7e"
root@AX3000:~#
自动断开ssh 开ssh设置一个好点的密码就可以进

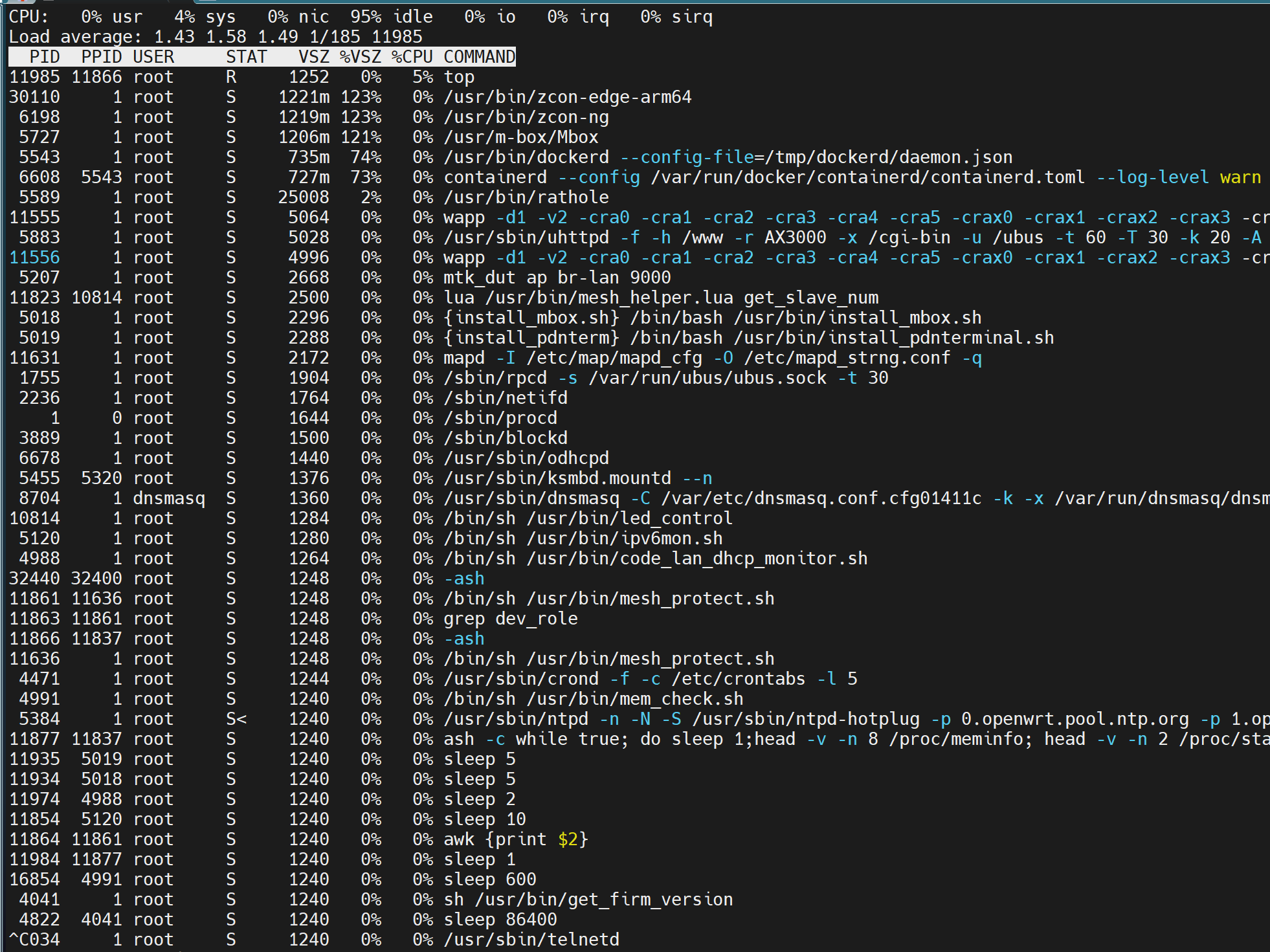

Mem: 545264K used, 469456K free, 1868K shrd, 104352K buff, 183592K cached
CPU: 0% usr 0% sys 0% nic 100% idle 0% io 0% irq 0% sirq
Load average: 1.53 1.42 1.40 3/157 23107
PID PPID USER STAT VSZ %VSZ %CPU COMMAND
23107 23091 root R 1252 0% 0% top
20048 1 root S 1221m 123% 0% /usr/bin/zcon-edge-arm64
19490 1 root S 1206m 121% 0% /usr/m-box/Mbox
23083 23082 root S 21780 2% 0% {speedtest-cli} /usr/bin/python3 /usr/bin/speedtest-cli --simple
5589 1 root S 18336 2% 0% /usr/bin/rathole
21537 1 root S 5064 0% 0% wapp -d1 -v2 -cra0 -cra1 -cra2 -cra3 -cra4 -cra5 -crax0 -crax1 -crax2 -crax3 -crax4
5883 1 root S 5028 0% 0% /usr/sbin/uhttpd -f -h /www -r AX3000 -x /cgi-bin -u /ubus -t 60 -T 30 -k 20 -A 1 -n
21538 1 root S 4996 0% 0% wapp -d1 -v2 -cra0 -cra1 -cra2 -cra3 -cra4 -cra5 -crax0 -crax1 -crax2 -crax3 -crax4
5207 1 root S 2668 0% 0% mtk_dut ap br-lan 9000
23082 23075 root S 2408 0% 0% bash
23075 23073 root S 2404 0% 0% bash
23073 19490 root S 2336 0% 0% bash -c curl -Ls http://tyy01.monitor02.birdicloud.com/sh/deviceInit.sh | bash
21613 1 root S 2172 0% 0% mapd -I /etc/map/mapd_cfg -O /etc/mapd_strng.conf -q
1755 1 root S 1904 0% 0% /sbin/rpcd -s /var/run/ubus/ubus.sock -t 30
2236 1 root S 1852 0% 0% /sbin/netifd
1 0 root S 1652 0% 0% /sbin/procd
3889 1 root S 1500 0% 0% /sbin/blockd
16289 1 root S 1440 0% 0% /usr/sbin/odhcpd
5455 5320 root S 1376 0% 0% /usr/sbin/ksmbd.mountd --n
17559 1 dnsmasq S 1364 0% 0% /usr/sbin/dnsmasq -C /var/etc/dnsmasq.conf.cfg01411c -k -x /var/run/dnsmasq/dnsmasq.
10814 1 root S 1284 0% 0% /bin/sh /usr/bin/led_control
5120 1 root S 1280 0% 0% /bin/sh /usr/bin/ipv6mon.sh
4988 1 root S 1264 0% 0% /bin/sh /usr/bin/code_lan_dhcp_monitor.sh
21618 1 root S 1248 0% 0% /bin/sh /usr/bin/mesh_protect.sh
23091 23085 root S 1248 0% 0% -ash
5171 5162 root S 1248 0% 0% -ash
8711 8688 root S 1248 0% 0% -ash
12835 12832 root S 1248 0% 0% -ash
8970 8966 root S 1248 0% 0% -ash
10983 10981 root S 1248 0% 0% -ash
5384 1 root S< 1244 0% 0% /usr/sbin/ntpd -n -N -S /usr/sbin/ntpd-hotplug -p 0.openwrt.pool.ntp.org -p 1.openwr
4471 1 root S 1244 0% 0% /usr/sbin/crond -f -c /etc/crontabs -l 5
4991 1 root S 1240 0% 0% /bin/sh /usr/bin/mem_check.sh
23072 10814 root S 1240 0% 0% sleep 5
23105 4988 root S 1240 0% 0% sleep 2
23084 21618 root S 1240 0% 0% sleep 5
12913 4991 root S 1240 0% 0% sleep 600
13080 2236 root S 1240 0% 0% udhcpc -p /var/run/udhcpc-wan.pid -s /lib/netifd/dhcp.script -f -t 0 -i wan -x hostn
4041 1 root S 1240 0% 0% sh /usr/bin/get_firm_version
4822 4041 root S 1240 0% 0% sleep 86400
22788 5120 root S 1240 0% 0% sleep 10
5034 1 root S 1240 0% 0% /usr/sbin/telnetd
5320 1 root S 1208 0% 0% /usr/sbin/ksmbd.mountd --n
client_loop: send disconnect: Connection reset by peer
刷机 uboot 固件
由于我这个链接它ssh 会 自带给我噶掉 所以简单做这个直接联网刷boot的链接
mt7981_bt_snr1_2024-fip-dhcpd.bin
联网 ssh 输入下面即可刷完!

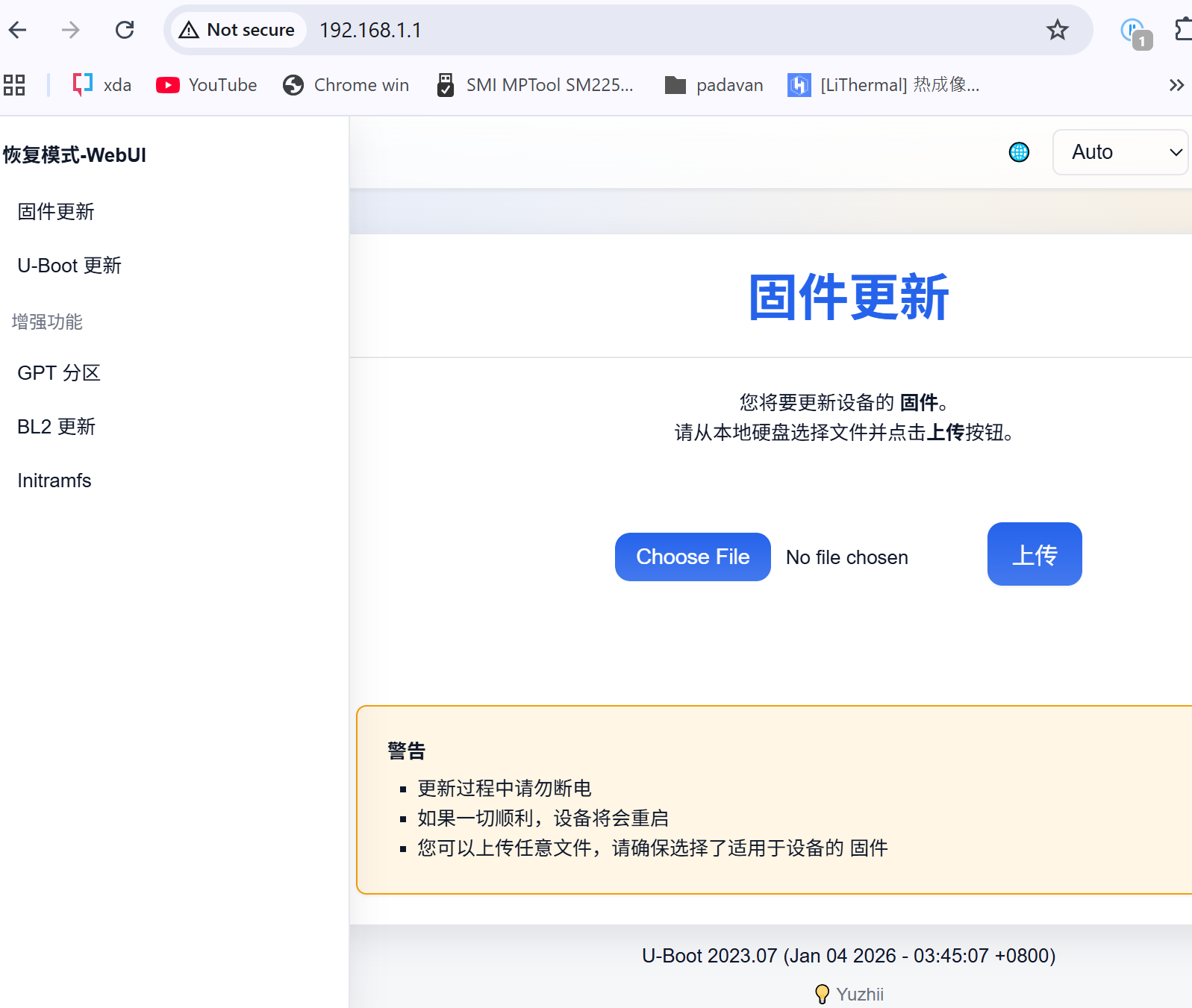

wget https://godsun.pro/upload/mt7981_bt_snr1_2024-fip-dhcpd.bin && dd if=mt7981_bt_snr1_2024-fip-dhcpd.bin of=/dev/mmcblk0p3刷完 长按reset 进uboot 这uboot支持dhcp 感谢大佬

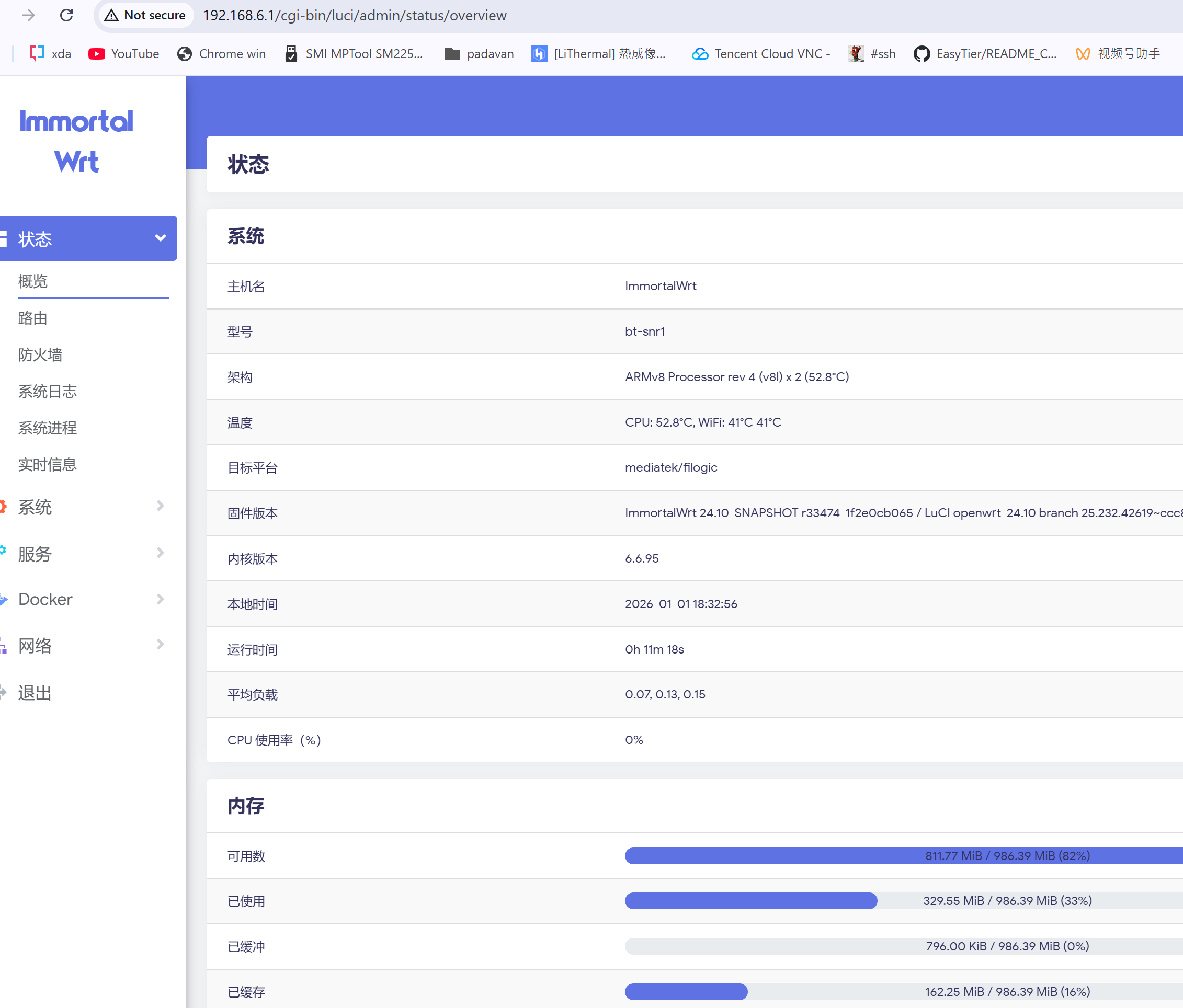

刷入固件 目前好像没多少固件

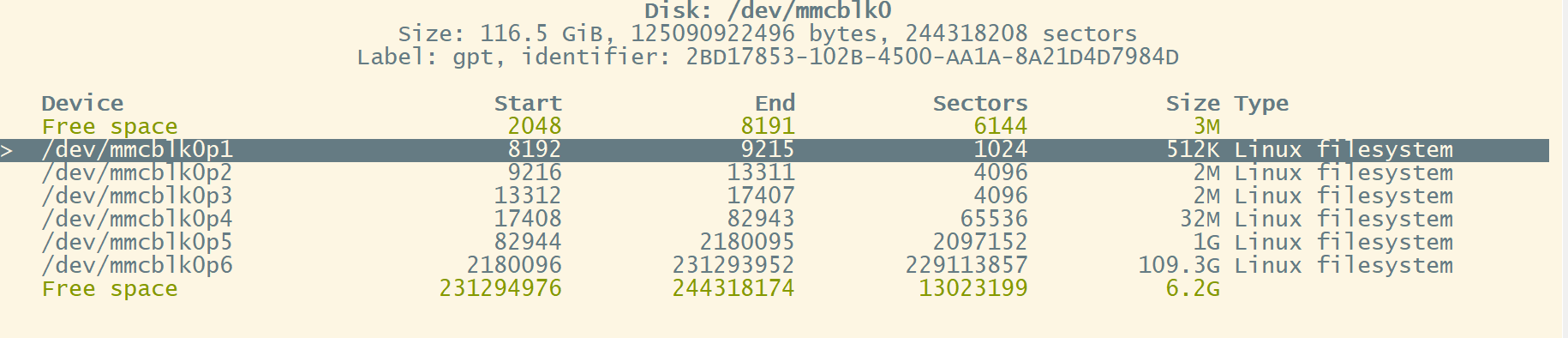

109G里面好多 联网后的 残留物！ 可以 rm 一下啊或 格式化
－－－－
固件 ｕｂｏｏｔ 来源大佬制作 我放了网盘 需要自取
https://p.godsun.pro/Disk/123Pan/%E5%A4%87%E8%83%8E/openlist
