ttl 跑码
TXL:BL1:1ef924:56431c;FEAT:ADFD718C;POC:0;RCY:0;EMMC:0;READ:0;0.0;CHK:0;
TE: 239875
BL2 Built : 16:21:29, May 30 2019.
txl g0df0643 - xingyu.chen@droid12-sz
bist_test rank: 0 1f 00 3e 34 16 53 1d 00 3b 38 1b 55 1f 00 3f 39 1c 57 1b 00 37 3e 23 5a 671 rank: 1 1f 00 3f 35 18 52 1e 00 3d 37 1c 53 1b 00 37 40 28 58 19 00 32 44 2b 5d 671
DDR3 Rank0+1
run bl31
NOTICE: BL3-1: v1.0(debug):4fec997
NOTICE: BL3-1: Built : 19:08:29, Nov 2 2018
aml log : bl31 normal boot !
[Image: txl_v1.1.3168-0e1e562 2019-01-27 16:18:34 qiufang.dai@droid07]
b ad c5 1c e cc 17 f1 dd ad e8 94 [0.708112 Inits done]
U-Boot 2015.01-g2a512ab-g2ff58eb (Feb 25 2020 - 16:12:15)
DRAM: 2 GiB
InUsbBurn
noSof
cold_boot
lcd extern: load config from dts
lcd extern: add driver i2c_V500DJ6(2)
lcd extern: aml_lcd_extern_probe ok
t33c
IR init done!
do_monitor_bt_cmdline
bt_vendor_name = Qualcomm,bt_vendor_id= 0x1d00
start
cmd=ext4size mmc 1:9 rampatch_tlv_tf_1.1.tlv 73e910e0
vfs_getsize size = 0xcb78
cmd=ext4load mmc 1:9 73e92010 rampatch_tlv_tf_1.1.tlv cb78
52088 bytes read in 4 ms (12.4 MiB/s)
OK
cmd=ext4size mmc 1:9 nvm_tlv_tf_1.1.bin 73e910e0
vfs_getsize size = 0x7f2
cmd=ext4load mmc 1:9 73e9f2a0 nvm_tlv_tf_1.1.bin 7f2
2034 bytes read in 3 ms (662.1 KiB/s)
OK
set scan parameters
set scan enable
no recovery mod!
BT_MAC:E4:DB:6D:CF:F2:1B
Write Qualcomm BT_MAC:E4:DB:6D:CF:F2:1B
cmd=ext4size mmc 1:9 wake_on_ble.conf 73e91420
vfs_getsize size = 0x77
cmd=ext4load mmc 1:9 73ea01b0 wake_on_ble.conf 77
119 bytes read in 2 ms (57.6 KiB/s)
OK
27 4c fc 24 00 20 00 ff 52 eb 9c 29 eb 08 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 07 02 01 05 03 ff 00 01
configure rc address:
0x01, 0x4c, 0xfc, 0x24, 0x00, 0x20, 0x00, 0xff, 0x52, 0xeb, 0x9c, 0x29, 0xeb, 0x08, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x07, 0x02, 0x01, 0x05, 0x03, 0xff, 0x00, 0x01,
beacon pdu str:0201060FFF8F030A101C000096497D1D41B0EC
beacon pdu:02 01 06 0F FF 8F 03 0A 10 1C 00 00 96 49 7D 1D 41 B0 EC
bt_adv_beacon
hci_set_adv_paramter() done
hci_set_adv_data() done
hci_set_adv_enable() enable=1
hci_set_adv_enable() done
enter wake on ble!
Factory power mode: secondary
bl31 reboot reason: 0x108
bl31 reboot reason: 0x108
system cmd 0.
bl30 get wakeup sources!
process command 00000006
bl30 enter suspend!
cpu clk suspend rate 1200000000
suspend_counter: 1
Enter ddr suspend
first time suspend
ddr suspend time: 1903us
process command 00000001
CEC cfg:0x0000
no_support_bluetooth 0x00000000
power_led_level 0x00000001
08915d0000000000
没有Emmc跑码
TXL:BL1:1ef924:56431c;FEAT:ADFD718C;POC:0;RCY:0;EMMC:800;SD:800;USB:8;LOOP:1;EMMC:800;SD:800;USB:8;
一直反复出现。 晶晨机基本都一样。。

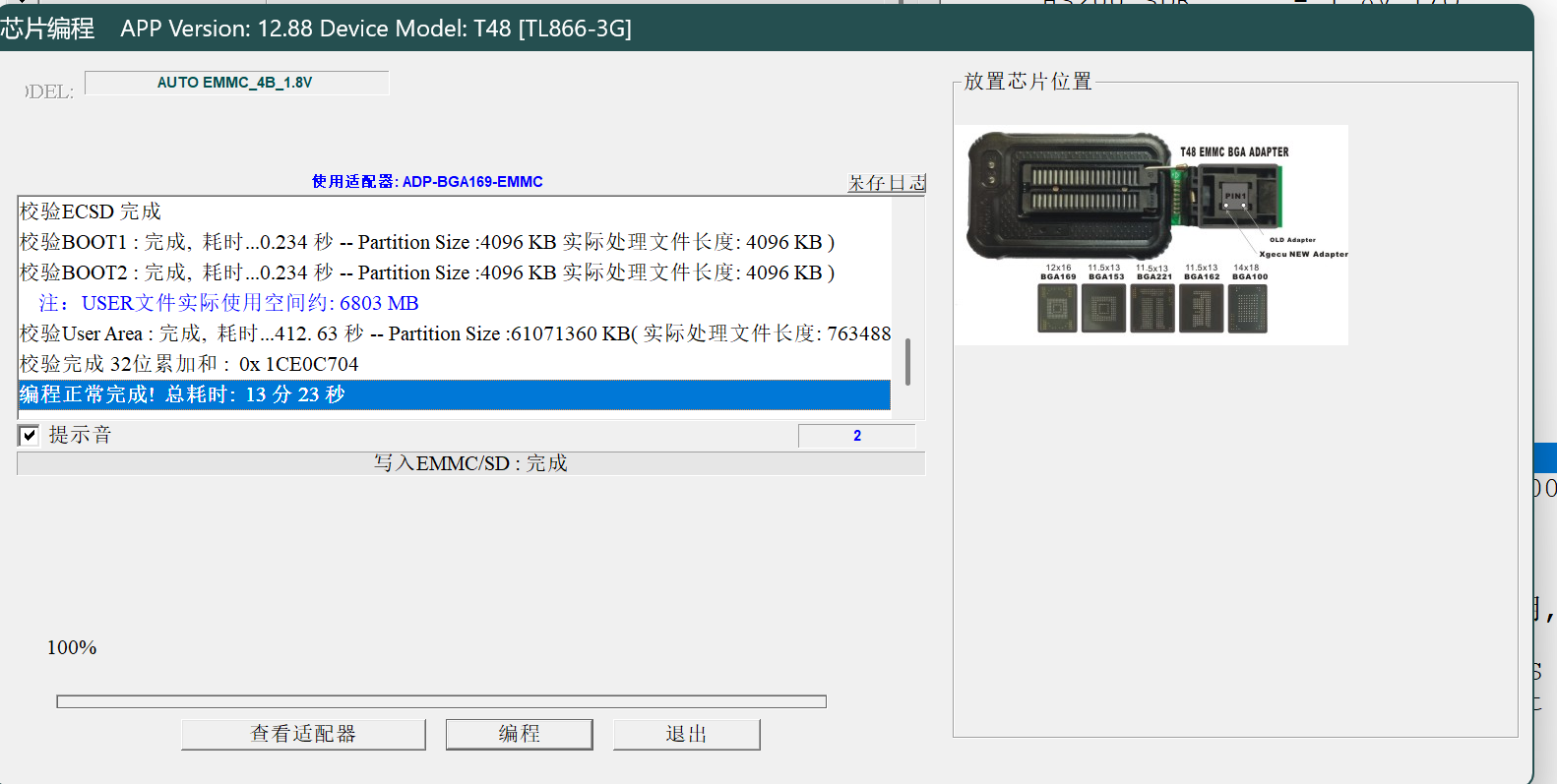

换了快三星的64G 速度好像快些
TXL:BL1:1ef924:56431c;FEAT:ADFD718C;POC:0;RCY:0;EMMC:0;READ:0;0.0;CHK:0;
TE: 213226
BL2 Built : 16:21:29, May 30 2019.
txl g0df0643 - xingyu.chen@droid12-sz
bist_test rank: 0 1e 00 3c 35 18 53 1c 00 39 38 1b 56 1e 00 3d 38 1b 55 1b 00 37 3e 23 5a 678 rank: 1 1e 00 3d 36 1a 53 1d 00 3b 39 1f 53 1a 00 34 3e 27 56 19 00 32 46 2d 5f 678
DDR3 Rank0+1
run bl31
NOTICE: BL3-1: v1.0(debug):4fec997
NOTICE: BL3-1: Built : 19:08:29, Nov 2 2018
aml log : bl31 normal boot !
[Image: txl_v1.1.3168-0e1e562 2019-01-27 16:18:34 qiufang.dai@droid07]
b ad c5 1c e cc 17 f1 dd ad e8 94 [0.687707 Inits done]
U-Boot 2015.01-g2a512ab-g2ff58eb (Feb 25 2020 - 16:12:15)
DRAM: 2 GiB
InUsbBurn
noSof
mmc_partition_verify: partition[16] is different
Partition table verified ERROR!
Following is the partition table stored in eMMC/TSD:
mmc write lba=0x12000, blocks=0x2
mmc write lba=0x12002, blocks=0x2
mmc_write_partition_tbl: mmc write partition OK!
cold_boot
lcd extern: load config from dts
lcd extern: add driver i2c_V500DJ6(2)
lcd extern: aml_lcd_extern_probe ok
t33c
IR init done!
do_monitor_bt_cmdline
bt_vendor_name = Qualcomm,bt_vendor_id= 0x1d00
start
cmd=ext4size mmc 1:9 rampatch_tlv_tf_1.1.tlv 73e910e0
vfs_getsize size = 0xcb78
cmd=ext4load mmc 1:9 73e92010 rampatch_tlv_tf_1.1.tlv cb78
52088 bytes read in 3 ms (16.6 MiB/s)
OK
cmd=ext4size mmc 1:9 nvm_tlv_tf_1.1.bin 73e910e0
vfs_getsize size = 0x7f2
cmd=ext4load mmc 1:9 73e9f2a0 nvm_tlv_tf_1.1.bin 7f2
2034 bytes read in 2 ms (993.2 KiB/s)
OK
set scan parameters
set scan enable
no recovery mod!
BT_MAC:E4:DB:6D:CF:F2:1B
Write Qualcomm BT_MAC:E4:DB:6D:CF:F2:1B
cmd=ext4size mmc 1:9 wake_on_ble.conf 73e91420
vfs_getsize size = 0x77
cmd=ext4load mmc 1:9 73ea01b0 wake_on_ble.conf 77
119 bytes read in 2 ms (57.6 KiB/s)
OK
27 4c fc 24 00 20 00 ff 52 eb 9c 29 eb 08 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 07 02 01 05 03 ff 00 01
configure rc address:
0x01, 0x4c, 0xfc, 0x24, 0x00, 0x20, 0x00, 0xff, 0x52, 0xeb, 0x9c, 0x29, 0xeb08, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x07, 0x02, 0x01, 0x05, 0x03, 0xff, 0x00, 0x01,
beacon pdu str:0201060FFF8F030A101C000096497D1D41B0EC
beacon pdu:02 01 06 0F FF 8F 03 0A 10 1C 00 00 96 49 7D 1D 41 B0 EC
bt_adv_beacon
hci_set_adv_paramter() done
hci_set_adv_data() done
hci_set_adv_enable() enable=1
hci_set_adv_enable() done
enter wake on ble!
Factory power mode: secondary
bl31 reboot reason: 0x108
bl31 reboot reason: 0x108
system cmd 0.
bl30 get wakeup sources!
process command 00000006
bl30 enter suspend!
cpu clk suspend rate 1200000000
suspend_counter: 1
Enter ddr suspend
first time suspend
ddr suspend time: 1912us
process command 00000001
CEC cfg:0x0000
no_support_bluetooth 0x00000000
power_led_level 0x00000001
08915d0000000000
