硬件信息
| 项目 | 型号 |
|---|---|
| 整机 | XIAOMI LED L43M5-AZ |
| 配置 | 2GB RAM + 8GB eMMC |

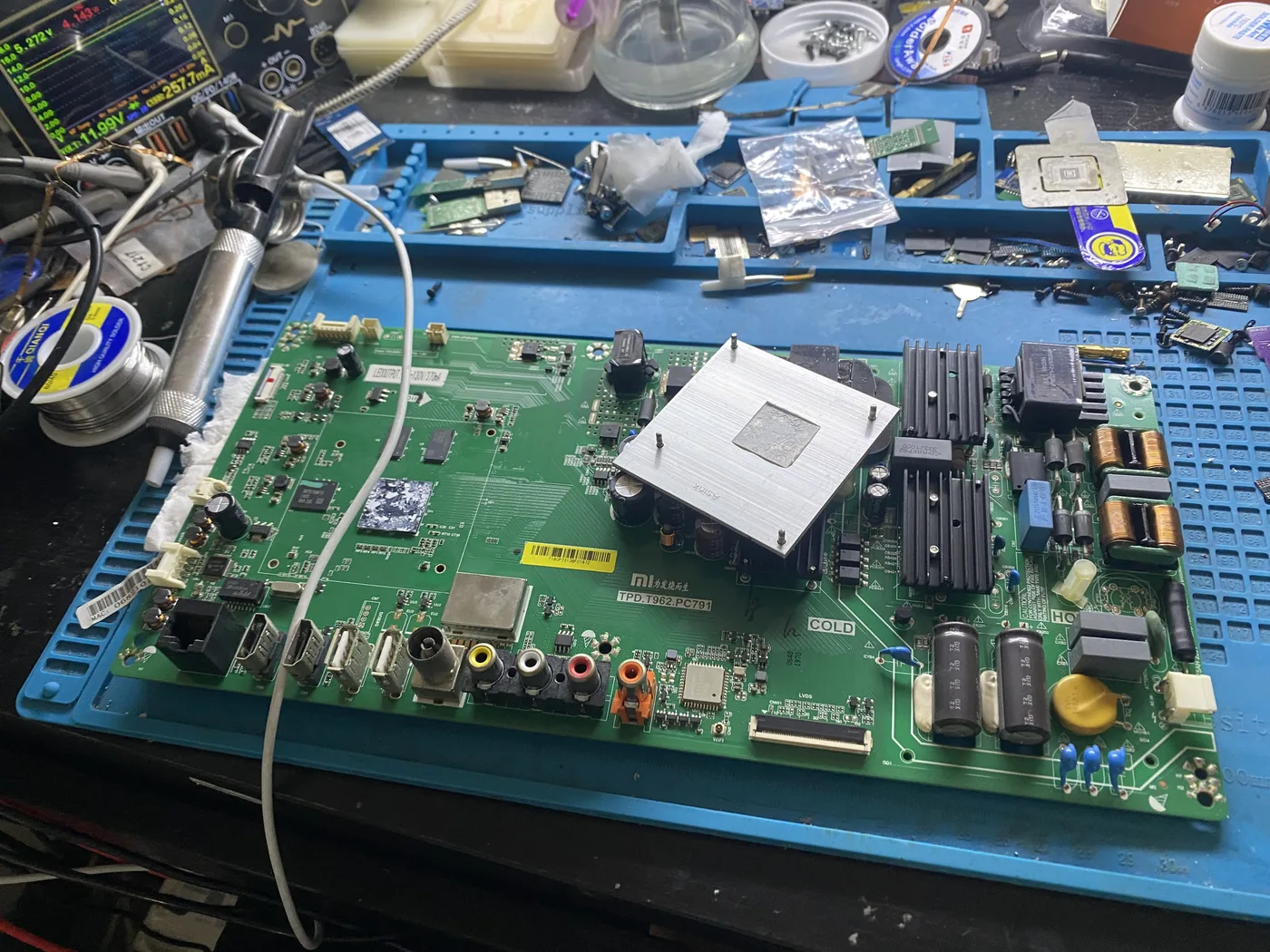

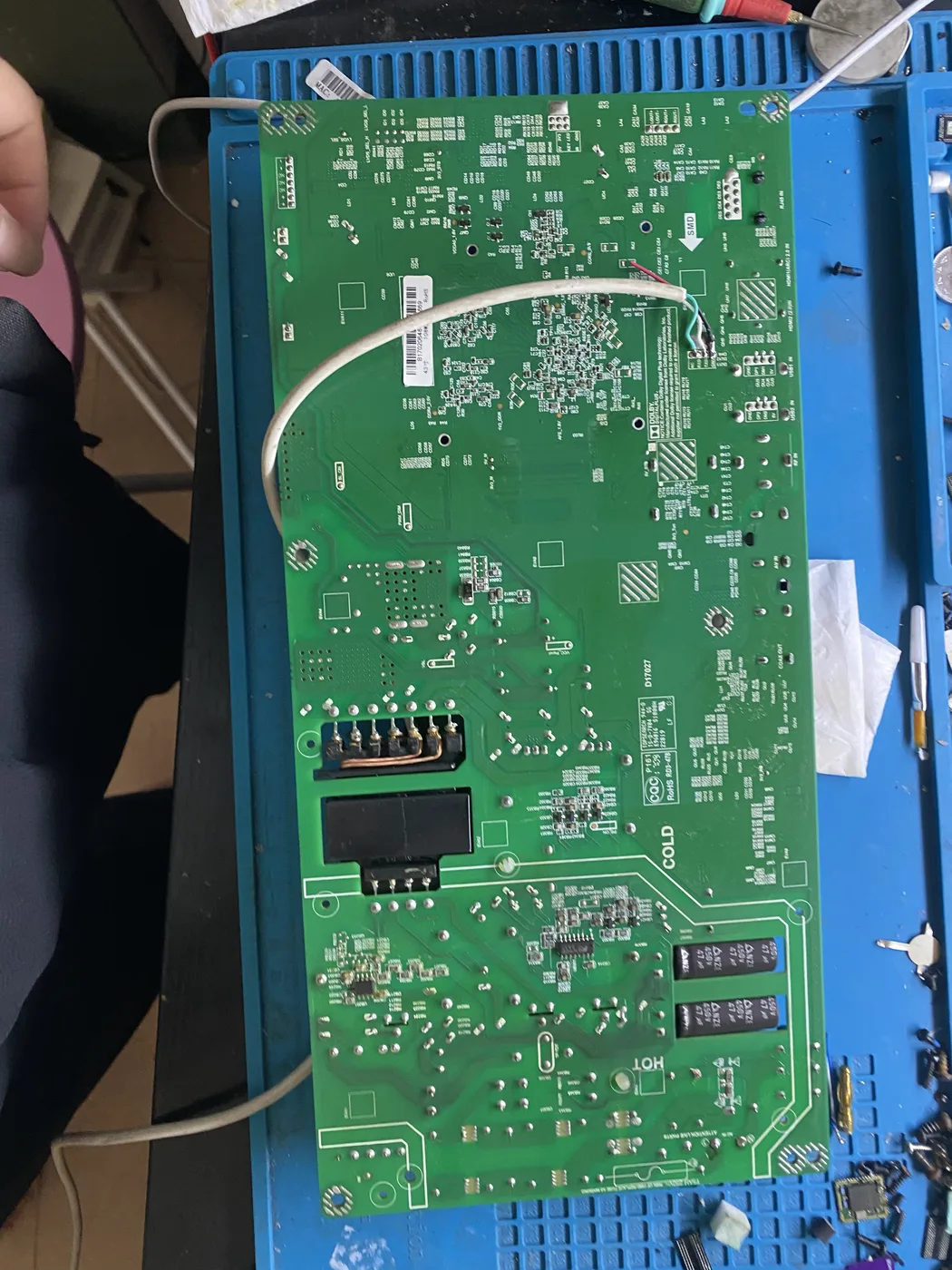

| 主板 | TPD.T962.PC791 (CVTE视源) |

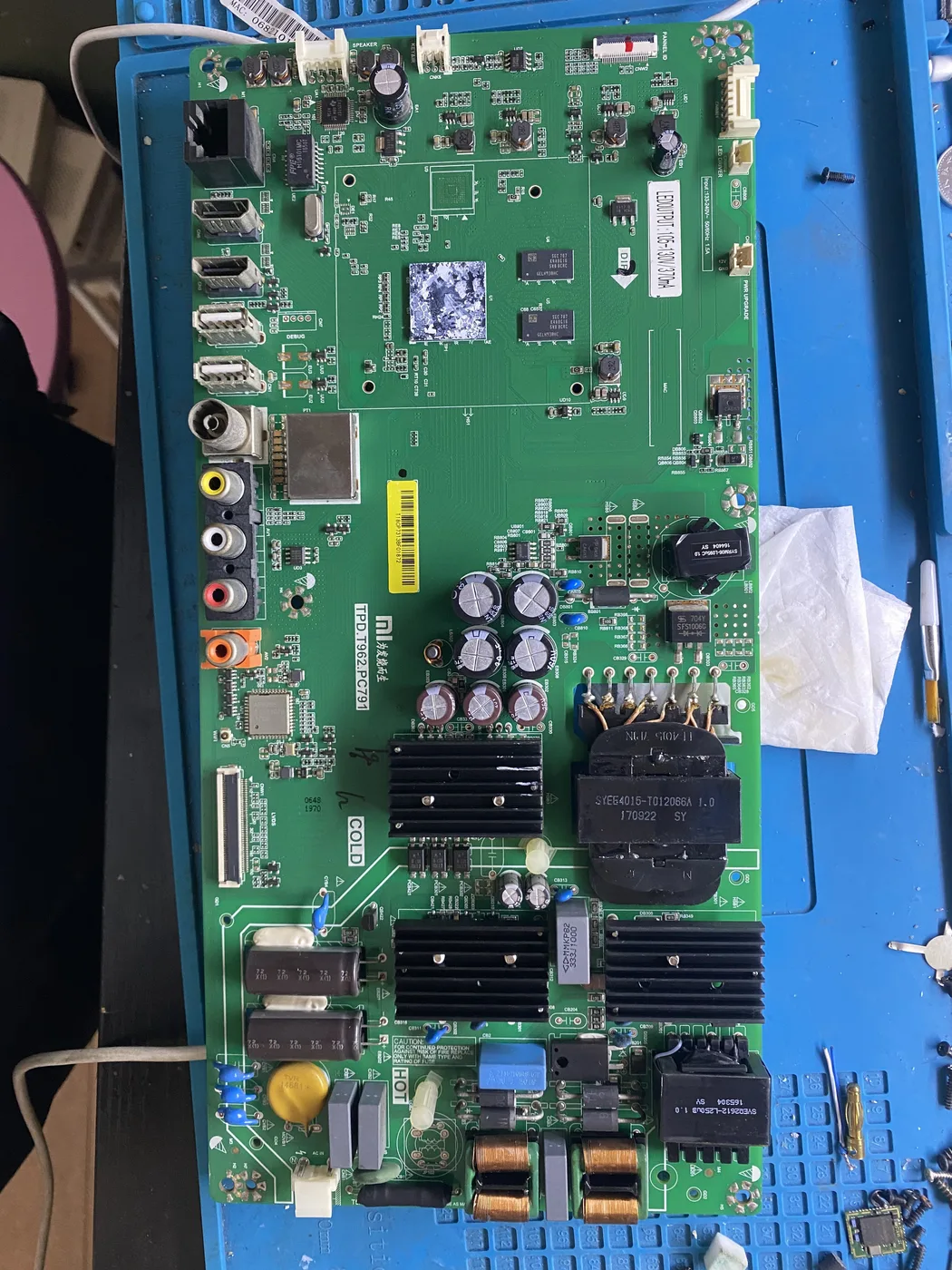

| SoC | Amlogic T962H (TXL平台) |
| 原eMMC | Samsung KLM8G1GETF-B041 8GB |
| 液晶屏 | Z430MI017A |
| T-CON | 6870C-0532A |
| 背光灯条 | IC-B-HWDC43D800 |
| LED驱动 | OB3350CP + TO-252 MOSFET |
| 电源 | 主板集成 PFC+PWM |
| 调谐器 | DVB-T/T2/C |
| 红外控制板 | DKTVXx-HM-FP-AC20161208 |
| 屏接口 | V-by-One |
| 音频功放 | TI TAS5707 |
| 蓝牙 | Broadcom BCM4345C0 |
| 串口 | 115200 baud |
屏幕参数
| 参数 | 值 |
|---|---|
| 尺寸 | 43英寸 |
| 分辨率 | 1920×1080 (FHD) |
| 面板类型 | VA |
| 面板信号 | V-by-One 1-lane |
| 刷新率 | 60Hz |
| 背光 | DLED 直下式 |
| T-CON | 6870C-0532A |
串口日志：原8GB eMMC
TXL:BL1:1ef924:56431c;FEAT:ADFD718C;POC:0;RCY:0;EMMC:0;READ:0;0.0;CHK:0;
TE: 152008
BL2 Built : 12:59:51, Jan 3 2018.
txl g3eab014 - xiaobo.gu@droid12
Board ID = 0
set vcck to 1100 mv
set vddee to 1000 mv
DRAM reset...
init panel power
board_id = 0
CPU clk: 1200MHz
DQS-corr enabled
DDR scramble enabled
DDR4 chl: Rank0+1 @ 792MHz - FAIL
DDR4 chl: Rank0 @ 792MHz
bist_test rank: 0 22 00 44 3a 1a 5a 20 00 40 3d 1f 5c 1f 00 3f 3b 1f 58 1e 00 3d 40 20 60 657 - PASS
Rank0: 2048MB(auto)-2T-18
AddrBus test pass!
-s
Load fip header from eMMC, src: 0x0000c200, des: 0x01400000, size: 0x00004000
Load bl30 from eMMC, src: 0x00010200, des: 0x01100000, size: 0x0000d600
Load bl31 from eMMC, src: 0x00020200, des: 0x10100000, size: 0x0001b400
Load bl33 from eMMC, src: 0x0003c200, des: 0x01000000, size: 0x0000dbc00
NOTICE: BL3-1: v1.0(debug):e46962f
NOTICE: BL3-1: Built : 17:20:18, Apr 20 2017
aml log : bl31 normal boot !
[Image: txl_v1.1.3166-87ff079 2018-01-02 17:24:45 jianxin.pan@droid06]
OPS=0x02
b0 38 fe 63 dc e4 d2 81 77 a ee 8b [0.729156 Inits done]
secure task start!
high task start!
low task start!
INFO: BL3-1: Initializing runtime services
WARNING: No OPTEE provided by BL2 boot loader
ERROR: Error initializing runtime service opteed_fast
INFO: BL3-1: Preparing for EL3 exit to normal world
INFO: BL3-1: Next image address = 0x1000000
INFO: BL3-1: Next image spsr = 0x3c9
U-Boot 2015.01-gadd6c9b (Dec 25 2018 - 11:57:16), Build: jenkins-Matrix_release-1290
DRAM: 2 GiB
Relocation Offset is: 76e98000
register usb cfg[0][1] = 0000000077f63610
gpio: pin GPIOH_3 (gpio 31) value is 1
gpio: pin GPIOH_2 (gpio 30) value is 1
gpio: pin GPIODV_5 (gpio 21) value is 1
gpio: pin GPIOZ_1 (gpio 39) value is 1
gpio: pin GPIOAO_2 (gpio 83) value is 1
gpio: pin GPIOAO_11 (gpio 92) value is 1
MMC: aml_priv->desc_buf = 0x0000000073e98d50
aml_priv->desc_buf = 0x0000000073e9aee0
SDIO Port B: 0, SDIO Port C: 1
emmc/sd response timeout, cmd8, status=0x1ff2800
emmc/sd response timeout, cmd55, status=0x1ff2800
[mmc_init] mmc init success
mmc read lba=0x14000, blocks=0x400
Amlogic multi-dtb tool
Multi dtb detected
txl_mt_cvte
Multi dtb tool version: v2 .
Support 5 dtbs.
aml_dt soc: txl platform: mt variant: cvte
dtb 0 soc: txl plat: mt vari: 950-1g
dtb 1 soc: txl plat: mt vari: cvte
dtb 2 soc: txl plat: mt vari: magnolia
dtb 3 soc: txl plat: mt vari: mi
dtb 4 soc: txl plat: mt-india vari: hw-43
Find match dtb: 1
start dts,buffer=0000000073e9d5f0,dt_addr=0000000073eaa5f0
parts: 14
00: logo 0000000000400000 1
01: recovery 0000000001000000 1
02: param 0000000002000000 2
03: crypt 0000000001000000 1
04: cri_data 0000000000800000 2
05: tvinfo 0000000000a00000 4
06: panic 0000000000400000 4
07: persist 0000000000800000 4
08: misc 0000000001000000 1
09: boot 0000000001400000 1
10: system 0000000040000000 1
11: cache 0000000010000000 2
12: backup 0000000024000000 4
13: data ffffffffffffffff 4
get_dtb_struct: Get emmc dtb OK!
overide_emmc_partition_table: overide cache
[mmc_get_partition_table] skip partition cache.
Partition table get from SPL is :
name offset size flag
===================================================================================
0: bootloader 0 400000 0
1: reserved 2400000 4000000 0
2: cache 6c00000 10000000 2
3: env 17400000 800000 0
4: logo 18400000 400000 1
5: recovery 19000000 1000000 1
6: param 1a800000 2000000 2
7: crypt 1d000000 1000000 1
8: cri_data 1e800000 800000 2
9: tvinfo 1f800000 a00000 4
10: panic 20a00000 400000 4
11: persist 21600000 800000 4
12: misc 22600000 1000000 1
13: boot 23e00000 1400000 1
14: system 25a00000 40000000 1
15: backup 66200000 24000000 4
16: data 8aa00000 147600000 4
mmc read lba=0x12000, blocks=0x2
mmc read lba=0x12002, blocks=0x2
mmc_read_partition_tbl: mmc read partition OK!
eMMC/TSD partition table have been checked OK!
mmc env offset: 0x17400000
In: serial
Out: serial
Err: serial
reboot_mode=cold_boot
[store]To run cmd[emmc dtb_read 0x1000000 0x40000]
read emmc dtb
Amlogic multi-dtb tool
Multi dtb detected
txl_mt_cvte
Multi dtb tool version: v2 .
Support 5 dtbs.
aml_dt soc: txl platform: mt variant: cvte
dtb 0 soc: txl plat: mt vari: 950-1g
dtb 1 soc: txl plat: mt vari: cvte
dtb 2 soc: txl plat: mt vari: magnolia
dtb 3 soc: txl plat: mt vari: mi
dtb 4 soc: txl plat: mt-india vari: hw-43
Find match dtb: 1
amlkey_init() enter!
[EFUSE_MSG]keynum is 4
[BL31]: tee size: 0
panel_detect: panel_id = 0, panel_type = vbyone_1
Saving Environment to aml-storage...
mmc env offset: 0x17400000
Writing to MMC(1)... done
vpu: clk_level in dts: 7
vpu: set clk: 666667000Hz, readback: 666660000Hz(0x300)
vpp: vpp_init
lcd: no lcd_debug_print flag
lcd: no lcd_debug_test flag
lcd: detect mode: tv, key_valid: 0
lcd: load config from dts
lcd: use panel_type=vbyone_1
lcd: set phy vswing=3, preemphasis=1
lcd: set ctrl_flag=0x0
lcd: bl: name: backlight_0, method: 1
lcd: bl: aml_bl_power_ctrl: 0
lcd: vx1_filter_en: 0
lcd: vx1_filter_time: 20
lcd: vx1_filter_cnt: 6
lcd: vx1_filter_retry_cnt: 2
lcd: vx1_filter_retry_delay: 100
Net: dwmac.c9410000
efuse_pw_en: 0x3
WARNING! efuse bits is disabled
Enable A53 JTAG to EE
ffu update start
8GME4
old fw_ver = 7
use codec tas5707!
wipe_data=successful
wipe_cache=successful
upgrade_step=2
amlkey_init() enter!
amlkey_init() 71: already init!
[EFUSE_MSG]keynum is 4
[BL31]: tee size: 0
[KM]Error:f[key_manage_query_size]L507:key[deviceid] not programed yet
[KM]Error:f[key_manage_query_size]L507:key[cp_type] not programed yet
mwm 0xc8837004:[0x aa203] with [0x ea203] ok
mwm 0xc883700c:[0x 3e3b744] with [0x 3e3b764] ok
mwm 0xc8837010:[0x c0101] with [0x c8101] ok
mwm 0xc8837010:[0x c8101] with [0x 128101] ok
IR init done!
InUsbBurn
noSof
do_monitor_bt_cmdline
gpio: pin GPIOAO_4 (gpio 85) value is 1
gpio: pin GPIODV_6 (gpio 22) value is 1
gpio: pin GPIOH_9 (gpio 37) value is 1
gpio: pin GPIOH_2 (gpio 30) value is 1
gpio: pin GPIOH_2 (gpio 30) value is 0
bt_vendor_name = Broadcom,bt_vendor_id= 0xf00
fw_patchfile:BCM4345C0.hcd
cmd=ext4size mmc 1:9 BCM4345C0.hcd 73e874c0
vfs_getsize size = 0x11770
cmd=ext4load mmc 1:9 73ec59a0 BCM4345C0.hcd 11770
71536 bytes read in 4 ms (17.1 MiB/s)
OK
start
run_dl_fw() -- hci send update baute rate
run_dl_fw() -- hci send update baute rate complete
run_dl_fw() -- start to dl fw
run_dl_fw() - download FW done
set scan parameters
set scan enable
no recovery mod!
BT_MAC:00:9E:C8:D4:67:76
cmd=ext4size mmc 1:9 wake_on_ble.conf 73e87450
vfs_getsize size = 0x0
wake_on_ble.conf get size failed
build_rc_command failed with -1
configure rc address:
0x01, 0x4c, 0xfc, 0x24, 0x00, 0x20, 0x00, 0xff, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x07, 0x02, 0x01, 0x05, 0x03, 0xff, 0x00, 0x01,
gpio: pin GPIOH_9 (gpio 37) value is 0
gpio: pin GPIODV_6 (gpio 22) value is 0
gpio: pin GPIOH_3 (gpio 31) value is 1
enter wake on ble!
Factory power mode: secondary
INFO: PSCI Affinity Map:
INFO: AffInst: Level 0, MPID 0x0, State ON
INFO: AffInst: Level 0, MPID 0x1, State OFF
INFO: AffInst: Level 0, MPID 0x2, State OFF
INFO: AffInst: Level 0, MPID 0x3, State OFF
bl31 reboot reason: 0x108
bl31 reboot reason: 0x108
system cmd 0.
bl30 get wakeup sources!
process command 00000006
bl30 enter suspend!
cpu clk suspend rate 1200000000
suspend_counter: 1
Enter ddr suspend
first time suspend
ddr suspend time: 1913us
store restore gp0 pll
process command 00000001
CEC cfg:0x0000
08915c0000000000read stick mem bad value!
[...重复省略...]
[serial port closed (code 0)]
串口日志：64GB eMMC（首次启动）
TXL:BL1:1ef924:56431c;FEAT:ADFD718C;POC:0;RCY:0;EMMC:0;READ:0;0.0;CHK:0;
TE: 269053
BL2 Built : 12:59:51, Jan 3 2018.
txl g3eab014 - xiaobo.gu@droid12
Board ID = 0
set vcck to 1100 mv
set vddee to 1000 mv
DRAM reset...
init panel power
board_id = 0
CPU clk: 1200MHz
DQS-corr enabled
DDR scramble enabled
DDR4 chl: Rank0+1 @ 792MHz - FAIL
DDR4 chl: Rank0 @ 792MHz
bist_test rank: 0 22 00 44 3a 1a 5a 1f 00 3f 3d 1e 5c 20 00 40 3d 20 5a 1e 00 3c 41 22 61 657 - PASS
Rank0: 2048MB(auto)-2T-18
AddrBus test pass!
-s
Load fip header from eMMC, src: 0x0000c200, des: 0x01400000, size: 0x00004000
Load bl30 from eMMC, src: 0x00010200, des: 0x01100000, size: 0x0000d600
Load bl31 from eMMC, src: 0x00020200, des: 0x10100000, size: 0x0001b400
Load bl33 from eMMC, src: 0x0003c200, des: 0x01000000, size: 0x0000dbc00
NOTICE: BL3-1: v1.0(debug):e46962f
NOTICE: BL3-1: Built : 17:20:18, Apr 20 2017
aml log : bl31 normal boot !
[Image: txl_v1.1.3166-87ff079 2018-01-02 17:24:45 jianxin.pan@droid06]
OPS=0x02
b0 38 fe 63 dc e4 d2 81 77 a ee 8b [0.846957 Inits done]
secure task start!
high task start!
low task start!
INFO: BL3-1: Initializing runtime services
WARNING: No OPTEE provided by BL2 boot loader
ERROR: Error initializing runtime service opteed_fast
INFO: BL3-1: Preparing for EL3 exit to normal world
INFO: BL3-1: Next image address = 0x1000000
INFO: BL3-1: Next image spsr = 0x3c9
U-Boot 2015.01-gadd6c9b (Dec 25 2018 - 11:57:16), Build: jenkins-Matrix_release-1290
DRAM: 2 GiB
Relocation Offset is: 76e98000
register usb cfg[0][1] = 0000000077f63610
gpio: pin GPIOH_3 (gpio 31) value is 1
gpio: pin GPIOH_2 (gpio 30) value is 1
gpio: pin GPIODV_5 (gpio 21) value is 1
gpio: pin GPIOZ_1 (gpio 39) value is 1
gpio: pin GPIOAO_2 (gpio 83) value is 1
gpio: pin GPIOAO_11 (gpio 92) value is 1
MMC: aml_priv->desc_buf = 0x0000000073e98d50
aml_priv->desc_buf = 0x0000000073e9aee0
SDIO Port B: 0, SDIO Port C: 1
emmc/sd response timeout, cmd8, status=0x1ff2800
emmc/sd response timeout, cmd55, status=0x1ff2800
[mmc_init] mmc init success
mmc read lba=0x14000, blocks=0x400
Amlogic multi-dtb tool
Multi dtb detected
txl_mt_cvte
Multi dtb tool version: v2 .
Support 5 dtbs.
aml_dt soc: txl platform: mt variant: cvte
dtb 0 soc: txl plat: mt vari: 950-1g
dtb 1 soc: txl plat: mt vari: cvte
dtb 2 soc: txl plat: mt vari: magnolia
dtb 3 soc: txl plat: mt vari: mi
dtb 4 soc: txl plat: mt-india vari: hw-43
Find match dtb: 1
start dts,buffer=0000000073e9d5f0,dt_addr=0000000073eaa5f0
parts: 14
00: logo 0000000000400000 1
01: recovery 0000000001000000 1
02: param 0000000002000000 2
03: crypt 0000000001000000 1
04: cri_data 0000000000800000 2
05: tvinfo 0000000000a00000 4
06: panic 0000000000400000 4
07: persist 0000000000800000 4
08: misc 0000000001000000 1
09: boot 0000000001400000 1
10: system 0000000040000000 1
11: cache 0000000010000000 2
12: backup 0000000024000000 4
13: data ffffffffffffffff 4
get_dtb_struct: Get emmc dtb OK!
overide_emmc_partition_table: overide cache
[mmc_get_partition_table] skip partition cache.
Partition table get from SPL is :
name offset size flag
===================================================================================
0: bootloader 0 400000 0
1: reserved 2400000 4000000 0
2: cache 6c00000 10000000 2
3: env 17400000 800000 0
4: logo 18400000 400000 1
5: recovery 19000000 1000000 1
6: param 1a800000 2000000 2
7: crypt 1d000000 1000000 1
8: cri_data 1e800000 800000 2
9: tvinfo 1f800000 a00000 4
10: panic 20a00000 400000 4
11: persist 21600000 800000 4
12: misc 22600000 1000000 1
13: boot 23e00000 1400000 1
14: system 25a00000 40000000 1
15: backup 66200000 24000000 4
16: data 8aa00000 e04e00000 4
mmc read lba=0x12000, blocks=0x2
mmc read lba=0x12002, blocks=0x2
mmc_read_partition_tbl: mmc read partition OK!
mmc_partition_verify: partition[16] is different
Partition table verified ERROR!
Following is the partition table stored in eMMC/TSD:
name offset size flag
===================================================================================
0: bootloader 0 400000 0
1: reserved 2400000 4000000 0
2: cache 6c00000 10000000 2
3: env 17400000 800000 0
4: logo 18400000 400000 1
5: recovery 19000000 1000000 1
6: param 1a800000 2000000 2
7: crypt 1d000000 1000000 1
8: cri_data 1e800000 800000 2
9: tvinfo 1f800000 a00000 4
10: panic 20a00000 400000 4
11: persist 21600000 800000 4
12: misc 22600000 1000000 1
13: boot 23e00000 1400000 1
14: system 25a00000 40000000 1
15: backup 66200000 24000000 4
16: data 8aa00000 147600000 4
mmc write lba=0x12000, blocks=0x2
mmc write lba=0x12002, blocks=0x2
mmc_write_partition_tbl: mmc write partition OK!
eMMC/TSD partition table have been checked OK!
mmc env offset: 0x17400000
In: serial
Out: serial
Err: serial
reboot_mode=cold_boot
[store]To run cmd[emmc dtb_read 0x1000000 0x40000]
read emmc dtb
Amlogic multi-dtb tool
Multi dtb detected
txl_mt_cvte
Multi dtb tool version: v2 .
Support 5 dtbs.
aml_dt soc: txl platform: mt variant: cvte
dtb 0 soc: txl plat: mt vari: 950-1g
dtb 1 soc: txl plat: mt vari: cvte
dtb 2 soc: txl plat: mt vari: magnolia
dtb 3 soc: txl plat: mt vari: mi
dtb 4 soc: txl plat: mt-india vari: hw-43
Find match dtb: 1
amlkey_init() enter!
[EFUSE_MSG]keynum is 4
[BL31]: tee size: 0
panel_detect: panel_id = 0, panel_type = vbyone_1
Saving Environment to aml-storage...
mmc env offset: 0x17400000
Writing to MMC(1)... done
vpu: clk_level in dts: 7
vpu: set clk: 666667000Hz, readback: 666660000Hz(0x300)
vpp: vpp_init
lcd: no lcd_debug_print flag
lcd: no lcd_debug_test flag
lcd: detect mode: tv, key_valid: 0
lcd: load config from dts
lcd: use panel_type=vbyone_1
lcd: set phy vswing=3, preemphasis=1
lcd: set ctrl_flag=0x0
lcd: bl: name: backlight_0, method: 1
lcd: bl: aml_bl_power_ctrl: 0
lcd: vx1_filter_en: 0
lcd: vx1_filter_time: 20
lcd: vx1_filter_cnt: 6
lcd: vx1_filter_retry_cnt: 2
lcd: vx1_filter_retry_delay: 100
Net: dwmac.c9410000
efuse_pw_en: 0x3
WARNING! efuse bits is disabled
Enable A53 JTAG to EE
ffu update start
old fw_ver = 7
use codec tas5707!
wipe_data=successful
wipe_cache=successful
upgrade_step=2
amlkey_init() enter!
amlkey_init() 71: already init!
[EFUSE_MSG]keynum is 4
[BL31]: tee size: 0
[KM]Error:f[key_manage_query_size]L507:key[deviceid] not programed yet
[KM]Error:f[key_manage_query_size]L507:key[cp_type] not programed yet
mwm 0xc8837004:[0x aa203] with [0x ea203] ok
mwm 0xc883700c:[0x 3e3b744] with [0x 3e3b764] ok
mwm 0xc8837010:[0x c0101] with [0x c8101] ok
mwm 0xc8837010:[0x c8101] with [0x 128101] ok
IR init done!
InUsbBurn
noSof
do_monitor_bt_cmdline
gpio: pin GPIOAO_4 (gpio 85) value is 1
gpio: pin GPIODV_6 (gpio 22) value is 1
gpio: pin GPIOH_9 (gpio 37) value is 1
gpio: pin GPIOH_2 (gpio 30) value is 1
gpio: pin GPIOH_2 (gpio 30) value is 0
bt_vendor_name = Broadcom,bt_vendor_id= 0xf00
fw_patchfile:BCM4345C0.hcd
cmd=ext4size mmc 1:9 BCM4345C0.hcd 73e874c0
vfs_getsize size = 0x11770
cmd=ext4load mmc 1:9 73ec59a0 BCM4345C0.hcd 11770
71536 bytes read in 4 ms (17.1 MiB/s)
OK
start
run_dl_fw() -- hci send update baute rate
run_dl_fw() -- hci send update baute rate complete
run_dl_fw() -- start to dl fw
run_dl_fw() - download FW done
set scan parameters
set scan enable
no recovery mod!
BT_MAC:00:9E:C8:D4:67:76
cmd=ext4size mmc 1:9 wake_on_ble.conf 73e87450
vfs_getsize size = 0x0
wake_on_ble.conf get size failed
build_rc_command failed with -1
configure rc address:
0x01, 0x4c, 0xfc, 0x24, 0x00, 0x20, 0x00, 0xff, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x07, 0x02, 0x01, 0x05, 0x03, 0xff, 0x00, 0x01,
gpio: pin GPIOH_9 (gpio 37) value is 0
gpio: pin GPIODV_6 (gpio 22) value is 0
gpio: pin GPIOH_3 (gpio 31) value is 1
enter wake on ble!
Factory power mode: secondary
INFO: PSCI Affinity Map:
INFO: AffInst: Level 0, MPID 0x0, State ON
INFO: AffInst: Level 0, MPID 0x1, State OFF
INFO: AffInst: Level 0, MPID 0x2, State OFF
INFO: AffInst: Level 0, MPID 0x3, State OFF
bl31 reboot reason: 0x108
bl31 reboot reason: 0x108
system cmd 0.
bl30 get wakeup sources!
process command 00000006
bl30 enter suspend!
cpu clk suspend rate 1200000000
suspend_counter: 1
Enter ddr suspend
first time suspend
ddr suspend time: 1913us
store restore gp0 pll
process command 00000001
CEC cfg:0x0000
08915c0000000000read stick mem bad value!
[...重复省略...]
bad value!
[serial port closed (code 0)]
串口日志：64GB eMMC（第二次启动）
TXL:BL1:1ef924:56431c;FEAT:ADFD718C;POC:0;RCY:0;EMMC:0;READ:0;0.0;CHK:0;
TE: 271535
BL2 Built : 12:59:51, Jan 3 2018.
txl g3eab014 - xiaobo.gu@droid12
Board ID = 0
CPU clk: 1200MHz
DQS-corr enabled
DDR scramble enabled
DDR4 chl: Rank0+1 @ 792MHz - FAIL
DDR4 chl: Rank0 @ 792MHz
bist_test rank: 0 ... - PASS
Rank0: 2048MB(auto)-2T-18
AddrBus test pass!
U-Boot 2015.01-gadd6c9b (Dec 25 2018 - 11:57:16), Build: jenkins-Matrix_release-1290
DRAM: 2 GiB
[mmc_init] mmc init success
Amlogic multi-dtb tool
Multi dtb detected
txl_mt_cvte
Find match dtb: 1
Partition table get from SPL is :
name offset size flag
data 8aa00000 e04e00000 4
mmc read lba=0x12000, blocks=0x2
mmc read lba=0x12002, blocks=0x2
mmc_read_partition_tbl: mmc read partition OK!
eMMC/TSD partition table have been checked OK!
reboot_mode=cold_boot
panel_detect: panel_id = 0, panel_type = vbyone_1
use codec tas5707!
ffu update start
wipe_data=successful
wipe_cache=successful
upgrade_step=2
InUsbBurn
noSof
do_monitor_bt_cmdline
run_dl_fw() - download FW done
no recovery mod!
wake_on_ble.conf get size failed
build_rc_command failed with -1
enter wake on ble!
Factory power mode: secondary
bl31 reboot reason: 0x108
bl30 enter suspend!
Enter ddr suspend
read stick mem bad value!
[...重复省略...]
read stick mem bad bad value!
[serial port closed (code 0)]
分区表对比
| # | 分区 | Offset | 8GB Size | 64GB Size | Flag |
|---|---|---|---|---|---|
| 0 | bootloader | 0x00000000 | 0x0400000 | 0x0400000 | 0 |
| 1 | reserved | 0x02400000 | 0x4000000 | 0x4000000 | 0 |
| 2 | cache | 0x06c00000 | 0x10000000 | 0x10000000 | 2 |
| 3 | env | 0x17400000 | 0x0800000 | 0x0800000 | 0 |
| 4 | logo | 0x18400000 | 0x0400000 | 0x0400000 | 1 |
| 5 | recovery | 0x19000000 | 0x1000000 | 0x1000000 | 1 |
| 6 | param | 0x1a800000 | 0x2000000 | 0x2000000 | 2 |
| 7 | crypt | 0x1d000000 | 0x1000000 | 0x1000000 | 1 |
| 8 | cri_data | 0x1e800000 | 0x0800000 | 0x0800000 | 2 |
| 9 | tvinfo | 0x1f800000 | 0x0a00000 | 0x0a00000 | 4 |
| 10 | panic | 0x20a00000 | 0x0400000 | 0x0400000 | 4 |
| 11 | persist | 0x21600000 | 0x0800000 | 0x0800000 | 4 |
| 12 | misc | 0x22600000 | 0x1000000 | 0x1000000 | 1 |
| 13 | boot | 0x23e00000 | 0x1400000 | 0x1400000 | 1 |
| 14 | system | 0x25a00000 | 0x40000000 | 0x40000000 | 1 |
| 15 | backup | 0x66200000 | 0x24000000 | 0x24000000 | 4 |
| 16 | data | 0x8aa00000 | 0x147600000 | 0xe04e00000 | 4 |
附：海尔T962维修手册
同目录 SM_Haier_LU50C51G_T962.rar，海尔 LU50C51G 同为 Amlogic T962 平台，主板方案可交叉参考。
💖 打赏支持
如果这篇文章帮到了你，欢迎打赏支持
微信扫一扫，赞赏支持
发表回复
